Falcon 18 Series Parts Manual 107997
Open the original PDF document
View PDF
Monarch 18 Series Parts Manual
Touch Bar Exit Device
Table of Contents
| 18 Rim Exit Device - Panic 4-5 | |
|---|---|
| F-18 Rim Exit Device - Fire 6-7 | |
| (F)18 Rim Center Case - Panic and Fire 8-9 | |
| (F)18-V Surface Vertical Rod Exit Device - Panic and Fire 10-11 | |
| (F)18-V Surface Vertical Rods a& Latches - Panic and Fire 12-13 | |
| (F)18-V Surface Vertical Center Case - Panic and Fire 14-15 | |
| (F)18-C Concealed Vertical Rod Exit Device - Panic and Fire 16-17 | |
| (F)18-C Concealed Vertical Rods & Latches - Panic and Fire 18-19 | |
| (F)18-C Concealed Vertical Top Latches and Plates - Wood and Metal Door, Panic and Fire 20 | |
| (F)18-C Concealed Vertical Center Case - Panic and Fire 21 | |
| (F)18-M Mortise Exit Device - Panic and Fire 22-23 | |
| (F)18-M Mortise Lock - Panic and Fire 24-25 | |
| (F)18-M Mortise Center Case - Panic and Fire 26-27 | |
| (F)18-TPL Three Point Latch Exit Device - Panic and Fire 28-29 | |
| (F)18-TPL Three Point Latch Rods & Latches - Panic and Fire 30-31 | |
| (F)18 Three Point Latch Center Case - Panic and Fire32 | |
| 18 Series Optional Equipment 33 |
Introduction
This manual contains a listing of replaceable parts and assemblies for the 18 series exit device.
How to Order
Some parts are sold separately. Other parts are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available fi nish)
Part Number Changes
This manual refl ects the product as sold in November 2007. Because of changes to the product and/or manufacturing processes, part numbers can change.

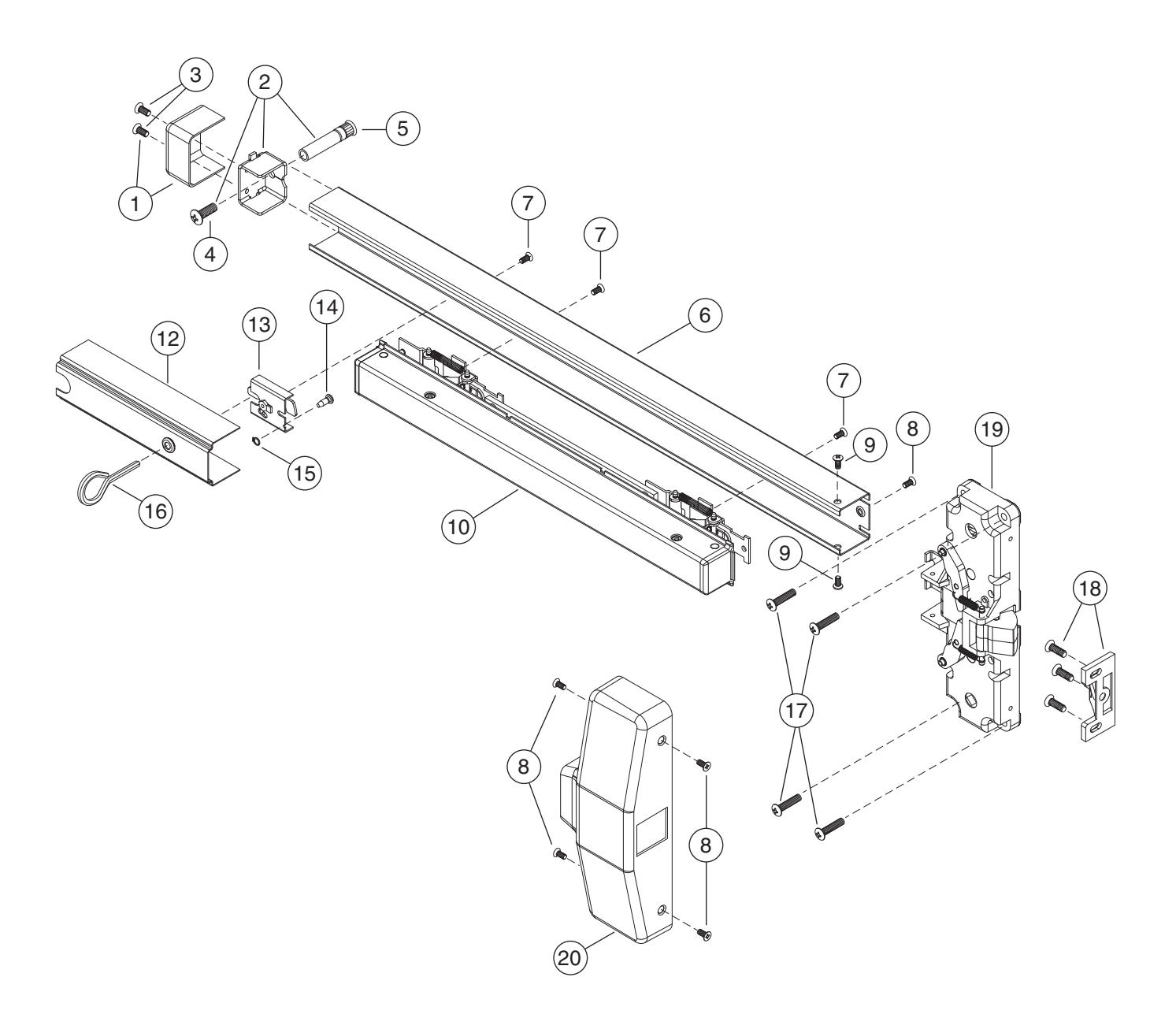

18 Rim Exit Device
Panic
18 Rim Exit Device
Panic
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 12 | 1 | 610279 | Dogging Cover Sub Assembly 2' & 2'5" Door | A |
| 12 | 1 | 185 | Dogging Cover Sub Assembly 3' Door | A |
| 12 | 1 | 184 | Dogging Cover Sub Assembly 4' Door | A |
| 13 | 1 | 193 | Dogging Sub Assembly | |
| 14 | 1 | 4086 | Dogging Pin Shaft | |
| 15 | 1 | 660443 | Retaining Ring | |
| 16 | 1 | 2789 | 7/32" Hex Key | |
| 17 | 4 | 660004 | #10-24 x 1-1/4" PPHSMS | |
| 18 | 1 | 630015 | Roller Strike for Panic and Fire - Standard | |
| 19 | 1 | 182 | 18 Panic Center Case Assembly (EO Function) | |
| 19 | 1 | 610246 | 18-K/L Center Case RHR (Lever/Knob) | |
| 19 | 1 | 610247 | 18-K/L Center Case LHR (Lever/Knob) | |
| 19 | 1 | 650095 | 18-K/L-2 Center Case RHR (Lever/Knob with Double Cylinder) | |
| 19 | 1 | 650096 | 18-K/L-2 Center Case LHR (Lever/Knob with Double Cylinder) | |
| 19 | 1 | 610254 | FSA-18-K/L Center Case RHR (Lever/Knob) | |
| 19 | 1 | 610269 | FSA-18-K/L Center Case LHR (Lever/Knob) | |
| 19 | 1 | 610271 | FSE-18-K/L Center Case RHR (Lever/Knob) | |
| 19 | 1 | 610261 | FSE-18-K/L Center Case LHR (Lever/Knob) | |
| 20 | 1 | 4222 | 18 Panic Center Case Cover | A |
| 20 | 1 | 4764R | 18-2 Center Case Cover RHR | A |
| 20 | 1 | 4764L | 18-2 Center Case Cover LHR | A |
| * | 1 | 600101 | 18-R Mounting Pkg |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.
F-18 Rim Exit Device
Fire
F-18 Rim Exit Device
Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 11 | 1 | 4955 | Channel Cover 3' Door (Fire Device Only) | A |
| 11 | 1 | 4956 | Channel Cover 2', 2'5", and 4' Door (Fire Device Only) | A |
| 17 | 4 | 660004 | #10-24 x 1-1/4" PPHSMS | |
| 18 | 1 | 630015 | F-570 Roller Strike for Panic and Fire - Standard | |
| 21 | 1 | 885 | F-18-R-EO Center Case Assembly | |
| 21 | 1 | 610248 | F-18-R-K/L Center Case Assembly RHR | |
| 21 | 1 | 610249 | F-18-R-K/L Center Case Assembly LHR | |
| 22 | 1 | 4223 | 18 Fire Center Case Cover | A |
| 23 | 2 | 660062 | 10-24 x 1-1/2" PPHMS | |
| * | 1 | 600100 | F-18-R Mounting Pkg |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

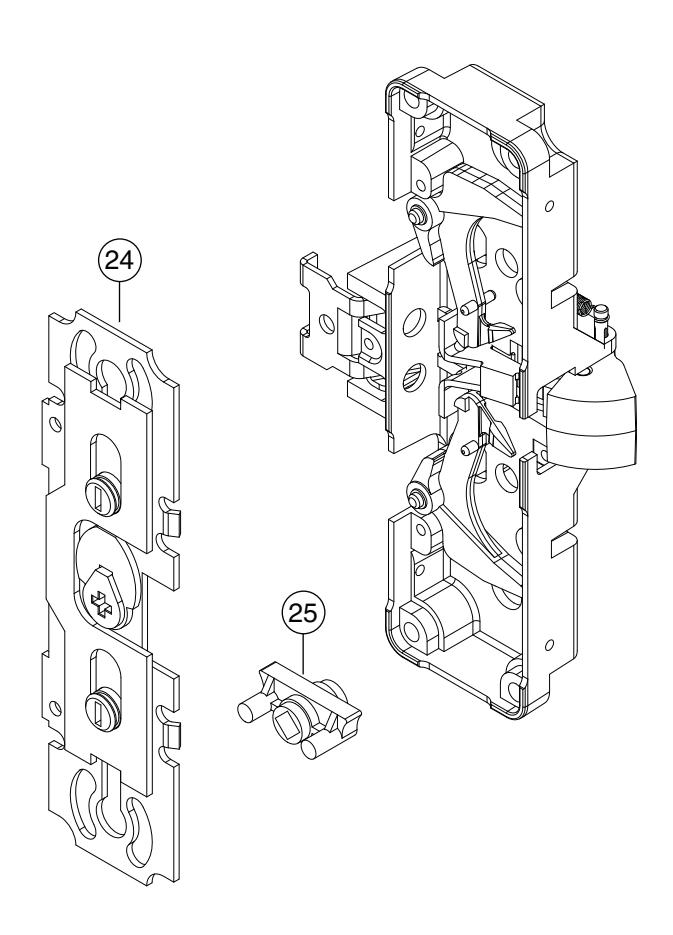

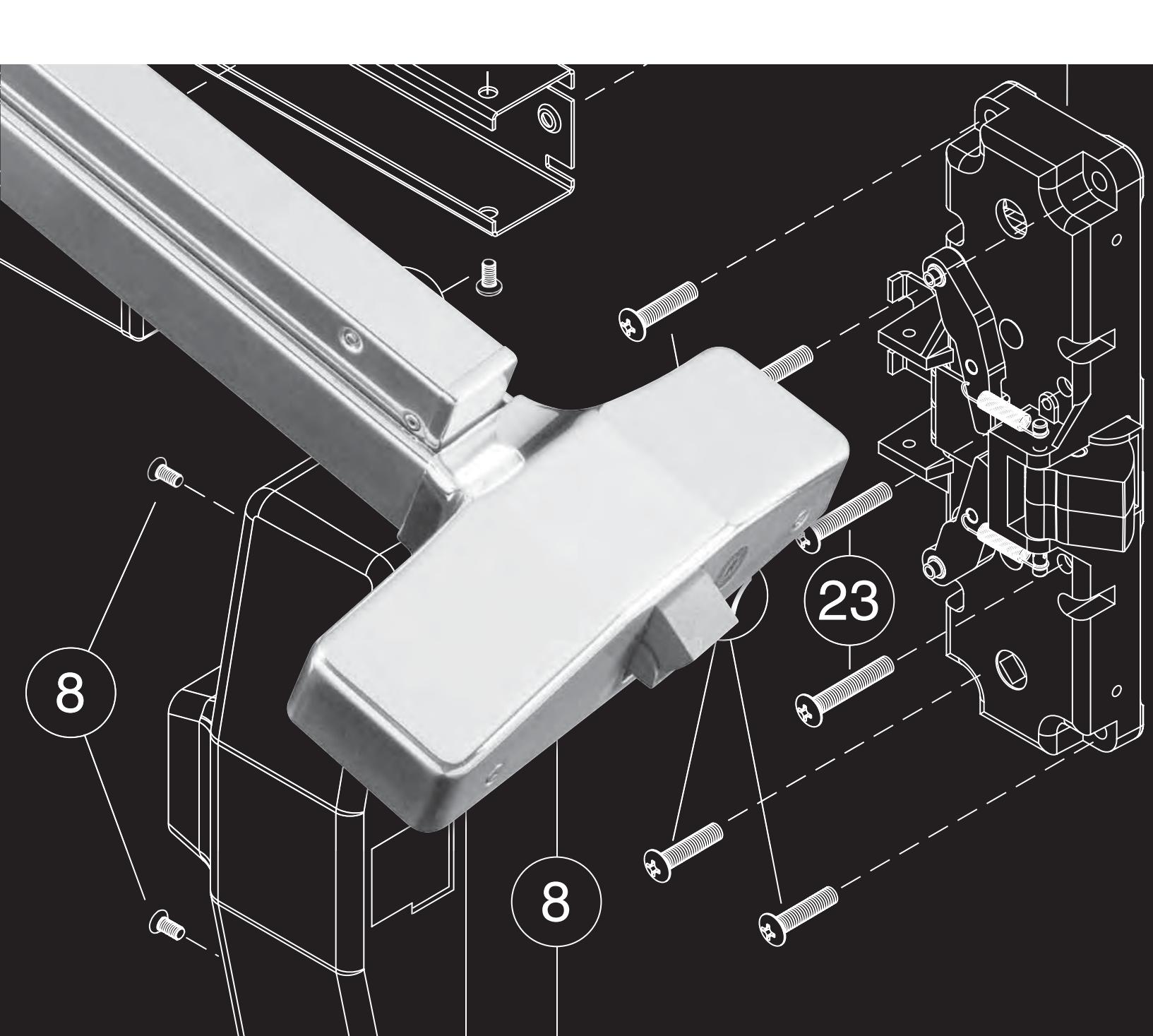

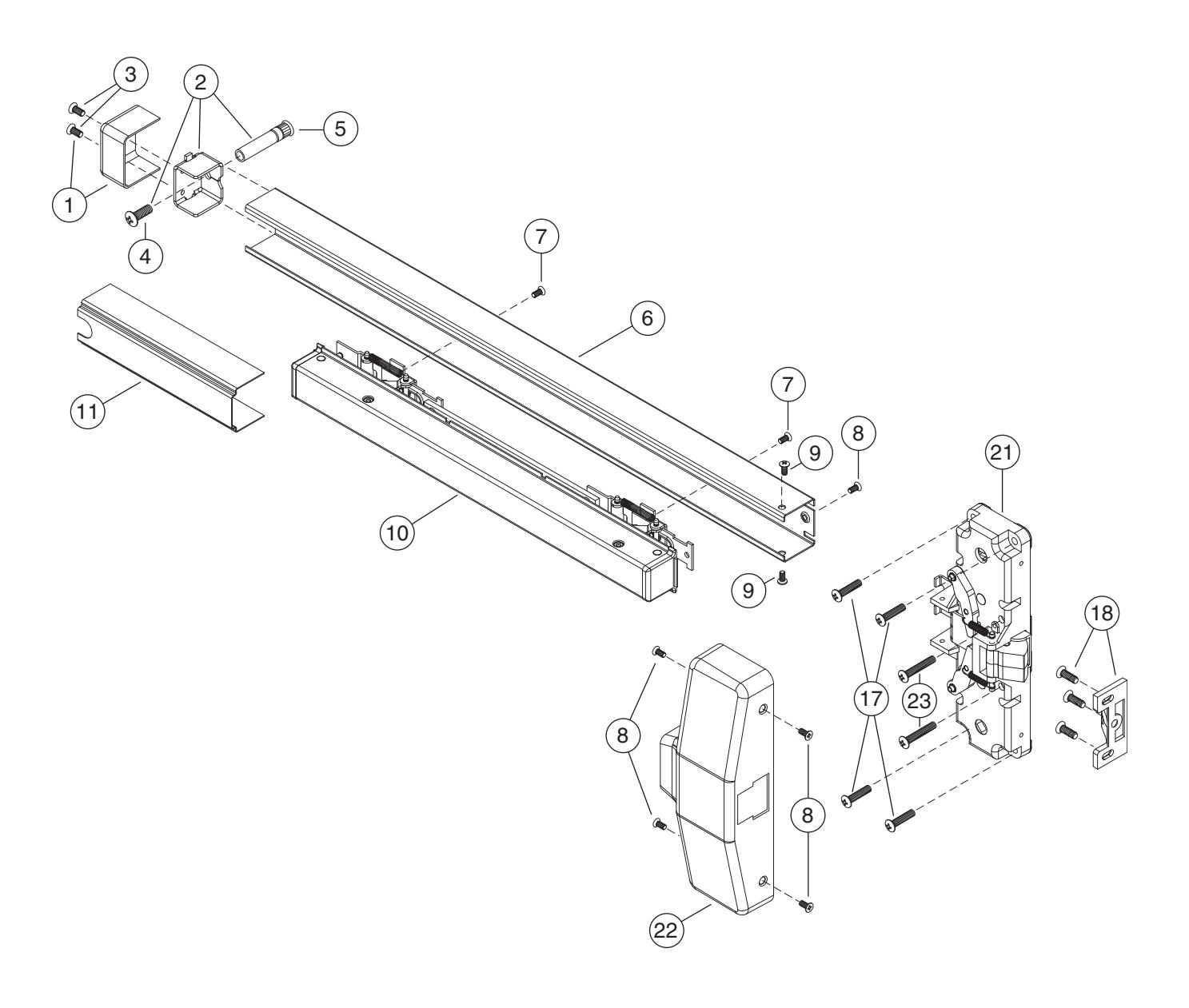

(F)18 Rim Center Case
(F)18 Rim Center Case
Panic and Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 24 | 1 | 610070 | 18 Rim Back Cover Assembly | |
| 25 | 1 | 3755 | K-Hub | B |
B. Used in K/L functions only.

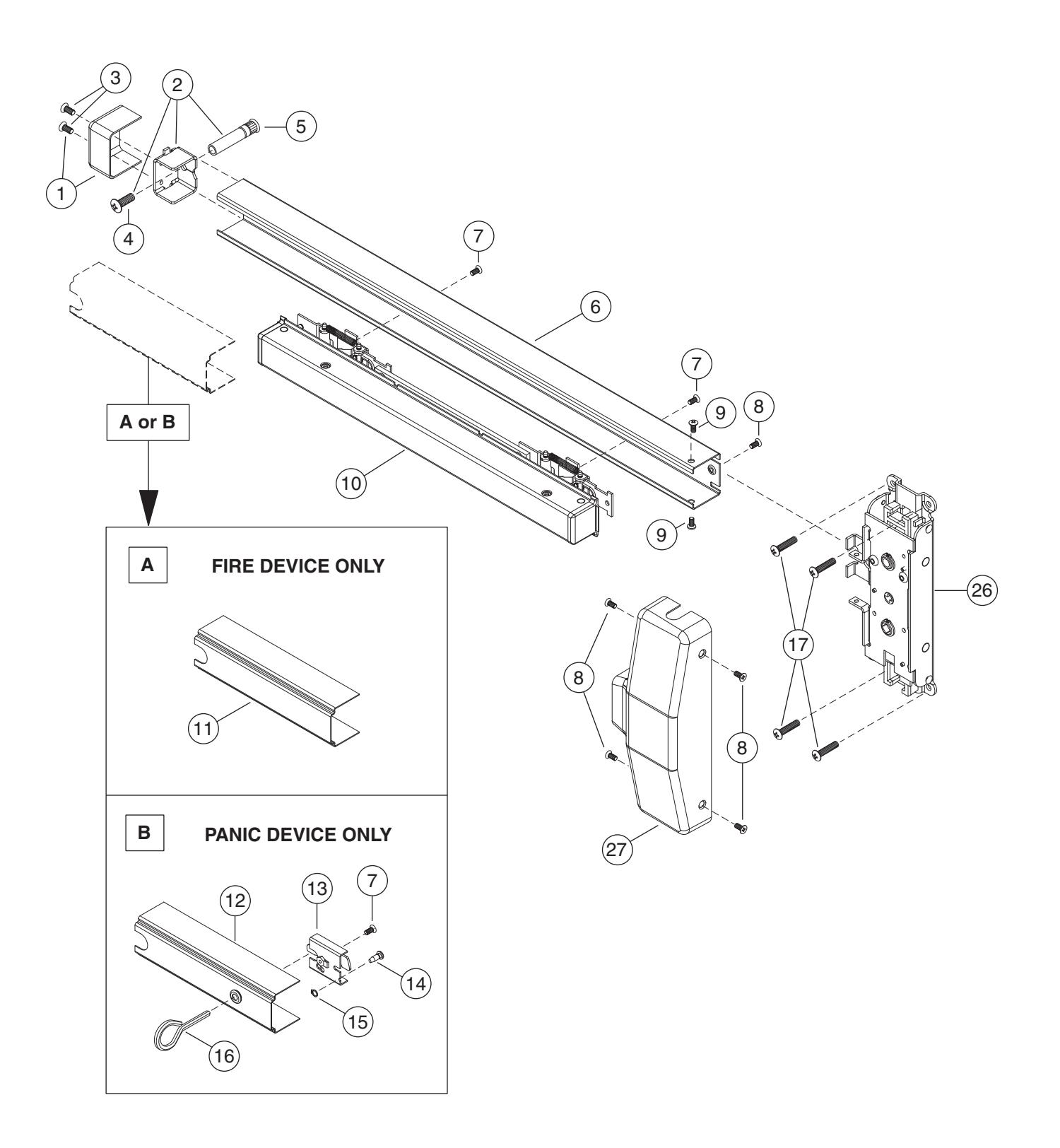

(F)18-V Surface Vertical Rod Exit Device
(F)18-V Surface Vertical Rod Exit Device
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 11 | 1 | 4955 | Channel Cover 3' Door (Fire Device Only) | A |
| 11 | 1 | 4956 | Channel Cover 2', 2'5", and 4' Door (Fire Device Only) | A |
| 12 | 1 | 610279 | Dogging Cover Sub Assembly 2' & 2'5" Door | A |
| 12 | 1 | 185 | Dogging Cover Sub Assembly 3' Door | A |
| 12 | 1 | 184 | Dogging Cover Sub Assembly 4' Door | A |
| 13 | 1 | 193 | Dogging Sub Assembly | |
| 14 | 1 | 4086 | Dogging Pin Shaft | |
| 15 | 1 | 660443 | Retaining Ring | |
| 16 | 1 | 2789 | 7/32" Hex Key | |
| 17 | 4 | 660004 | #10-24 x 1-1/4" PPHSMS | |
| 26 | 1 | 883L | 18 LHR Surface Vertical Center Case Sub Assembly "EO" | |
| 26 | 1 | 883R | 18 RHR Surface Vertical Center Case Sub Assembly "EO" | |
| 27 | 1 | 4221 | 18 Surface Vertical Center Case Cover | A |
| * | 1 | 600102 | 18-V Mounting Pkg | |
| * | 1 | 600103 | F-18-V Mounting Pkg |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

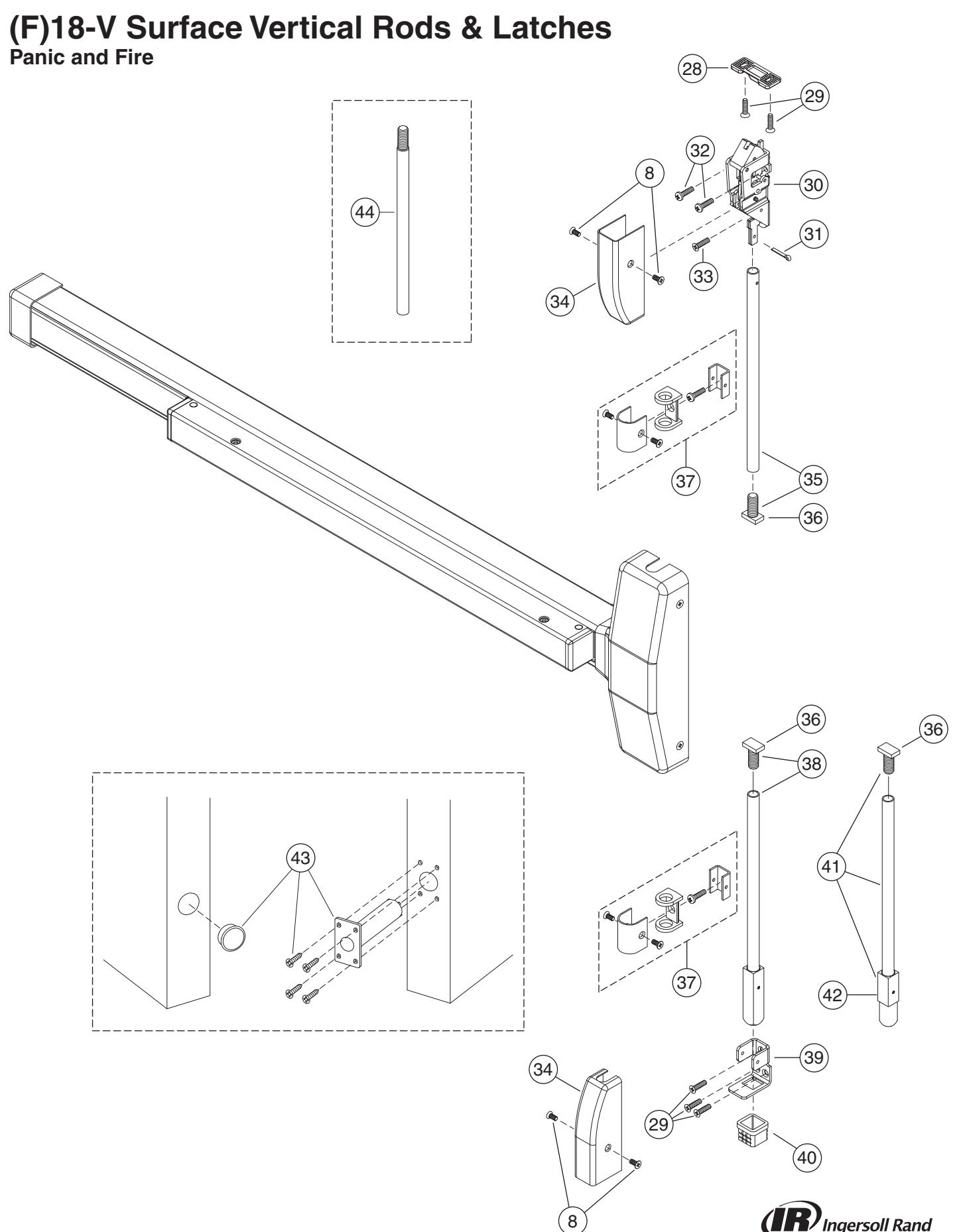

(F)18-V Surface Vertical Rods & Latches Panic and Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 8 | 2 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 28 | 1 | 630010 | 3788 Strike - Surface Vertical Rod Panic and Fire Devices - Standard | |
| 29 | 2 | 660002 | #10 x 1-1/4" FPHSMS | |
| 29 | 2 | 660078 | #10-24 x 3/4" FPHMS (Fire) | |
| 30 | 1 | 588 | Surface Vertical Top Latch Case Sub Assembly - Panic | |
| 30 | 1 | F588 | Surface Vertical Top Latch Case Sub Assembly - Fire | |
| 31 | 1 | 661102 | 1/8" x 3/4" Cotter Key | |
| 32 | 2 | 660004 | #10 x 1-1/4" PPHSMS | |
| 32 | 2 | 660081 | #10-24 x 3/4" PPHMS (Fire) | |
| 33 | 2 | 660002 | #10 x 1-1/4" FPHSMS | |
| 33 | 2 | 660078 | #10-24 x 3/4" FPHMS (Fire) | |
| 34 | 2 | 3781 | Latch Case Cover | A |
| 35 | 1 | 3777 | Surface Vertical Top Rod Sub Assembly | |
| 36 | 2 | 4400 | Surface Vertical Rod Adjustment Screw | |
| 37 | 2 | 590 | Rod Guide and Support | A |
| 38 | 1 | 610034 | Surface Vertical Bottom Bolt and Rod Assembly | |
| 39 | 1 | 610035 | Surface Vertical Bottom Guide Assembly | A |
| 40 | 1 | 2130 | 2130 Strike - Surface and Concealed for Panic or Fire - Standard | |
| 41 | 1 | 610225 | 18-V Round Bottom Bolt Rod Assembly | A |
| 42 | 1 | 610227 | 18-V Round Bottom Bolt | |
| 43 | 1 | 5494 | Auxiliary Fire Latch (Fire - Less Bottom Rod Only) | |
| 44 | 1 | 650006 | Vertical Extension Rod 12" | A |
| 44 | 1 | 650007 | Vertical Extension Rod 24" | A |
| 44 | 1 | 650008 | Vertical Extension Rod 36" | A |
| * | 1 | 600102 | 18-V Mounting Pkg | |
| * | 1 | 600103 | F-18-V Mounting Pkg |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

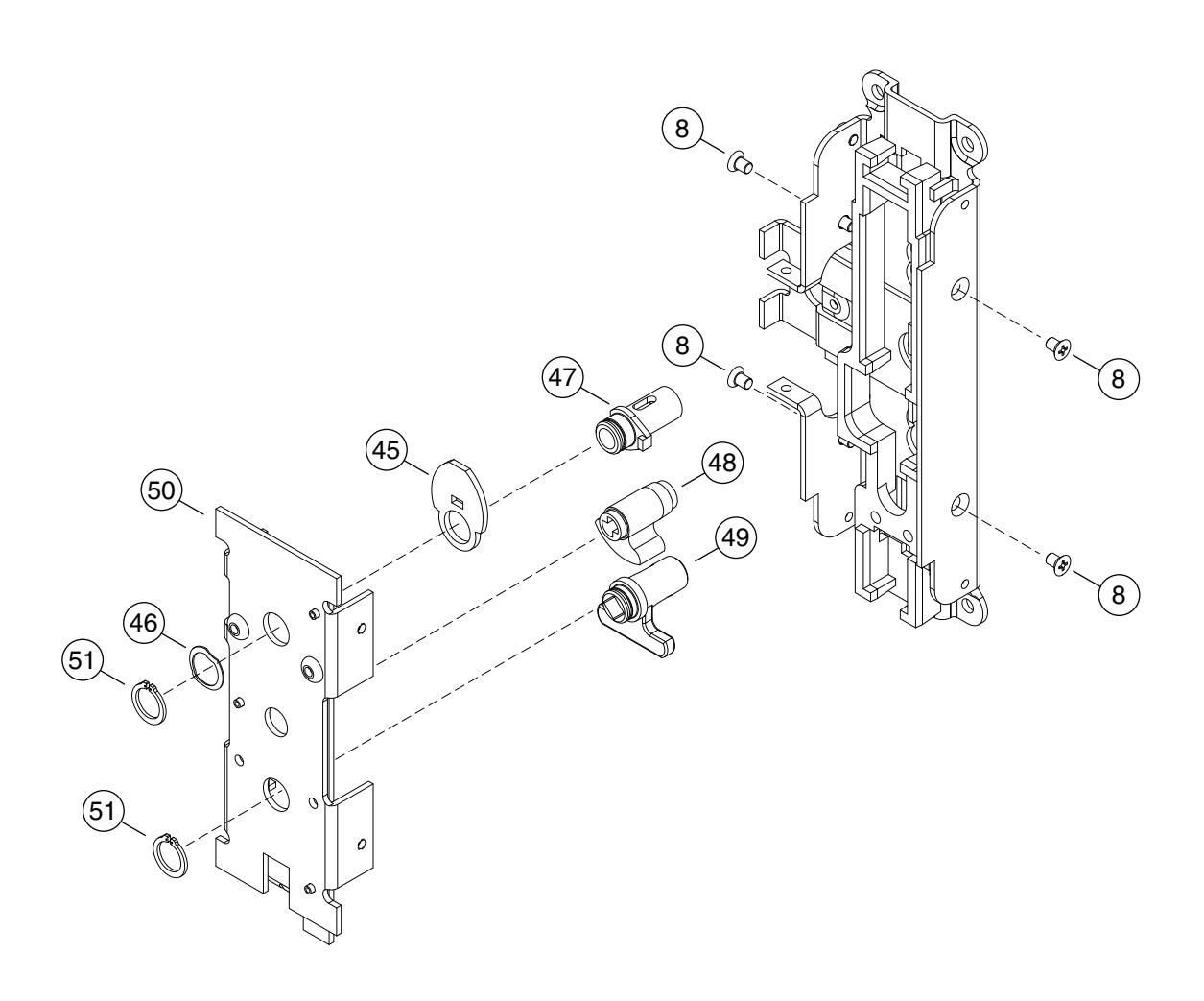

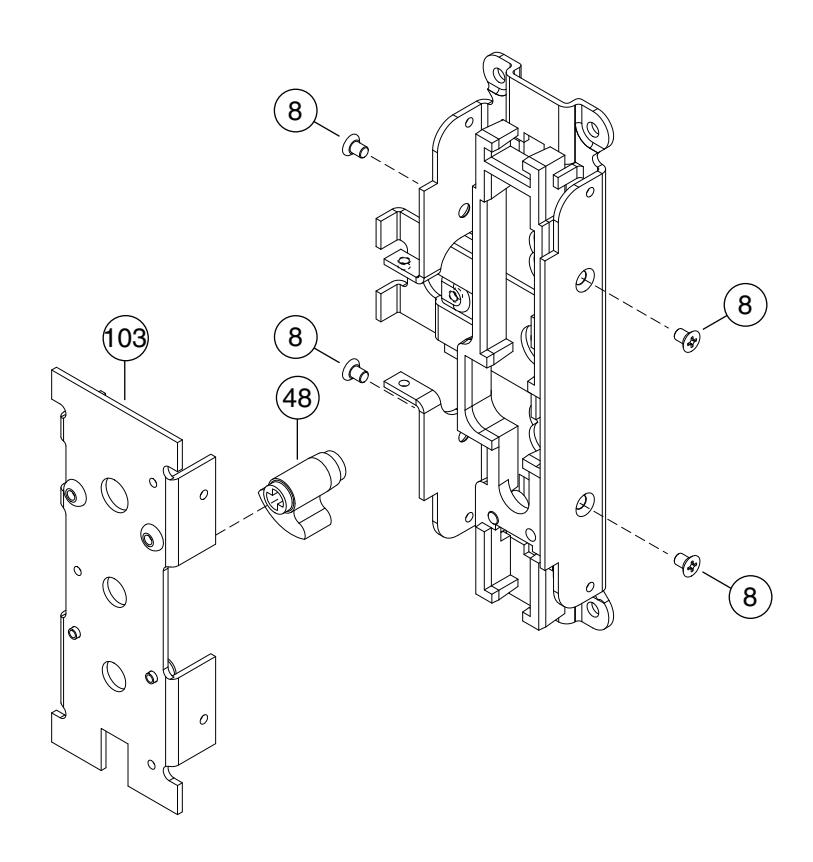

(F)18-V Surface Vertical Center Case
(F)18-V Surface Vertical Center Case
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS | |
| 45 | 1 | 3762 | 18 Locking Cam | C |
| 46 | 1 | 4299101024 | Wave Washer | |
| 47 | 1 | 4233 | 18 Locking Cam Operator | C |
| 48 | 1 | 4231 | 18 Main Cam | |
| 49 | 1 | 4232 | 18 K Hub | B |
| 50 | 1 | 610033 | 18 Surface Vertical Cover Plate Sub Assembly | |
| 51 | 2 | 660441 | Retaining Ring | C |
- B. Used in K/L trim functions only.
- C. Omit for "BE" trim function.

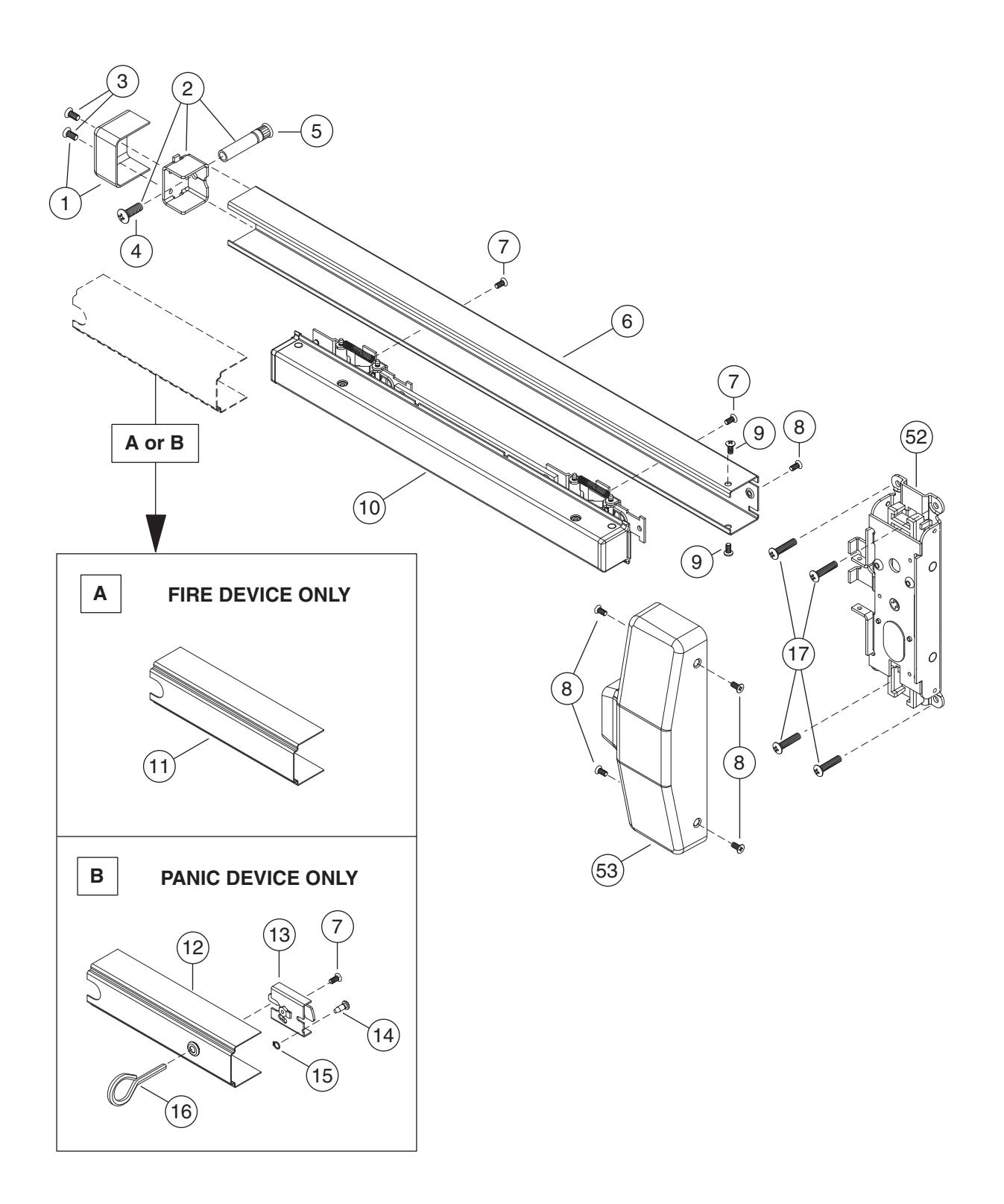

(F)18-C Concealed Vertical Rod Exit Device
Fire and Panic
(F)18-C Concealed Vertical Rod Exit Device
Fire and Panic
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 11 | 1 | 4955 | Channel Cover 3' Door (Fire Device Only) | A |
| 11 | 1 | 4956 | Channel Cover 2', 2'5", and 4' Door (Fire Device Only) | A |
| 12 | 1 | 610279 | Dogging Cover Sub Assembly 2' & 2'5" Door | A |
| 12 | 1 | 185 | Dogging Cover Sub Assembly 3' Door | A |
| 12 | 1 | 184 | Dogging Cover Sub Assembly 4' Door | A |
| 13 | 1 | 193 | Dogging Sub Assembly | |
| 14 | 1 | 4086 | Dogging Pin Shaft | |
| 15 | 1 | 660443 | Retaining Ring | |
| 16 | 1 | 2789 | 7/32" Hex Key | |
| 17 | 4 | 660004 | #10-24 x 1-1/4" PPHSMS | |
| 52 | 1 | 889 | 18 Concealed Vertical Center Case Sub Assembly "EO" | |
| 53 | 1 | 4220 | 18 Concealed Vertical Center Case Cover | |
| * | 1 | 600105 | 18-C Device Mounting Package | |
| * | 1 | 600104 | F-18-C Device Mounting Package | |
| * | 1 | 600111 | 18-WDC Device Mounting Package | A |
| * | 1 | 600109 | F-18-WDC (20 Minute) Device Mounting Package | A |
| * | 1 | 600110 | F-18-WDC (90 Minute) Device Mounting Package |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

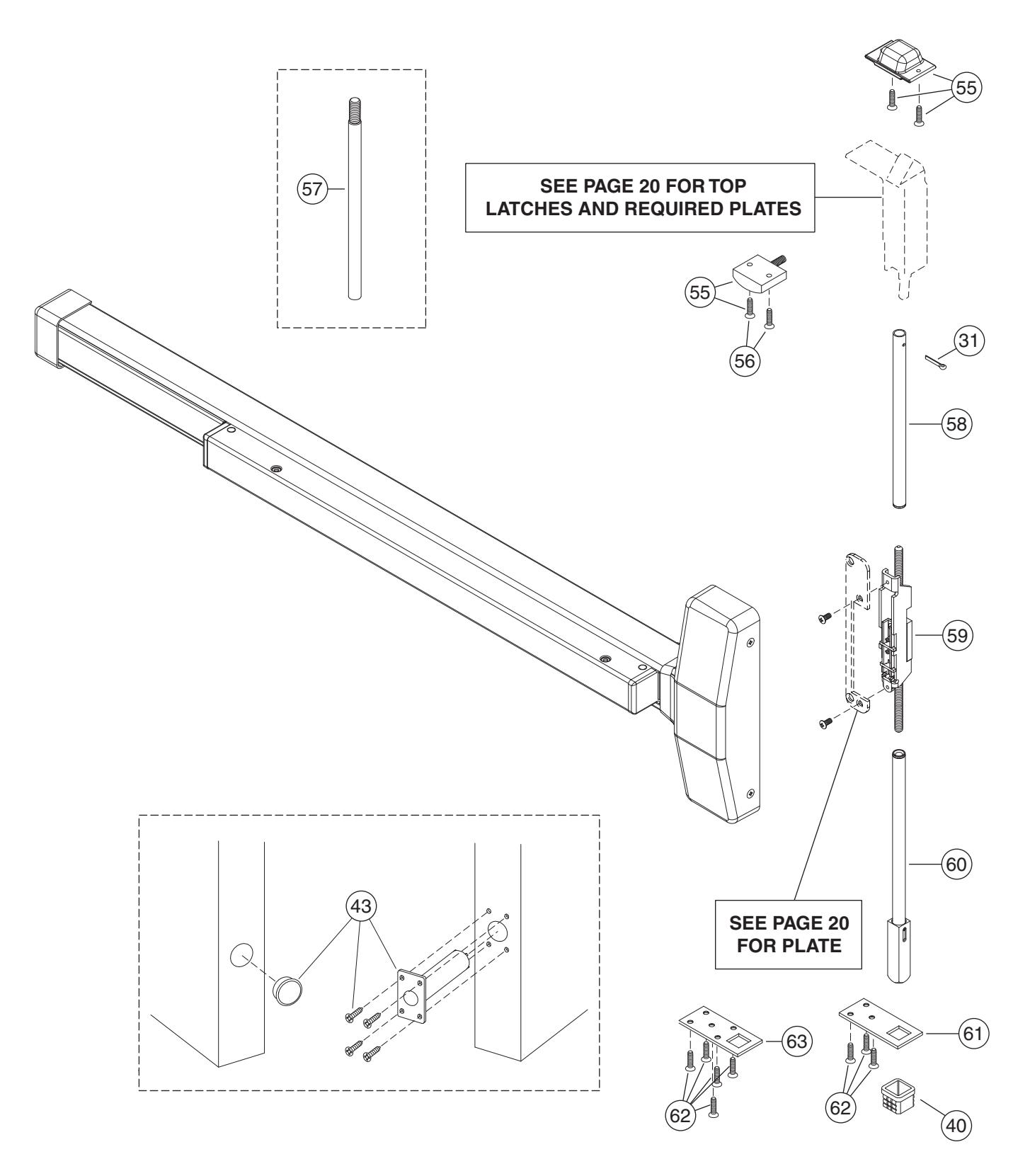

(F)18-C Concealed Vertical Rods & Latches
Fire and Panic
(F)18-C Concealed Vertical Rods & Latches
Fire and Panic
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 40 | 1 | 630013 | 2130 Strike - Surface and Concealed for Panic or Fire - Standard | |
| 43 | 1 | 5494 | Auxiliary Fire Latch (Fire - Less Bottom Rod Only) | |
| 54 | 1 | 630012 | 4188 Strike - Concealed Vertical Rod Panic and Fire Devices - Standard | |
| 55 | 1 | 600144 | Top Latch Release Sub Assembly | A |
| 56 | 2 | 660078 | #10-24 x 3/4" FPHMS | A |
| 57 | 1 | 650017 | Concealed Vertical Extension Rod 12" | |
| 57 | 1 | 650018 | Concealed Vertical Extension Rod 24" | |
| 57 | 1 | 650019 | Concealed Vertical Extension Rod 36" | |
| 58 | 1 | 610061 | Top Rod Sub Assembly | |
| 59 | 1 | 610043 | Center Slide Sub Assembly | |
| 60 | 1 | 610057 | Bottom Rod Sub Assembly | |
| 61 | 1 | 4567 | Bottom Bolt Guide | |
| 62 | 8 | 660002 | #10 x 1-1/4" FPHSMS (Panic or Wood) | A |
| 62 | 9 | 660078 | #10-24 x 3/4" FPHMS (Fire) | A |
| 63 | 1 | 4835 | Bottom Bolt Guide - WDC | |
| * | 1 | 600105 | 18-C Device Mounting Package | |
| * | 1 | 600104 | F-18-C Device Mounting Package | |
| * | 1 | 600111 | 18-WDC Device Mounting Package | A |
| * | 1 | 600109 | F-18-WDC (20 Minute) Device Mounting Package | A |
| * | 1 | 600110 | F-18-WDC (90 Minute) Device Mounting Package |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

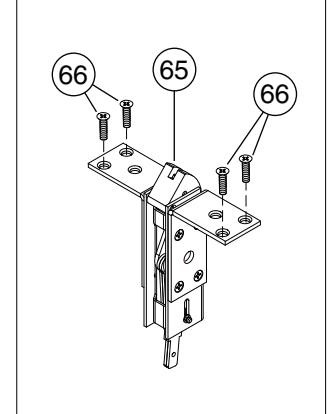

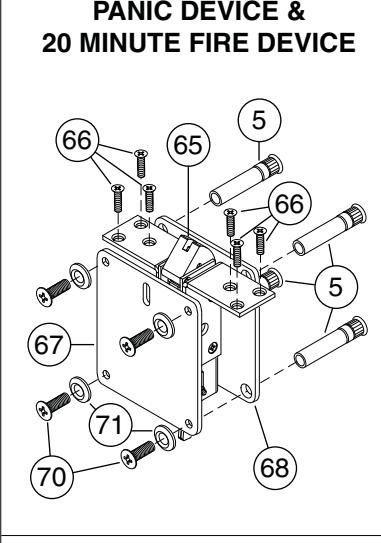

(F)18-C Concealed Vertical Top Latches and Plates
Wood and Metal Door, Panic and Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 5 | 6 | 4122 | 1/4"-20 Sex Bolt | A |

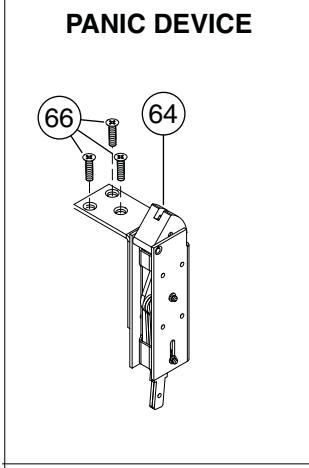

| 64 | 1 | 603 | Concealed Top Latch Case Sub Assembly (Panic) | |

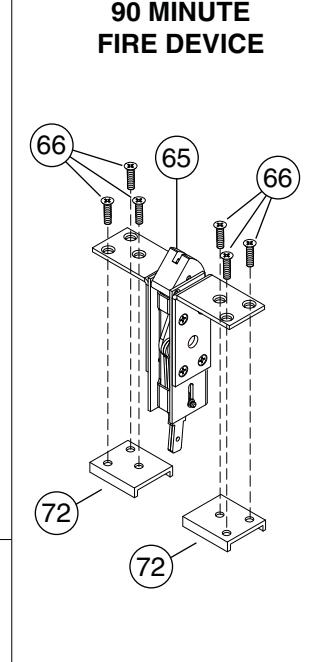

| 65 | 1 | F603 | Concealed Top Latch Case Sub Assembly (Fire) | |
| 66 | 6 | 660078 | #10-24 x 3/4" FPHMS | |
| 67 | 1 | 4834 | Top Reinforcement Plate with Access Hole | A |
| 68 | 1 | 4833 | Top Reinforcement Plate | A |
| 69 | 1 | 4832 | Center Slide Reinforcement Plate | |
| 70 | 4 | 660044 | 1/4"-20 x 3/4" FPHMS | A |
| 71 | 4 | 600185 | 1/4" CSK Finish Washer | A |
| 72 | 2 | 4694 | Latch Bracket | |

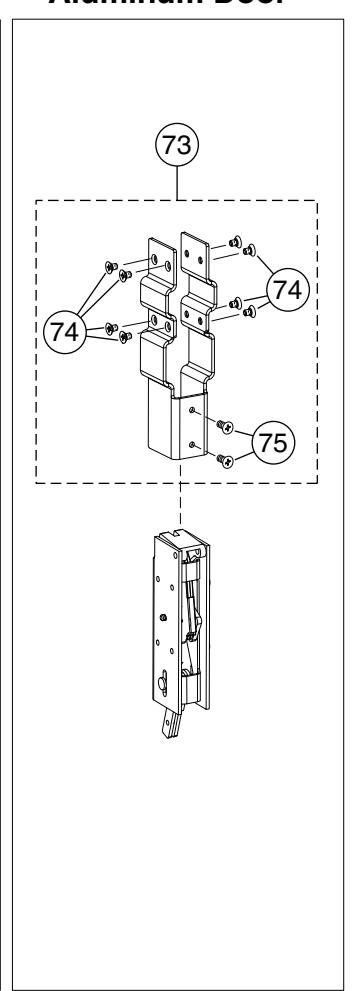

| 73 | 1 | 600174 | Aluminum Door Bracket Package | |
| 74 | 8 | 660121 | #8-32 x 1/4" PPHMS with Nylon Patch | |
| 75 | 2 | 660066 | #10-24 x 1/2" FPHMS |
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

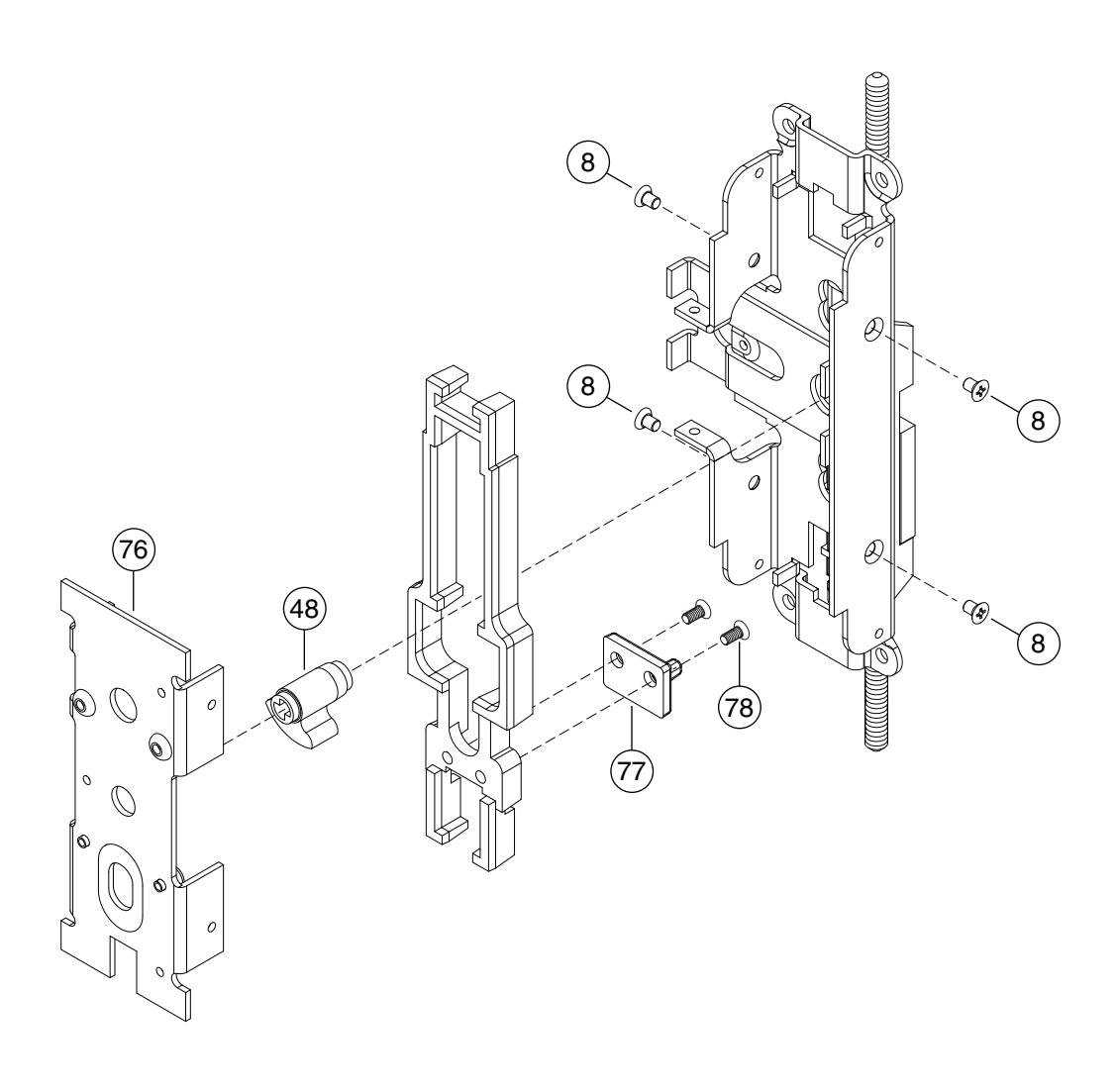

(F)18-C Concealed Vertical Rod Center Case
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS | |
| 48 | 1 | 4231 | 18 Main Cam | |
| 76 | 1 | 610071 | 18 Concealed Cover Plate Sub Assembly | |
| 77 | 1 | 4246 | Lift Finger | |
| 78 | 2 | 660065 | #10-24 x 1/2" FPHMS with Nylon Patch |

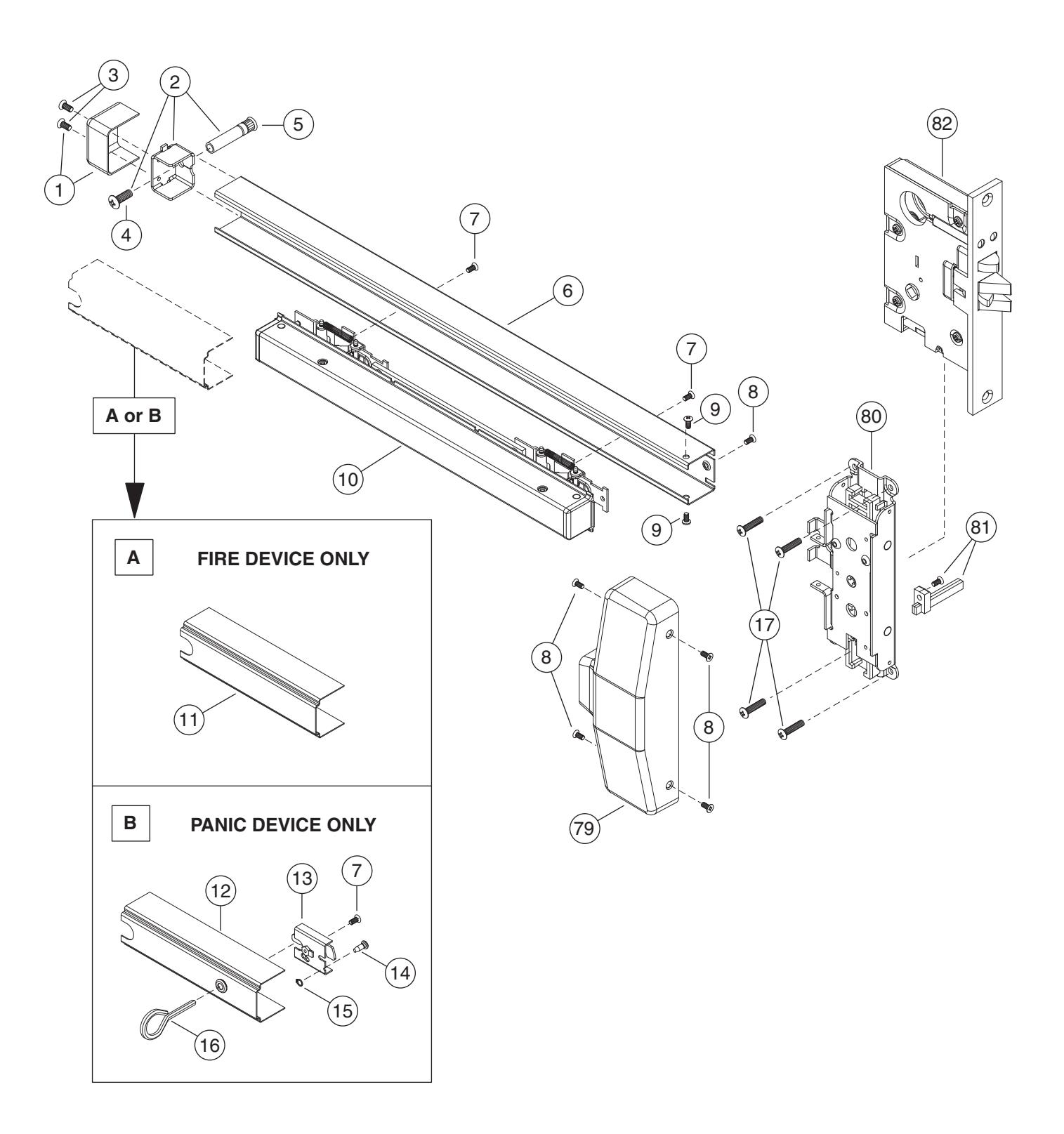

(F)18-M Mortise Exit Device
(F)18-M Mortise Exit Device
Panic and Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 11 | 1 | 4955 | Channel Cover 3' Door (Fire Device Only) | A |
| 11 | 1 | 4956 | Channel Cover 2', 2'5", and 4' Door (Fire Device Only) | A |
| 12 | 1 | 610279 | Dogging Cover Sub Assembly 2' & 2'5" Door | A |
| 12 | 1 | 185 | Dogging Cover Sub Assembly 3' Door | A |
| 12 | 1 | 184 | Dogging Cover Sub Assembly 4' Door | A |
| 13 | 1 | 193 | Dogging Sub Assembly | |
| 14 | 1 | 4086 | Dogging Pin Shaft | |
| 15 | 1 | 660443 | Retaining Ring | |
| 16 | 1 | 2789 | 7/32" Hex Key | |
| 17 | 4 | 660004 | #10-24 x 1-1/4" PPHSMS | |
| 79 | 1 | 4220 | 18 Mortise Center Case Cover | A |
| 80 | 1 | 887 | 18 Mortise Center Case Assembly | |
| 81 | 1 | 600117 | Lift Finger with Mounting Screw | |
| 82 | 1 | Mortise Lock - 8500 x Function x Handing | A | |
| * | 1 | 600106 | 18-M Device Mounting Package | |
| * | 1 | 600107 | F-18-M Device Mounting Package |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

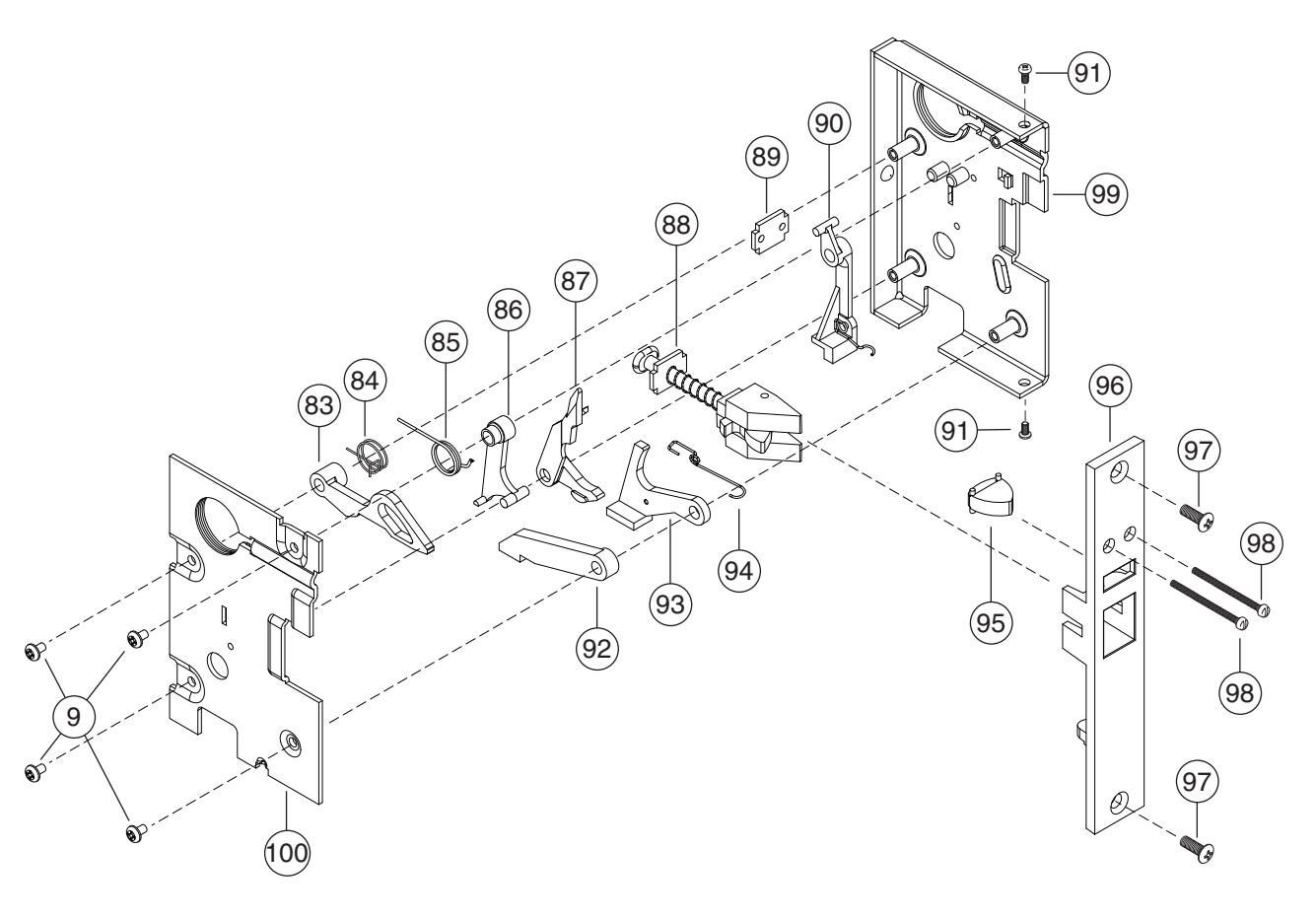

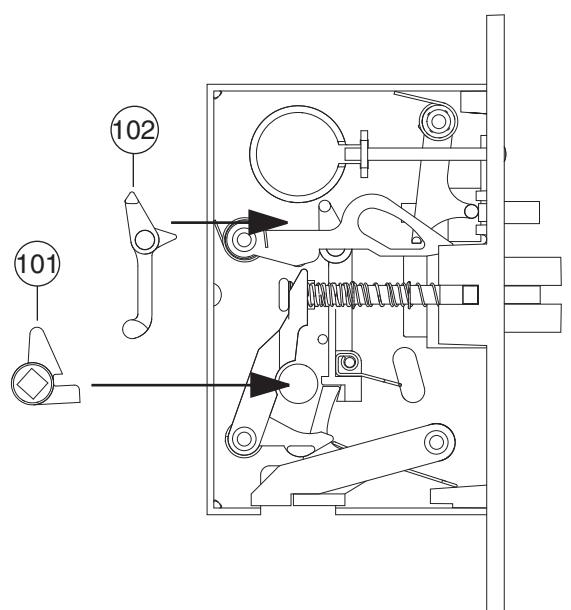

(F)18-M Mortise Lock
(F)18-M Mortise Lock
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 83 | 1 | 3532 | Dead Locking Arm | |
| 84 | 1 | 3518 | Dead Lock Arm Spring | D |
| 85 | 1 | 3531 | Auxiliary Bolt Spring | |
| 86 | 1 | 3530 | Auxiliary Bolt Actuator | |
| 87 | 1 | 3521 | Actuating Arm | |
| 88 | 1 | 610041 | Mortise Latch Bolt Assembly | |
| 89 | 1 | 4025 | Cylinder Screw Retainer | C |
| 90 | 1 | 610042 | Locking Arm and Spring Assembly | C & D |
| 91 | 2 | 660068 | #10-24 x 1/2" PPHMS Type "F" | |
| 92 | 1 | 3522 | Main Lift | |
| 93 | 1 | 3523 | T-Lift | |
| 94 | 1 | 3516 | T-Lift Spring | |
| 95 | 1 | 3529 | Auxiliary Bolt | |
| 96 | 1 | 3515 | Mortise Lock Face | E |
| 97 | 2 | 660068 | #10-24 x 1/2" PPHMS | E |
| 98 | 2 | 660128 | #8-32 x 2" FIL HD MS (US-26, US-26D) | E |
| 98 | 2 | 660129 | #8-32 x 2" FIL HD MS (US-3, US-4, US-10, US-10B) | E |
| 99 | 1 | 610067 | Mortise Lock Housing Assembly | |
| 100 | 1 | 3540 | Mortise Back Cover | |
| 101 | 1 | 3519 | Mortise K-Hub | B & C |
| 102 | 1 | 3542 | Clinder Operating Arm | C & F |
- A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.
- B. Used in K/L trim functions only.
- C. Omit for "BE" trim function.
- D. Dead lock arm spring (Part No. 3518) required for NL function. Remove existing spring and screw from locking arm for NL.
- E. Available only in US-3, US-4, US-10, US-10B, US-26, US-26D.
- F. Used in NL function only.
(F)18-M Mortise Center Case
(F)18-M Mortise Center Case
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS | |
| 48 | 1 | 4231 | 18 Main Cam | |
| 103 | 1 | 610078 | 18 Mortise Cover Plate Sub Assembly |
(F)18-TPL Three Point Latch Exit Device
(F)18-TPL Three Point Latch Exit Device
Panic and Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 11 | 1 | 4955 | Channel Cover 3' Door (Fire Device Only) | A |
| 11 | 1 | 4956 | Channel Cover 2', 2'5", and 4' Door (Fire Device Only) | A |
| 12 | 1 | 610279 | Dogging Cover Sub Assembly 2' & 2'5" Door | A |
| 12 | 1 | 185 | Dogging Cover Sub Assembly 3' Door | A |
| 12 | 1 | 184 | Dogging Cover Sub Assembly 4' Door | A |
| 13 | 1 | 193 | Dogging Sub Assembly | |
| 14 | 1 | 4086 | Dogging Pin Shaft | |
| 15 | 1 | 660443 | Retaining Ring | |
| 16 | 1 | 2789 | 7/32" Hex Key | |
| 17 | 4 | 660004 | #10-24 x 1-1/4" PPHSMS | |
| 27 | 1 | 4221 | 18 Surface Vertical Center Case Cover | A |
| 81 | 1 | 600117 | Lift Finger with Mounting Screw | |
| 82 | 1 |
Mortise Lock - 8500 x Function x Handing
A |
||
| 104 | 1 | 650098 | (F)18-TPL Center Case Assembly RHR | |
| 104 | 1 | 650098 | (F)18-TPL Center Case Assembly LHR | |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

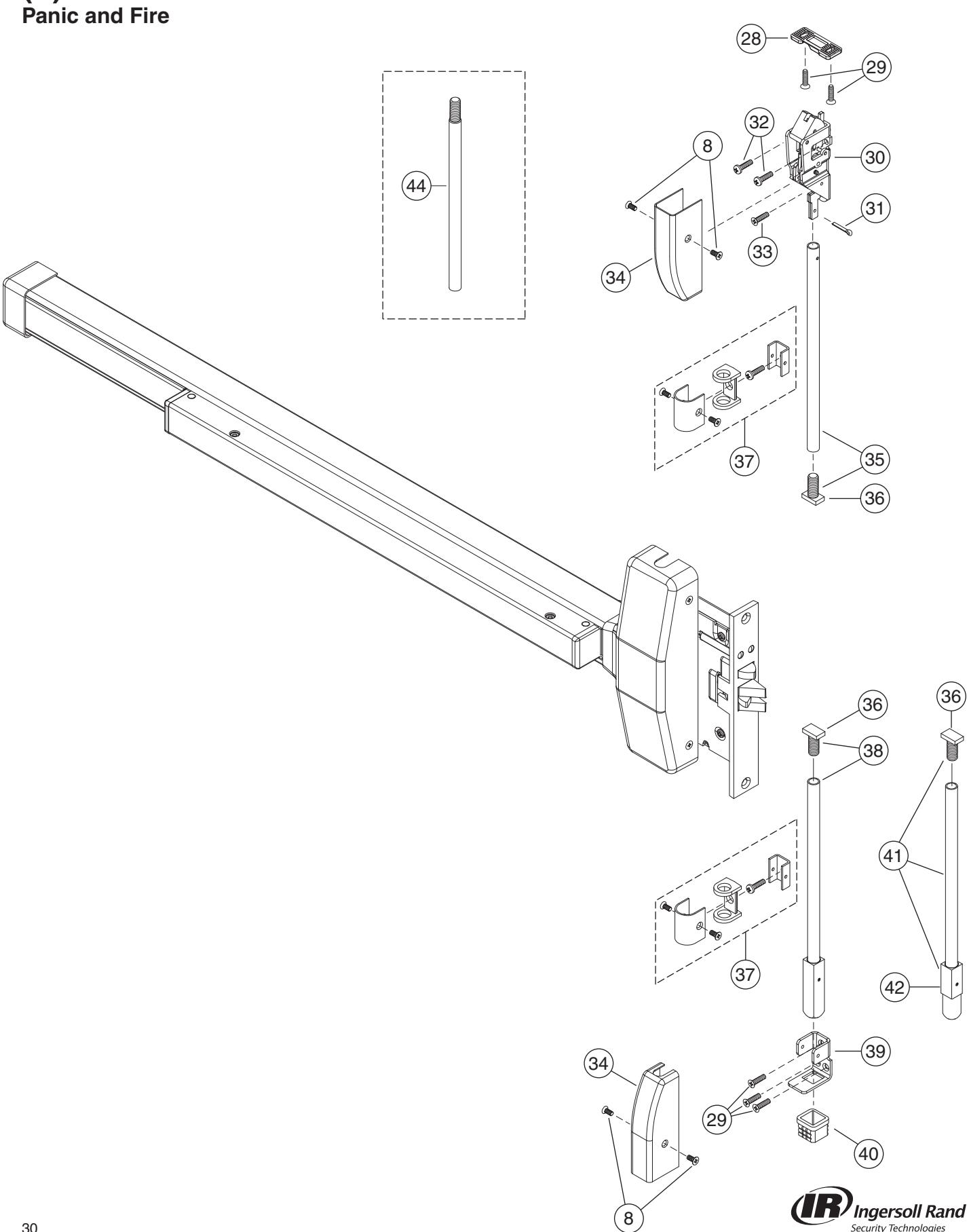

(F)18-TPL Three Point Latch Rods & Latches
(F)18-TPL Three Point Latch Rods & Latches Panic and Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 8 | 2 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 28 | 1 | 630010 | 3788 Strike - Surface Vertical Rod Panic and Fire Devices - Standard | |
| 29 | 2 | 660002 | #10 x 1-1/4" FPHSMS | C |
| 29 | 2 | 660078 | #10-24 x 3/4" FPHMS (Fire) | |
| 30 | 1 | 588 | Surface Vertical Top Latch Case Sub Assembly - Panic | |
| 30 | 1 | F588 | Surface Vertical Top Latch Case Sub Assembly - Fire | |
| 31 | 1 | 661102 | 1/8" x 3/4" Cotter Key | |
| 32 | 2 | 660004 | #10 x 1-1/4" PPHSMS | |
| 32 | 2 | 660081 | #10-24 x 3/4" PPHMS (Fire) | |
| 33 | 2 | 660002 | #10 x 1-1/4" FPHSMS | |
| 33 | 2 | 660078 | #10-24 x 3/4" FPHMS (Fire) | |
| 34 | 2 | 3781 | Latch Case Cover | A |
| 35 | 1 | 3777 | Surface Vertical Top Rod Sub Assembly | |
| 36 | 2 | 4400 | Surface Vertical Rod Adjustment Screw | |
| 37 | 2 | 590 | Rod Guide and Support | A |
| 38 | 1 | 610034 | Surface Vertical Bottom Bolt and Rod Assembly | |
| 39 | 1 | 610035 | Surface Vertical Bottom Guide Assembly | A |
| 40 | 1 | 2130 | 2130 Strike - Surface and Concealed for Panic or Fire - Standard | |
| 41 | 1 | 610225 | 18-V Round Bottom Bolt Rod Assembly | A |
| 42 | 1 | 610227 | 18-V Round Bottom Bolt | |
| 44 | 1 | 650006 | Vertical Extension Rod 12" | A |
| 44 | 1 | 650007 | Vertical Extension Rod 24" | A |
| 44 | 1 | 650008 |
Vertical Extension Rod 36"
A |
|
| * | 1 | 600102 | 18-TPL Mounting Pkg | |
| * | 1 | 600103 | F-18-TPL Mounting Pkg | |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

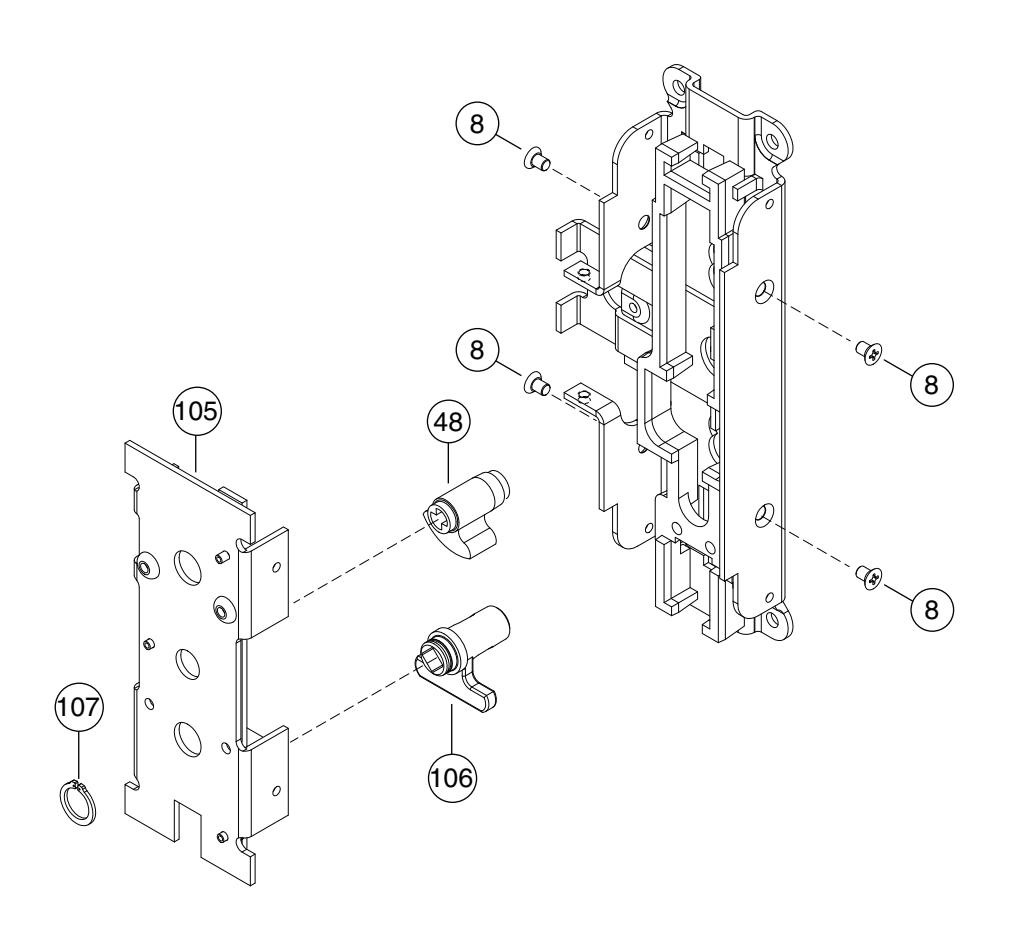

(F)18-TPL Three Point Latch Center Case
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS | |
| 48 | 1 | 4231 | 18 Main Cam | |
| 105 | 1 | 4235 | 18 TPL Cover Plate Sub Assembly | |
| 106 | 1 | 4232 | K-Hub | |
| 107 | 1 | 660442 | Retaining Ring |

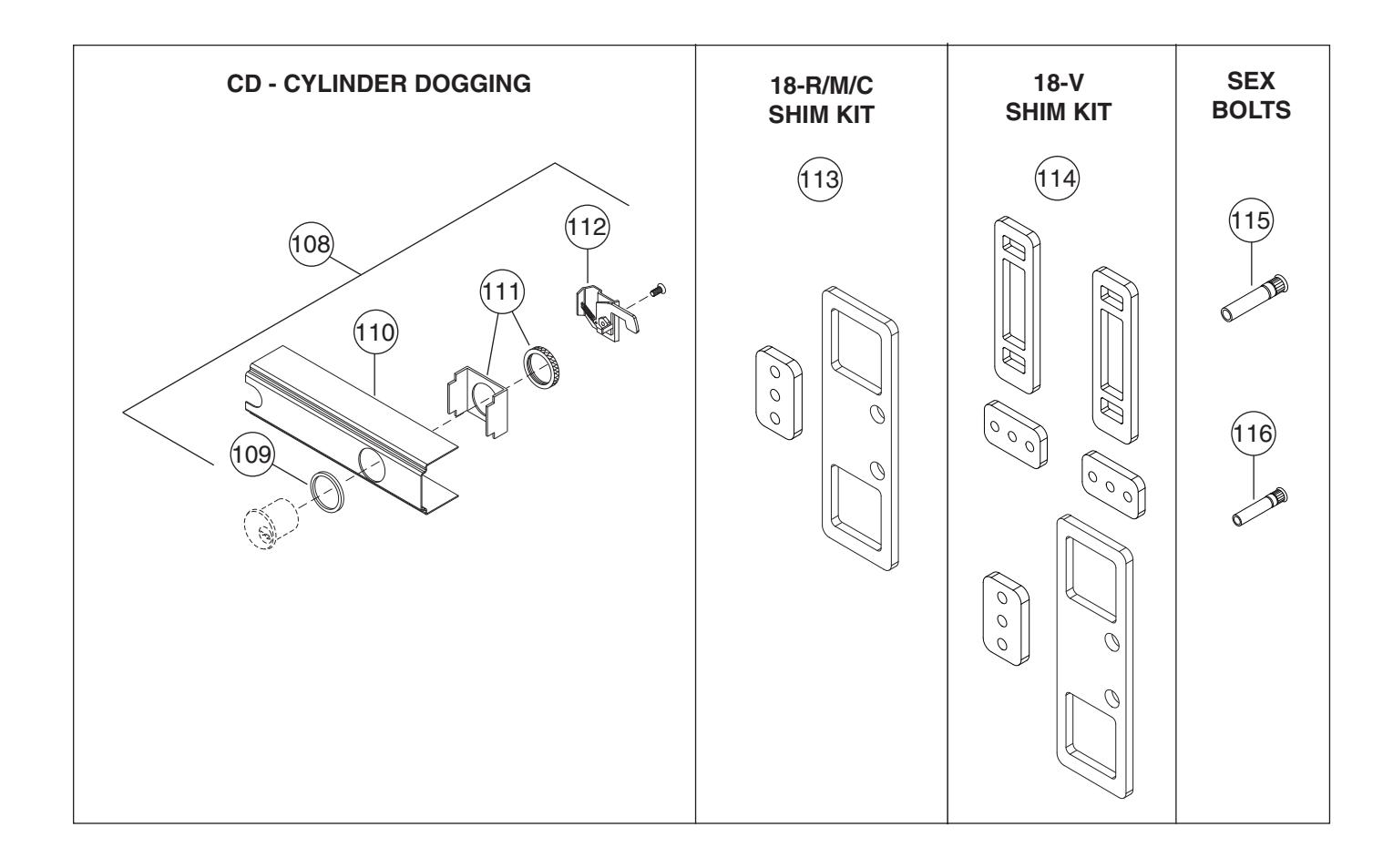

18 Series Optional Equipment
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 108 | 1 | 650059 | 18 CD Kit 3' (items 63-66) | A |
| 108 | 1 | 650062 | 18 CD Kit 4' (items 63-66) | A |
| 109 | 1 | 3917 | CD Cylinder Collar | A |
| 110 | 1 | 4950 | 18 CD Cover Plate 3' | A |
| 110 | 1 | 4951 | 18 CD Cover Plate 4' | A |
| 111 | 1 | 600146 | CD Cylinder Retaining Bracket Package | |
| 112 | 1 | 610106 | CD Dogging Sub Assembly | |
| 113 | 1 | 650020 | 18-R/M/C 1/4" Shim Kit | |
| 114 | 1 | 650021 | 18-V 1/4" Shim Kit | |
| 115 | 1 | 4122 | 1/4"-20 Sex Bolt** | |
| 116 | 1 | 2729 | #10-24 Sex Bolt*** | |
** Sold individually, for reinforcing plate (2), or WDC latch (4)
*** Sold individually, for center case (4), or surface vertical latches (3)
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.
800.826.5792 Exit Devices 800.815.1517 Closers
800.266.4456 Locks www.falcon.ingersollrand.com www.ingersollrand.com
