Falcon 17 Series Parts Manual 107995
Open the original PDF document
View PDF
Monarch 17 Series Parts Manual
Touch Bar Exit Device
Table of Contents
| 17 Rim Exit Device - Panic 4-5 | |
|---|---|
| F-17 Rim Exit Device - Fire 6-7 | |
| 17-V Surface Vertical Rod Exit Device - Panic and Fire 8-9 | |
| 17-V Surface Vertical Rods & Latches - Panic and Fire 10-11 | |
| 17-C Concealed Vertical Rod Exit Device - Panic and Fire 12-13 | |
| 17-C Concealed Vertical Rods & Latches - Panic and Fire 14-15 | |
| 17-C Concealed Vertical Top Latches and Plates - Wood and Metal Door, Panic and Fire 16-17 | |
| 17 Series Optional Equipment 18 |
Introduction
This manual contains a listing of replaceable parts and assemblies for the 17 series exit device.
How to Order
Some parts are sold separately. Other parts are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available fi nish)
Part Number Changes
This manual refl ects the product as sold in November 2007. Because of changes to the product and/or manufacturing processes, part numbers can change.

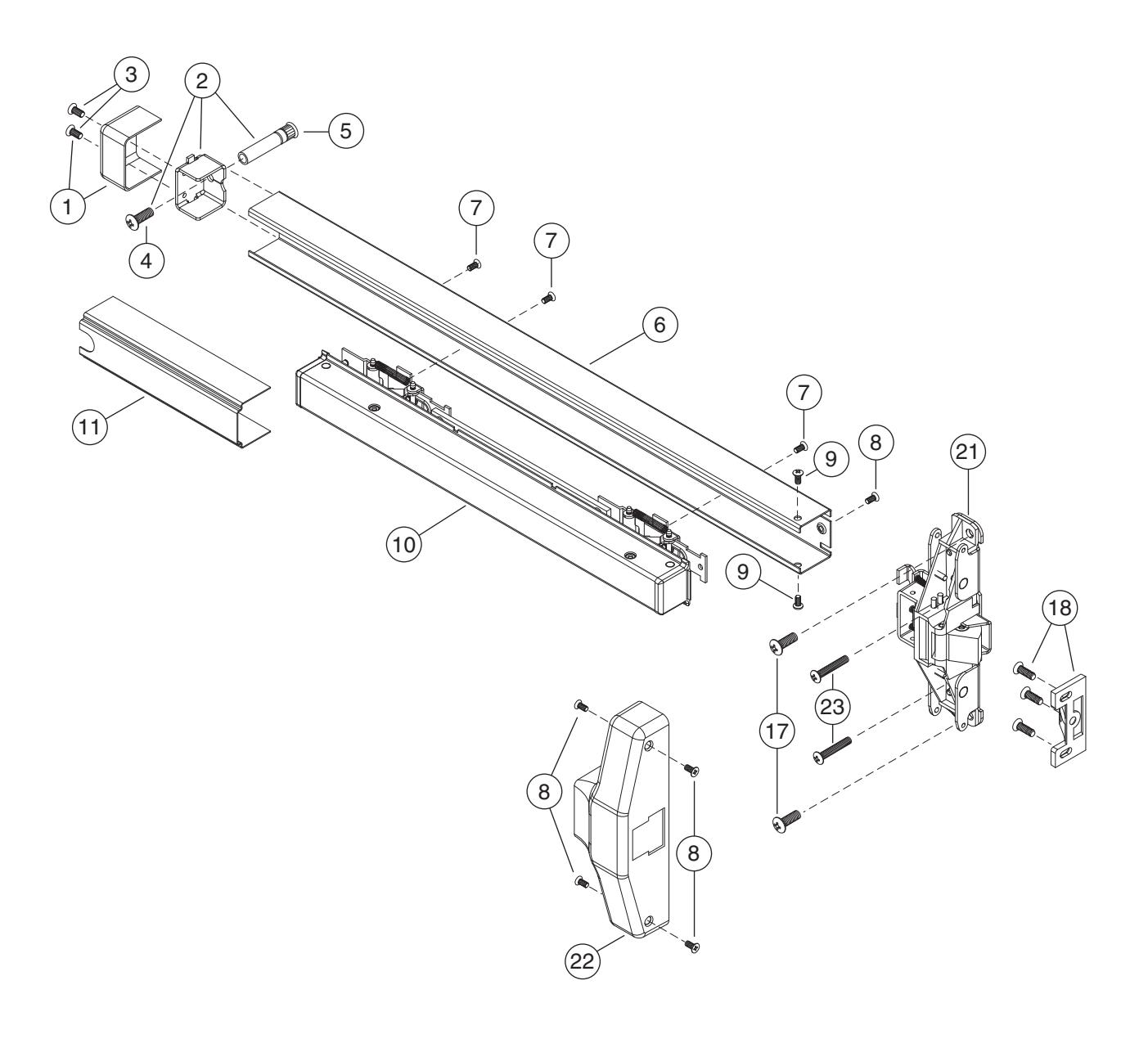

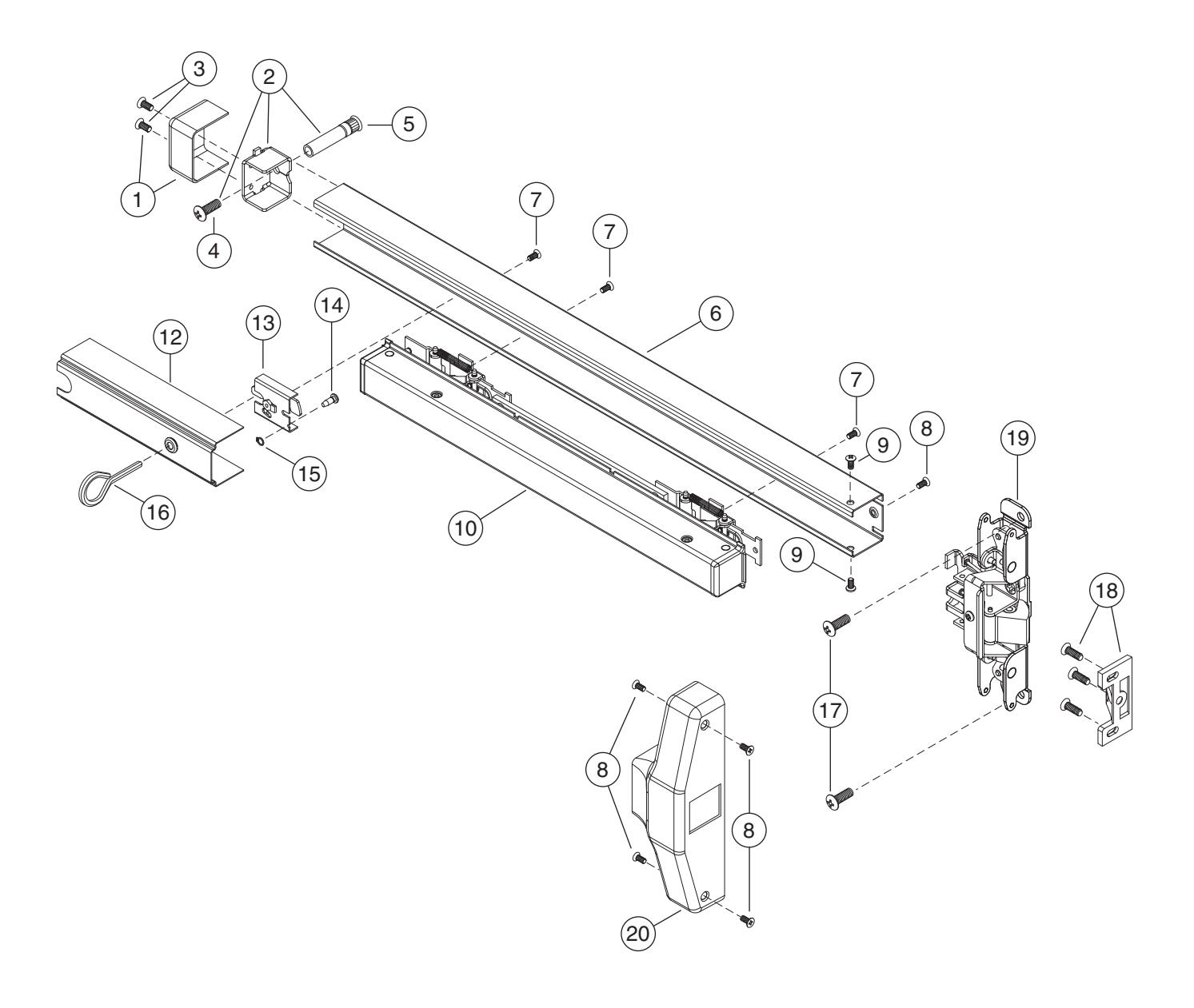

17 Rim Exit Device
Panic
17 Rim Exit Device
Panic
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 12 | 1 | 610279 | Dogging Cover Sub Assembly 2' & 2'5" Door | A |
| 12 | 1 | 185 | Dogging Cover Sub Assembly 3' Door | A |
| 12 | 1 | 184 | Dogging Cover Sub Assembly 4' Door | A |
| 13 | 1 | 193 | Dogging Sub Assembly | |
| 14 | 1 | 4086 | Dogging Pin Shaft | |
| 15 | 1 | 660443 | Retaining Ring | |
| 16 | 1 | 2789 | 7/32" Hex Key | |
| 17 | 2 | 660046 | 1/4"-20 x 3/4" PPHMS | |
| 17 | 2 | 660011 | #14 x 1" PPHSMS | |
| 18 | 1 | 630015 | Roller Strike for Panic and Fire - Standard | |
| 19 | 1 | 785 | 17 Panic Center Case Assembly | |
| 19 | 1 | F785 | 17-DL Panic Center Case Assembly | |
| 20 | 1 | 4387 | 17 Panic Center Case Cover | A |
| * | 1 | 600118 | (F)17-R Mounting Pkg |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

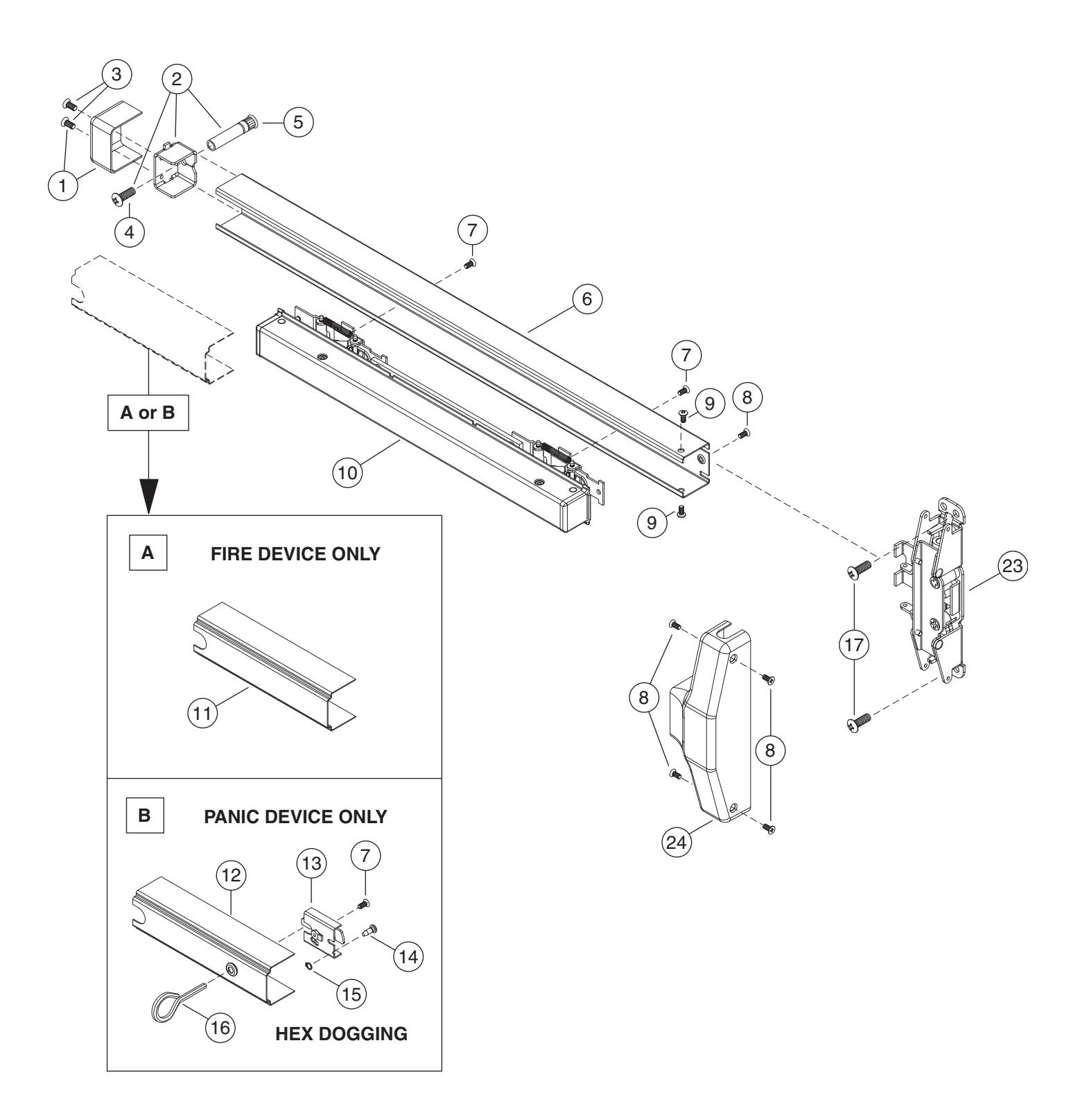

F-17 Rim Exit Device
Fire
F-17 Rim Exit Device
Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 11 | 1 | 6184 | Channel Cover 3' Door (Fire Device Only) | A |
| 11 | 1 | 6185 | Channel Cover 2', 2'5", and 4' Door (Fire Device Only) | A |
| 17 | 2 | 660004 | 1/4"-20 x 3/4" PPHMS | |
| 18 | 1 | 630015 | Roller Strike for Panic and Fire - Standard | |
| 21 | 1 | F785 | 17 Fire Center Case Assembly | |
| 22 | 1 | 4388 | 17 Fire Center Case Cover | A |
| 23 | 2 | 660062 | 10-24 x 1-1/2" PPHMS | |
| * | 1 | 600118 | (F)17-R Mounting Pkg |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.
17-V & F-17-V Surface Vertical Rod Exit Device
17-V & F-17-V Surface Vertical Rod Exit Device
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 11 | 1 | 6184 | Channel Cover 3' Door (Fire Device Only) | A |
| 11 | 1 | 6185 | Channel Cover 2', 2'5", and 4' Door (Fire Device Only) | A |
| 12 | 1 | 610279 | Dogging Cover Sub Assembly 2' & 2'5" Door | A |
| 12 | 1 | 185 | Dogging Cover Sub Assembly 3' Door (Panic Device Only) | A |
| 12 | 1 | 184 | Dogging Cover Sub Assembly 4' Door (Panic Device Only) | A |
| 13 | 1 | 193 | Dogging Sub Assembly (Panic Device Only) | |
| 14 | 1 | 4086 | Dogging Pin Shaft | |
| 15 | 1 | 660443 | Retaining Ring | |
| 16 | 1 | 2789 | 7/32" Hex Key | |
| 17 | 4 | 660046 | 1/4"-20 x 3/4" PPHMS | |
| 23 | 1 | 787 | 17 Surface Vertical Center Case Assembly | |
| 24 | 1 | 4386 | 17 Surface Vertical Center Case Cover | A |
| * | 1 | 600119 | 17-V Mounting Pkg | |
| * | 1 | 600120 | F-17-V Mounting Pkg |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

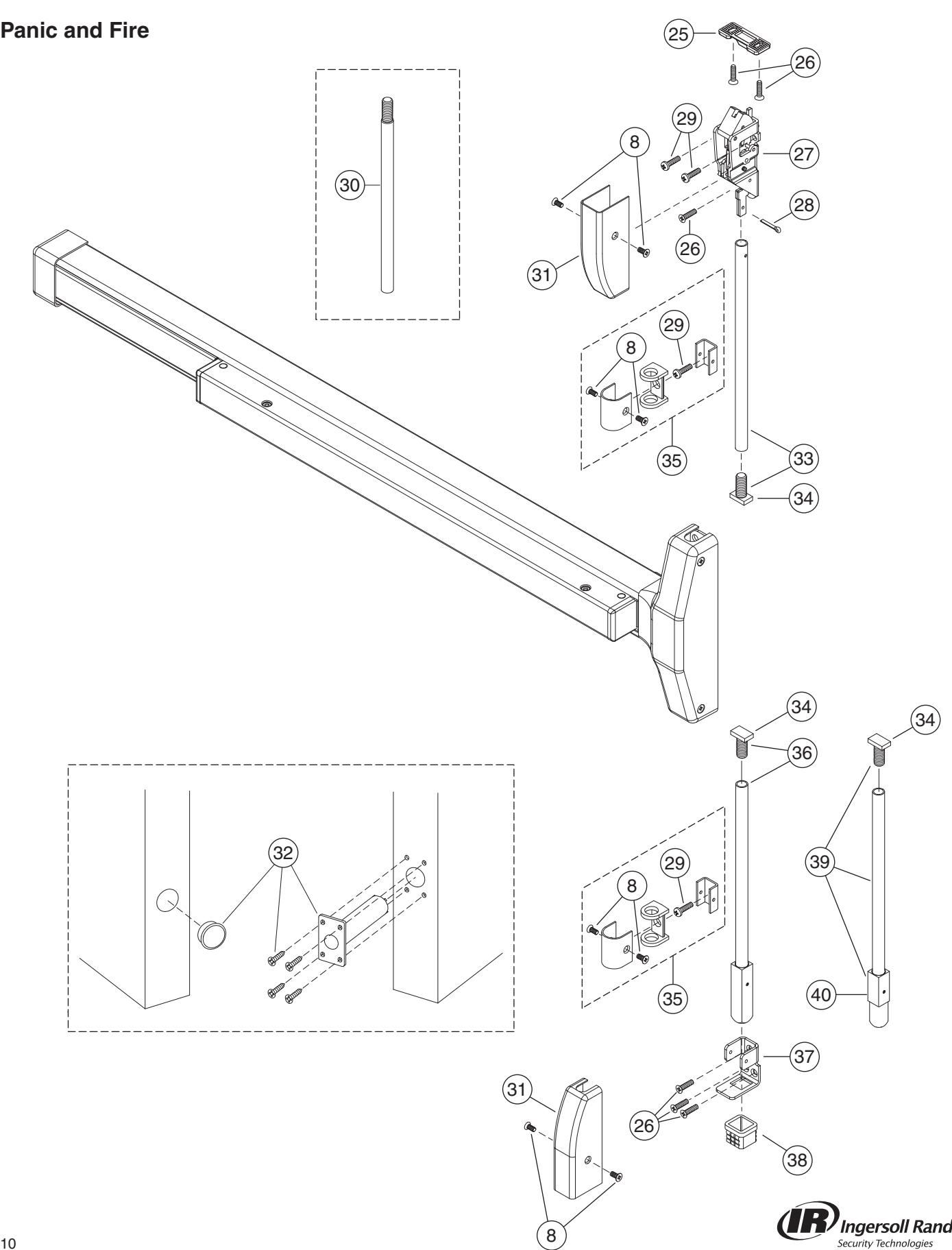

17-V & F-17-V Surface Vertical Rods & Latches
17-V & F-17-V Surface Vertical Rods & Latches
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 25 | 1 | 630010 | 3788 Strike - Surface Vertical Rod Panic and Fire Devices - Standard | |
| 26 | 5 | 660002 | #10 x 1-1/4" FPHSMS | |
| 26 | 5 | 660078 | #10-24 x 3/4" FPHMS (Fire) | |
| 27 | 1 | 588 | Surface Vertical Top Latch Case Sub Assembly - Panic | |
| 27 | 1 | F588 | Surface Vertical Top Latch Case Sub Assembly - Fire | |
| 28 | 1 | 661102 | 1/8" x 3/4" Cotter Key | |
| 29 | 4 | 660004 | #10 x 1-1/4" PPHSMS | |
| 29 | 4 | 660081 | #10-24 x 3/4" PPHMS (Fire) | |
| 30 | 1 | 650006 | Vertical Extension Rod 12" | A |
| 30 | 1 | 650007 | Vertical Extension Rod 24" | A |
| 30 | 1 | 650008 | Vertical Extension Rod 36" | A |
| 31 | 2 | 3781 | Latch Case Cover | A |
| 32 | 1 | 5494 | Auxiliary Fire Latch (Fire - Less Bottom Rod Only) | |
| 33 | 1 | 4450 | Surface Vertical Top Rod Sub Assembly | |
| 34 | 2 | 4400 | Surface Vertical Rod Adjustment Screw | |
| 35 | 2 | 590 | Rod Guide and Support | A |
| 36 | 1 | 610056 | Surface Vertical Bottom Bolt and Rod Assembly | |
| 37 | 1 | 610069 | Surface Vertical Bottom Guide Assembly | A |
| 38 | 1 | 630013 | 2130 Strike - Surface and Concealed for Panic or Fire - Standard | |
| 39 | 1 | 610225 | 17-V Round Bottom Bolt Rod Assembly | A |
| 40 | 1 | 610227 | 17-V Round Bottom Bolt | |
| * | 1 | 600119 | 17-V Mounting Package | |
| * | 1 | 600120 | F-17-V Mounting Package |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

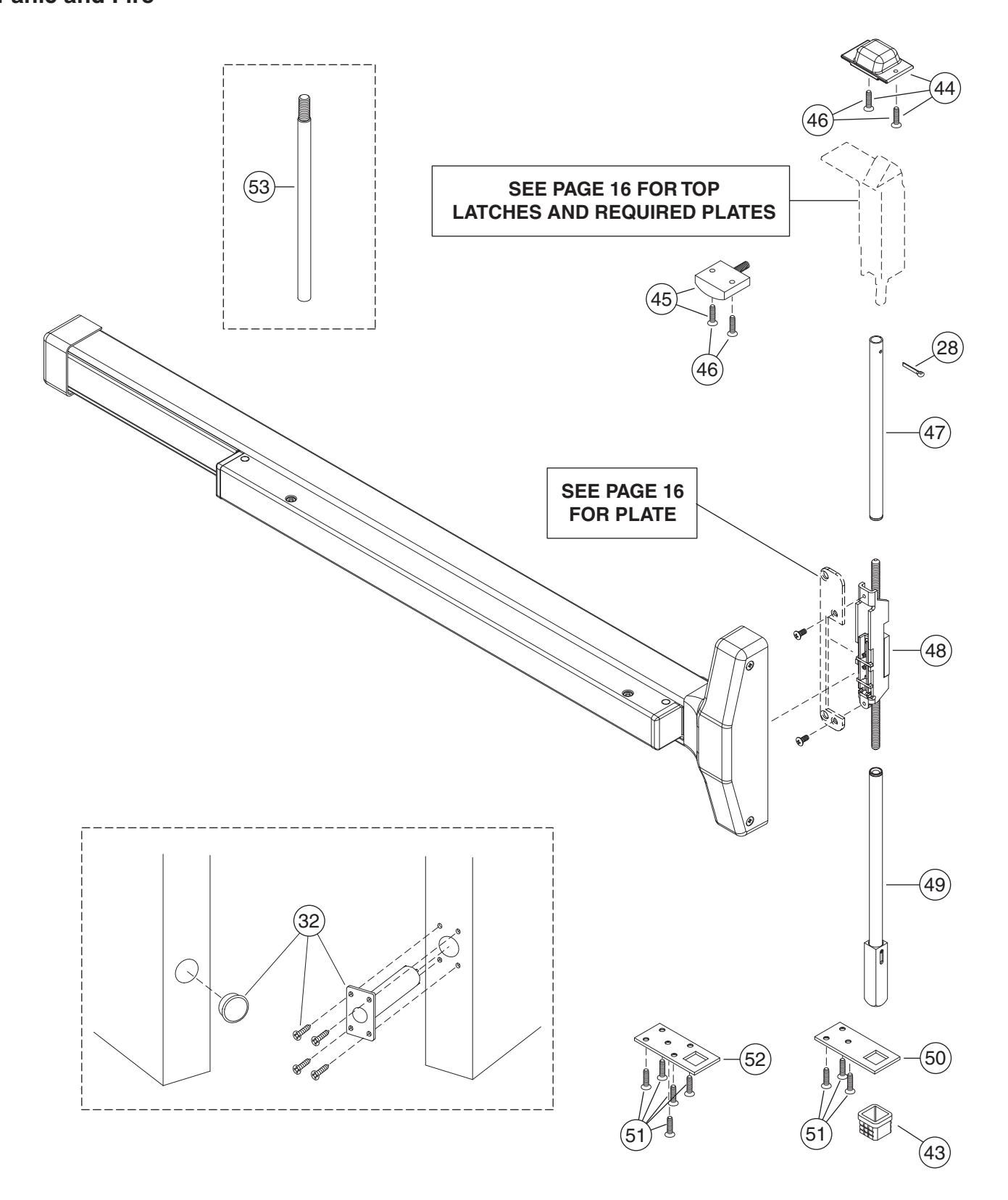

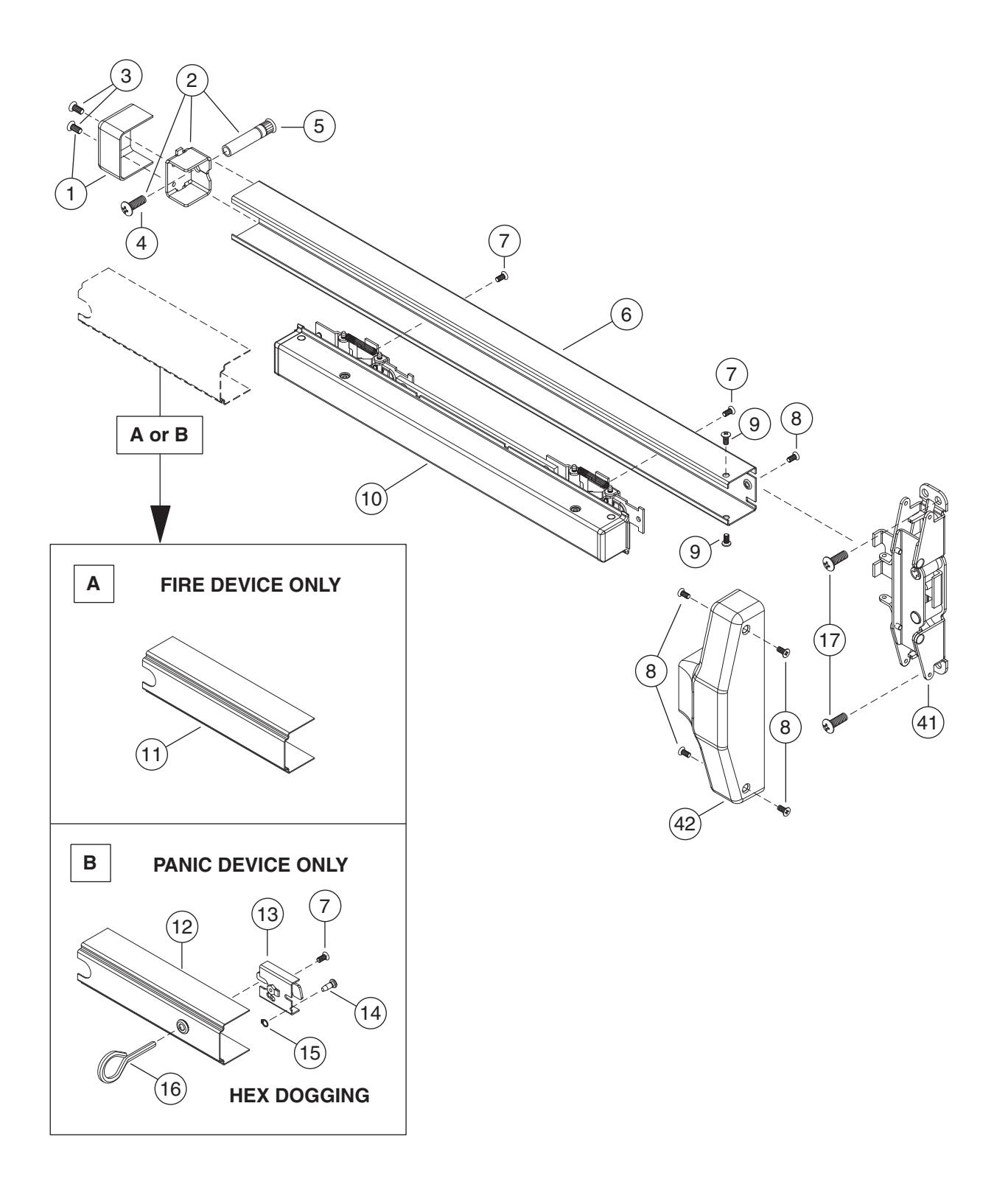

17-C & F-17-C Concealed Vertical Rod Exit Device
17-C & F-17-C Concealed Vertical Rod Exit Device
Panic and Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 1 | 1 | 600148 | Channel End Cap Pkg | A |
| 2 | 1 | 600108 | End Cap Mounting Bracket with SNB | |
| 3 | 2 | 660085 | #10-24 x 3/8" PPHMS with Nylon Patch | A |
| 4 | 1 | 660047 | 1/4"-20 x 3/4" TPHMS Screw | |
| 5 | 1 | 4122 | 1/4"-20 Sex Bolt | A |
| 6 | 1 | 6195 | Channel 2' Door | A |
| 6 | 1 | 6196 | Channel 2'5" Door | A |
| 6 | 1 | 4107 | Channel 3' Door | A |
| 6 | 1 | 4108 | Channel 4' Door | A |
| 7 | 3 | 600184 | #8-32 x 3/8" UFPHMS with Nylon Patch | A |
| 8 | 5 | 600140 | #8-32 x 1/4" UFPHMS (Pkg of 4) | A |
| 9 | 2 | 660120 | #8-32 x 1/4" PPHMS | |
| 10 | 1 | 610277 | Touch Bar Sub Assembly 2' Door (9") | A |
| 10 | 1 | 610278 | Touch Bar Sub Assembly 2'5" Door (14") | A |
| 10 | 1 | 180 | Touch Bar Sub Assembly 3' Door (20") | A |
| 10 | 1 | 181 | Touch Bar Sub Assembly 4' Door (26") | A |
| 11 | 1 | 6184 | Channel Cover 3' Door (Fire Device Only) | A |
| 11 | 1 | 6185 | Channel Cover 2', 2'5", and 4' Door (Fire Device Only) | A |
| 12 | 1 | 610279 | Dogging Cover Sub Assembly 2' & 2'5" Door | A |
| 12 | 1 | 185 | Dogging Cover Sub Assembly 3' Door (Panic Device Only) | A |
| 12 | 1 | 184 | Dogging Cover Sub Assembly 4' Door (Panic Device Only) | A |
| 13 | 1 | 193 | Dogging Sub Assembly (Panic Device Only) | |
| 14 | 1 | 4086 | Dogging Pin Shaft | |
| 15 | 1 | 660443 | Retaining Ring | |
| 16 | 1 | 2789 | 7/32" Hex Key | |
| 17 | 4 | 660046 | 1/4"-20 x 3/4" PPHMS | |
| 41 | 1 | 789 | 17 Concealed Vertical Center Case Assembly | |
| 42 | 1 | 4343 | 17 Concealed Vertical Center Case Cover | A |
| * | 1 | 600105 | 17-C Device Mounting Package | |
| * | 1 | 600104 | F-17-C Device Mounting Package | |
| * | 1 | 600121 | 17-WDC Device Mounting Package | A |
| * | 1 | 600137 | F-17-WDC (20 Minute) Device Mounting Package | A |
| * | 1 | 600122 | F-17-WDC (90 Minute) Device Mounting Package |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.
17-C & F-17-C Concealed Vertical Rods and Latches
17-C & F-17-C Concealed Vertical Rods and Latches
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 28 | 1 | 661102 | 1/8" x 3/4" Cotter Key | |
| 32 | 1 | 5494 | Auxiliary Fire Latch (Fire - Less Bottom Rod Only) | |
| 43 | 1 | 630013 | 2130 Strike - Surface and Concealed for Panic or Fire - Standard | |
| 44 | 1 | 630012 | 4188 Strike - Concealed Vertical Rod Panic and Fire Devices - Standard | |
| 45 | 1 | 600144 | Top Latch Release Sub Assembly | A |
| 46 | 2 | 660078 | #10-24 x 3/4" FPHMS | A |
| 47 | 1 | 610061 | Top Rod Sub Assembly | |
| 48 | 1 | 610043 | Center Slide Sub Assembly | |
| 49 | 1 | 610057 | Bottom Rod Sub Assembly | |
| 50 | 1 | 4567 | Bottom Bolt Guide | |
| 51 | 8 | 660002 | #10 x 1-1/4" FPHSMS (Panic or Wood) | A |
| 51 | 9 | 660078 | #10-24 x 3/4" FPHMS (Fire) | A |
| 52 | 1 | 4835 | Bottom Bolt Guide - WDC | |
| 53 | 1 | 650017 | Concealed Vertical Extension Rod 12" | |
| 53 | 1 | 650018 | Concealed Vertical Extension Rod 24" | |
| 53 | 1 | 650019 | Concealed Vertical Extension Rod 36" | |
| * | 1 | 600105 | 17-C Device Mounting Package | |
| * | 1 | 600104 | F-17-C Device Mounting Package | |
| * | 1 | 600121 | 17-WDC Device Mounting Package | A |
| * | 1 | 600137 | F-17-WDC (20 Minute) Device Mounting Package | A |
| * | 1 | 600122 | F-17-WDC (90 Minute) Device Mounting Package |
* Item(s) not shown.
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.
17-C & F-17-C Concealed Vertical Top Latches and Plates
Wood and Metal Door, Panic and Fire
17-C & F-17-C Concealed Vertical Top Latches and Plates
Wood and Metal Door, Panic and Fire
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|

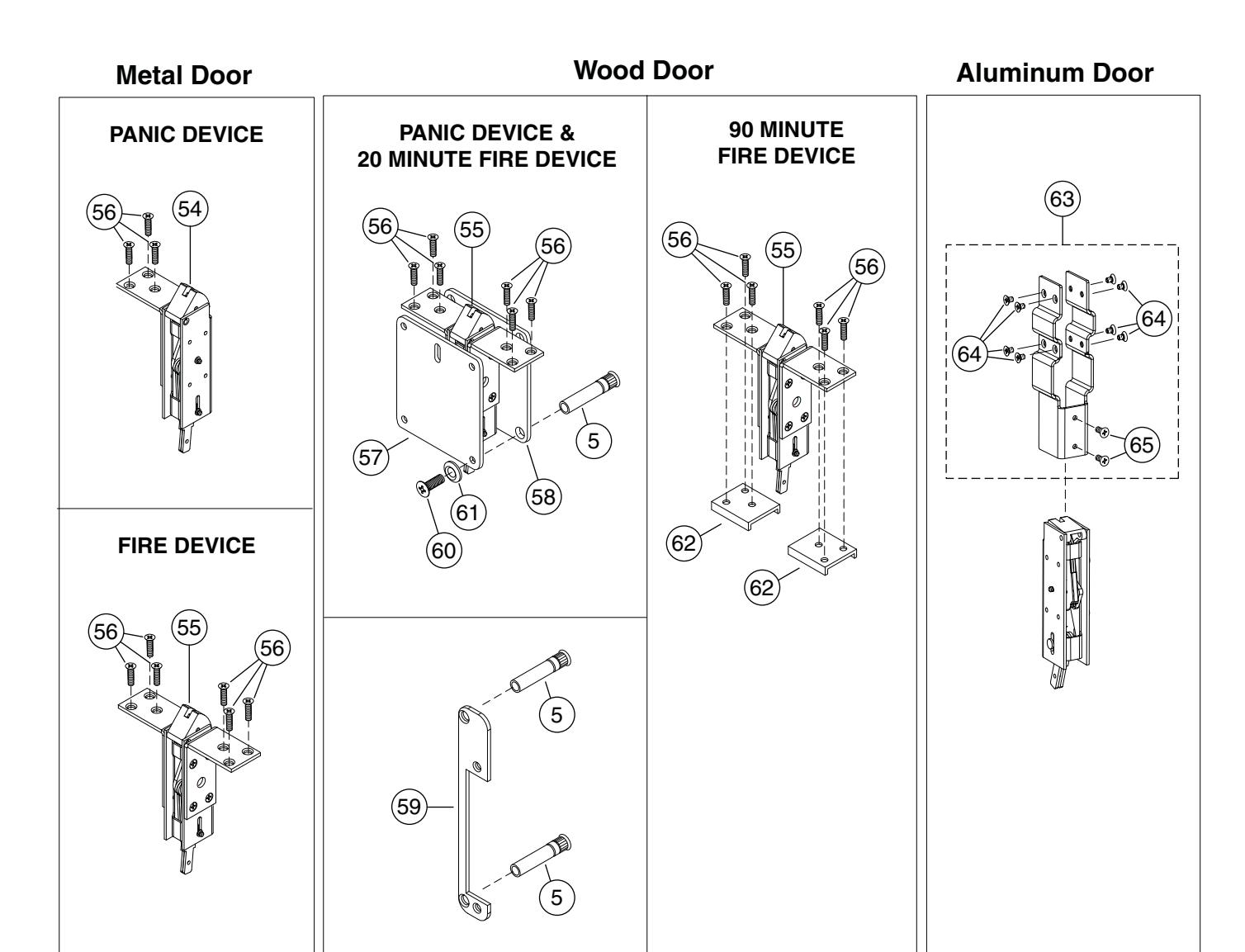

| 5 | 6 | 4122 | 1/4"-20 Sex Bolt | A |
| 54 | 1 | 603 | Concealed Top Latch Case Sub Assembly (Panic) | |
| 55 | 1 | F603 | Concealed Top Latch Case Sub Assembly (Fire) | |
| 56 | 6 | 660078 | #10-24 x 3/4" FPHMS | |
| 57 | 1 | 4834 | Top Reinforcement Plate with Access Hole | A |
| 58 | 1 | 4833 | Top Reinforcement Plate | A |
| 59 | 1 | 4832 | Center Slide Reinforcement Plate | |
| 60 | 4 | 660044 | 1/4"-20 x 3/4" FPHMS | A |
| 61 | 4 | 600185 | 1/4" CSK Finish Washer | A |
| 62 | 2 | 4694 | Latch Bracket | |
| 63 | 1 | 600174 | Aluminum Door Bracket Package | |
| 64 | 8 | 660121 | #8-32 x 1/4" PPHMS with Nylon Patch | |
| 65 | 2 | 660066 | #10-24 x 1/2" FPHMS |
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.

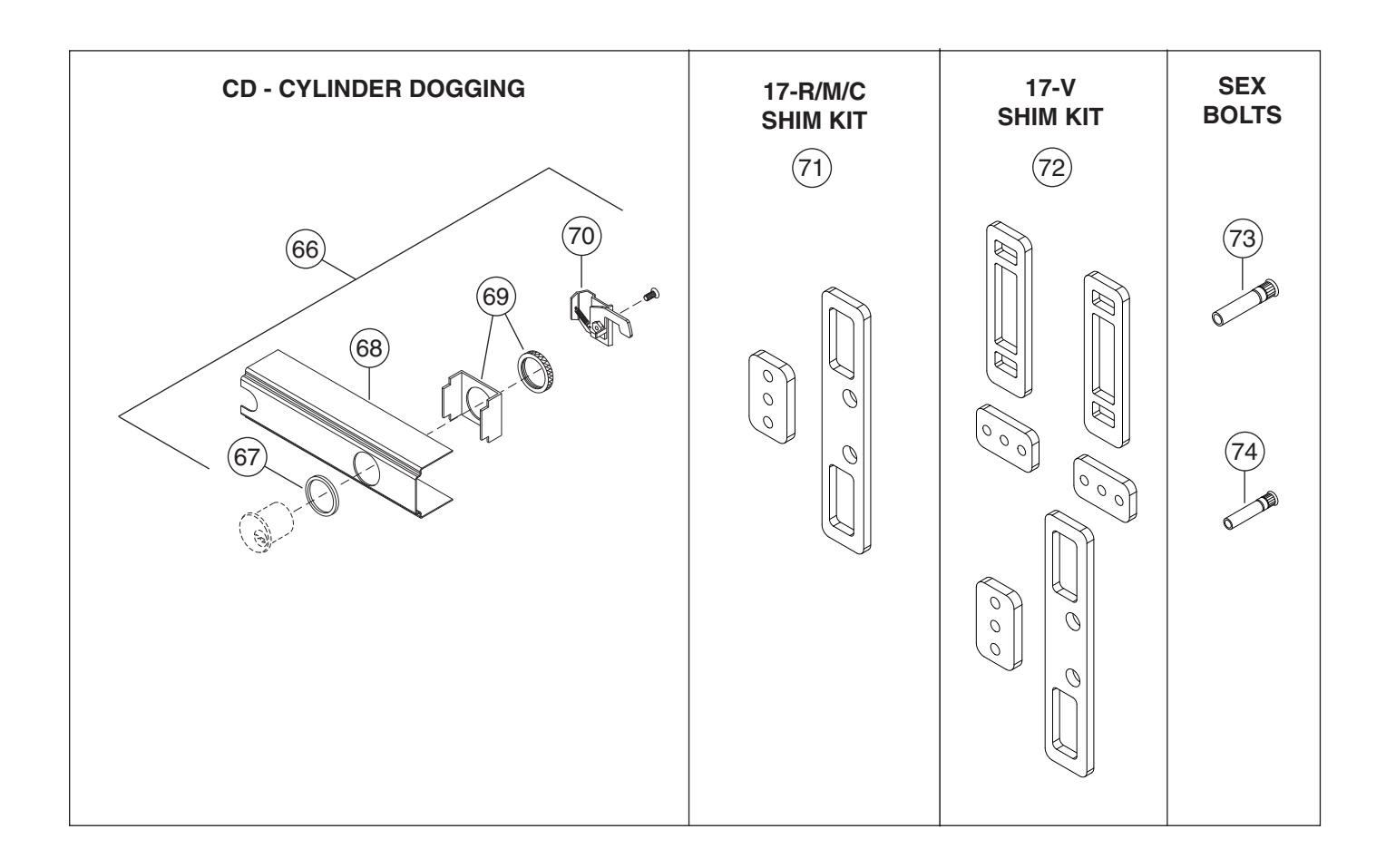

17 Series Optional Equipment
|
Item
No. |
Qty. | Part No. | Description | Notes |
|---|---|---|---|---|
| 66 | 1 | 650058 | 17 CD Kit 3' (items 63-66) | A |
| 66 | 1 | 650061 | 17 CD Kit 4' (items 63-66) | A |
| 67 | 1 | 3917 | CD Cylinder Collar | A |
| 68 | 1 | 6188 | 17 CD Cover Plate 3' | A |
| 68 | 1 | 6189 | 17 CD Cover Plate 4' | A |
| 69 | 1 | 600146 | CD Cylinder Retaining Bracket Package | |
| 70 | 1 | 610106 | CD Dogging Sub Assembly | |
| 71 | 1 | 650024 | 17-R/M/C 1/4" Shim Kit | |
| 72 | 1 | 650025 | 17-V 1/4" Shim Kit | |
| 73 | 1 | 4122 | 1/4"-20 Sex Bolt** | A |
| 74 | 1 | 2729 | #10-24 Sex Bolt*** | A |
** Sold individually, for center case (2), reinforcing plate (2), or WDC latch (4)
A. Specify by fi nish: US-3, US-4, US-10, US-10B, US-26, US-26D, US-32, US-32D.
*** Sold individually, for surface vertical latches (3)
800.815.1517 Closers
800.266.4456 Locks www.falcon.ingersollrand.com www.ingersollrand.com 800.826.5792 Exit Devices
