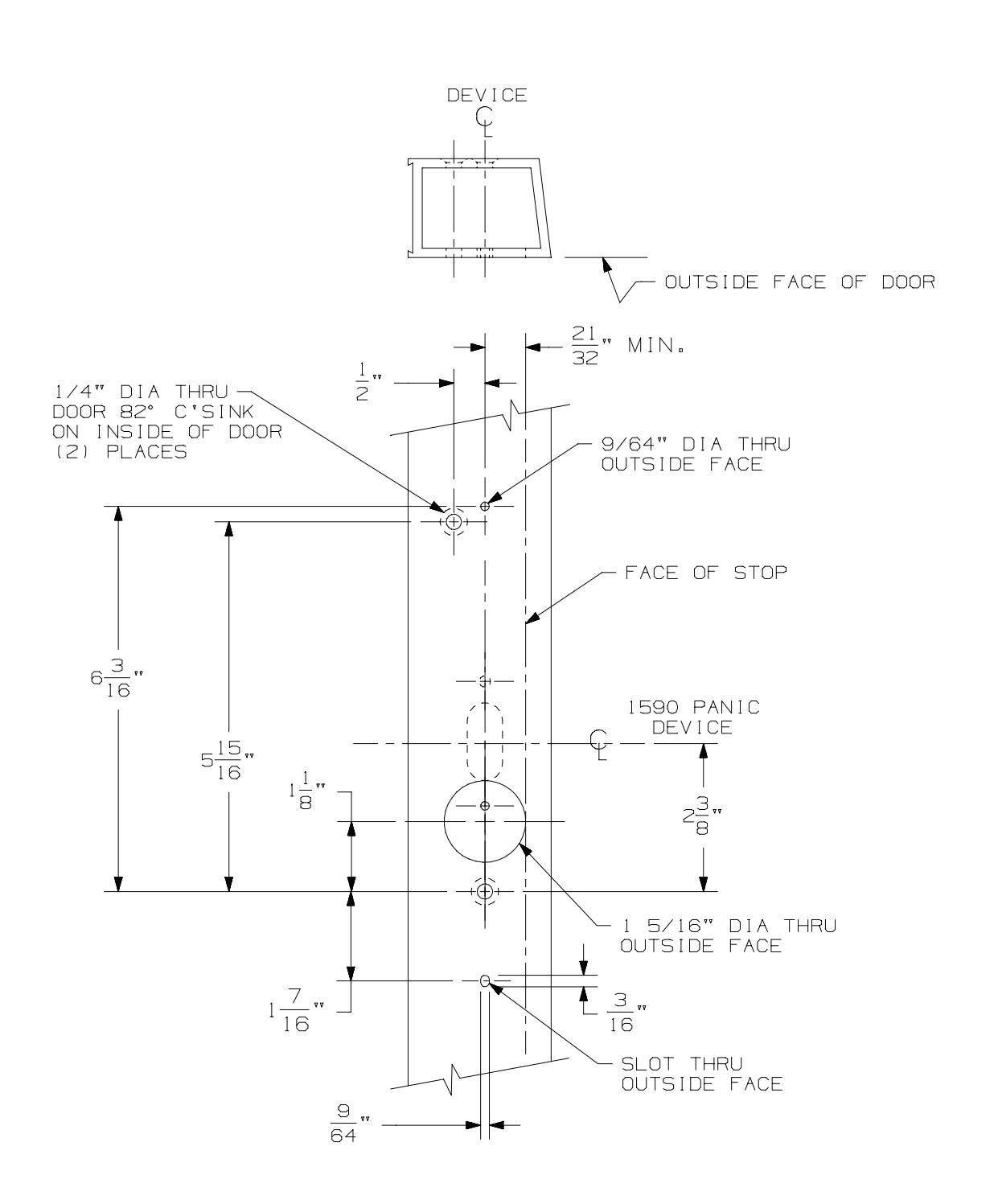

OUTSIDE FACE OF DOOR
LHR DOOR SHOWN RHR DOOR SYMM. OPPOSITE
1490 RL-DT TRIM FOR ALUMINUM DOORS
FALCON ®
TEMPLATE 42
4270200116_b
DATE: 12-30-14
Open the original PDF document
View PDF
OUTSIDE FACE OF DOOR
LHR DOOR SHOWN RHR DOOR SYMM. OPPOSITE
1490 RL-DT TRIM FOR ALUMINUM DOORS
FALCON ®
TEMPLATE 42
4270200116_b
DATE: 12-30-14
