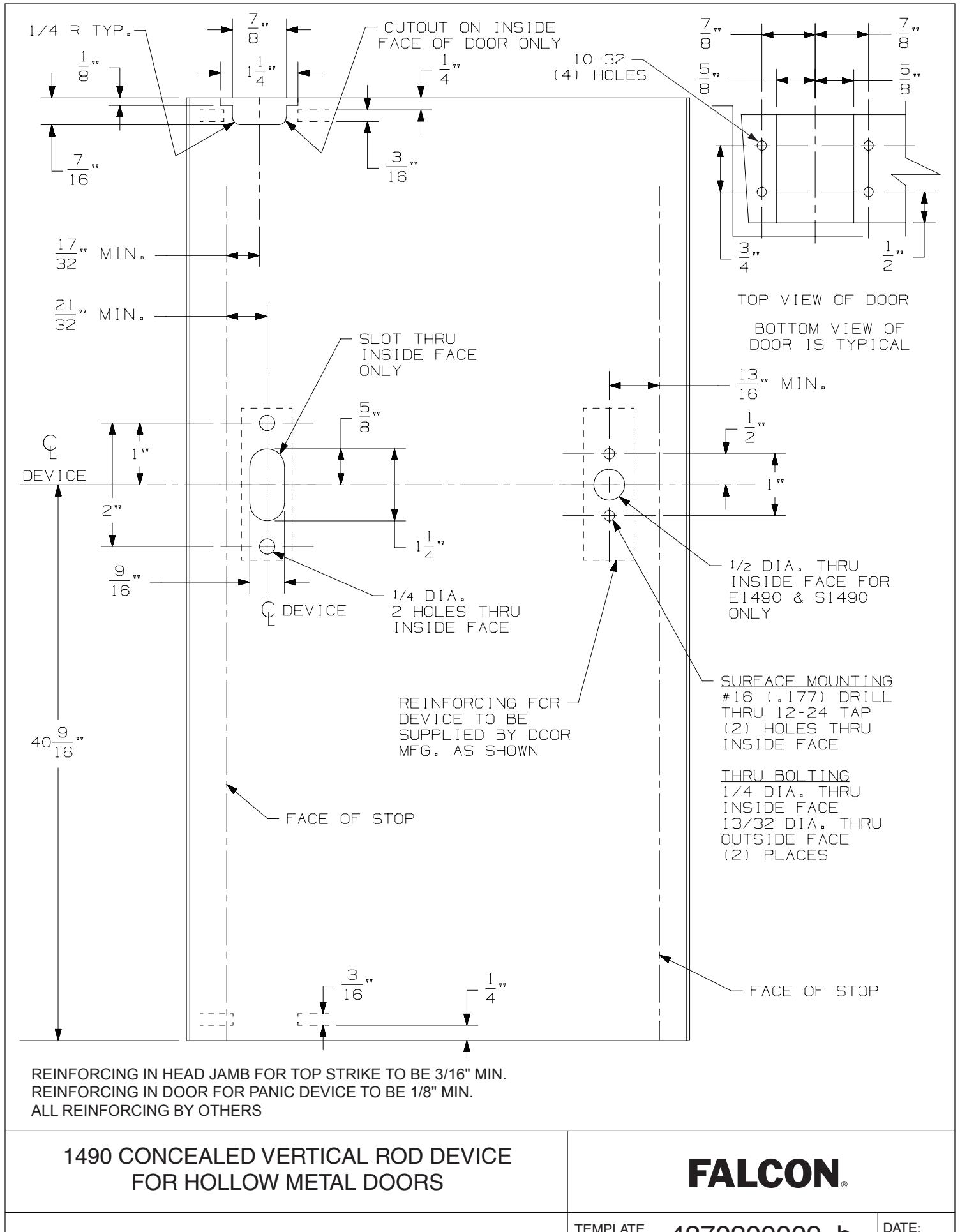

Falcon 1490 Concealed Vertical Rod Device Hollow Metal Doors Template 107334

Open the original PDF document

View PDF

NOTE: SEE TEMPLATE #4270200200 FOR FRAME AND FLOOR PREPS.

TEMPLATE NUMBER:

4270200009_b

DATE: 12-24-14
