INSTALLATION INSTRUCTIONS 480-4RFB / 480-4RSB & 480-6RFB / 480-6RSB SURFACE/FLUSH MOUNT BOX FOR 4-1/2" & 6" DIAMETER SWITCHES

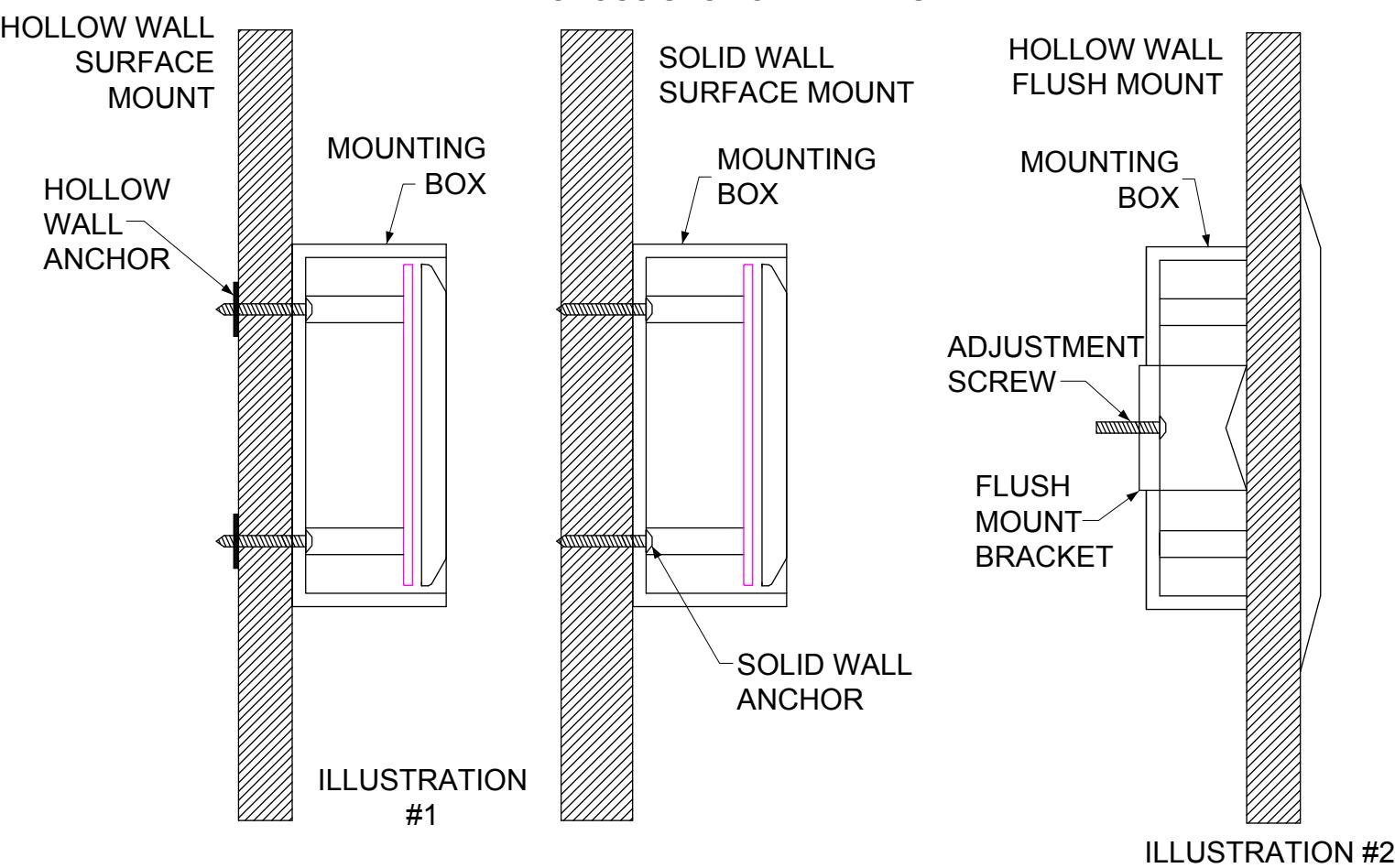

CROSS SECTIONAL VIEWS

Parts included with mounting boxes : >Black ABS surface or flush mount box >Transmitter mounting pins >9V battery mounting clip >Mounting instructions >Weather resistant gasket (optional)

480-4RSB & 480-6RSB SURFACE MOUNT: Hollow Wall or Solid Wall (illustration #1) 1] Drill pilot holes in mounting box (placement indications are in box). 2] Drill pilot holes in mounting surface. 3] Insert appropriate fastener (screw, toggle, etc.) through box and into mounting surface; tighten. 4] Complete installation of switch.

480-4RFB & 480-6RFB FLUSH MOUNT: Hollow Wall ONLY (illustration #2) 1] Cut access hole into mounting surface: 5-1/2" dia. for 4-1/2" round box – 6-1/2" dia. for 6" round box. 2] Insert box into the hole. 3] Utilize the two phillips head screws to tighten silver hanger to the mounting surface. 4] Complete installation of the switch.

480-4RSB

5" Diameter x 2-1/8" Height (127mm x 55mm) 1-7/8" inside depth (48mm) Used with 4-1/2" round switches

480-6RSB

6-7/16"" Diameter x 2-1/8" Height (164mm x 55mm) 1-7/8" inside depth (48mm) Used with 6" round switches

• Surface mount black ABS material for wireless or hard-wired applications
• Repositionable mounting pins for transmitter placement
• Weather resistant gasket (optional)

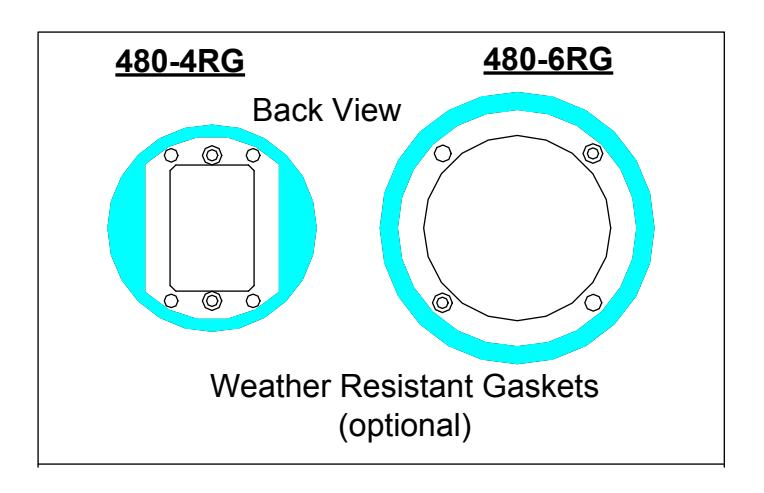

480-4RG used with 480-4RSB 480-6RG used with 480-6RSB

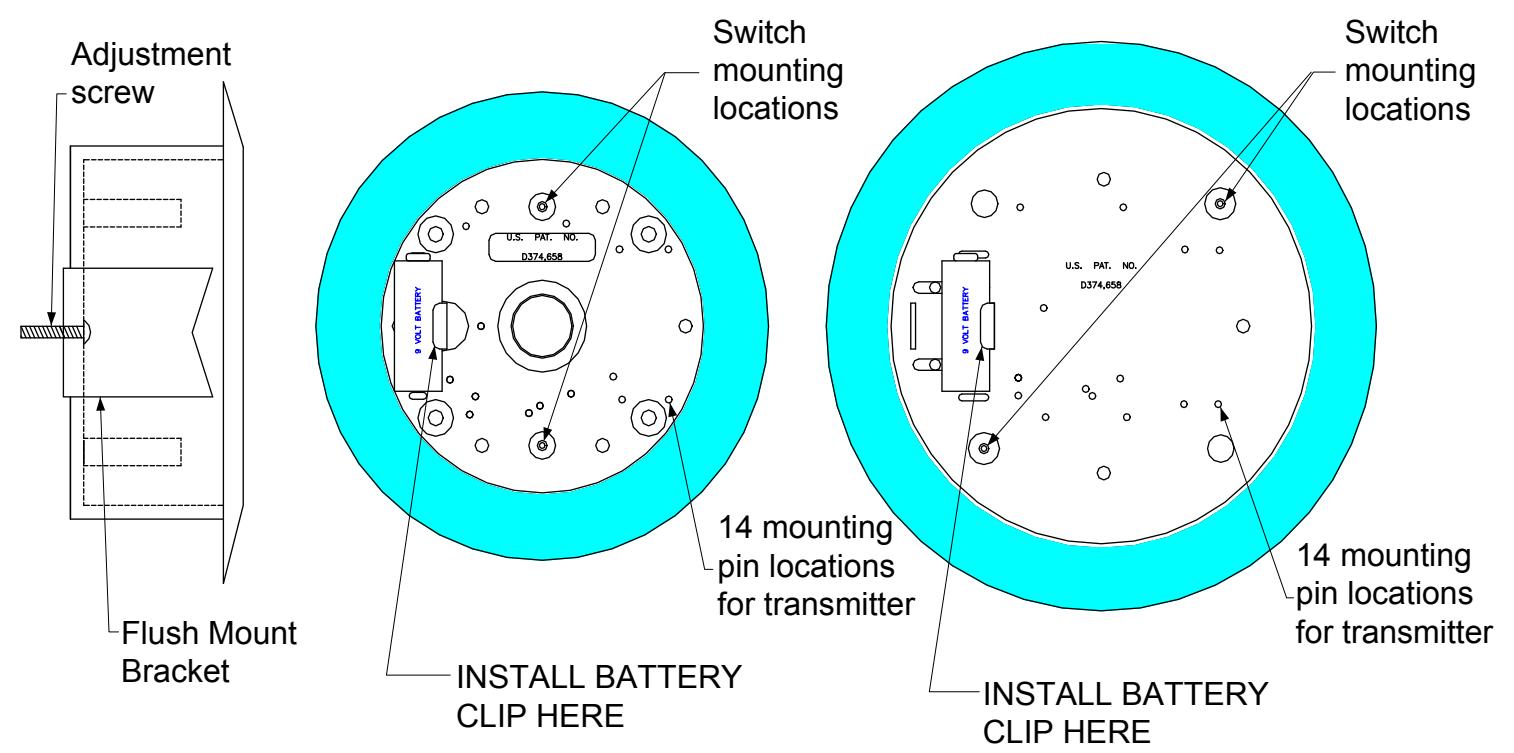

480-4RFB

6-3/8" Diameter x 2-1/8" Height (162mm x 55mm) 1-7/8" inside depth (48mm) Used with 4-1/2" round switches

480-6RFB

7-3/4" Diameter x 2-1/8" Height (197mm x 55mm) 1-7/8" inside depth (48mm) Used with 6" round switches

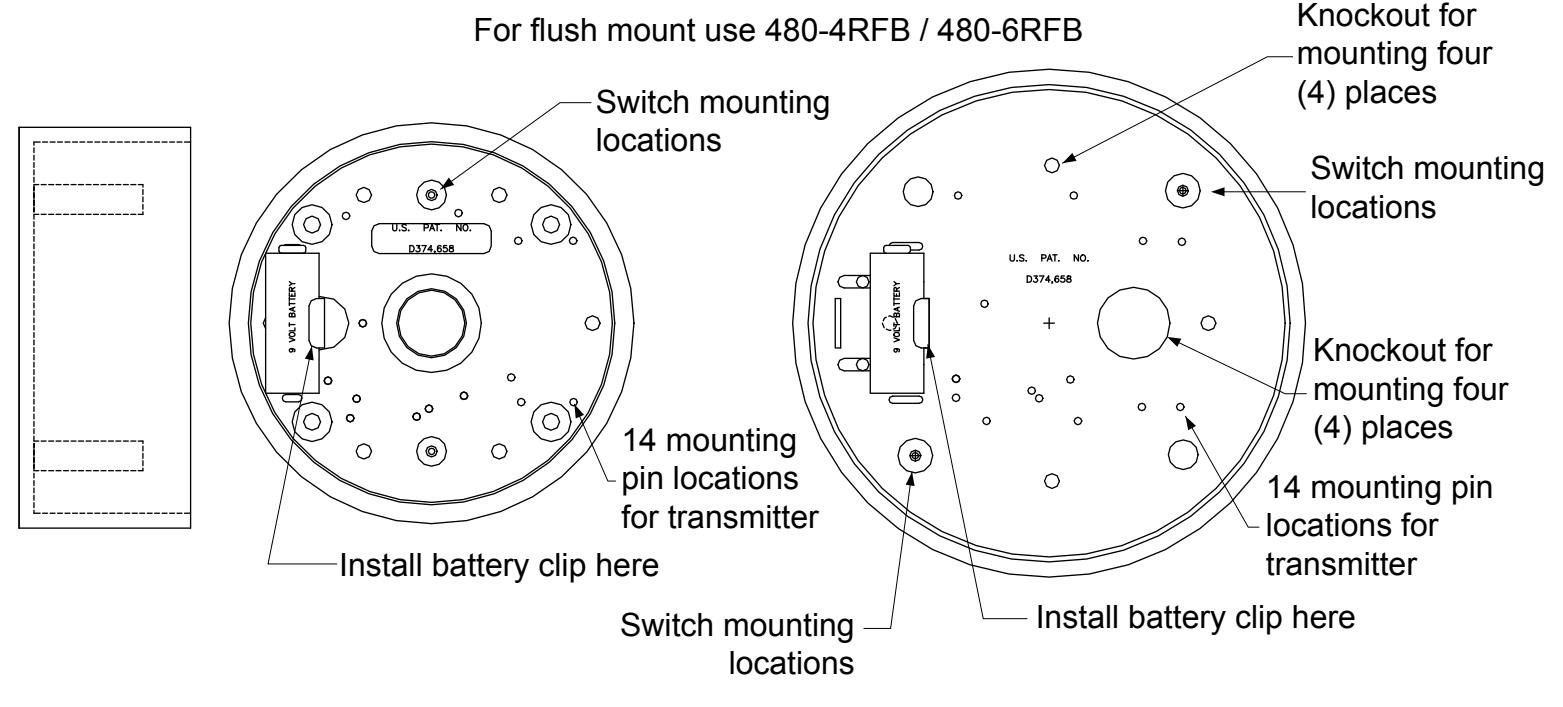

For surface mount use 480-4RSB / 480-6RSB

• Mounting bracket for hollow walls.
• Flush mount black ABS material for wireless or hard-wired applications; Wireless use requires RF Transparent walls.
• Repositionable mounting pins for transmitter placement.
• Weather resistant gasket (optional)

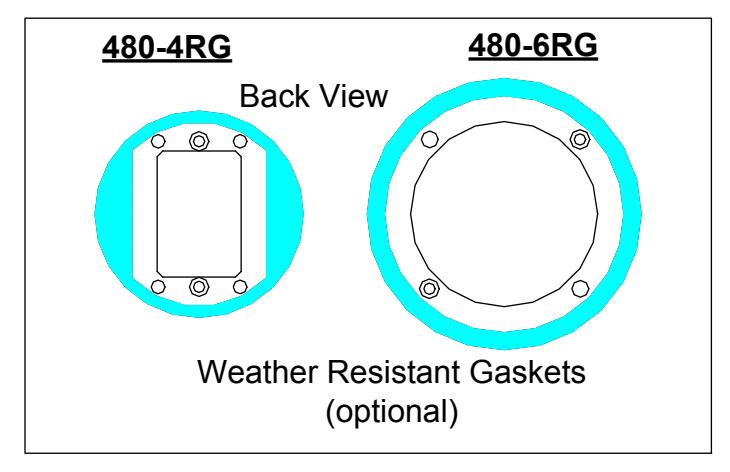

480-4RG used with 480-4RSB 480-6RG used with 480-6RSB
