FM7300 Series Parts List
Open the original PDF document
View PDF

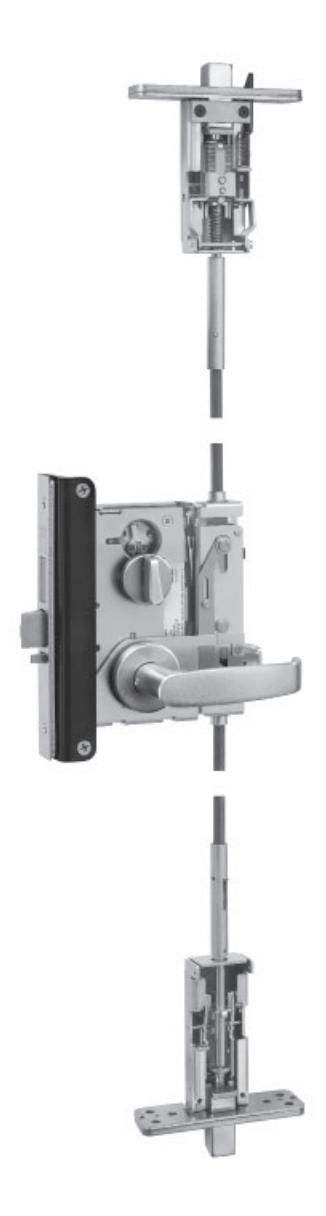

FM7300 & BL7300 Series
Multi-Point Locks
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.
| SAR | GENT |
|---|---|
| Δ22Δ | ARI OY |

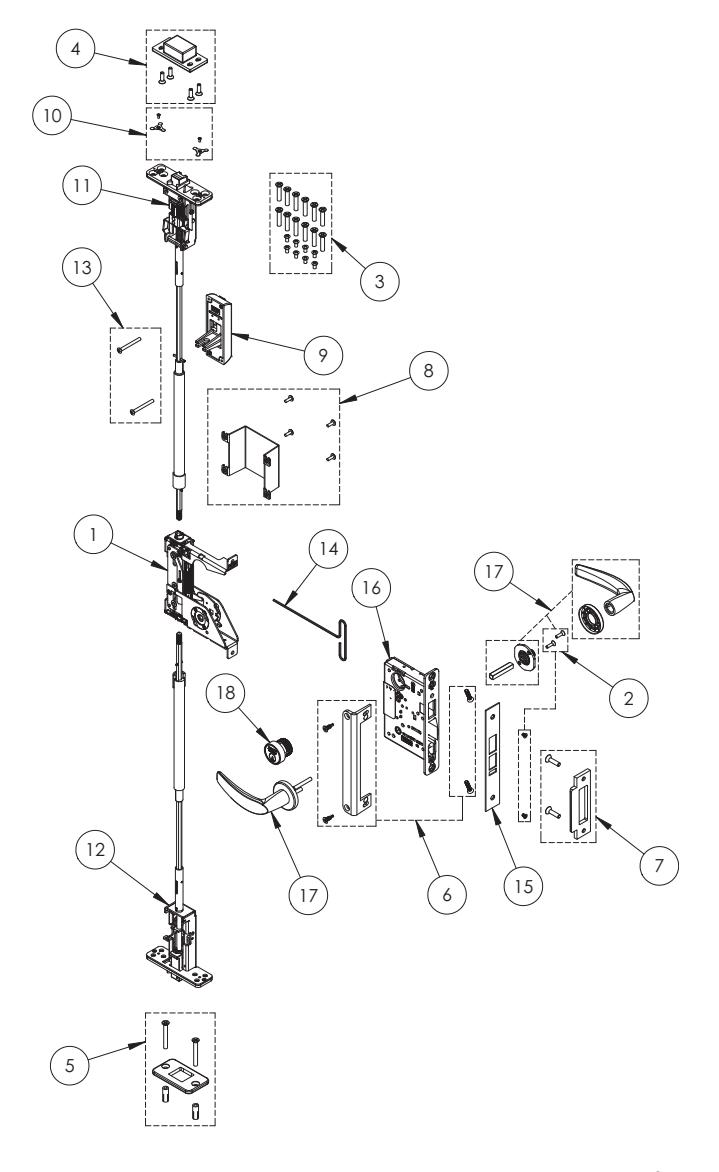

| Item | Part No. | Description | Sellable |
|---|---|---|---|
| 1 | 82-5342 | Multipoint Cassette | Yes |
| 2 | 82-5345 | Trim Mounting Screw Pack | Yes |
| 3 | 82-5346 |
Top/Bottom Case Mounting
Screw Pack |
Yes |
| 4 | 82-5347 | Top Strike Pack | Yes |
| 5 | 82-5348 | Bottom Strike Pack | Yes |
| 6 | 82-5349 |
Mortise Mounting/Reinforcement
Pack |
Yes |
| 7 | 82-5350 | Center Strike Pack | Yes |
| 82-5351 | In/Pn Inside Cover Shield Pack | Yes | |
| 8 | 82-5352 |
Harmony Inside Cover
Shield Pack |
Yes |
| 82-5353 | Passport Inside Cover Shield Pack | Yes | |
| 9 | 188 |
*Dogging Indicator1
(Includes Item 13) |
Yes |
| 1. Specify finish | ||
|---|---|---|
2. Specify door size
SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511 USA 800-727-5477 www.sargentlock.com
| Copyright © 2018, 2019, 2020 SARGENT Manufacturing Company. All rights reserved. Reproduction | |
| in whole or in part without the express written permission of SARGENT Manufacturing Company is | |
| prohibited. |
| Item | Part No. | Description | Sellable |
| 10 | 82-5383 | Screw Retainer Pack | Yes |
| 11 | 680T2,3 | Top Case And Rod Assembly2 | Yes |
| 12 | 82-5387 | Bottom Case And Rod Assembly2 | Yes |
| 13 | 82-5400 | Dogging Indicator Screw Pack1 | Yes |
| 14 | 01-4597 | T-Wrench, 3/32" Adjustment | Yes |
| 15 |
Consult
Factory |
O/S Front | Yes |
| 16 |
Consult
Factory |
Mortise Lock | Yes |
| 17 |
Consult
Factory |
Mortise Trim | Yes |
| 18 |
Consult
Factory |
Cylinder | Yes |
3. Specify FM for FM7300 or BL for BL7300
* Dogging Indicator NOT available for BL7300
