Overview

The FCE-2000 is a standalone electronic function lock that provides RFID (Radio-Frequency Identification) technology integrated with an ANSI Grade 1 heavy duty cylindrical lockset for greater security. RFID technology simplifies the management of the system and provides ease of use. Maximum keycard capacity includes 1 program keycard, 1 clear keycard, 1 register keycard, and 250 user and office keycards. The FCE 2000 is quick and easy to program.

Features

• Heavy duty standalone RFID cylindrical lock
• Easy programming of multiple locks
• Extended two years battery life, with low battery warning
• Easy firmware update
• Non-volatile memory (Setting is not deleted even if power off)
• Mechanical key override
• Encrypted keycard
• Mifare technology with NFC tag
• Tamper resistant mounting screws
• Vandal resistant RFID reader

Electronic Specifications

Application Full indoor and outdoor

Users Up to 250

Keycard verification time Less than 0.5 second

Keycard maximum working distance 3/4"

Communication Multi-colored LED and Sound

Power supply 4AA battery Battery life Up to 2yrs

Operating temperature -31° to 151°F (-35° to 66°C)

Certifications FCC Part 15, UL 10C, A156.2

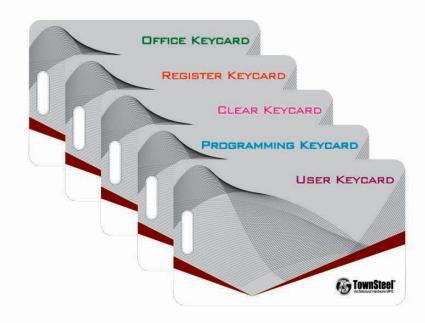

Keycard 2 User and 1 Office keycards standard

Program Pack One each Program, Clear and Register keycard standard

Mechanical Specifications

Chassis A156.2 certified grade 1 cylindrical

Handing Non-handed Door thickness 1-3/4"-2"

Backset 2-3/4" standard, 5" optional

Latch bolt Self-adjustable, Stainless steel, ½" throw, dead-locking

Faceplate Stainless steel, 1-1/8" X 2-1/4"

Escutcheon Wrought steel or zinc alloy,, plated to match finish symbols

Levers Cast zinc or stainless steel, plated to match finish symbols

FCE-2000

Grade 1 Cylindrical Lockset with RFID Technology

Lever Style Sentinel(S), Quest(Q) and Gala(G)

Clutching Available

Strike ASA strike, 1-1/4" X 4-7/8", steel plated to match finish symbols

Cylinder and keys 6 pin brass, schlage "C" keyway standard, 2 brass keys per

each cylinder

SFIC Small format IC available, 6 or 7 pin, Best "A" keyway available

Schlage® LFIC Schlage® Large format IC less core available

Corbin®LFIC Corbin® Large format IC less core available, for 6 pin core

High Security Cylinder Available, TownSteel "L" keyway, Regular 6 pin, SFIC 7 pin

Finish US26D and US10B stock finishes, other finishes upon request

Warranty 1 year limited for electronic, 10 year limited for mechanical, 5 year

limited for finish

Code Compliance

• ANSI/BHMA A156.2: Chassis A156.2-2011 Grade 1 certified

• ANSI/BHMA A156.25: Meets or exceeds applicable requirements

• UL/ULC: UL10C 3-hour rated

• BAA: Meets guidelines of the Buy American Act

• ADA: Meets requirements of the Americans with Disabilities Act

• RoHS: Meets requirements of EU RoHS Directive 2002/95/EC

• FCC: FCC part 15 certified

How to order

Series	Lever Style	Backset	Finish	Keying/Cylinder
FCE-2010: Cylindrical, RFID, Rigid FCE-2020: Cylindrical, RFID, Clutched FCE-2030: Cylindrical, RFID, High Security Cylinder, Rigid FCE-2040: Cylindrical, RFID, High Security Cylinder, Clutched	S: Sentinel Q: Quest G: Gala	2-3/4" 5"	US26D: Satin Chrome US10B: Powder Coat	Specify when ordering

FCE - 2010 - S - 2-3/4 - US26D FCE-2010: Mortise, Keypad, Rigid S: Sentinel Lever

2-3/4": 2-3/4 backset US26D: Satin Chrome

Introduction

The FCE 4000 series is a grade 1 heavy duty standalone electronic lock with the security afforded by using the latest RFID technology. RFID technology simplifies the management of the lock system to make this an easy and effective method of control. Maximum keycard capacity is 250 office and user keycards along with 120 Remote Control Units (RCU) that are able to pair with each lock. Programming is practical, efficient and simple.

The lock system provides for Lockdown of the lock using the RCU that is programmed to pair with the lock. The RCU can be programmed for one or multiple locks and has a minimum effective range of 75 feet. The 75 foot distance is not affected by walls or barriers. With a simple press of the button on the RCU the lock will be locked down and a LED will flash indicating a lockdown is in progress. The RCU is normally controlled by a designated individual, usually a teacher, and they are responsible for lockdown in the event of an emergency.

The lock is always able to be opened from the inside to allow for exit or evacuation at any time. During lockdown an entry card may be used to gain access to the room if necessary. The RCU will not cancel lockdowns, a Lockdown Cancel Keycard is used to cancel the lockdown mode. The locking system is operated by batteries and not affected by external electrical power outages.

Overall the RFID lock system is a secure, safe, practical and simple method to ensure the safety of the occupants in the room, especially children.

Features

• Standalone RFID cylindrical lock with classroom lockdown feature
• · Ideal for school safety programs
• · Easy programming of multiple locks
• · Extented two years battery life, with low battery warning
• Easy firmware upgrade
• · Non-volatile memory (setting is not deleted even if power off)
• · Mechanical key override
• Encrypted keycard, 8-bit Universal Identification (UID)
• · Mifare technology with NFC tag
• Tamper resistant mounting screws
• Vandal Resistant RFID reader
• Heavy duty Grade 1 cylindrical lockset

Electronic Specifications

• Application: For classroom lockdown, full indoor and outdoor
• Capacity of User/Office keycards per Lock: 250
• Capacity of RCU per Lock: 120
• Credential verification time: Less than 0.5 second
• Keycard maximum read/write distance: ¾"
• RCU minimum working distance: 75 feet
• Communication: Multi-colored LED indicator and sound
• Power supply: 4AA battery
• Battery life: Up to 2 years
• Operating temperature: -31° to 151° F (-35° to 66°C)

FCE-4000

CYLINDRICAL WITH RFID TECHNOLOGY

Mechanical Specifications

Door Thickness 1-3/4"-2"

Backset 2-3/4" standard, 5" optional

Clutched trim Available

Latch bolt Stainless Steel, deadlocking, 1/2"throw

Faceplate $1-1/8"\; \backslash times\; 2-1/4"$

Strike ASA Strike standard, 1-1/4" X 4-7/8"

Escutcheon Steel or zinc alloy

Lever Zinc or stainless steel

Lever Style Sentinel (S), Quest (Q) and Gala(G)

Cylinder - 6 pin Schlage® C Keyway, standard

- Small Format IC with or without core available, 6 or 7 pin core, Best® "A" keyway

- Schlage® Large Format IC less core available

- Corbin® Large Format IC less core available, for 6 pin core

- High Security Cylinder available, 6 pin, TownSteel "L" keyway

- High Security SFIC Core available, 7 pin, TownSteel "L" keyway

Keying KD standard, KA, MK, GMK, GGMK and construction available

Finish US26D and US10B stocked, other upon request

Warranty 1-year limited for electronic, 5-year limited for finish, 10-year limited for mechanical

Code Compliance

ANSI/BHMA A156.2 A156.2-2011 Grade 1 Certified

ANSI/BHMA A156.25 Meets or exceeds all applicable requirements

UL/ULC UL 10C 3-hour rated

BAA Meets guidelines of the Buy American Act

ADA Meets requirements of the Americans with Disabilities Act RoHS Meets requirements of EU RoHS Directive 2002/95/EC

FCC FCC part 15 certified

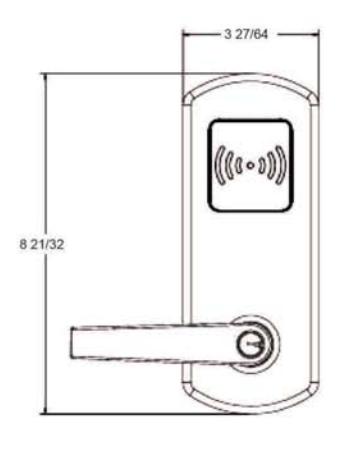

Profile

How to order

FCE Series: FCE-4010 Rigid FCE-4020 Clutched FCE-4030 Rigid, High Security Clutched, High Security FCE-4040 Lever Style: S Sentinel Q Quest G Gala Backset 2-3/4" 5" Finshes: Satin Chrome US26D Powder Coat US10B Keying Specify when ordering
