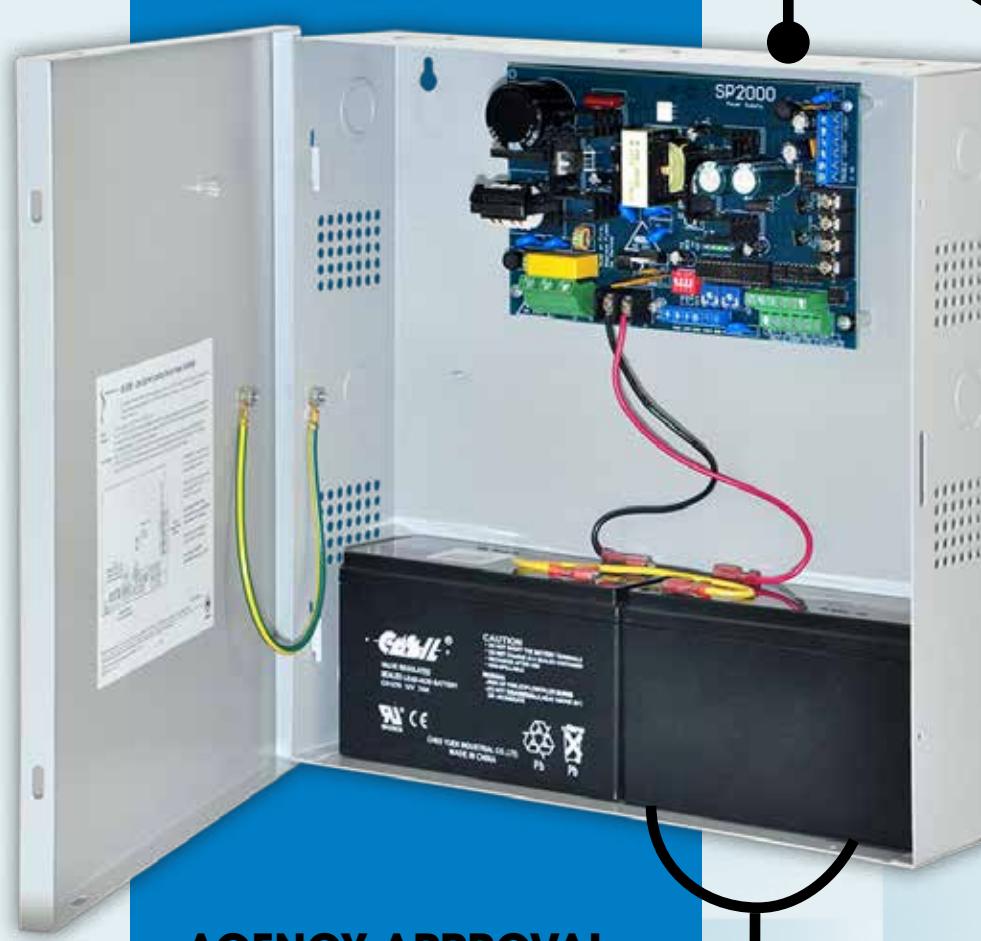

PSMEL2000 S E R I E S

FCBP's NEW SMART Self Diagnosing Power Supply

Operates a pair of doors with two low current exit devices simultaneously or independently control two single door leafs.

Designed to operate:

• •Electric Latch Retraction Motorized Exit Devices
• •Electric Strikes
• •Electric Lever Trim

Additional Features:

• •Fail-Secure or Fail-Safe Via Dip Switches Selection
• •Intelligent Logic Protection Against Accidental Shorting of Outputs
• •Solid-State Follower Relays and Operator with no Moving Mechanical Parts
• •Built-in Charger for Lead Sealed or Gel Typed Acid Batteries
• •Manual Test Button for Battery Conditions
• •Visual LED Power Indicators
• •Troubleshooting Diagnostic LEDs

AGENCY APPROVAL

• UL 294 - Access Control Unit Power Supply. Evaluated to the following levels of UL 294 6th Ed:

Destructive Attack - I Line Security - I Endurance - IV Stand-by Power II

• ULC-S319 - Access Control Unit Power Supply, Class I

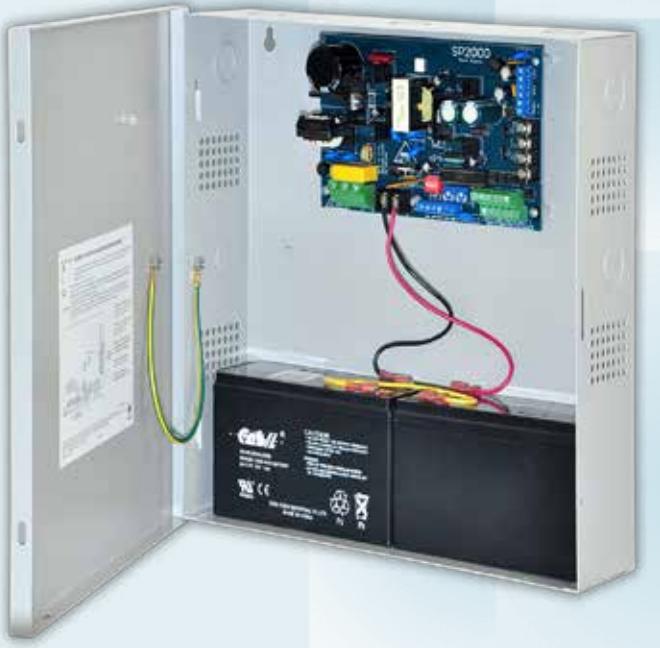

Battery Backup

Requires (2) 12V batteries to be wired in series for 24V operation. Built-in charger for sealed lead acid batteries. Automatic switch over to stand-by battery when AC fails. (Order batteries separately.)

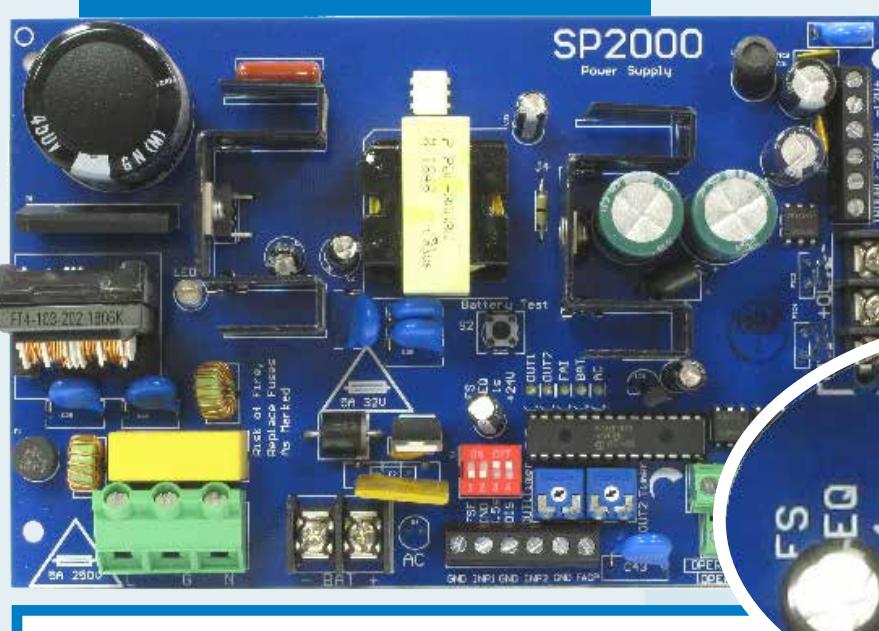

PSMEL2000 S E R I E S

FCBP's SMART SELF-DIAGNOSING POWER SUPPLY

LED status indicators are provided to monitor input status, battery condition, AC power loss, and Fire Alarm Control Panel status. Intelligent logic provides protection against accidental shorting of

lock outputs.

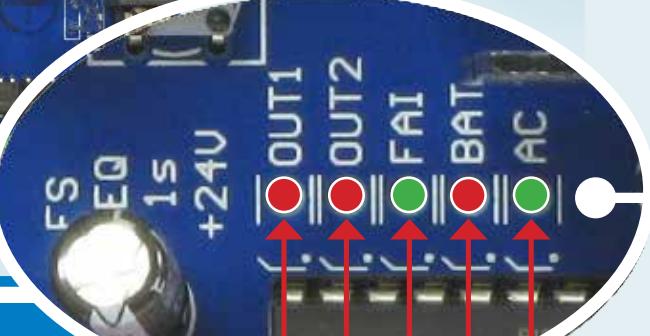

LED DIAGNOSTICS
LED	Status	Panic Device Power Controller Status
POWER	ON	AC Loss of AC
OUTPUT-1	ON Rapid Blink Slow Blink OFF	Energized Short Circuit Over Current Open Circuit De-Energized
OUTPUT-2	ON Rapid Blink Slow Blink OFF	Energized Short Circuit Over Current Open Circuit De-Energized
FAI	ON OFF	FACP Input Triggered (Alarm Condition) FACP Normal (Non-Alarm Condition)
BATTERY TROUBLE	ON OFF	Battery Normal Bad Battery or No Battery
AC TROUBLE	ON Slow Blink	Normal AC Low or Missing

2-CONDUCTOR (Stranded Only)
Wire Gauge	Maximum Distance
12 AWG	720 FEET
14 AWG	450 FEET
16 AWG	280 FEET
18 AWG	180 FEET
20 AWG	110 FEET
22 AWG	70 FEET

AC BATTERY

FAI OUTPUT-2

OUTPUT-1

MAIN OPERATIONAL FEATURES

• Filtered and Regulated DC Outputs
• Two (2) Fail-Safe or Fail-Secure Lock Output Configuration
• Independent or Sequential Lock Output Operation
• 24VDC Auxiliary Power Output Rated at 0.8 amp
• 12VDC Auxiliary Power Output Rated at 0.5 amp
• LED Indicators for Troubleshooting Diagnostics
• Configurable Fire Alarm Interface can Disconnect or Apply Power to the Lock when Activated

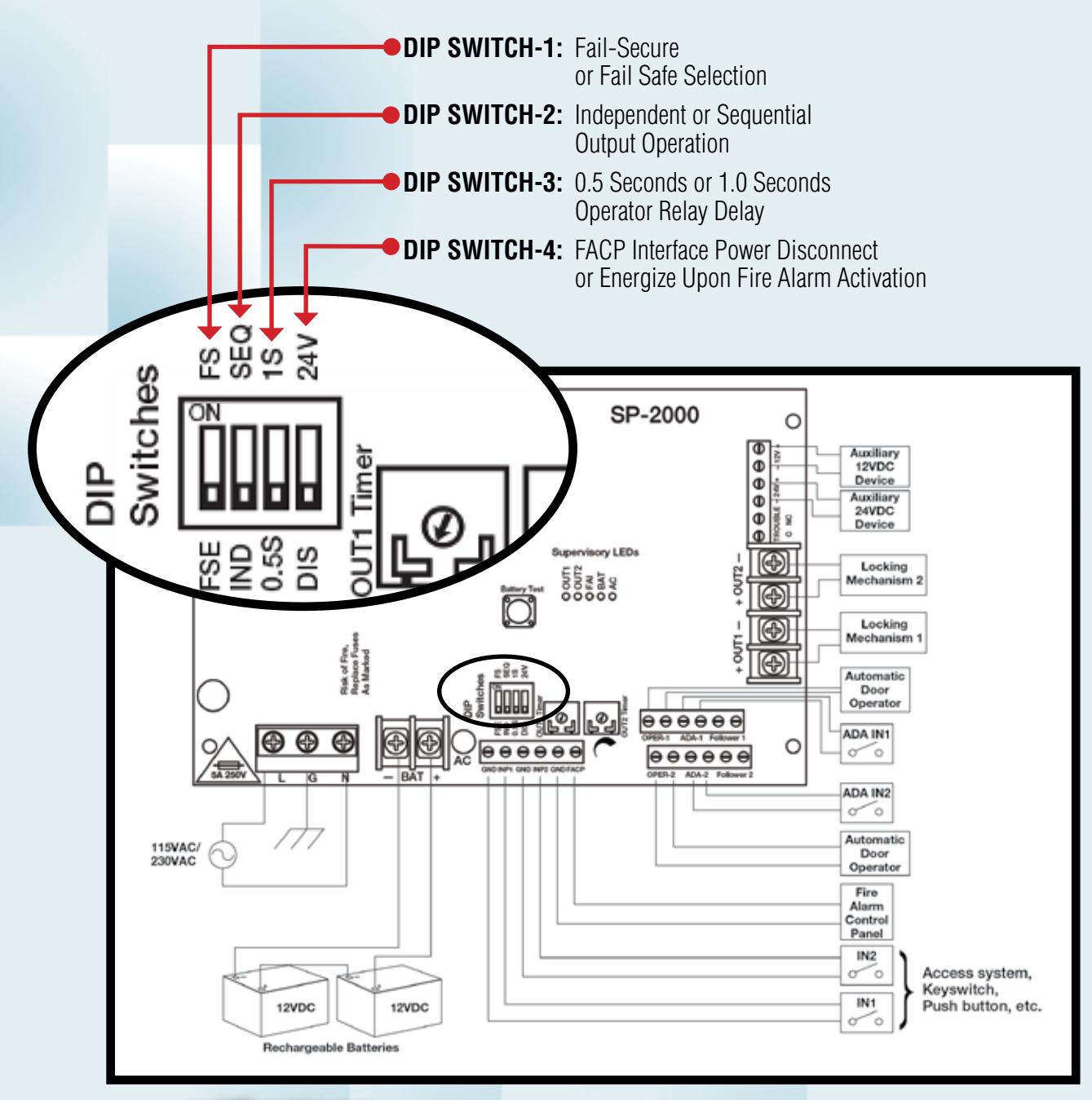

• Easy Select DIP Switch Settings
• Built-In Re-Lock Delay Timers

POWER SUPPLY SELECTOR	PSMEL 1500-1	PSMEL 2000	PSEL 3000	PSEL 1500
Powers up to 1 (one) MEL Device	4	4	4	4
Powers up to 2 (two) MEL Devices		4	4
Powers up to 1 (one) EL Device			4	4
Powers up to 2 (two) EL Devices			4
Adjustable delay for exit device re-locking		4	4
Capable of triggering external relays		4	4
Provide delayed triggering for Automatic Doors		4	4
24vDC auxiliary power for keypad, code readers, motion detectors, etc.	4	4	4	4
12vDC auxiliary power for keypad, code readers, motion detectors, etc.		4	4
Designed with logic protecting against accidental shorting of lock outputs	4	4	4	4
Built-in battery back-up available		4	4
Fire Alarm Interface	4	4	4
Independent or sequential door control with output relays for ADA actuators		4	4
Testing and agency approval UL=294/ulc-S319	4	4	4	4

EMT300 Surface Mounted EPT300 Concealed Stainless Steel EPT3100 Concealed Rigid Mortise Mount Complete Your System with our Selection of Power Supplies

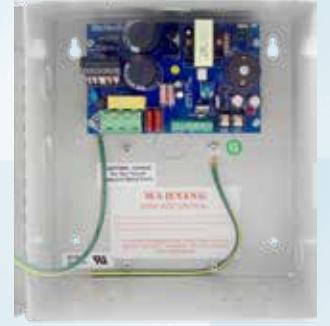

PSMEL1500 S E R I E S

Economical Single Door Power Supply for our MEL3600 & 3700 Series or Electric Strikes

• •Operates 1 Motorized Exit Device
• •UL Listed for Access Control System Units (UL 294)
• •One (1) 24VDC lock output rated @ 1 amp continuous supply current
• •Fire Indicators; Green LED = AC Power Red LED = Disconnected
• •Battery back-up (Requires separate enclosure)

PSEL3000-2 S E R I E S

FCBP's 16 amp in rush 2 door power supply for our EL3600 & 3700 Series and MEL3600 & 3700 Series or Electric Strikes

• •Operates 2 Solenoid Exit Devices
• •UL Listed for Access Control System Units (UL 294)
• •Two (2) 24VDC lock output rated @ 16 amp for 300ms, 0.50 amp continuous supply current
• •Two (2) auxiliary lock outputs (1) 24vDC rated @ 0.75 amp (1) 12vDC rated @ 0.5 amp
• •Fire Alarm Disconnect
• •Visual Indicators Green LED = AC Power Green LED = Panic Device Status (activated, short or open circuit) Red LED = FACP Activated
• •Battery back-up (optional or "ready")

PSEL1500 S E R I E S

FCBP's 16 amp in rush 1 door power supply for our EL3600 & 3700 Series and MEL3600 & 3700 Series or Electric Strikes

• •Operates 1 Solenoid Exit Device
• •UL Listed for Access Control System Units (UL 294)
• •One (1) 24VDC lock output rated @ 16 amp for 300ms, 0.50 amp continuous supply current
• •One (1) auxiliary lock output (1) 12vDC rated @ 0.5 amp
• •Fire Alarm Disconnect
• •Visual Indicators Red LED = Unlock Status
• •Battery back-up (Requires separate enclosure)
