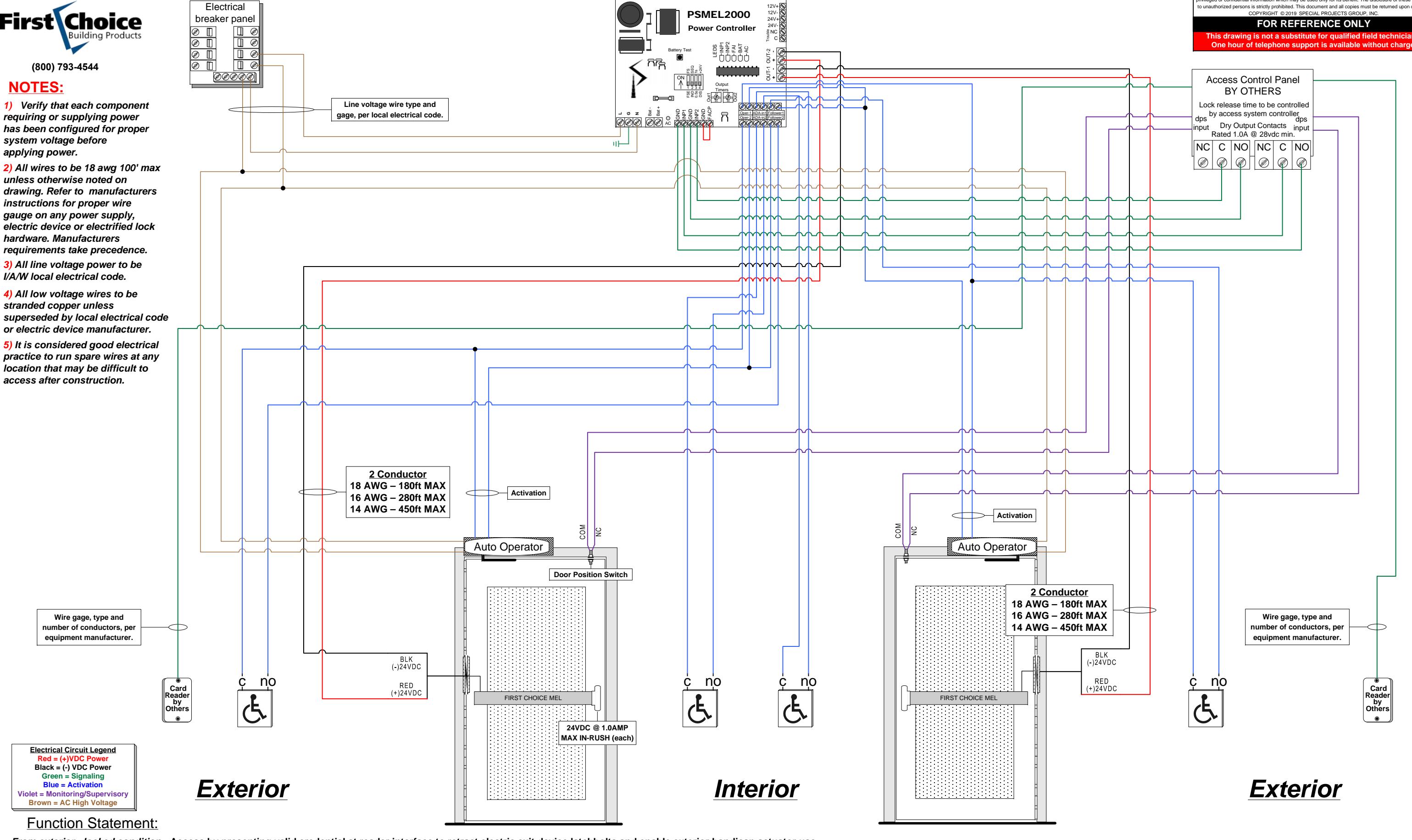

FCBP MEL Exit Device For 2 Separate Doors with Both Active and Power Supply PSMEL2000 and ADA Compliant Wiring Diagram

From exterior - locked condition: Access by presenting valid credential at reader interface to retract electric exit device latchbolts and enable exterior handicap actuator use. From exterior - unlocked condition: Doors to remain locked unless electric exit device held retracted by access control system. When unlocked, exterior handicap actuators available for use. From interior - locked condition: Free egress at all times by means of exit device or by pressing interior handicap actuator to retract electric exit device latchbolts and initiate automatic operator activation. From interior - unlocked condition: Free egress at all times by means of exit device or by pressing interior handicap actuator to retract electric exit device latchbolts and initiate automatic operator activation. General: Fail-secure electric latch retraction exit devices to remain locked during utility power-loss event.

Title Singles MEL_PS-MEL-2000_Operators.vsd					Project: Example
HWSET: Example				Door: EXT-1
Date:	5/17/2019	Date Printed:		5/17/2019	Last Revised: 5/17/2019		10:14:11 AM
Drawn By:	By: Eric Norton For:		For:	Special Projects Group		SO: n/a	Pg: 1 OF 1
