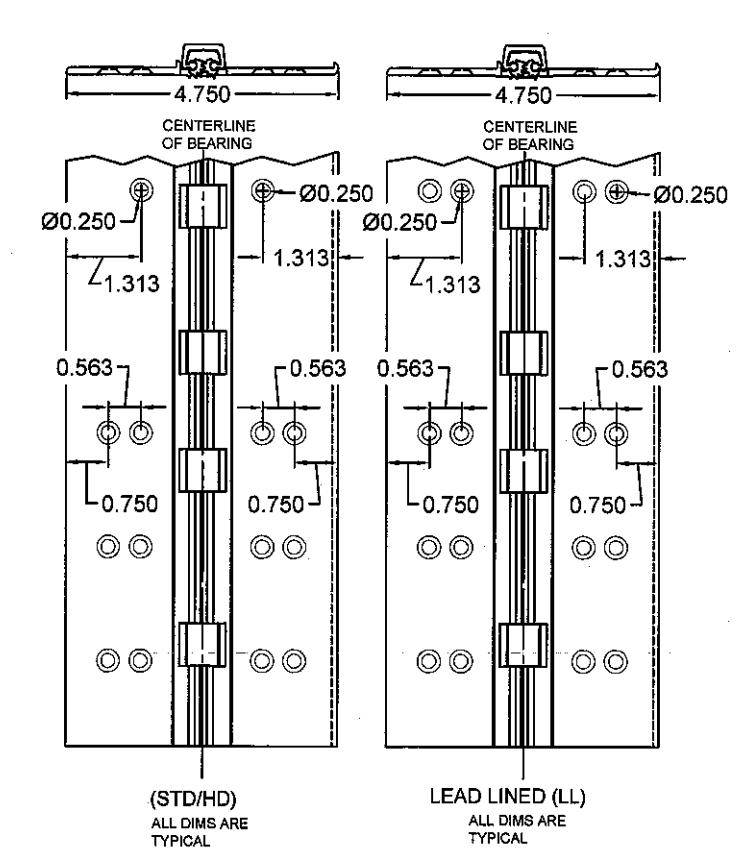

View PDFFC240HD/FC240LL 83" LONG

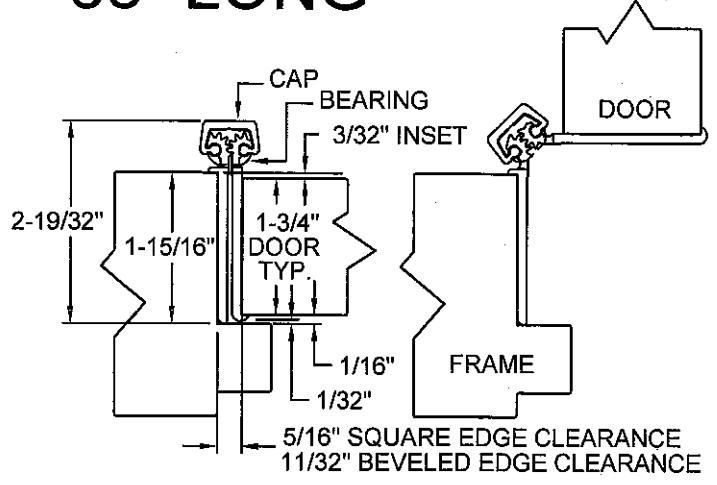

| SCREW DETAIL | |||
|---|---|---|---|
| MODEL | DEL | ||
|
STD/HD
QTY. |
ĽY.
QŤ |
DESCRIPTION | |
| FRAME | 19 | 26 |
12-24 X 7/8" PH. F.H. UNDERCUT SELF
DRILLING THREAD FORMING TEK SCREW |
| DOOR | 19 | 26 |
12-24 X 7/8" PH. F.H. UNDERCUT SELF
DRILLING THREAD FORMING TEK SCREW |
| FC240F | D83-STD/HD FC240LL83-LEAD LINED | ) |
|---|---|---|
| 0.000- | 0.000- | |
| 1.500- | ||
| 3.500- | 3.500 -00 2.00 | |
| 5.500- | 2.00 | |
| 5.500 | ||
| 4.50 | ||
| 10.000 | ||
| | | | | | | | | | | | | | | | | | | | | ||
| 20.000- | ||
| | 10,00 | ||
| 30.000- | -∘ば∘ | |
| · | ||
| 11,50 | ||
| 41.500- | -• 1 • 4 1.500 -•• 1 •• 1 | |
| | 11,50 | 11,50 | ||
| 53.000— | -∘ ∰∘ | |
| 10,00 | ||
| • | ||
| 63.000— | 63.000 | |
| 10.00 | ||
| 73.000— | 73.000 | |
| , 0.000 | ||
| 4.50 | ||
| 77.500- | 77.500 - 00 00 | |
| 79.500— | 79.500 2.00 | |
|
81.500—
83.000— |
| | | | | | | | | | | | | | | | | | | | | |
|
φ3.000
|
83.000 | |
| ALL DIMS | ARE TO CENTERLINE OF HOLES |
FC240-83-00,DWG
