FCBP FC111-95 Hinges Template
Open the original PDF document
View PDFFC111HD95/FC111LL95 95" LONG
| SCREW DETAIL | ||||
|---|---|---|---|---|
| MODEL | ||||
|
STD/HD
QTY. |
LL
QTY. |
DESCRIPTION | ||
| FRAME | 21 | 30 |
12-24 X 7/8" PH. F.H. UNDERCUT SELF
DRILLING THREAD FORMING TEK SCREW |
|
| DOOR | 21 | 30 |
12-24 X 7/8" PH. F.H. UNDERCUT SELF
DRILLING THREAD FORMING TEK SCREW |
|

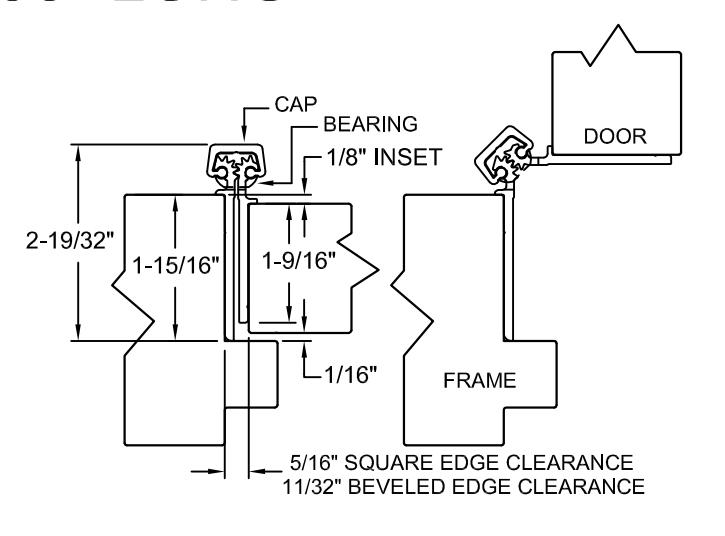

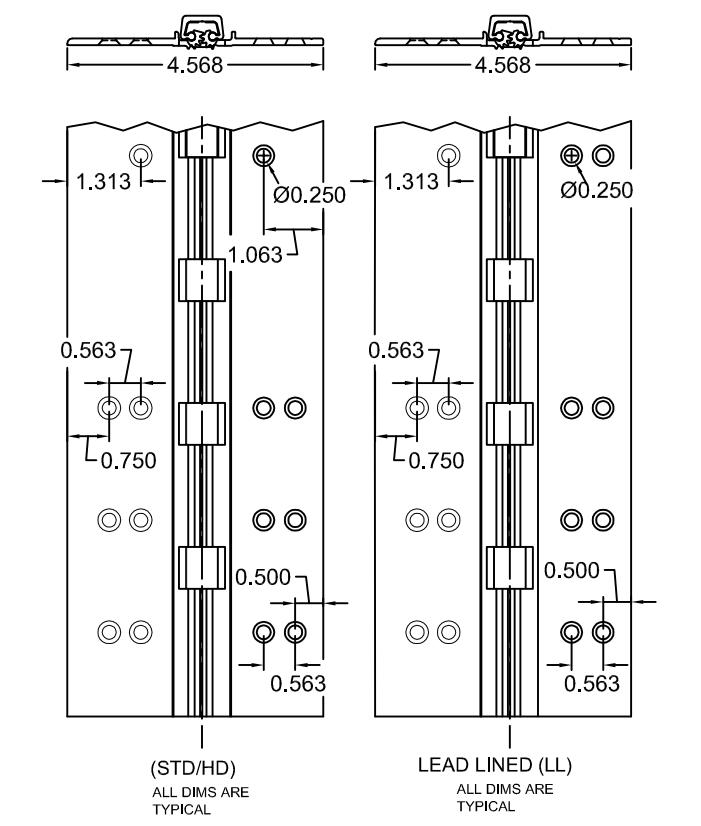

FC111HD95-STD/HD FC111LL95-LEAD LINED 0.000
30.000
55.000
30.000
55.000

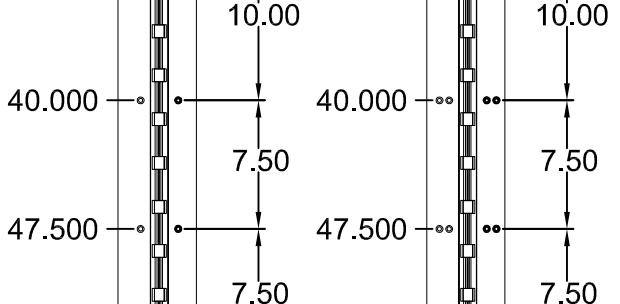

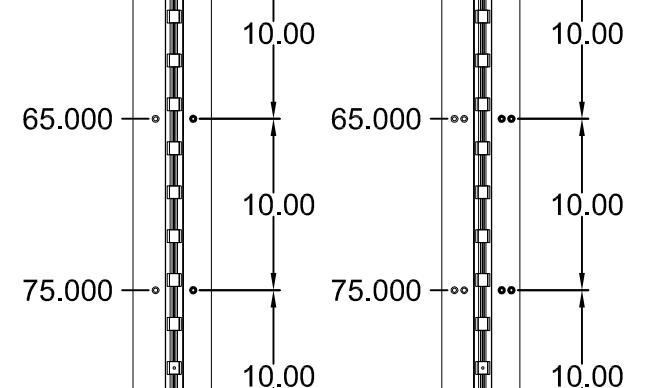

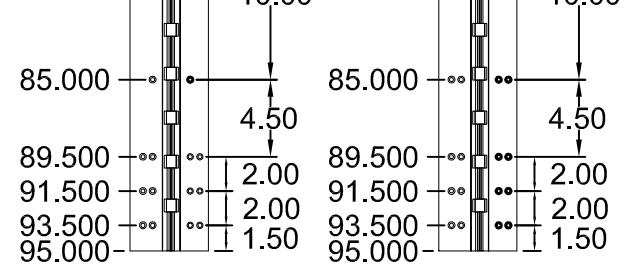

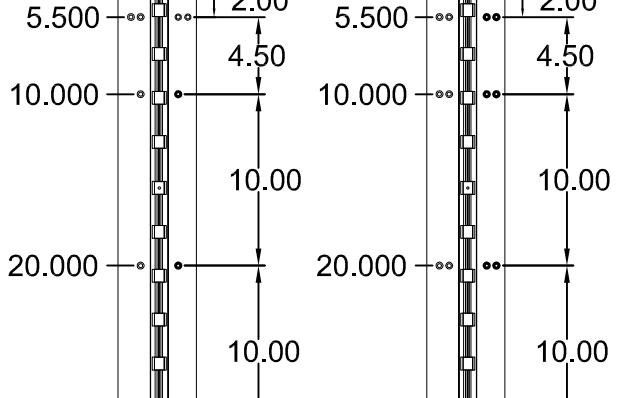

ALL DIMS ARE TO CENTERLINE OF HOLES
FC111-95-02.DWG
