FC S E R I E S

CONTINUOUS GEAR FULLY CONCEALED HINGE

Durable and attractive, these continous gear hinges are the right answer to provde maximum life for your entrance. Twice the number of bearings as standard duty gear hinges means you can hang heavy doors with confidence. The attractive anodized finishes will last and the concealed fasteners provide great security.

• CL Clear
• BR Dark Bronze
• BL Black
• Painted*

*Consult factory for details

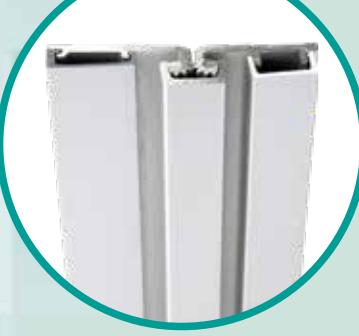

Fully Concealed FC110-Flush

• No mortising of doors or frames required
• Flush mount, no inset
• Doors up to 450 lbs.
• 83" units can be cut down up to 4" without changing bearings or mounting holes

#12-24x1/2" Self Drilling Mounting Screws Included

Hinges are Non-Handed (prior to field cutting)

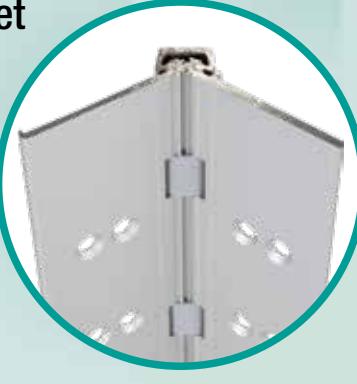

Concealed FC240-3/32" Inset

• 3/32" inset
• 1-3/4" thick door
• Doors up to 450 lbs.
• 83" units can be cut down up to 4" without changing bearings or mounting holes

Half Surface Mount FC530

• 3/32" inset
• 1-9/16" frame leaf
• Doors up to 450 lbs.
• 83" units can be cut down up to 4" without changing bearings or mounting holes

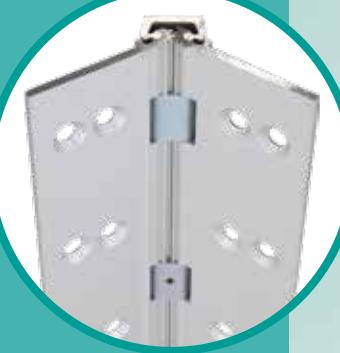

Fully Concealed FC111-1/8" Inset

• No mortising of doors or frames required
• 1/8" inset
• Doors up to 450 lbs.
• 83" units can be cut down up to 4" without changing bearings or mounting holes

Full Surface Mount FC570

• 1/16" inset
• 1-7/8" minimum frame
• Doors up to 450 lbs.
• 83" units can be cut down up to 4" without changing bearings or mounting holes

www.FCBP.com

Phone (800) 793-4544 • Fax (800) 867-5016

FC S E R I E S

ELECTRICAL OPTIONS

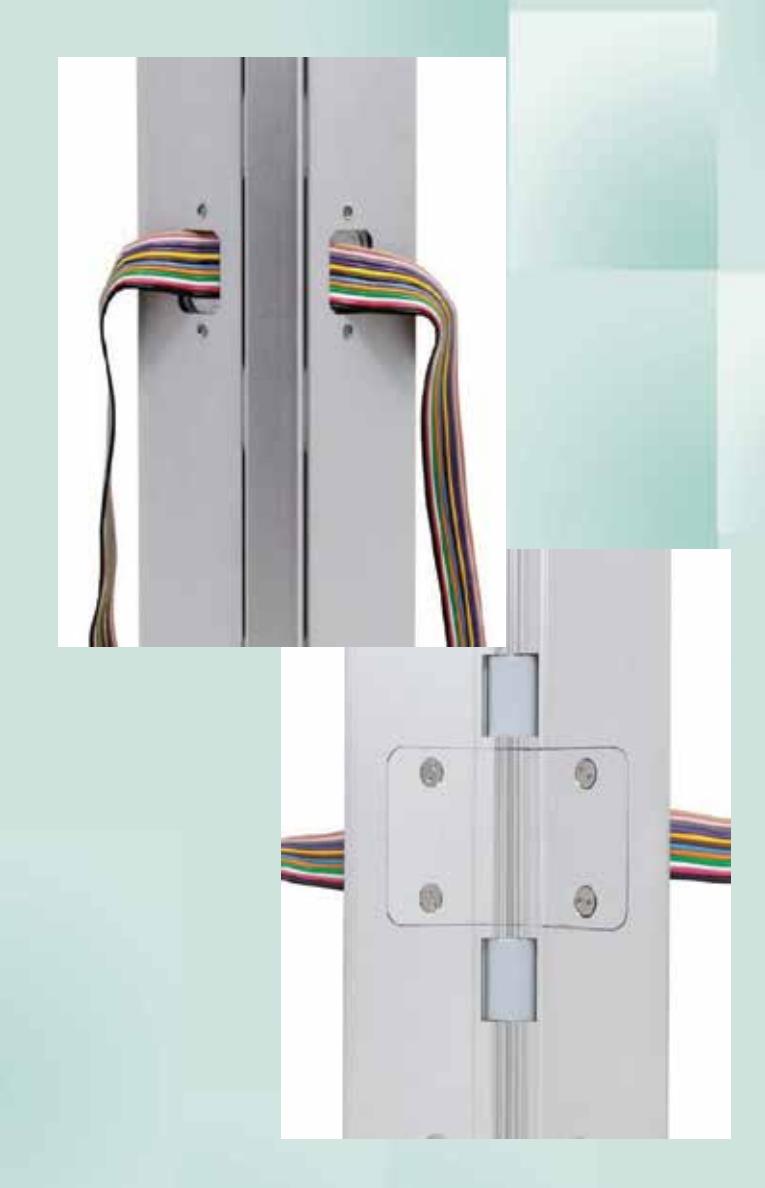

• "EA" Concealed Electrical Thru-Wire Transfers power from the frame to the door in a discreet manner.
  • EA12 (12) Ultra-Flexible 22 AWG Wires
• "EAEZ" Concealed Electrical Thru-Wire with Molex® Connectors Wires are supplied with Molex® connectors installation ease.
• EA12-(12) Ultra-Flexible 22 AWG Wires
• "PT" Cut-out Prep for Power Transfer Hinge is prepped for electrical power transfer unit - must specify power transfer unit being used nd location of cut-out desire. Consult factory.
• "ES" Exposed Electrical Monitoring Switch Push button switch is installed in the frame leaf to monitor the door position. Specify handing.
• "MT" Concealed Electrical Thru-Wire and Magnetic Monitoring Switch Magnetic switch is installed in the frame leaf to monitor the door position while the wires transfer power from the frame to the door.
• EA12-MT-(12) Untra-Flexible 22 AWG wires
  • Magnetic Monitoring Switch

Electrical Options - Capability Chart
Model #	TW	EZ	PT	ES	MT
FC110	•	•	•	•	•
FC111	•	•	•	•	•
FC240	•	•	•	•	•
FC530			•
FC570
