EPT3100 S E R I E S

Provides means of transfering electrical power or data from the frame to the door in a secure and discreet manner.

Unit mortises into the edges of the door Frame and is compeely concealed when the door is in the closed position
All metal construction including back boxes NO PLASTIC PARTS
Ideal for high abuse or heavy traffic situations
For use on 13 /4" thick doors
Conceals up to ten 24 AWG wires with a maximum rating of 24VDC, 1A

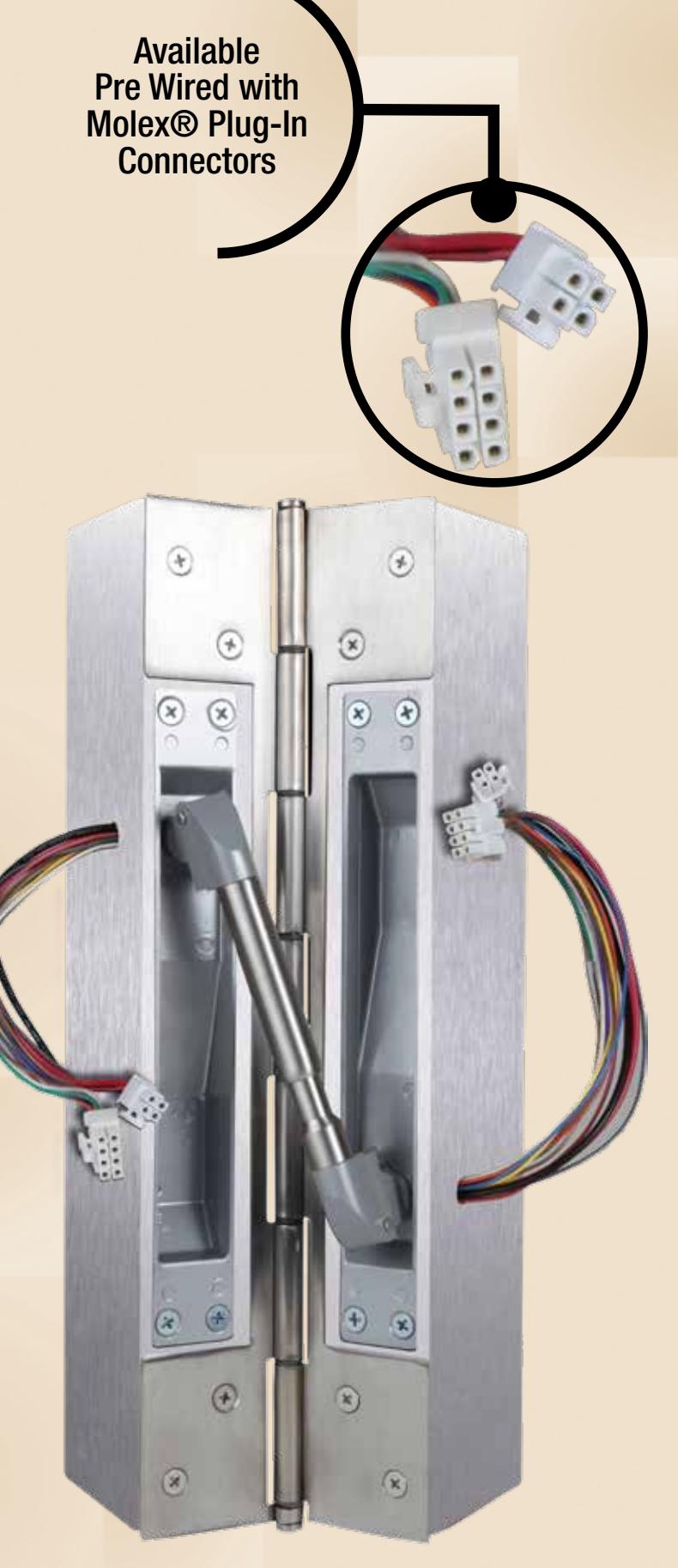

Available pre-wired with 8 pin connectors

www.FCBP.com Phone (800) 793-4544 • Fax (800) 867-5016

CONCEALED MORTISE MOUNT EPT300 Stainless Steel

FCBP's Alternative Wire Conealment Assemblies

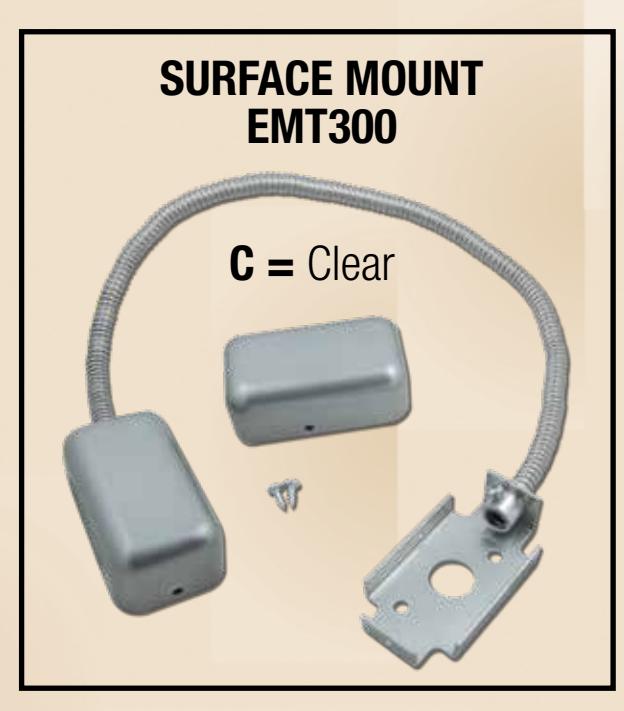

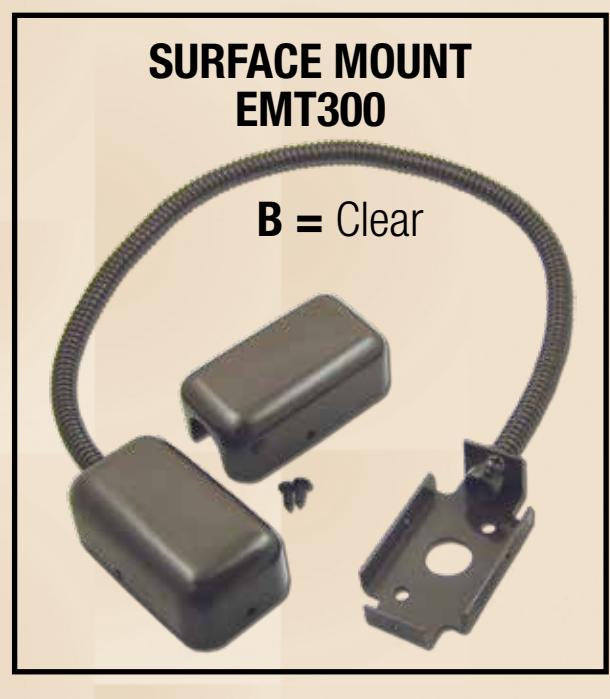

EPT300 EMT300 S E R I E S S E R I E S
