8860 S E R I E S

MORTISE LATCHING EXIT DEVICE with INSET Push Bar

ANSI/BHMA GRADE 1 – UL/ULC Listed for UL305 Panic Hardware

Suitable for Narrow, Medium, and Wide Stile Doors1 Minimum stile size of 2"

Standard Door Widths 36", 42", 48"

48" width can be trimmed down to 36"

For widths less than 36" Consult Factory

Standard 36" Device Shown

Fully concealed fasteners backside of device!

Functions:

• Designed for simple prep and installation
• Attractive low profile design
• Extruded aluminum body in standard annodized finishes
• Non-handed
• Hex key dogging standard
• Device projection of 3"
• Push bar remains 24"

Options:

• •Electric Latch Retraction Motorized mechanism for fast, quiet operation capable of continuous duty.
• •Interior Key Cylinder Dogging

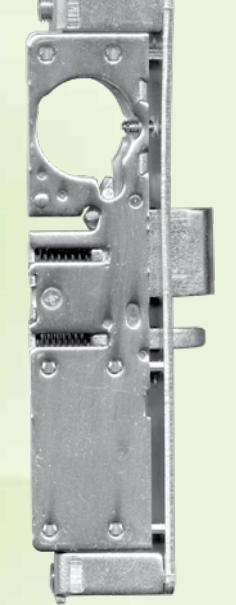

Includes heavy duty mortise, deadlatching lockset

Lock Backsets available in 31/32", 1-1/8", 1-1/2"

Device height of 2-1/2" Device projection 3"

Standard door thickness 1-3/4"

8860 Series is available with Built-in 24vDC 1 Amp Motor Driven Electronic Latch Retraction or as a Retro Fit Kit MEL3000-1

www.FCBP.com

Phone (800) 793-4544 • Fax (800) 867-5016

8860 S E R I E S

PART NUMBERING

A/8860/B-C/D/E/F

SAMPLE NUMBER

MEL886036-CLR01S1

OPTIONS

(A) ACCESSORIES

MEL = Motorized Electric Latch Retraction

(B) DOOR WIDTH

36 = 36" (standard)

48 = 48"

(C) FINISH

CL = Clear

BR = Dark Bronze

BL = Black

(D) FINISH

R = Right Hand

L = Left Hand

(E) BACKSET

01 = 3/32"

02 = 1-1/8"

03 = 1-1/2"

(F) STRIKE TYPE

S1 = 2" Standard

S2 = 3" Extended

S3 = 4" Tall Strike
