8660 S E R I E S

CONCEALED VERTICAL ROD EXIT DEVICE with INSET Push Bar No Pinch - No Jamb!

ANSI/BHMA GRADE 1 – UL/ULC Listed for UL305 Panic Hardware

Suitable for Narrow, Medium, and Wide Stile Doors1

Standard Door Widths 36", 42", 48"

48" width can be trimmed down to 36"

For widths less than 36" Consult Factory

Functions:

• • Designed for simple prep and installation.
• Attractive low profile design with fully concealed fasteners.
• • Extruded aluminum body in standard annodized finishes
• • Field Reversible
• • Hex key dogging standard.

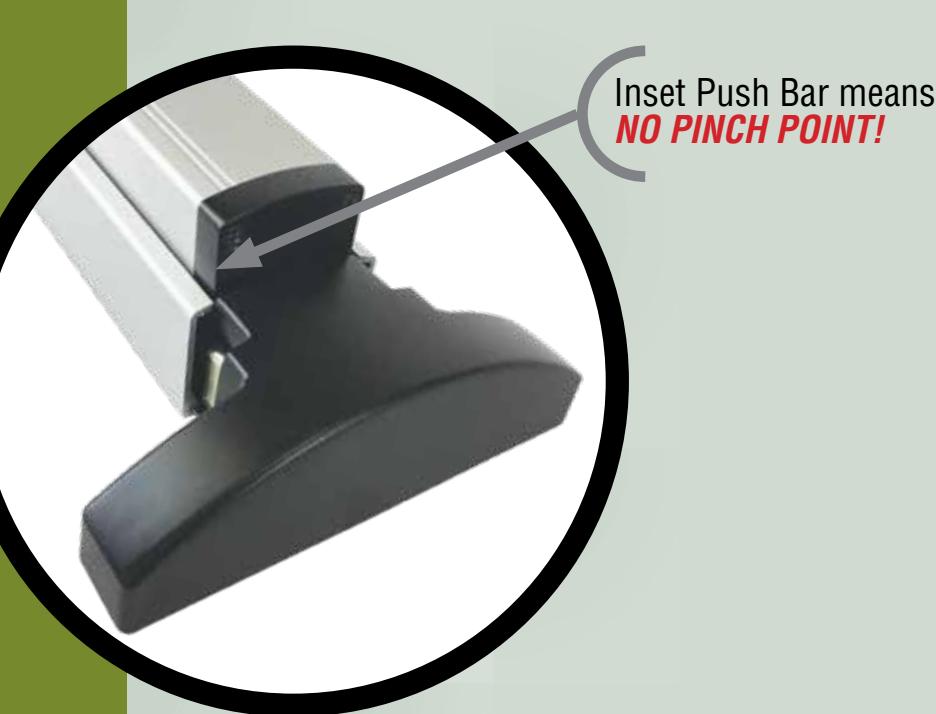

• Device Projection of 3"

Options:

• • Electric Latch Retraction Motorized mechanism for fast, quiet operation capable of continuous duty.
• • Interior Key Cylinder Dogging
• Signal Switch
• Alarm Board

Standard 36" Device Shown Minimum stile size of 2".

www.FCBP.com Phone (800) 793-4544 • Fax (800) 867-5016

8660 S E R I E S

No Visable Fasteners on Backside of Device

PART NUMBERING

A/86B/C-D-E

SAMPLE NUMBER

MEL866036-CL-96

OPTIONS

(A) MISC. OPTIONS

MEL = Motorized Electric Latch Retraction

AL = Alarm Board SW = Signal Switch

CD = Cylinder Dogging

(B) FUNCTIONS

60 = Exit Only

61 = With 1" Round Offset Pull (10" Centers)

62 = Prepped for Ext. Key Cylinder

63 = Prepped for Ext. Key Cylinder with Cylinder Included

(C) DOOR WIDTH

36-48 = Number (inches)

XX = Special Width (consult factory)

(D) FINISH

CL = Clear

BR = Dark Bronze

BL = Black

(E) SPECIAL HEIGHT

XX = (consult factory)
