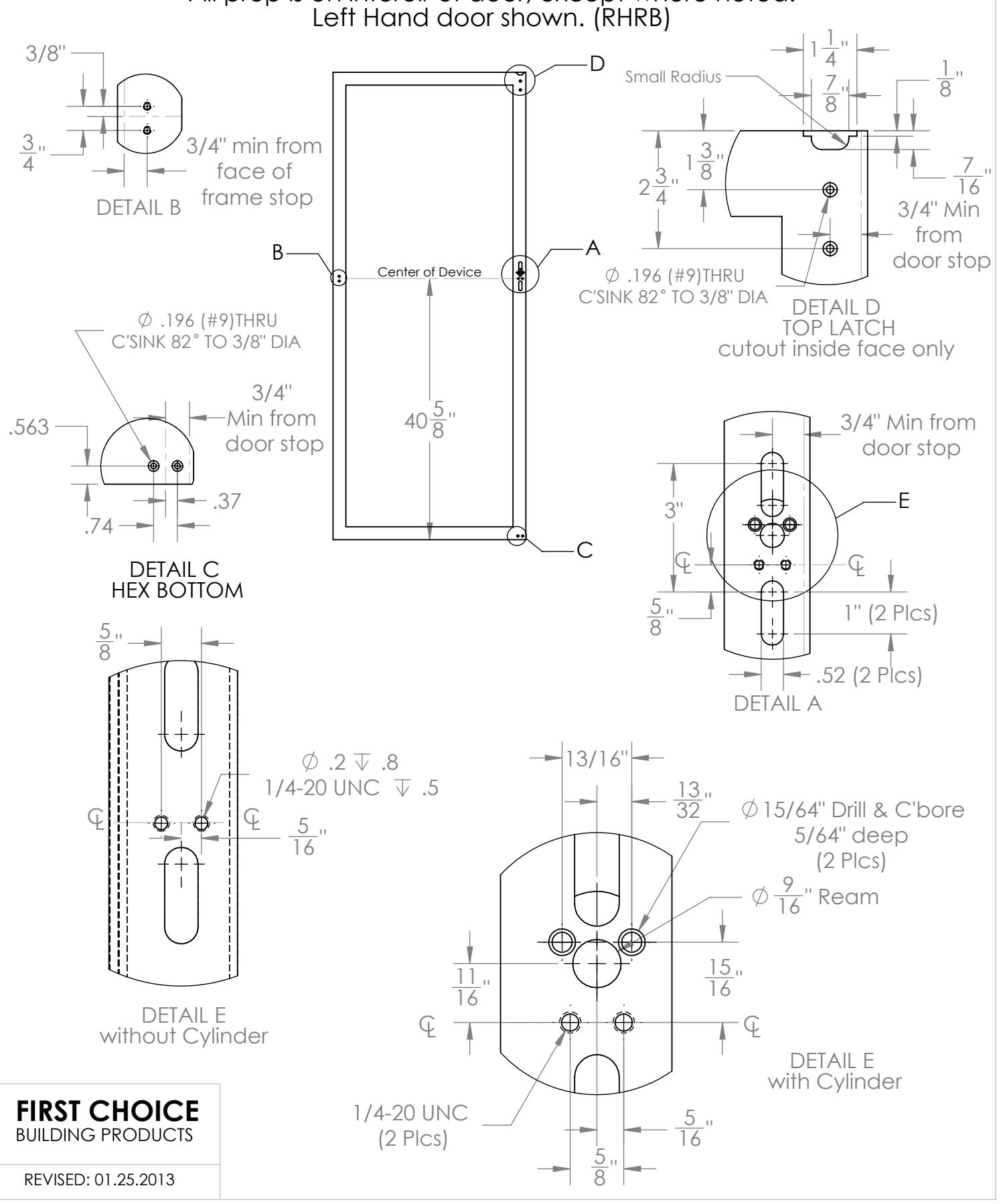

FCBP 3600 Series Concealed Vertical Rod Device (Hex Rod Bottom) Template

Concealed Vertical Rod Panic For Hex Style Bottom Rod Installation Template

All prep is on interoir of door, except where noted. Left Hand door shown. (RHRB)
