3190 S E R I E S

MIDRAIL MOUNTED CVR EXIT DEVICE

GRADE 1 Listed – ANSI/BHMA 156.3 UL File #SN2590 for UL305 Panic Hardware

Suitable for Narrow Stile Doors

Standard Door Widths 36", 42", 48"

* Devices approved for Blast and Impact are part of the complete entrance system as provided by the door manufacturer. Consult your door supplier for approved models.

SPECIFICATIONS

• Exit device shall be 3190 series concealed vertical rod device as manufactured by First Choice Building Products, Inc.
• Exit device shall have UL file #: SA12590 for UL305 and be GRADE 1 listed under national standard ANSI/BHMA 156.3.
• Exit device shall be a narrow style model utilizing low profile touch bar projecting 11 /2" from face of door.
• Exit device shall use 3/8" steel vertical rods operating hardened steel latch bolts with the top latch engaging a stainless steel, top jamb mounted strike with rotational adjustment for proper door alignment.
• Exit device shall be non-handed.
• Exit device shall have the following upgrades available:
  • Electric latch retraction (rated for continuous all day retraction.)
  • Signal switch providing the ability to monitor of the push bar position and to provide a n.o./n.c. trigger to any new or existing system.

OPTIONS

• •MEL3000-1 24vDC 1 Amp Electric Latch Retraction
• Exterior Key Cylinder with Night Latch or Hold Back Functions
• Signal Switch

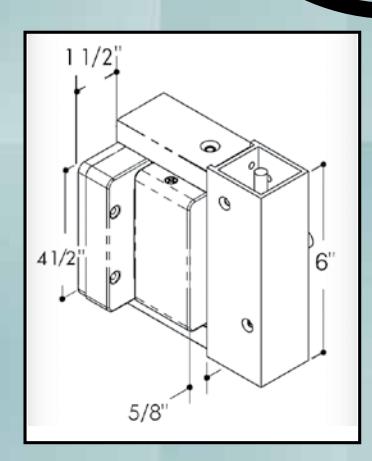

DIMENSIONS

• 41 /2" Push Bar Height
• 11 /2" Projection

www.FCBP.com Phone (800) 793-4544 • Fax (800) 867-5016

3190 S E R I E S

MIDRAIL MOUNTED CVR EXIT DEVICE

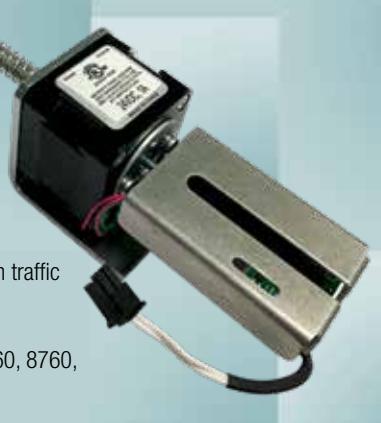

MEL3000-1 24vDC 1 Amp Motorized Electric Latch Retraction

MEL is available on First Choice model 3190 vertical rod devices. These devices are equipped with a 24vDC 1 Amp motor suitable for high traffic conditions and capable of extended periods of activation. Also available as a Retro Fit Kit for our 3690, 3790, 8660, 8760, and 8860 Series Exit Devices.

APPLICATIONS

• Schools
• Convention Centers
• Office Buildings
• Churches
• Retail Spaces, Etc.

DOOR/ or OTHER SIZES

• 30" to 48" Standard
• Custom Sizes Available
• Door Heights up to 9'
• Door Stiles Widths as Narrow as 2"

PRODUCT MATERIALS

• Anodized Aluminum Push Bar and Channel
• Stainless Steel Strikes
• Steel Latch Bolts
• 3/8" Steel Vertical Rods

PRODUCT WARRANTY

First Choice warrants that the products manufactured by us will be free of defects in material and workmanship for a period of two years from date of invoice.

SW300-CA

Signal Switch provices a contact circuit monitoring push bar position

quick connnect (QC) Connectors

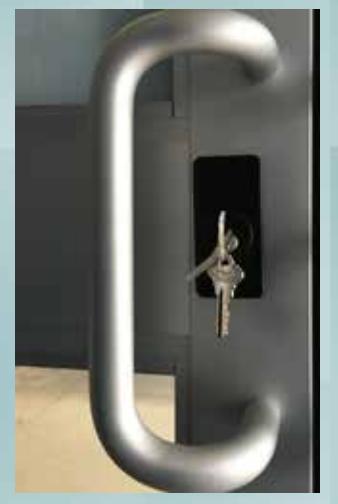

MP021 Exterior Key Cylinder

Using the Dogging Cam and Key Cylinder Actuator gives you the option to control Night Latch or Hold Back Functions.
