FC170-FC172 – Schlage Custom Non-turning Installation Instructions
Open the original PDF document
View PDF
Printed in U.S.A. P518-150 Rev. 08/17-a
P518-150

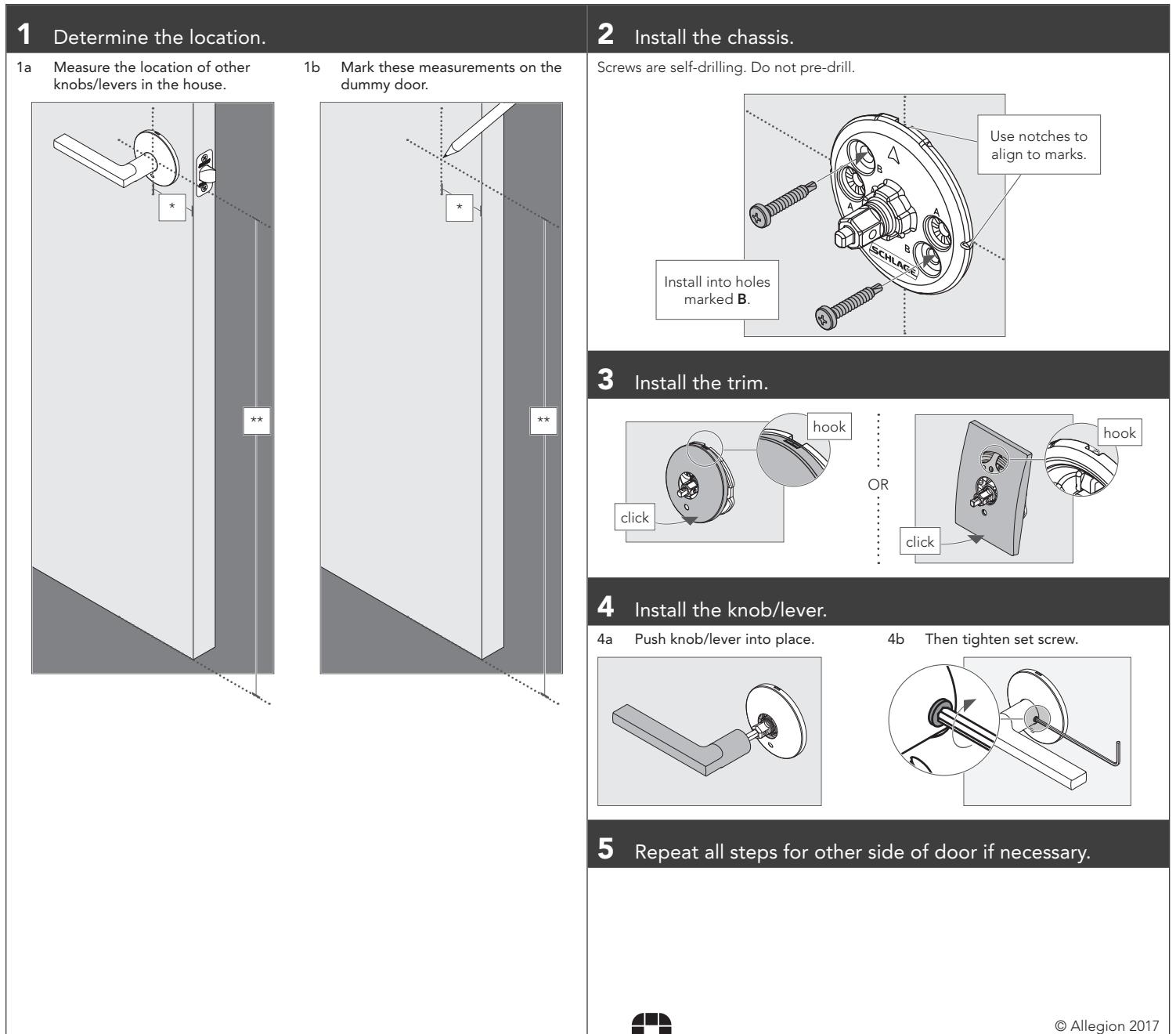

Model FC170/172, Dummy Installation Instructions

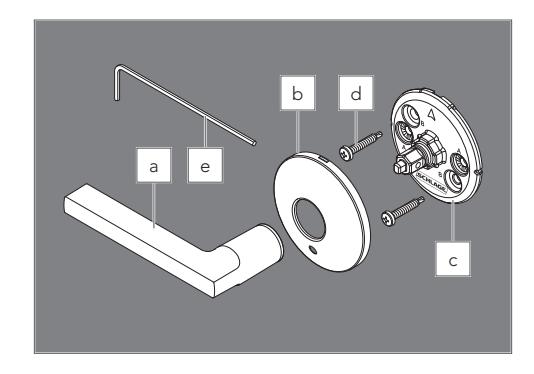

- a. Lever
- b. Trim
- c. Chassis
- d. Chassis screws
- e. Allen wrench (Do not discard!)
