Schalge F10 F40 F51 Template Wood or Composite Square Corner Faceplate

F-Series

F10–F80

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\," (35 mm)–1C\v" (44 mm) Faceplate: Square Corner, 1" (25 mm) wide

Backsets: 23 / 8," (60 mm), 23 / 4" (70 mm), 5" (127 mm)

Standard backset in

bold.

Dimensions shown in parentheses () are in millimeters.

Customer service: 888-805-9837 We can help you find the correct guide for your product and application!

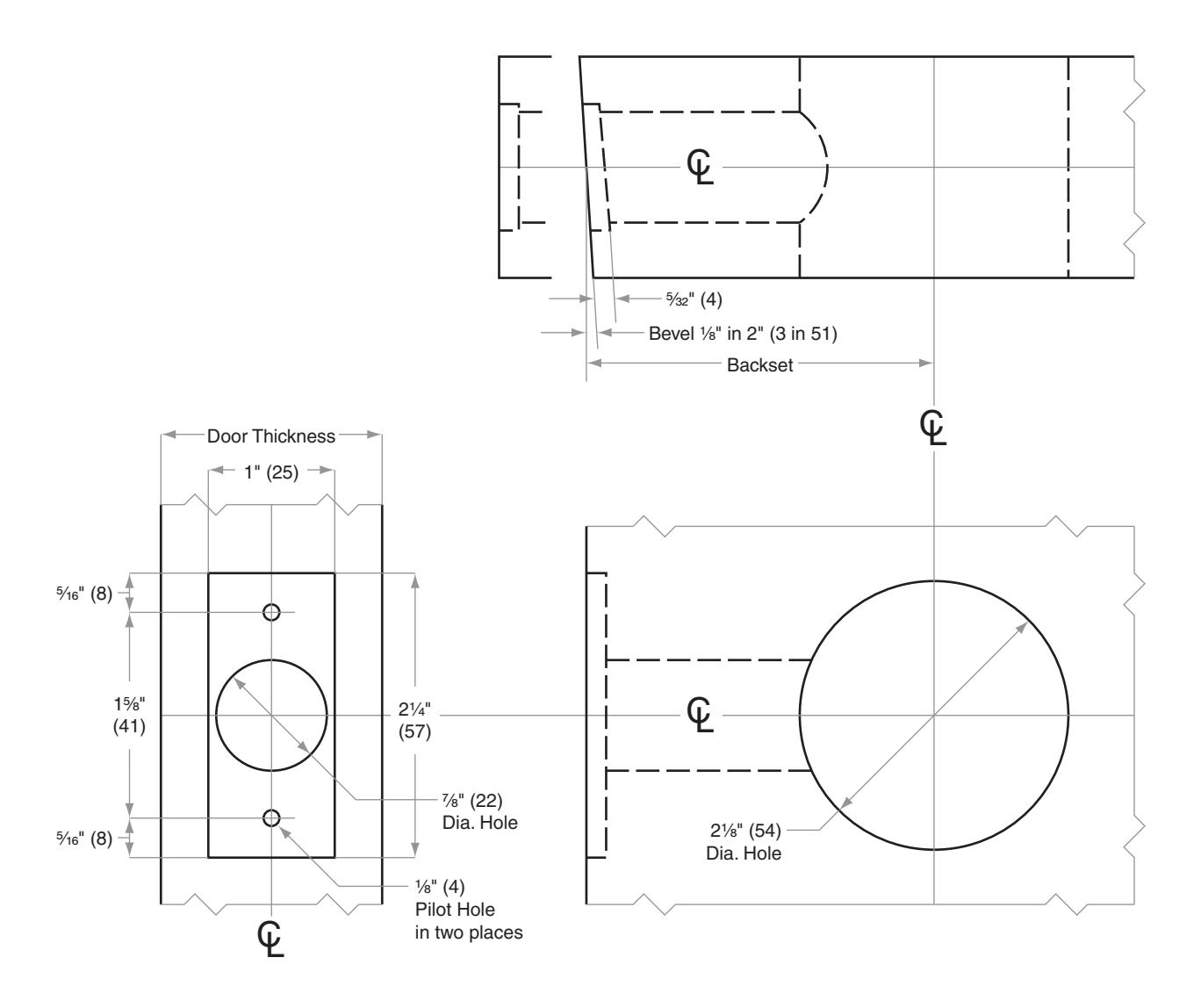

Door preparation guide DRAWING IS NOT TO SCALE!
