Schalge F10 F40 F51 Template Metal Square Corner Faceplate

F-Series

F10–F80

Door Type: Metal, Flat or Beveled Door Thickness: 1C\," (35 mm)–1C\v" (44 mm) Faceplate: Square Corner, 1" (25 mm) wide

Backsets: 23 / 8," (60 mm), 23 / 4" (70 mm), 5" (127 mm)

Standard backset in

bold.

For metal door installations suitable reinforcement is required to support latch in center of door and to prevent lateral movement

Dimensions shown in parentheses () are in millimeters.

Customer service: 888-805-9837 We can help you find the correct guide for your product and application!

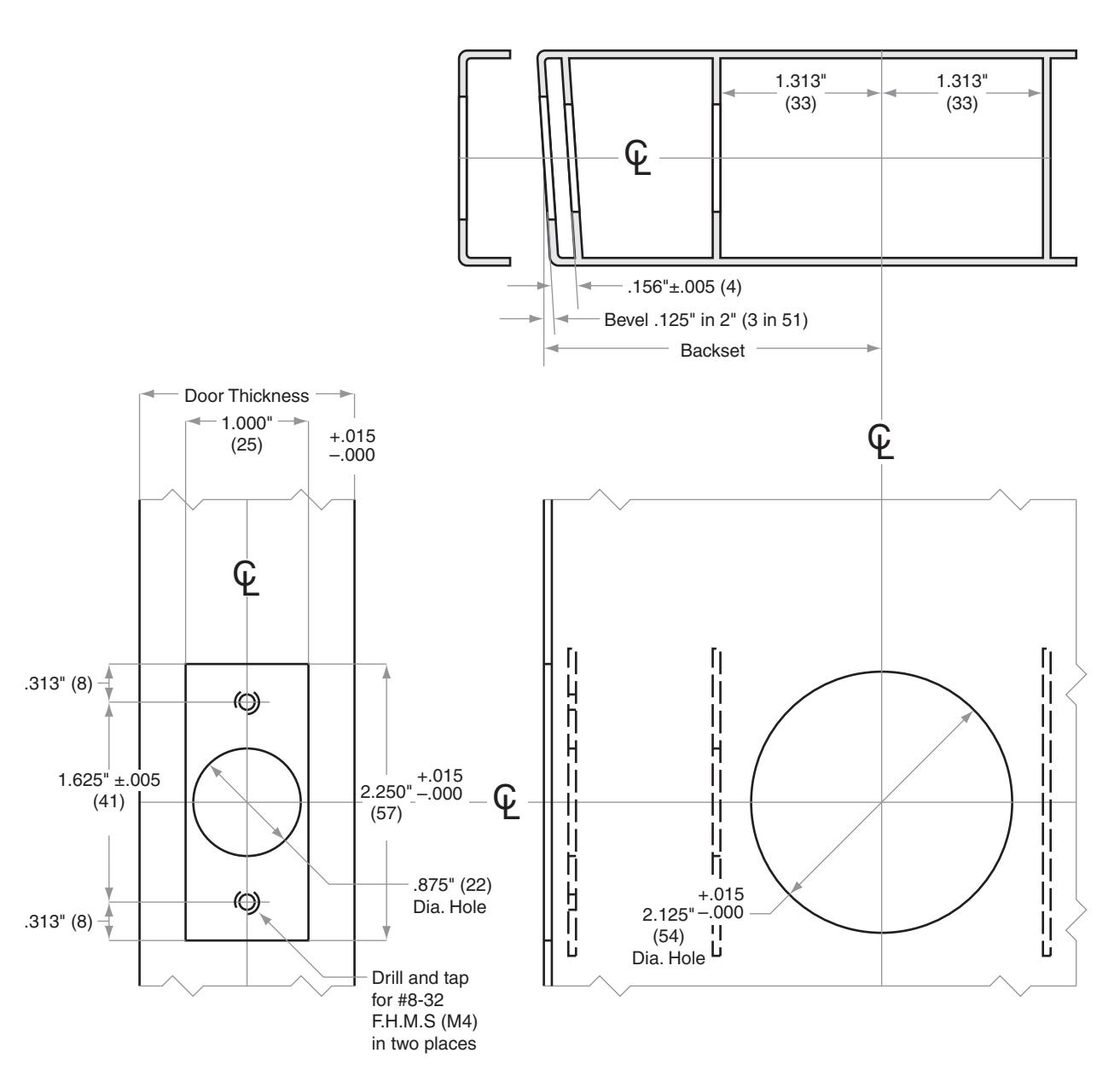

Door preparation guide DRAWING IS NOT TO SCALE!
