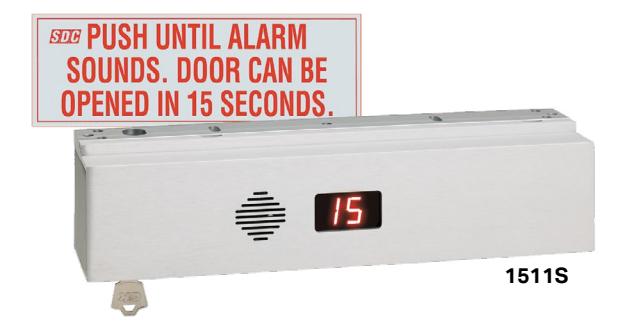

ExitCheck® 1511S / 1511T Series Integrated Delayed Egress Locks

The Exit Check® series incorporates an alternating verbal message, verbal countdown and alarm tone, plus a large digital countdown display and door release indicator that provides a clear warning for the safety of persons without prior knowledge of door operation, including the blind and hearing impaired.

MODELS

1511S Single, Integrated, 1650lbs

1511T Tandem, Integrated, 1650lbs

FEATURES

Field selectable voice message and alarm tone, or alarm tone only, 75 db @ 3 ft
The visual display provides a digital countdown, indicates lock release and verifies if the door was opened for egress.
Choice of fixed 15 second exit and 1 second nuisance delay or field selectable 15 or 30 second exit delay and 1 or 2 second nuisance delay
Field selectable security or safety message
Field selectable activation: Door movement; Exit device with switch kit; Exit sense bar for non-latching doors
Field selectable automatic or manual relock upon power up after emergency release or power loss.
Integrated 3 position key switch provides: Lock and alarm reset; Manual power-up*; Sustained bypass; Timed bypass, adj. for 1, 15, 20 or 30 seconds
Field selectable door prop alarm: Alarm sounds when door is left open after selected bypass time has elapsed.

· Anti-tailgate feature
Single or multi-door zone control and reset capability
Field scalable dual voltage

CONTROL INPUTS

Remote access control and REX input, field adjustable for 1,15, 20 or 30 seconds
· Remote reset input
Manual power-up input*
Emergency release input
· Anti-tailgate input

MONITORING OUTPUTS

Door secure and unlocked output
Delayed egress activation alarm output

BUILT-IN ACTIVATION TRIGGER SLAVE LOCK OUTPUT FEATURES (CONT.)

SELF ADJUSTING DOOR MOVEMENT SENSOR

The built-in door movement sensor may only be used with doors equipped with a latch assembly, such as a mechanical lockset or exit device.

The mechanical latch mechanism must be locked on the exterior and unlocked on the interior. From the inside, retracting the door latch and applying pressure causes limited door movement. The built-in activation trigger senses the door movement and initiates delayed egress operation. The self adjusting sensor helps prevent false triggering.

EXTERNAL DEVICE TRIGGER INPUT

ACTIVATION FOR NON-LATCHING DOORS

The external activation trigger input must be used with doors without latch assemblies, such as latchless glass and herculite doors.

Activation may be triggered by the SDC MSB550 Switch Bar or the SDC Sure Exit®, request-to-exit push bar. A power transfer device is required. Pushing on the request-to exit push bar immediately activates the delayed egress operation.

ACTIVATION FOR LATCHING DOORS

Where preferred, activation may be accomplished by a latch monitoring strike, or a switch installed in a standard latching exit device or lockset. A power transfer device is required for exit devices equipped with a trigger switch.

See SDC datasheets for detailed information on SDC MS Series Latch Monitoring Strikes, Exit Device Switch Kits and Power Transfer Devices.

The slave lock output enables the use of two units for pairs of doors and ensures that pushing on one door leaf will cause both doors to release.

AUTOMATIC OR MANUAL POWER-UP

Field selectable method of lock power-up, automatic or manual, after power loss or emergency release.

AUTO POWER-UP

When selected, regardless of the means of deactivation, relocking of the Exit Check® occurs when power is restored and/or the fire life safety panel is reset.

MANUAL POWER-UP

UBC, California Building Code (OSHPD) Compliant Reset When selected, regardless of the means of deactivation, relocking of the Exit Check® is by manual means only at the door. Only after power restoration and/or fire life safety panel reset, the door may be relocked by actuating the standard built-in key reset or optional wall mounted key switch, push switch or digital keypad located adjacent to the door.

K Built-In Key Control
P Built-In Reset Push Switch
L Less Key or Push Switch

KEYLESS CONTROL

While the Exit Check® is equipped with a standard built-in 4 function key switch for reset, manual power up, momentary bypass and sustained bypass functions, the SDC 920 wall mounted keypad provides the convenience of keyless operation for:

Alarm Reset
Manual Power-Up (UBC & California required)
Momentary or Sustained Bypass

IBC, International Building Code 1008.1.8.6 Delayed Egress Locks
IFC, International Fire Code 1008.1.8.6 Delayed Egress Locks
NFPA 101, Life Safety Code 7-2.1.6.1 Delayed Egress Lock
NFPA 1-UFC Uniform Fire Code
CBC, California Building Code 1008.1.8.6 Special Egress Control Devices
OSFM, California State Fire Marshall Listed 3774-03248103
UBC, Uniform Building Code
SBC, Standard Building Code
BOCA, National Building Code 1017.4.1.2 Special Locking Arrangements
Chicago Building Code 10 (13-160-269) Electro-Magnetic Locking Devices.

LOCAL APPROVAL

All installations must be approved by the Authority Having Jurisdiction (AHJ).

Typically used on exit doors, when unauthorized egress is initiated when in the locked mode, the SDC Exit Check® delays egress through the door for 15 or 30 seconds. Meanwhile, the person exiting must wait while personnel or security respond. The door unlocks after 15 seconds have elapsed, permitting egress. A signal from the fire life safety system will release the lock for uninhibited egress in an emergency. 30 second delay available where approved.

AIRPORT & PUBLIC FACILITY SECURITY & SAFETY

Control pedestrian traffic in government, public facilities and transportation facilities, including airport jetways and tarmacs.

LOSS PREVENTION

Provide theft protection of merchandise, technology and other valuables such as, art and museum artifacts.

ACCESS CONTROL

Access controls may be utilized for authorized egress, access and lock reset. Access from the exterior of latching doors requires an additional means of mechanical lock release, such as a mechanical key or electric strike.

WANDERING PATIENT AND INFANT PROTECTION

Restrict the egress of psychiatric and drug rehab patients, elderly patients in assisted living facilities and restrict the movement of nursery infants for their own safety and security.

PATIENT & INFANT TRACKING SYSTEMS

The SDC Exit Check® is compatible with patient tracking systems, like those used for protection against infant abduction from hospital nurseries, and for the protection of patients in long term care facilities who

may be endangered if they leave their care facility without supervision.

SINGLE DOOR APPLICATIONS

For use with single doors equipped with:

Mortise or rim mount exit devices
Surface (SVR) or concealed (CVR) vertical rod exit devices with surface or concealed strikes and triggers
· Mortise or cylindrical locksets

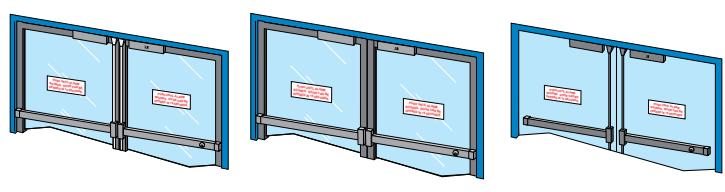

DOUBLE DOOR APPLICATIONS

Activating either door unlocks both doors. For use with pairs of doors equipped with:

· Mortise or rim mount exit devices
Surface (SVR) or concealed (CVR) vertical rod exit devices with surface or concealed strikes and triggers.
· Mortise or cylindrical locksets

CODE COMPLIANCE

NFPA 101, NFPA 1-UFC, UBC, IBC, IFC, SBC Compliant

NA Selectable 15/30 Second Release, Selectable 1/2 Second Nuisance, Fixed Manual Reset, Selectable Locked/Unlocked Power-Up
ND Fixed 15 Second Delayed Release, Selectable 1/2 Second Nuisance, Fixed Manual Reset, Selectable Locked/Unlocked Power-Up

NFPA 101, NFPA 1-UFC, UBC, IBC, IFC, SBC, CBC Compliant

NC Fixed 15 Second Delayed Release, Selectable 0/1 Second Nuisance, Fixed Manual Reset, Fixed Unlocked Power-Up

BOCA, Chicago Compliant

BD Fixed 15 Second Delayed Release, Selectable 0/1 Second Nuisance, Selectable Auto/Manual Reset, Selectable Locked/Unlocked Power-Up
BH Fixed 30 Second Delayed Release, Selectable 0/1 Second Nuisance, Selectable Auto/Manual Reset, Selectable Locked/Unlocked Power-Up
BC Fixed 15 Second Delayed Release, Fixed 0 Second Nuisance, Selectable Auto/Manual Reset, Selectable Locked/Unlocked Power-Up

1) When the door is closed, latched, and the lock is energized, field selectable "15" or "30" is displayed, indicating the door is secure.
2) Applying pressure and retracting the door latch activates a warning tone and digital display countdown. If the door is released in 1 or 2 seconds, the warning tone stops and the door stays locked.

Non Latching Glass Doors: Activation by PSB560 Exit Sense Bar

3) When activation exceeds the nuisance time (1 or 2 seconds) an irreversible process begins that will unlock the door in 13 or 14 seconds. The voice message, tone and countdown annunciation continue.

MALE VOICE WITH SECURITY MESSAGE

Tone...."Exit in twelve seconds, Security has been alerted" Tone...."Exit in five seconds" Tone...."Exit now", Tone...."Exit now"

FEMALE VOICE WITH SAFETY MESSAGE

Tone...."Exit in twelve seconds, Facility Staff has been notified" Tone...."Exit in five seconds"

Tone...."Exit now", Tone...."Exit now"

TONE ONLY (IN LIEU OF MESSAGE)

Activation: Short beeps Lock Release: Long beeps

4) The door unlocks when delay time has elapsed and the digital display indicates "00" and annunciation continues.
5) The lock is manually reset by built-in key (K) or optional wall mount keypad or kewswitch.
6) The door will unlock upon signal from the fire life safety system or power loss.

Auto Power-Up: Lock will re-arm automatically when power is restored and fire alarm system is rest.

Manual Power Up: Lock is re-armed by manual means only at the door by key reset (K) or optional wall mounted reset keypad or keyswitch

Note: If no Code is specified, NA is the SDC Standard Supplied Code Setting

1) When the door is closed, latched, and the lock is energized, "15" is displayed indicating the door is secure.
2) Applying pressure and retracting the door latch activates a warning tone and digital display countdown. If the door is released in 1 second, the warning tone stops and the door stays locked.

Non-Latching Glass Doors: Activation by PSB560 Exit Sense Bar (see page XX)

3) When activation exceeds the nuisance time of 1 second an irreversible process begins that will unlock the door in 14 seconds. The voice message, tone and countdown annunciation continue.

MALE VOICE WITH SECURITY MESSAGE

Tone...."Exit in twelve seconds, Security has been alerted" Tone...."Exit in five seconds"

Tone...."Exit now", Tone...."Exit now"

FEMALE VOICE WITH SAFETY MESSAGE

Tone...."Exit in twelve seconds, Facility Staff has been notified" Tone...."Exit in five seconds" Tone...."Exit now", Tone...."Exit now"

TONE ONLY (IN LIEU OF MESSAGE)

Activation: Short beeps Lock Release: Long beeps

4) The door unlocks when 15 seconds has elapsed, the digital display indicates "00" and annunciation continues.
5) The lock is manually reset by the built-in key (K) or optional wall mounted keypad or keyswitch.
6) The door will unlock upon signal from the fire life safety system or power loss.

Auto Power-Up: Lock will re-arm automatically when power is restored and fire alarm system is reset.

Manual Power-Up: Per California Building Code, lock is re-armed by manual means at the door by key reset (K) or optional wall mounted reset keypad or keyswitch

1) When the door is closed, latched and the lock is energized, "15" is displayed indicating the door is secure.
2) Applying pressure and retracting the door latch activates a warning tone and digital display countdown. If the door is released in 1 second, the warning tone stops and the door stays locked.

Non-Latching Glass Doors: Activation by PSB560 Exit Sense Bar

3) When activation exceeds 1 second, an irreversible process begins that will unlock the door in 14 seconds. The voice message, tone and countdown annunciation continue.

MALE VOICE WITH SECURITY MESSAGE

Tone...."Exit in twelve seconds, Security has been alerted" Tone...."Exit in five seconds" Tone...."Exit now", Tone...."Exit now"

FEMALE VOICE WITH SAFETY MESSAGE

Tone...."Exit in twelve seconds, Facility Staff has been notified" Tone...."Exit in five seconds" Tone...."Exit now", Tone...."Exit now"

TONE ONLY (IN LIEU OF MESSAGE)

Activation: Short beeps Lock Release: Long beeps

4) The door unlocks when 15 seconds has elapsed, the digital display indicates "00" and annunciation continues.
5) The door must be opened and then closed for 30 seconds before the lock automatically re-locks and annunciation stops. Reopening of the door before the end of the 30 second re-locking cycle will restart the 30 second re-locking cycle.

Manual reset not available.

6) Built-in key (K) or optional wall mounted keypad or keyswitch (see page 8) provide timed or maintained bypass.
7) The door will unlock upon signal from the fire life safety system or power loss.

SPECIFICATIONS

Electrical


Input Voltage	Dual voltage Sensing 12/24 VDC ± 10%
	Standard 1650lbs Holding Force
1511S	820mA @ 12VDC \| 500mA @ 24VDC
1511T	1500mA @ 12VDC \| 850mA @ 24VDC
	Energy Saver 1200lbs Holding Force
	1511S (E option) 400mA @ 12VDC \| 275mA @ 24VDC
	1511T (E option) 650mA @ 12VDC \| 400mA @ 24VDC
Mechanical
Single	11"L x 2-3/4"H x 2-5/8"D
Tandem
Master	11"L x 2-3/4"H x 2-5/8"D
Slave	11"L x 2-3/4"H x 2-5/8"D

Inputs

Request to Exit	Normally open, dry
Fire Alarm Release	Alarm panel closed dry con tact. Opening of contact releases lock.
Monitoring Outputs
Alarm Output	SPDT Dry, 1 Amp @ 30VDC
Lock Secure Unlocked Output	SPDT Dry, 1 Amp @ 30VDC
DPS Door Position Status (optional)	SPDT Dry, 250 mA @ 30VDC
BAS Magnetic Bond Status (optional)	SPDT Dry, 250 mA @ 30VDC
ATS Anti Tamper Sensor (optional)	SPDT Dry, 1 Amp @ 30VDC

HOW TO ORDER FOLLOW STEPS 1-5 FOR ORDERING

Armature 7-3/8"L x 2-3/8"H x 9/16"D

1| SPECIFY MODEL

1511S Single, Integrated, 1650lbs 1511T Tandem, Integrated, 1650lbs

2| SPECIFY OPERATION MODE*

NA Selectable 15/30 Second Release, Selectable 1/2 Second Nuisance, Fixed Manual Reset, Selectable Locked/Unlocked Power-Up
NC Fixed 15 Second Delayed Release, Selectable 0/1 Second Nuisance, Fixed Manual Reset, Fixed Unlocked Power-Up
ND Fixed 15 Second Delayed Release, Selectable 1/2 Second Nuisance, Fixed Manual Reset, Selectable Locked/Unlocked Power-Up
NH Fixed 30 Second Delayed Release, Selectable 0/1 Second Nuisance, Fixed Manual Reset, Selectable

Notes: *If no Operation Mode is specified, NA is the SDC Standard Supplied Code Setting ** Available with NFPA (NA) only.

*** Double option cost for tandem 1511T

Locked/Unlocked Power-Up

BD Fixed 15 Second Delayed Release, Selectable 0/1 Second Nuisance, Selectable Auto/Manual Reset, Selectable Locked/Unlocked Power-Up
BH Fixed 30 Second Delayed Release, Selectable 0/1 Second Nuisance, Selectable Auto/Manual Reset, Selectable Locked/Unlocked Power-Up
BC Fixed 15 Second Delayed Release, Fixed 0 Second Nuisance, Selectable Auto/Manual Reset, Selectable Locked/Unlocked Power-Up

3| SPECIFY BUILT IN RESET AND CONTROL

K Built-In Key Control

P** Built-In Reset Push Switch

L Less Key or Push Switch

4| SPECIFY FINISH

V 628 Dull Aluminum
Y 335 Dull Black
S 629 Bright Stainless
Q 626 Dull Chrome
X 710 Dark Bronze
C 605 Bright Brass

5| SPECIFY LOCK OPTIONS***

E Energy Saver
D Door Position Sensor (DPS)
B Bond Alert Sensor (BAS)
A Anti-Tamper Sensor (ATS)

ORDERING EXAMPLE: 1511S | NC | ^K | ^V | ^D

Designates optional step STEP NUMBER: 1 2 3 4 5

SPECIFY PROGRAMMING OPTIONS

VI One Language or Bilingual Spanish, or English and Spanish, verbal notification.

VIC Custom Verbal Announcement (10 piece purchase minimum) POA

RRX Reset on REX

Allows the REX input to reset after an unauthorized egress alarm. Not available for NC operation

Q COMPONENT CONSIDERATIONS

Door Movement Trigger by Latching Exit Device Rim Mount, Mortise, or Vertical Rod

Optional Wall Mount Key Reset (Built-In Key Reset Standard)

Latch Monitoring Strike Trigger For Mortise Exit Devices or Lock

EMERGENCY RELEASE MODES

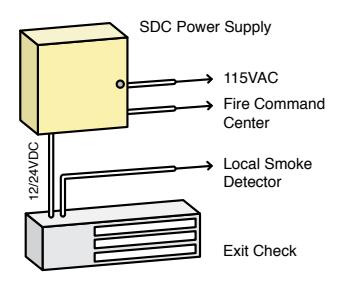

DUAL EMERGENCY RELEASE

SDC 600 Series Power Supply and Integrated Lock Emergency Release

Field Selectable Lock Auto Reset or Lock Manual Key Reset
Field Selectable Power Supply Output
Automatic reset standard, see *MR option for manual reset.

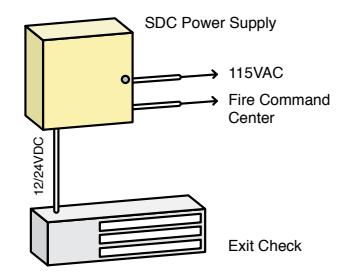

SDC 600 SERIES POWER SUPPLY EMERGENCY RELEASE

Field Selectable Lock Auto Reset or Lock Manual Key Reset
Field Selectable Power Supply Output
Automatic reset standard, see *MR option for manual reset.

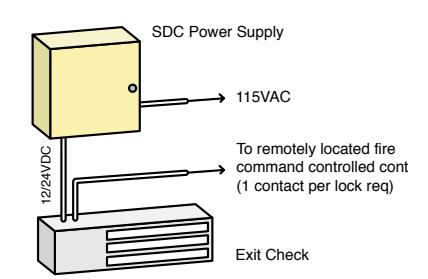

INTEGRATED LOCK EMERGENCY RELEASE

Field Selectable Lock Auto Reset or Lock Manual Key Reset
Field Selectable Power Supply Output
Automatic reset standard, see *MR option for manual reset.

the lock behind the system

COMPONENT CONSIDERATIONS (CONT.)

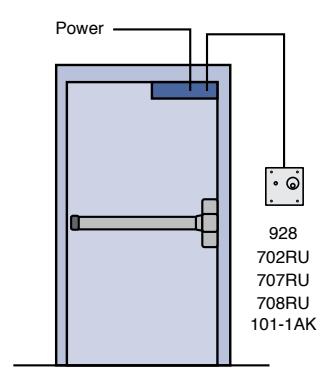

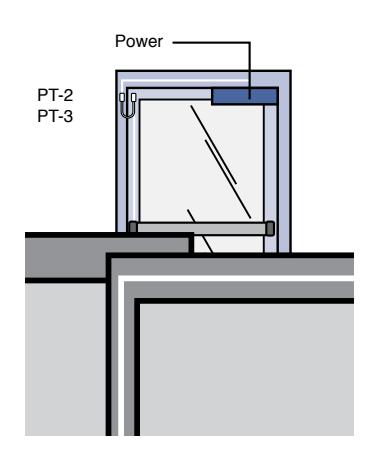

STATION CONTROLS AND ANNUNCIATORS

While the Exit Check® is equipped with a standard built-in key switch for reset and bypass functions, wall mounted stations provide for convenient alarm reset, sustained bypass or timed bypass.

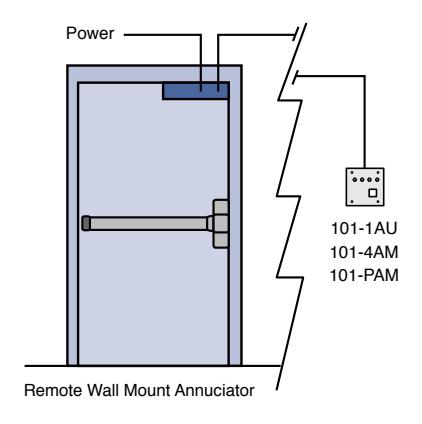

Remote annunciators provide quick identification of activated openings, enabling security or care personnel to respond rapidly. Annunciators are equipped with an audible alarm and each station is identified by one tri-color LED that identifies specific mode status.

Secure -Green

Activation - Amber x Audible Tone Unlocked - Red x Audible Tone

920 702RU 708RU

MODELS

920 Keypad (see page 3)

702RU Alarm Reset & Manual Power-Up Key Switch 708RU Alarm Reset, Manual Power Up & Bypass Key Switch

101-1A

The single station annunciator is equipped with a tri-color LED and audible alarm.

101-PAM

Visual and audible annunciation, timed access, sustained bypass, and audible mute.

101-1AK

Visual and audible annunciation and key switch for alarm reset, manual power up and sustained bypass.

101-4AM

Provides visual and audible annunciation with audible mute for two, three or four openings.

CONSOLES, DESKTOP AND RACK MOUNT

SDC control and annunciator panels provide remote annunciation of multiple openings. Stations are specified in sets of four. Control switches are also available and capable of providing both sustained bypass and timed unlocking of individual doors. Consult the factory or refer to SDC control console datasheets for additional specifications.
