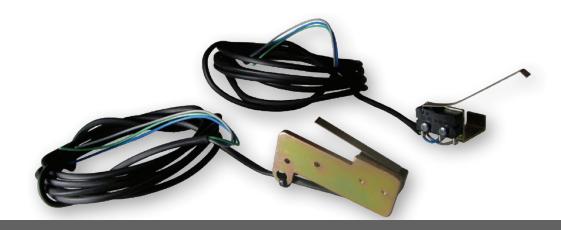

EXIT DEVICE SWITCH KITS
- EASY INSTALLATION
- OPTIONS FOR BOTH MECHANICAL & ELECTRIFIED DEVICES
- · 3 YEAR NO HASSLE WARRANTY
REX: Request to Exit switch - sends a signal to alert the control panel that the door is about to be opened by someone intending to exit from within the secured area.
LBM: Monitor switch - sends a signal to the control panel to monitor the position of the latchbolt.
SPECIFICATIONS
- · Single Pole, Double Throw
- Rated at .5A @ 24VDC/AC
- 22 gauge wires
| Mechanical Device | Solenoid Device | Motorized Device |
|---|---|---|
| Mecha | Soleno | Motoriz |
| ARREXKIT-ED | Field Installable Request to Exit Kit for Adams Rite 8000 Series | ✓ | ✓ | - |
| ARREXKIT2-ED | Field Installable Double Request to Exit Kit for Adams Rite 8000 Series | ✓ | - | |
| ARREXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1 Adams Rite Series | - | ✓ | |
| CRSREXKIT-ED | Field Installable Request to Exit Kit for Cal Royal 22/98 & Sargent 80 Series | ✓ | - | ✓ |
| CRSREXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1 Cal Royal 22/98 Series | - | - | ✓ |
| CYREXKIT-ED | Field Installable Request to Exit Kit for Corbin 4/5000 & Yale 7000 Series | ✓ | - | - |
| CYREXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1 Corbin & Yale Series | - | - | ✓ |
| ED1REXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1 Philadelphia & Tell Series | - | - | ✓ |
| ED2REXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1 Series LSDA9200, USCAN2100, & Townsteel 1000 Series | - | - | ✓ |
| DORREXKIT-ED | Field Installable Request to Exit Kit for Dorma 9000 series | ✓ | ✓ | ✓ |
| MRK8REXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1 Marks 8800 Series | - | - | ✓ |
| MRKREXKIT-M-ED | Field Installable Request to Exit Kit for Marks M9900 & Design Hardware 1000 | - | - | ✓ |
| LLPREXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1-Hager, LSDA9000, Lawrence, PDQ Series | - | - | ✓ |
| PD10REXKIT-ED | Field Installable Request to Exit Kit for Falcon 16/17 & First Choice 36/37 Series | ✓ | ✓ | ✓ |
| PD10REXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1 Falcon & First Choice Series | - | - | ✓ |
| PD15REXKIT-ED | Field Installable Request to Exit Kit for Jackson 1285/95 & Kawneer 16/17 Series | ✓ | r-A | ~ |
| PD15REXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1 Jackson & Kawneer Series - | - | - | ✓ |
| PD25REXKIT-ED | Field Installable Request to Exit Kit for PD25/26 & Cal Royal 7700 Series | ✓ | - | ✓ |
| PREREXKIT-ED | Field Installable Request to Exit Kit for Precision 2000 Series | ✓ | - | |
| VDREXKIT-ED | Field Installable Request to Exit Kit for Von Duprin 99/98 & 35/33 Series | ✓ | ✓ | ✓ |
| VDREXKIT-LC-ED | Field Installable Low Energy Request to Exit Kit for Von Duprin 99/98 & 35/33 Series | ✓ | ✓ | ✓ |
| VDREXKIT2-ED | Field Installable Double Request to Exit Kit for Von Duprin 99/98 & 35/33 Series | ✓ | ✓ | ✓ |
| VDLBMKIT-ED | Field Installable Latchbolt Monitor Kit for Von Duprin 99/98 & 35/33 Series | ✓ | ✓ | ✓ |
| YAL6REXKIT-M-ED | Field Installable Request to Exit Kit for MRLK1 Yale 6000 Series- MRLK1-YAL6 Series | - | - | ✓ |
