Exit Device Rex Kits 1 Insert Instruction

INSTALLATION INSTRUCTIONS

The VDREXKIT-ED is a field installable request to exit kit (SPDT) for Von Duprin 33/35 & 98/99 series exit devices..

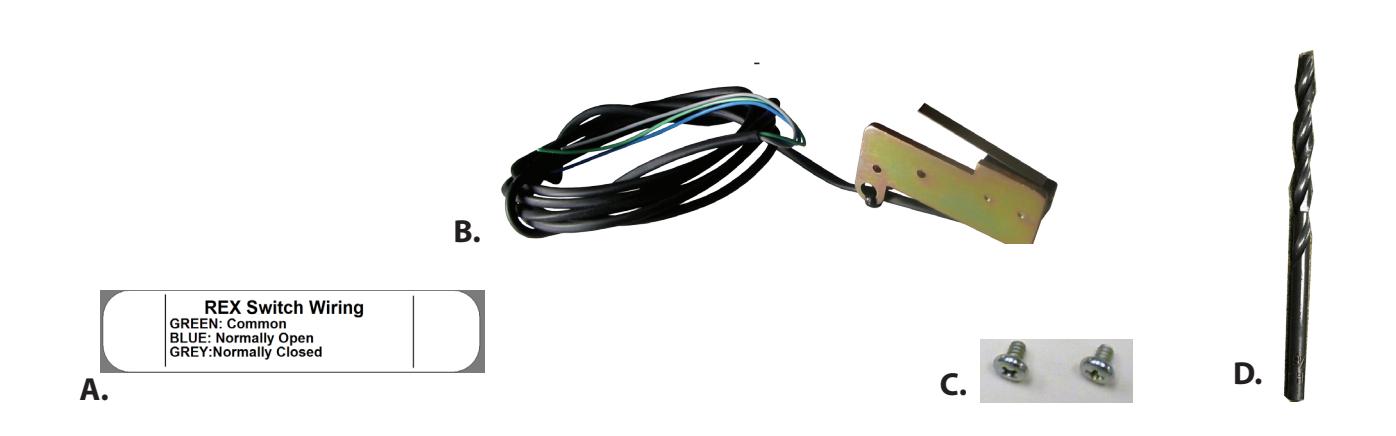

VDREXKIT-ED In c l ude s

• A. REX Label
• B. REX Switch
• C. 2 Phillips Screws
• D. 9/64 drill bit

S p eci f ic atio n s

• Green/Black Common
• Blue/Black Normally Open (NO)
• Grey/Black Normally Closed (NC)
• .5A 24VAC/DC

To o l s Req uired

• Phillips Screw Driver

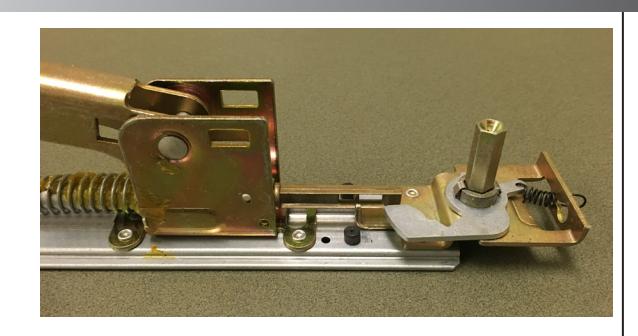

Locate the 2 Holes in the activating bracket at the end of the device. 1.

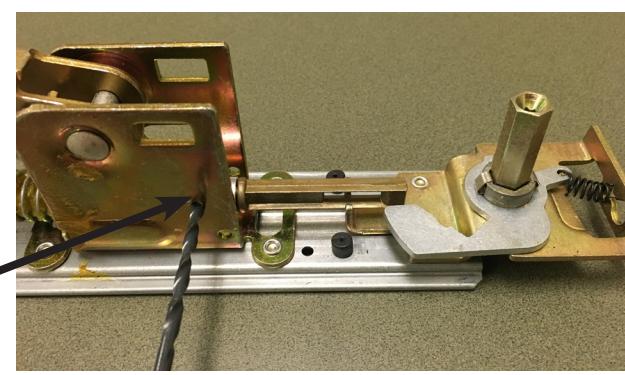

Drill top hole with 9/64 drill bit provided. 2.

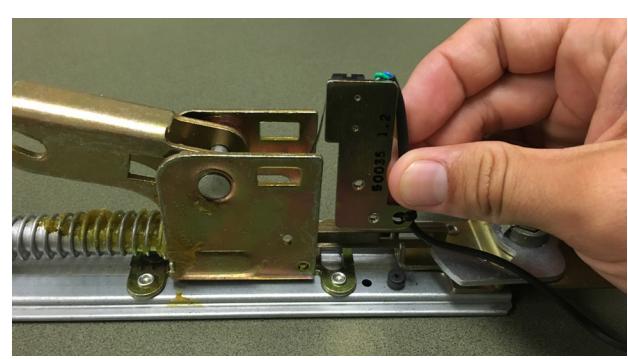

Slide the VDREXKIT-ED into the activating bracket. 3.

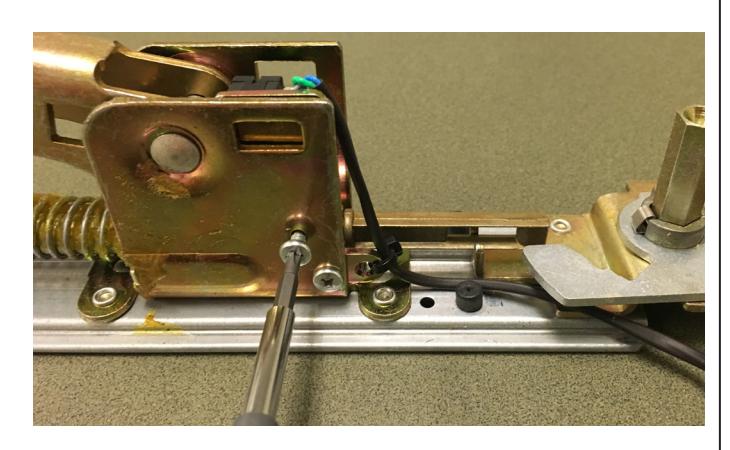

4. Use the screws provided and secure the kit to the bracket.

(DO NOT OVER TIGHTEN THE SCREWS).

Test switch for correct operation. 5.
