Excel™ Series Value Engineered Access Hardware

Economically priced alternative to low cost imports. Quality and flexibility for Commercial Applications. The Excel™ product line is designed for system integrators, distributors, installers and building owners presently using low cost import or private label brand access control hardware

MAGNETIC LOCKS

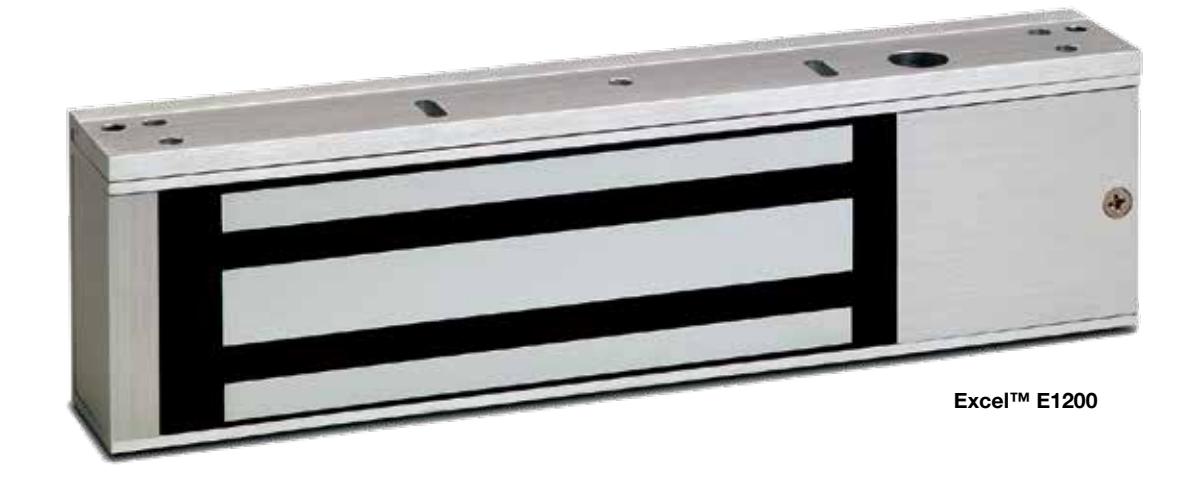

The Excel™ Architectural Series full featured magnetic locks are easier to install and provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. Full monitoring is standard. The quick mount assembly reduces installation time compared to epoxy sealed magnetic locks.

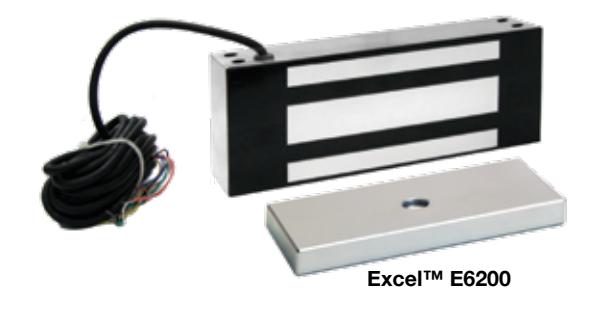

The value priced Excel™ E6200 Commercial Series full featured magnetic lock is made of an epoxy sealed satin stainless steel housing and utilizes the same mounting template as major competitive brands. Full monitoring is standard. Recommended for interior doors or outdoor gate applications.

E6200 Security Access Control, & Mantraps, Indoor/ Outdoor, 1200 lb / 545 kg holding force

E1200 Security Access Control & Mantraps, 1200 lb / 545 kg holding force

E600 Traffic Control, Air-Locks & Communicating Bathrooms, 600 lb / 272 kg holding force

1

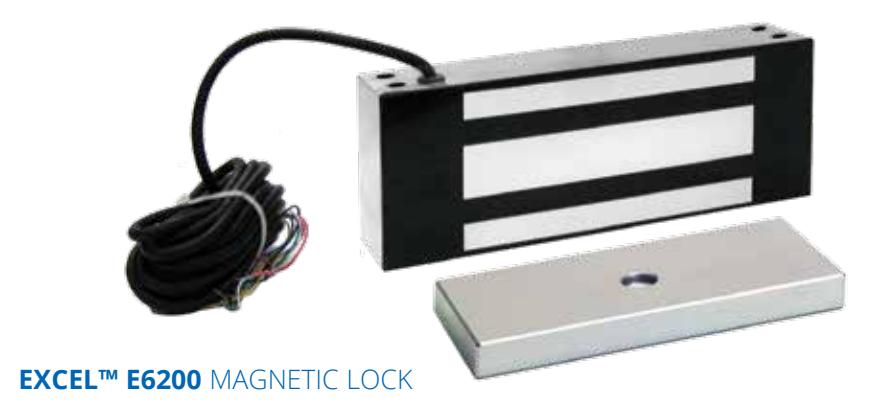

Security Access Control, & Mantraps, Indoor/Outdoor

1200 lb / 545 kg holding force magnetic lock for exterior, perimeter and interior door security and access control. Magnetic bond sensor and door status outputs are included for remote monitoring, mantraps and system application needs.

STANDARD FEATURES

• Retrofits Securitron M62 and Locknetics 70 locks
• Magnetic Bond Sensor indicates door locked with full holding power
• Door Status indicates door open or closed
• Epoxy sealed electronics, tamper resistant and weatherized for indoor and outdoor use
• Stainless steel machine screws and blind nuts
• 10 ft [3.05m] jacketed, stranded conductor cable
• Dual voltage 12/24VDC
• Architectural stainless steel housing, US32/630

SPECIFICATIONS

Mechanical

Holding Force: 1200 lbs / 545 kg
Housing	Stainless steel epoxy filled, all internal components sealed and weatherized
Lock	8" L x 3" H x 1-49/64" D; (203L x 73.5H x 45.7D mm)
Armature	6" L x 13/16" H x 2-11/16" D; (152 L x 20.63 H x 68.26 D mm)

Electrical

Wiring	10 Ft [3.05 m] jacketed, stranded conductor cable for power input and status outputs
Circuitry	Voltage and current spike protection and instant release anti-residual magnetism circuitry
Voltage	12/24VDC, field selectable
Current	250mA @ 12VDC; 125mA @ 24VDC
Magnetic I	Bond Sensor	SPDT, 250 mA @ 30VDC
Door Statu	us Contact	SPDT, 250 mA @ 30VDC
Weight	12.0 lbs

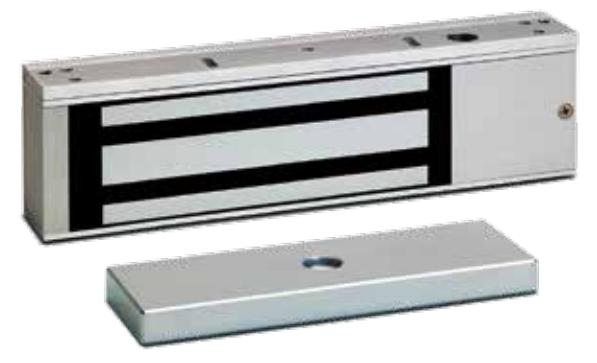

EXCEL™ E1200 MAGNETIC LOCK

APPLICATION

Security Access Control & Mantraps

1200 lb / 545 kg holding force magnetic lock for perimeter and interior door security and access control. Door and lock status outputs included for remote monitoring, mantraps and system application needs.

STANDARD FEATURES

• Door status, lock status and Bi-color LED
• Interlocking quick mount assembly
• · Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine
• Wire access chamber with terminal block
• Dual voltage 12/24VDC
• 628 Clear anodized aluminum

SPECIFICATIONS

Mechanical

Holding Force: 1200 lbs / 545 kg

Lock	10-1/2" L x 2-7/8" H x 1-5/8" D; (266 L x 73 H x 41 D mm)
Armature	7-5/16" L x 2-3/8" H x 5/8" D; (186 L x 61 H x 16 D mm)

Electrical

Circuitry & Wiring:	PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs
Circuitry	Voltage and current spike protection and instant release anti-residual magnetism circuitry
Voltage	12/24VDC	, field selectable
Current	500 mA @	12VDC; 250 mA @ 24VDC
Lock Statu	us Contact	SPDT, 2 Amp @ 30VDC
Door Statu	us Contact	SPDT, 250 mA @ 30VDC
Weight	10.0 lbs

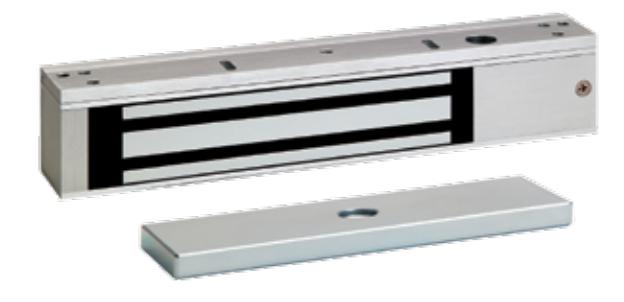

EXCEL™ E600 MAGNETIC LOCK

APPLICATION

Traffic Control, Air-Locks & Communicating Bathrooms 600 lb / 272 kg holding force magnetic lock for interior door traffic control where physical attack is not a concern. Door and lock status outputs included for remote monitoring, mantraps and system application needs.

STANDARD FEATURES

• Door status, lock status and Bi-color LED
• Interlocking quick mount assembly
• Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
• Wire access chamber with terminal block
• Dual voltage 12/24VDC
• 628 Clear anodized aluminum

SPECIFICATIONS

Mechanical

Holding Force: 600 lbs / 272 kg

Lock	9-7/8" L x 2-7/8" H x 1" D; (250 L x 51 H x 26 D mm)
Armature	7-5/16" L x 1-1/2" H x 1/2" D; (186L x 38H x 13D mm)

Electrical

Circuitry & Wiring	PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs
Circuitry	Voltage and current spike protection and instant release anti-residual magnetism circuitry
Voltage	12/24VDC, field selectable
Current	500 mA @ 12VDC; 250 mA @ 24VDC
Lock State	us Contact SPDT, 2 Amp @ 30VDC
Door State	us Contact SPDT, 250 mA @ 30VDC
Weight	7.0 lbs

Self Contained Screws

QUICK MOUNT INTERLOCKING ASSEMBLY

Adjustable Mounting Plate

OUTSWING

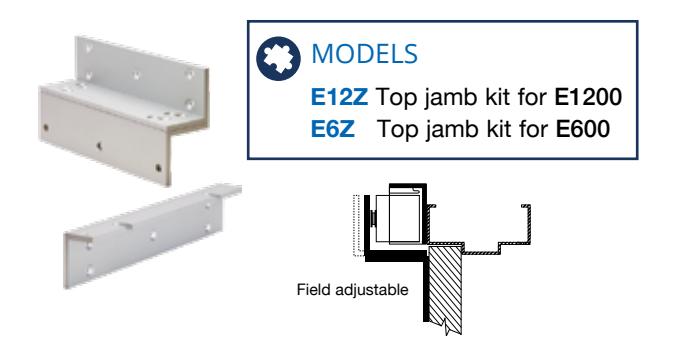

TOP JAMB MOUNTING KIT FOR INSWING DOORS

Self Drilling and Tapping Screws

E SERIES ANGLE BRACKETS

Used for the extension of a narrow frame header mounting surface, the bracket provides additional surface area for proper lock mounting

MODELS

E12L E1200 angle bracket.

May be field cut for use with E600 10-1/2" L x 1-1/2" H x 3/4" D

GLASS DOOR ARMATURE MOUNTING KIT

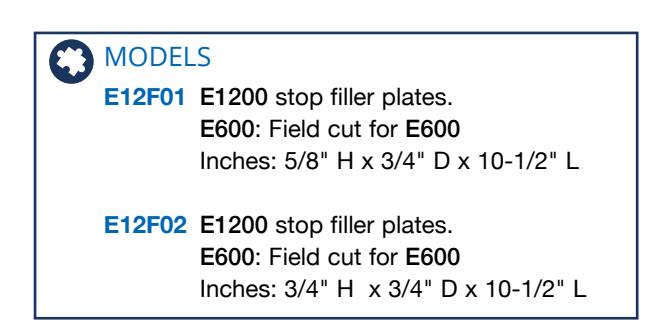

E SERIES STOP FILLER PLATES

Used where the frame stop does not provide enough mounting surface, the filler bar provides enough additional surface area for proper lock mounting. E12F01
