Excel™ Series Value Engineered Magnetic Locks

The Excel™ product line is designed for system integrators, distributors, installers and building owners presently using low cost import or private label brand access control hardware.

E1200

E600

F300 see page 17

GK LIST

• Retrofits popular competitive brands
• Magnetic Bond Sensor and door status standard
• Epoxy sealed electronics, tamper resistant and weatherized for indoor and outdoor use (retrofits M62)
• Stainless steel machine screws and blind nuts
• 10 ft [3.05m] jacketed, stranded conductor cable
• Dual voltage 250/150 mA @ 12/24VDC
• Architectural stainless steel housing, US32D/630

MODEL

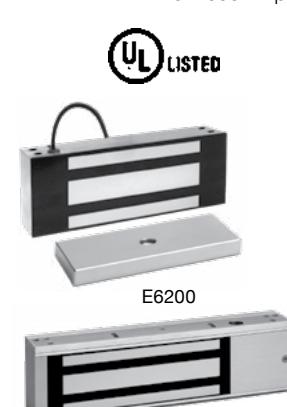

1200 lb / 545 kg with SPDT door status, SPDT magnetic bond sensor E6200

472.00

Top Jamb Mounting Kit

GK LIST

TJ62 Top jamb kit for E6200

134.00

Excel™ Architectural Series

GK LIST

• Door status, lock status and Bi-color LED •
• Interlocking quick mount assembly
• Self drilling and tapping mounting screws and machine screws
• Adjustable mounting bracket
• Wire access chamber with terminal block
• Dual voltage 12/24VDC
• 628 Clear anodized aluminum

MODELS

E1200 1200 lb / 545 kg with door status, locked status and LED	289.00
E600 600 lb / 272 kg with door status, locked status and LED	239.00
E300 300 lb / 136 kg with locked status	185.00

E12Z/E6Z Field adjustable

Top J	amb Mounting Kit for Inswing Doors	Distributor Discount Code	GK LIST
E12Z To	p jamb kit for E1200		94.00
E6Z To	p jamb kit for E600		94.00

Glass Door Armature Mounting Kit	Distributor GK LIST
E12U Glass door kit for E1200	134.00
E6U Glass door kit for E600	134.00

Mounting Brackets and Filler Plates

GK LIST

Used for the extension of a narrow frame header mounting surface, the bracket provides additional surface area for proper lock mounting

E12L E1200 angle bracket. 10-1/2" L x 1-1/2" H x 1" D (266 x 38 x 19mm) Field cut for E600

28.00

Used where the frame stop does not provide enough mounting surface, the filler bar provides enough additional surface area for proper lock mounting.

E12F01	E1200 stop filler plates.	5/8" H x 3/4" D x 10-1/2" L (16 x 19 x 266mm)	3.00
	Field cut for E600.	2	3.00
E12F02	E1200 stop filler plates.	3/4" H x 3/4" D x 10-1/2" L (19 x 19 x 266mm)	3.00
	Field cut for E600.	E12F01	5.00
		E12F02

E1200-DF Heavy Duty Drill Fixture for E1200

Glass Door Armature Mounting Kit

GK LIST

167.00
