Eplex 2000 Price List
Open the original PDF document
View PDF
* Leave blank for solid lever without Key Override.
| Base Model | Description | Base Price |
|---|---|---|
| E2031LL62641 |
E2000, Cylindrical, No Key Override
100 Access Codes, 1,000 Audit Events, ASA Strike |
$537.00 |

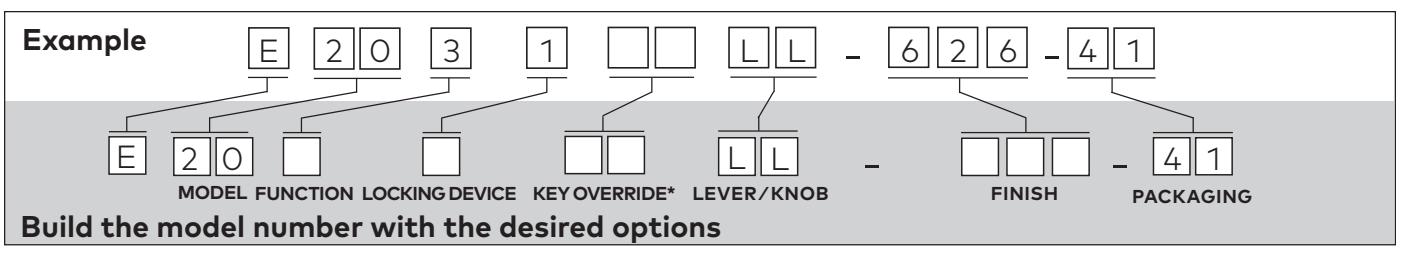

Choose One Option from Each Category
| Function Options | Description | Price |
|---|---|---|
| 1 | Exit Trim—Rim, Mortise, Surface Vertical Rod | Add $100.00 |
| 2 | Exit Trim—Concealed Vertical Rod (use only for Yale # 7160 or Von Duprin #s 9847/9947) | Add $100.00 |
| } | Cylindrical Lock (cyl) | No Charge |
| ) | Cylindrical with Privacy (cyl) | Add $100.00 |
| 5 | American Steel Mortise (ASM) For mortise applications where additional door support is needed, order a mortise stabilizer for a hollow metal door from the accessories section. | Add $120.00 |
| Locking Device Options | Description | Price |
| 1 | Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset | No Charge |
| 2 | Cylindrical ½" (13 mm) throw latch, floating face plate 23%" (60 mm) backset | No Charge |
| 6 | STD Mortise 1¼" (32 mm) face plate no deadbolt (non-handed) | No Charge |
| 7 | STD Mortise 1¼" (32 mm) face plate with deadbolt (non-handed) | Add $30.00 |
| А | STD Mortise 1¼" (32 mm) face plate with auto deadbolt (non-handed) | Add $30.00 |
| U | Exit Trim—Use only for: Detex Rim # F1001, Detex Surface Vertical Rod #s 20/F20 Dorma Rim # 9300/F9300, 9400/F9400 Von Duprin Rim #s 89/99, Von Duprin Surface Vertical Rod #s 9827/9927 Precision Rim #s 21/FL21, Precision Surface Vertical Rod #s 22/FL22 Arrow Rim # 3800 Sargent Rim # 8800 Requires 062-514 148 Kit; see page 58 in accessories section | No Charge |
| Y |
Exit Trim—Use
only
for Yale and Corbin models below:
Yale Concealed Vertical Rod # 7160 Yale Rim # 7100 Corbin Rim # 5200 |
No Charge |
| V |
Exit Trim—Use
only
for Von Duprin models below:
Von Duprin Concealed Vertical Rod #s 9847/9947 Von Duprin Mortise #s 9875/9975 |
No Charge |
| Key Override Options | Description | Price |
| (Leave Blank) | Solid Lever without Key Override | No Charge |
| XS | Key-In-Lever, Kaba Cylinder (Schlage "C" Keyway) included | Add $50.00 |
| 3 | Best and Equivalents (6 or 7-pin length); cylinder not included (lever preps are not interchangeable) | Add $50.00 |
| _ever | Description | Price |
| L | Lever—Long | No Charge |
| Finish Options | Description | Price |
| 506 | Satin Brass (04) | Add $25.00 |
| 626 | Satin Chrome (26D) | No Charge |
| U13 | Dark Bronze (Simulated 10B/613) | Add $100.00 |
E-Plex® 2000 Series
Items Supplied with the Lock
- Installation Manual
- Quick Reference Guide
- Operations Manual
- Full-Scale Template
- Required Installation Hardware
Additional Items Supplied with Key Override Model Only
- Universal Kaba 1539 Cylinder with Schlage "C" Keyway
- Cylinder adapter discs to fit the following KIL cylinders: Schlage Primus 20-724-XXX, Schlage Everst 21-020-XXX, ASSA V-10 Schlage keyway, Kaba Ilco 1599C-XXX, Medeco M3 Bi-Level 20J200V1-XXX, Medeco Biaxial 20W200V1- XXX, Medeco 3-BX-3 20T200V1-XXX, Medeco M3-Bi-Level 8 20J200H1-XXX, and Medeco Keymark X4 20N200V1-XXX.
Notes
E-Plex® 2000 Series Accessories (Optional)
| Model Number | Description | Price | ||
|---|---|---|---|---|
|
EP-STD-xx-001
xx=version number. Please see go.dormakaba.com/eplex-software to determine most current version number. |
E-Plex Standard Software Implementation Kit
(Excel-based templates) up to 100 Users (see E-Plex Software section of this catalog for additional information) |
$595.00 | ||
