Eplex 2000 Drilling Template Von Duprin 9847, 9947 (DT-513129 Rev3)

Open the original PDF document

View PDF

  • NOTES: I- FOR DIMENSIONS AND TOLERANCES REFER TO CORRESPONDING DOOR PREPARATION DRAWING IP#. 2- FOR EXIT DEVICE AND MORTISE LOCK CUT-OUT REFER TO EXIT DEVICE MANUFACTURER INSTALLATION INSTRUCTIONS. 3- BACKSET SHOWN FOR REFERENCE ONLY, ADJUST BACKSET TO EXIT DEVICE MANUFACTURER INSTALLATION INSTRUCTIONS. 4- HOLES A: FROM THE INSIDE OF THE DOOR, DRILL HOLES (SEE TABLE) 5- SYMBOLS: ▼ DEEP -
  • 6- HOLES D: ONLY LOCK WITH MESSENGER OR BLUETOOTH. FOR COMPLETE HOLE PATTERN REFER TO DRAWING IP-515162/DT-515162. 7- ALL DIMS INCHES [mm]

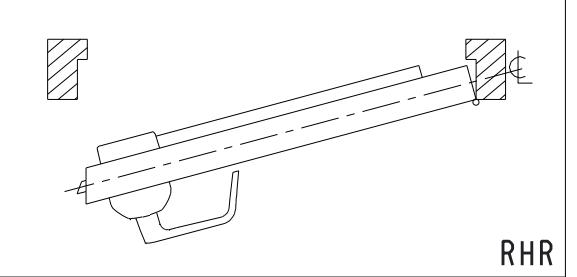

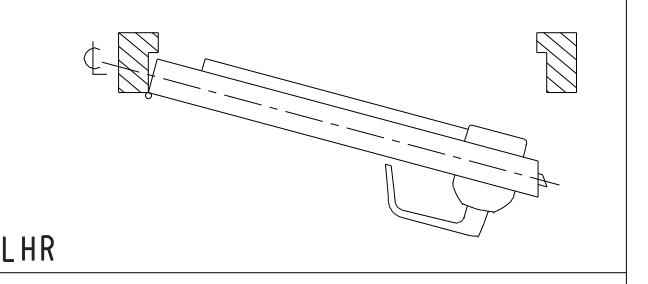

HOLE
ID 		DIM
INCH/(mm) 		↓
INCH/(mm) 		COMMENTS
А Ø5/16
(7,95) 		√3/4
(19.05) 		SEE NOTE #4
В Ø1/2
(12,7) 		* -
С Ø I
(25,4) 		* SEE NOTE #2
D Ø3/4
(19.05) 		* SEE NOTE #6

* UNLESS OTHERWISE NOTED, DRILL HALF DOOR THICKNESS ON BOTH SIDES.

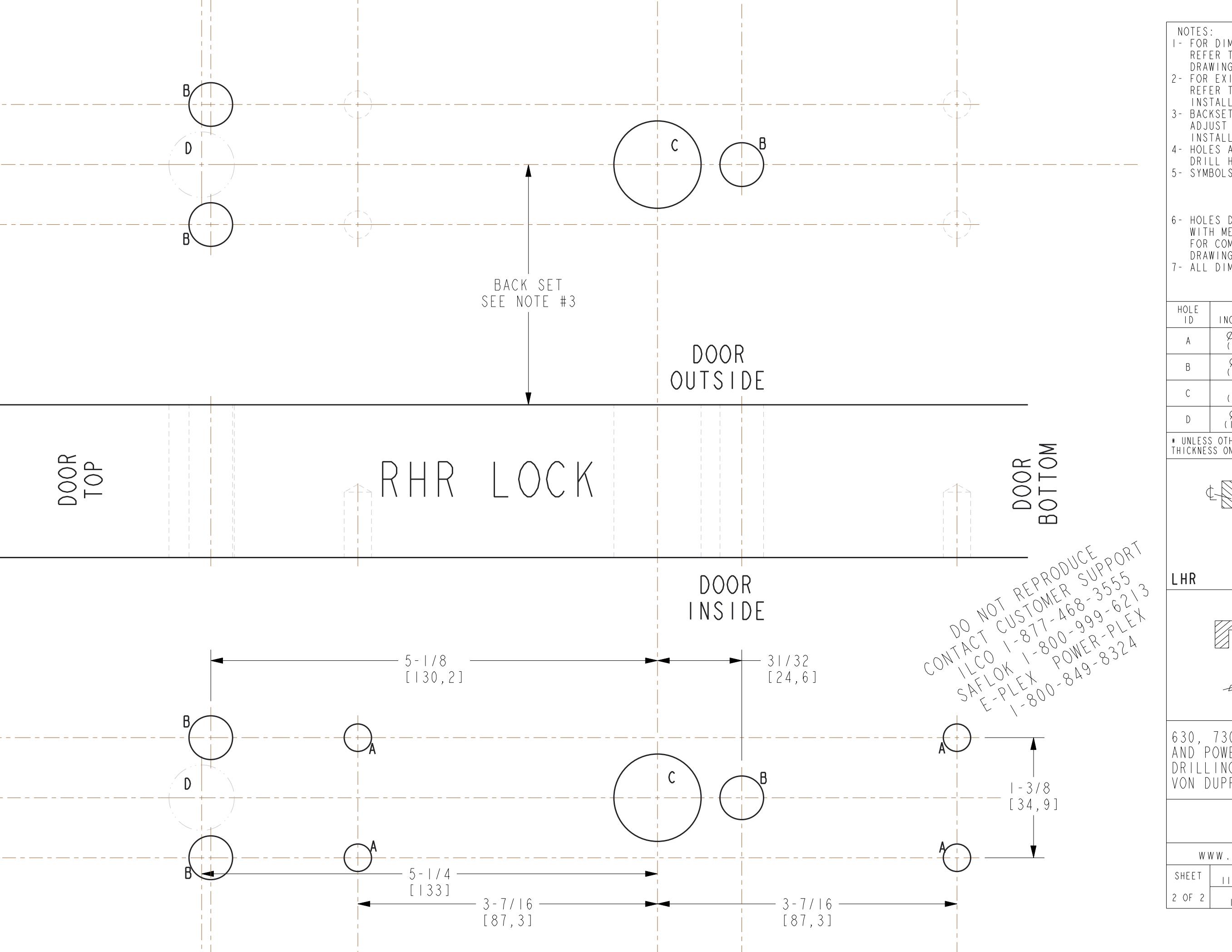

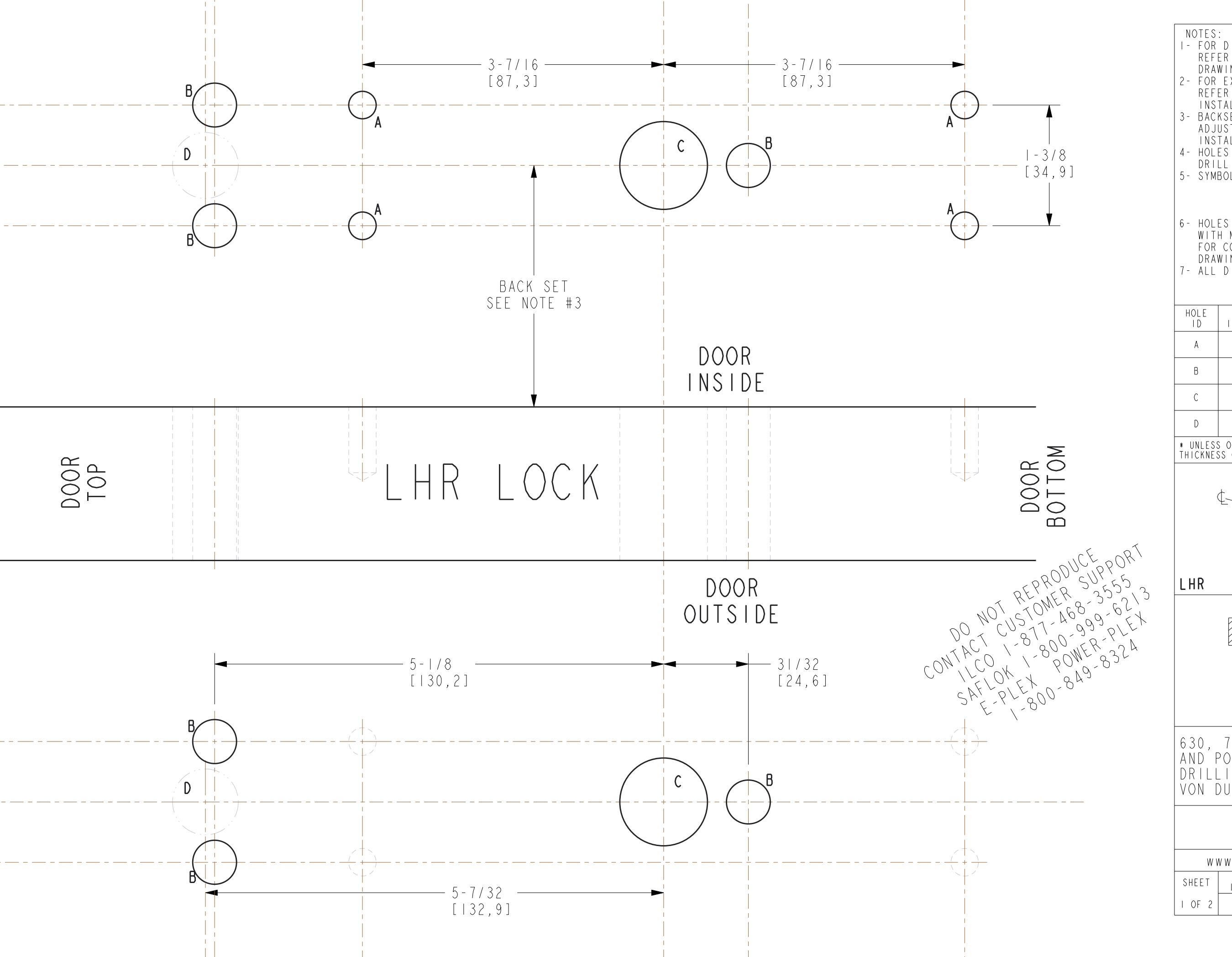

630, 730, 750, 79E, E-PLEX 2000 AND POWER-PLEX 2000 LOCK SERIES DRILLING TEMPLATE VON DUPRIN 9847/9947

www.kabalodgingsupport.com

SHEET | DATE
| IINO2016 		EST DISPONIBLE SUR DEMANDE.
I OF 2 ECN
16007 		DT-513129 REV- 3

  • NOTES: I- FOR DIMENSIONS AND TOLERANCES REFER TO CORRESPONDING DOOR PREPARATION DRAWING IP#. 2- FOR EXIT DEVICE AND MORTISE LOCK CUT-OUT REFER TO EXIT DEVICE MANUFACTURER INSTALLATION INSTRUCTIONS. 3- BACKSET SHOWN FOR REFERENCE ONLY, ADJUST BACKSET TO EXIT DEVICE MANUFACTURER INSTALLATION INSTRUCTIONS. 4- HOLES A: FROM THE INSIDE OF THE DOOR, DRILL HOLES (SEE TABLE) 5- SYMBOLS: ▼ DEEP
  • 7- ALL DIMS INCHES [mm]

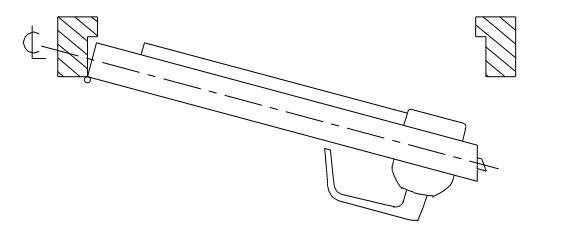

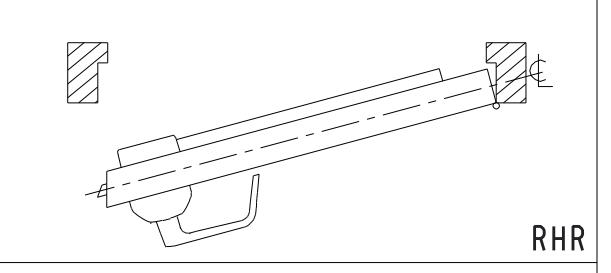

HOLE
ID 		DIM
INCH/(mm) 		▼
INCH/(mm) 		COMMENTS
А Ø5/16
(7,95) 		√3/4
(19.05) 		SEE NOTE #4
В Ø1/2
(12,7) 		* -
С Ø I
(25,4) 		* SEE NOTE #2
D Ø 3 / 4
(19.05) 		* SEE NOTE #6

* UNLESS OTHERWISE NOTED, DRILL HALF DOOR THICKNESS ON BOTH SIDES.

630, 730, 750, 79E, E-PLEX 2000 AND POWER-PLEX 2000 LOCK SERIES DRILLING TEMPLATE VON DUPRIN 9847/9947

DT-513129

REV-3

W۷ ww.kabal odgingsupport.com
SHEET 0 UNE VERSION FRANCAISE DE CE DOCUMENT

ECN 16007
