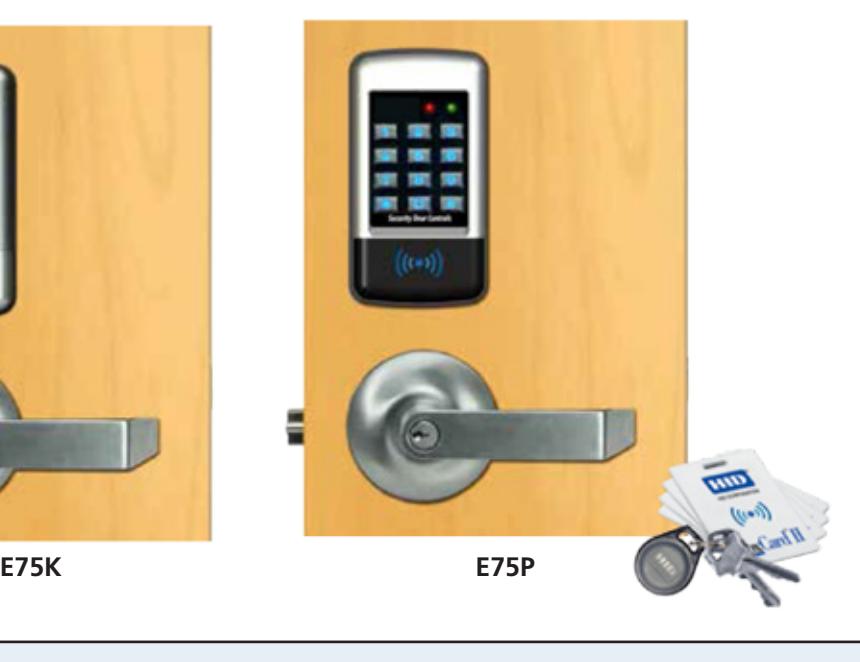

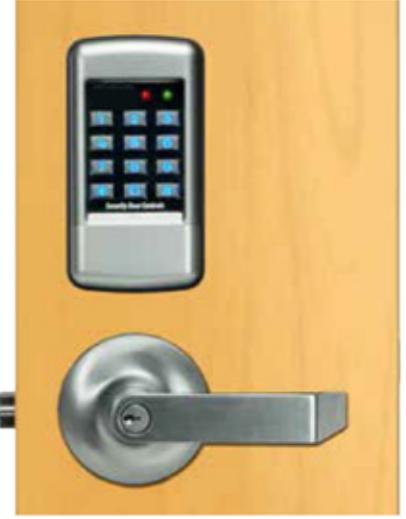

ENTRYCHECK® E75

STANDALONE ELECTRONIC LOCKSET

The IDC E75 EntryCheck® is an indoor/outdoor standalone electronic battery powered solution, providing controlled access for basic and multi-level high security requirements. The E75 lockset is keypad programmable, and combines multiple Access technology with efficient motorized locksets. E75 series can be retrofitted to existing prep for cylindrical locks.

FEATURES

• Keypad Programmable
• 3,000 Users, 32 Temporary Users
• 4 to 6 Digit PIN Codes
• 3 Passage Mode Option
• 32 Access Groups, Schedules
• 32 Holidays
• 4 Authority Levels
• Keypad Tamper Lockout
• Mechanical Key Override
• Battery Powered (4AA)
• Blue Backlit Cast Metal Keys
• Weather & Vandal Resistant
• Retrofit Existing Lock Door Prep
• Motorized IDC Cylindrical Lockset
• Heavy Duty ANSI Grade 1
• Vandal Resistant Lever Handles

SPECIFICATIONS

Power 4 Size AA Batteries (Alkaline

Only) 100,000 cycles or External

12VDC Power @ 30mA

Inputs 1 Request to Exit

1 Door Position Switch

Output SPDT Contacts 1A @ 30VDC

Relay

Temperature -20°F to + 130°F (-30°C to + 54°C)

Humidity Finish 5% to 95% non-condensing 626 Dull Chrome - Standard

Black

625 Polished Chrome 605 Polished Brass

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

Motorized Lockset Specifications

4000EL 5000EL

Latch bolt Backset 9/16" throw 2-3/4"

Strike Door 4-7/8" ANSI A115.2 1-3/4" to 2-1/8"

Thickness

When locked, the built-in clutch permits the handles to operate without retracting the latch, reducing potential for damage.

LEVER TRIM

FINISH

626 Dull Chrome (std.) Black (Keypad only) 625 Polished Chrome 605 Polished Brass

OEM Application

• IDC Motorized Lockset available for use with OEM Readers
• IDC Reader available for use with OEM Locksets

Consult Factory
