View PDFEntrematic USA Low Energy Products Price List
List prices effective November 15, 2018 (Rev 1)
This price list supersedes and cancels all previous price lists. Prices shown are subject to change without notice. Login to the distributor area for most current revision.
Entrematic USA Inc.
1900 Airport Road Monroe, NC 28110 Main: 704-290-0980 Toll Free: 1 866-901-4284 Fax: 704-919-5014
www.ditecentrematic.us
Blue Houser
Product & Business Development Manager
Cell: 803-804-3768
blue.houser@entrematic.com
Mary Schlegel
Account Development & US Distribution Office Manager
Cell: 412-584-7834
mary.schlegel@entrematic.com
Missy Laney
Senior Customer Service Rep
Phone: 704-290-0980
missy.laney@entrematic.com
Jack Carducci Tech Support
Phone: 1-877-348-6837 ext. 6081 jack.carducci@entrematic.com
Kristina McClain Marketing Coordinator
Direct: 704-290-5541
kristina.mcclain@entrematic.com
Mark Ferraro
Security Hardware, Inc. Manufacturer's Rep & Consultant
Cell: 714-920-6440
mferraro@securityhardware.com
Holiday Schedule
Entrematic USA will be CLOSED on the following dates:
2018
Thanksgiving Day – November 22 Day After Thanksgiving – November 23 Christmas Eve - December 24 Christmas Day – December 25
2019
New Year's Day - January 1 President's Day - February 18 Memorial Day - May 27 Independence Day – July 4 Labor Day – September 2 Thanksgiving Day – November 28 Day After Thanksgiving – November 29 Christmas Day – December 25
Do you have access to the Distributor Area?
Download current price lists, brochures and product images from our secure distributor area at www.ditecentrematic.us.
Email info.ditec.us@entrematic.com for access.
Shipping Information
Standard Shipping
- Standard orders will ship in 3-5 business days
- Place $5000 minimum order to receive FREE freight (on swing products only)
- $15 drop ship fee
Quick Ship Program
- Items listed in bold qualify for Quick Ship
- Orders placed by 11:00am EST will ship same day; orders placed after 11 will ship next day
- FREE ground freight
- 25% is added to list price for Quick Ship items
- We reserve the right to limit quantities
- $15 drop ship fee applies
- No changes or cancellations can be accepted
- Quoted projects do not qualify for Quick Ship program
36 Month Limited Warranty - 2018
Entrematic USA Inc. Warrants to the original purchaser of this Entrematic USA Inc. automatic door (swing door operator or slider), that the company will repair or exchange, at its option, any part of the door operator that fails by reason of defective material or worksmanship as follows:
- 0-24 months from the date of door operator purchase: Repair or replace parts. Excludes wear parts.
- 25-36 months from the date of door operator purchase: Parts replaced at 50% of cost, excluding wear parts.
- Repair or Replacement parts sold individually (not with a door operator) will be repaired or replaced for 12 months after date of purchase.
The extent of our liability for breach of such warranty, when such is shown to our satisfaction, shall be limited to a functionally equivalent replacement, or repair of such product, or part thereof, at Entrematic USA Inc. sole discretion, when returned, delivery prepaid, to Entrematic USA Inc. We shall not, except to the extent this limitation may be precluded by law, be liable for inconvenicee, labor costs, shipping costs, damages to other property, injury or any other consequential damages resulting directly or indrectly from any product defect or breach of this warranty. This warranty is limited to the original End User Purchaser (distributor), is not transferable and shall not apply to maintenance, wear and tear caused by normal use, altered product, abuse or neglect.
To obtain warranty service, you must promptly notify the authorized Entrematic USA Inc. authorized dealer from whom the equipment was purchased, within the warranty period to receive an RMA number.
- Please ensure the RMA number appears on the return shipment label and is legible.
- Return the authorized merchandise within sixty (60) days from the date of RMA issuance date.
- Return shipments much be freight prepaid to the location specified on the RMA. Entrematic USA Inc. is not liable damages to product during shipping.
- Replacement product will be invoiced at normal replacement parts cost and will be credited back after receipt of RMA.
No credit may be taken or issued prior to RMA approval and receipt of product. All defective goods within the terms of our limited warranty may be returned for credit or replacement.
This warranty does not cover:
Malfunction of damage to door operator parts caused by accident, misuse, improper wiring, abuse or lack of proper maintenance, neglect, improper adjustment, modification, alteration, the structural condition of your buildling, overloading, failure to follow the door operator operating instructions, riot, or acts of God (i.e. weather, lightening, flood, etc.).
Sensors, push plates and other accessories built by other manufacturers.
This warranty is void if:
Door operator has been installed or maintained by someone other than an authorized Entrematic USA Inc. dealer. Door operator has been modified or altered in any respect from its original design without written authorization by Entrematic USA Inc.

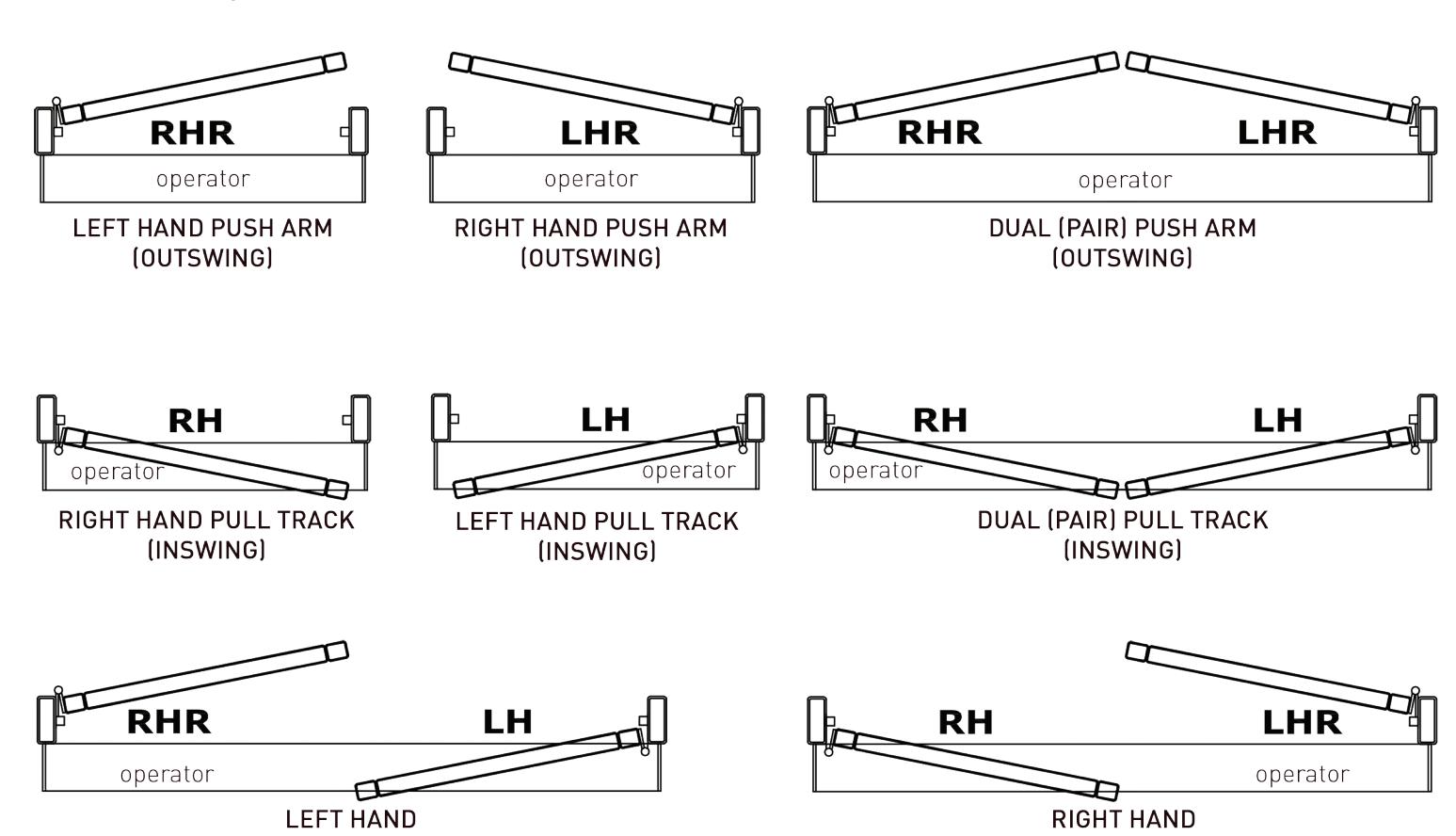

Swing Door Operator Handing Terminology Chart
Note: Operator Handing Terminology is universal for all types of door pivot rotation. Door can be Butt Hung as shown; Continuous Hinge; Offset Pivot or Overhead Concealed Center Pivot.
Header Sizing Guidelines
| Header Size | Door Width |
|---|---|
| 39" | 36" Single |
| 45" | 42" Single |
| 51" | 48" Single |
| 75" | 36" Pair |
| 87" | 42" Pair |
| 99" | 48" Pair |

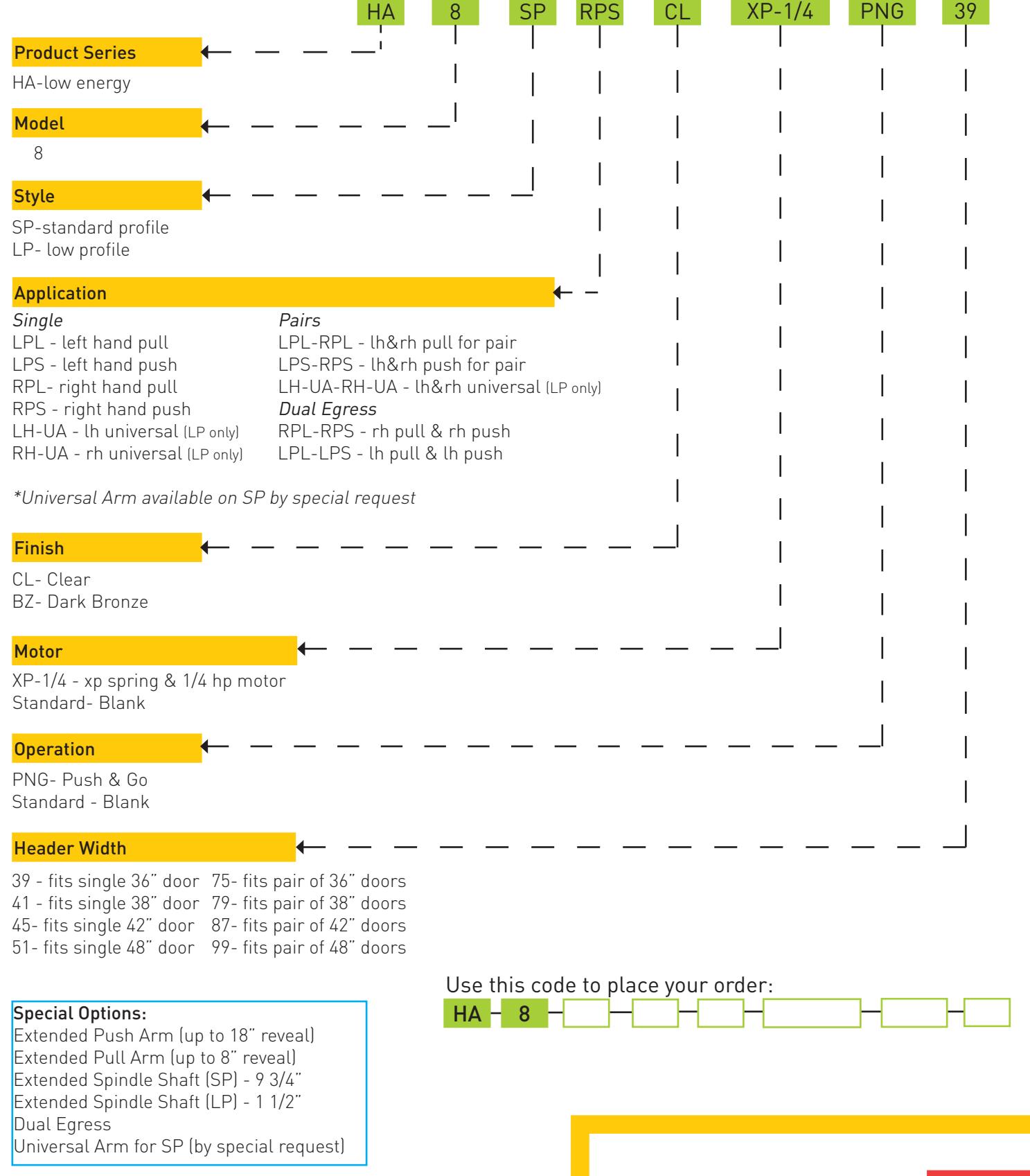

How to Order Ditec Low Energy Operators
Low Energy Ditec HA8-Standard Profile Series Door Operators
(Note: Errors, omissions, product, and price changes are subject to correction without notice.)
Surface Mounted
| Unit | Application | Finish | List Price |
|---|---|---|---|
| HA8-SP (single, 39", 45" or 51") | Push or Pull | Clear or Bronze | $3,101.00 |
| HA8-SP (single, 39", 45" or 51") |
Universal Arm with extended pull track
(*see notes) |
Clear or Bronze | $3,238.00 |
| HA8-SP (dual 75") | Push or Pull, Fits pair of 36" doors | Clear or Bronze | $6,201.00 |
| HA8-SP (dual 75") |
Universal Arm, Fits pair of 36" doors
(*see notes) |
Clear or Bronze | $6,477.00 |
| HA8-SP (dual 87") | Push or Pull, Fits pair of 42" doors | Clear or Bronze | $6,201.00 |
| HA8-SP (dual 87") |
Universal Arm, Fits pair of 42" doors
(*see notes) |
Clear or Bronze | $6,477.00 |
| HA8-SP (dual 99") | Push or Pull, Fits pair of 48" doors | Clear or Bronze | $6,201.00 |
| HA8-SP (dual 99") |
Universal Arm, Fits pair of 48" doors
(*see notes) |
Clear or Bronze | $6,477.00 |
| Factory Installed Upgrades | |||
| Push & Go Feature (Clutch removed) | Add | $170.00 | |
| Dual Egress Feature | Add | $310.00 | |
|
HD Upgrade (single) includes 1/4 HP motor
and XP spring |
Add | $906.00 | |
|
HD Upgrade (dual) includes 1/4 HP motor
and XP spring |
Add | $1,813.00 | |
| Extended Spindle Shaft – 9-3/4" | Add | $243.00 |
- •Contact Customer Service when ordering an SP with Universal Arm
- •Upgrade prices reflect a single motor/gearbox (except Dual Egress). Estimate cost accordingly.
- •Items in bold qualify for Quick Ship
Low Energy Ditec HA8-Low Profile Series Door Operators
Surface Mounted
| Unit | Application | Finish | List Price |
|---|---|---|---|
| HA8-LP (single, 39", 45" or 51") | Push or Pull | Clear or Bronze | $2,946.00 |
| HA8-LP (single, 39", 45" or 51") | Universal Arm with extended pull track | Clear or Bronze | $3,085.00 |
| HA8-LP (dual 75") | Push or Pull, Fits pair of 36" doors | Clear or Bronze | $5,887.00 |
| HA8-LP (dual 75") | Universal Arm, Fits pair of 36" doors | Clear or Bronze | $6,169.00 |
| HA8-LP (dual 87") | Push or Pull, Fits pair of 42" doors | Clear or Bronze | $5,887.00 |
| HA8-LP (dual 87") | Universal Arm, Fits pair of 42" doors | Clear or Bronze | $6,169.00 |
| HA8-LP (dual 99") | Push or Pull, Fits pair of 48" doors | Clear or Bronze | $5,887.00 |
| HA8-LP (dual 99") | Universal Arm, Fits pair of 48" doors | Clear or Bronze | $6,169.00 |
| Factory Installed Upgrades | |||
| Push & Go Feature (Clutch removed) | Add | $170.00 | |
| Dual Egress Feature | Add | $310.00 | |
|
HD Upgrade (single) includes 1/4 HP motor
and XP spring |
Add | $906.00 | |
|
HD Upgrade (dual) includes 1/4 HP motor
and XP spring |
Add | $1,813.00 | |
|
Tuxedo Black finish for single units
(39", 45"or 51") |
Add | $554.00 | |
| Tuxedo Black finish for dual units (75") | Add | $1,059.00 |
- •Upgrade prices reflect a single motor/gearbox (except Dual Egress). Estimate cost accordingly.
- •Swinger Package Limited 3 Year Warranty from Ship Date. See Warranty Statement.
- •Items in bold qualify for Quick Ship.

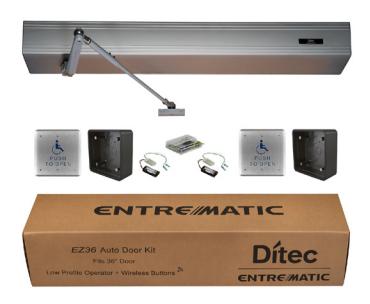

Ditec EZ36 Kits - Automate a 36" Door in One Box
Ditec HA8-LP EZ Series Door Operator Kit
| Part No. | Description | Finish | List Price |
|---|---|---|---|
| W9-200 |
Low-profile operator with push arm, (2) square 4.5" push plates,
(2) surface mount boxes, (2) 900 MHz transmitters and (1) 900 MHz receiver |
Clear | $4,132.00 |
| W9-205 |
Low-profile operator with pull arm for left hand, (2) square 4.5"
push plates, (2) surface mount boxes, (2) 900 MHz transmitters and (1) 900 MHz receiver |
Clear | $4,132.00 |
| W9-210 |
Low-profile operator with pull arm for right hand, (2) square 4.5"
push plates, (2) surface mount boxes, (2) 900 MHz transmitters and (1) 900 MHz receiver |
Clear | $4,132.00 |
| W9-215 |
Low-profile operator with universal arm, (2) square 4.5" push
plates, (2) surface mount boxes, (2) 900 MHz transmitters and (1) 900 MHz receiver |
Clear | $4,238.00 |
| W9-220 |
Low-profile operator with push arm, (2) square 4.5" push plates,
(2) surface mount boxes, (2) 900 MHz transmitters and (1) 900 MHz receiver |
Dark Bronze | $4,132.00 |
| W9-225 |
Low-profile operator with pull arm for left hand, (2) square 4.5"
push plates, (2) surface mount boxes, (2) 900 MHz transmitters and (1) 900 MHz receiver |
Dark Bronze | $4,132.00 |
| W9-230 |
Low-profile operator with pull arm for right hand, (2) square 4.5"
push plates, (2) surface mount boxes, (2) 900 MHz transmitters and (1) 900 MHz receiver |
Dark Bronze | $4,132.00 |
| W9-235 |
Low-profile operator with universal arm, (2) square 4.5" push
plates, (2) surface mount boxes, (2) 900 MHz transmitters and (1) 900 MHz receiver |
Dark Bronze | $4,238.00 |
- •Items in bold qualify for Quick Ship.
- •Call to order any EZ36 in Tuxedo Black finish. Add $554 to list price.
- •Push plates also available in blue with "push to open" text by request.

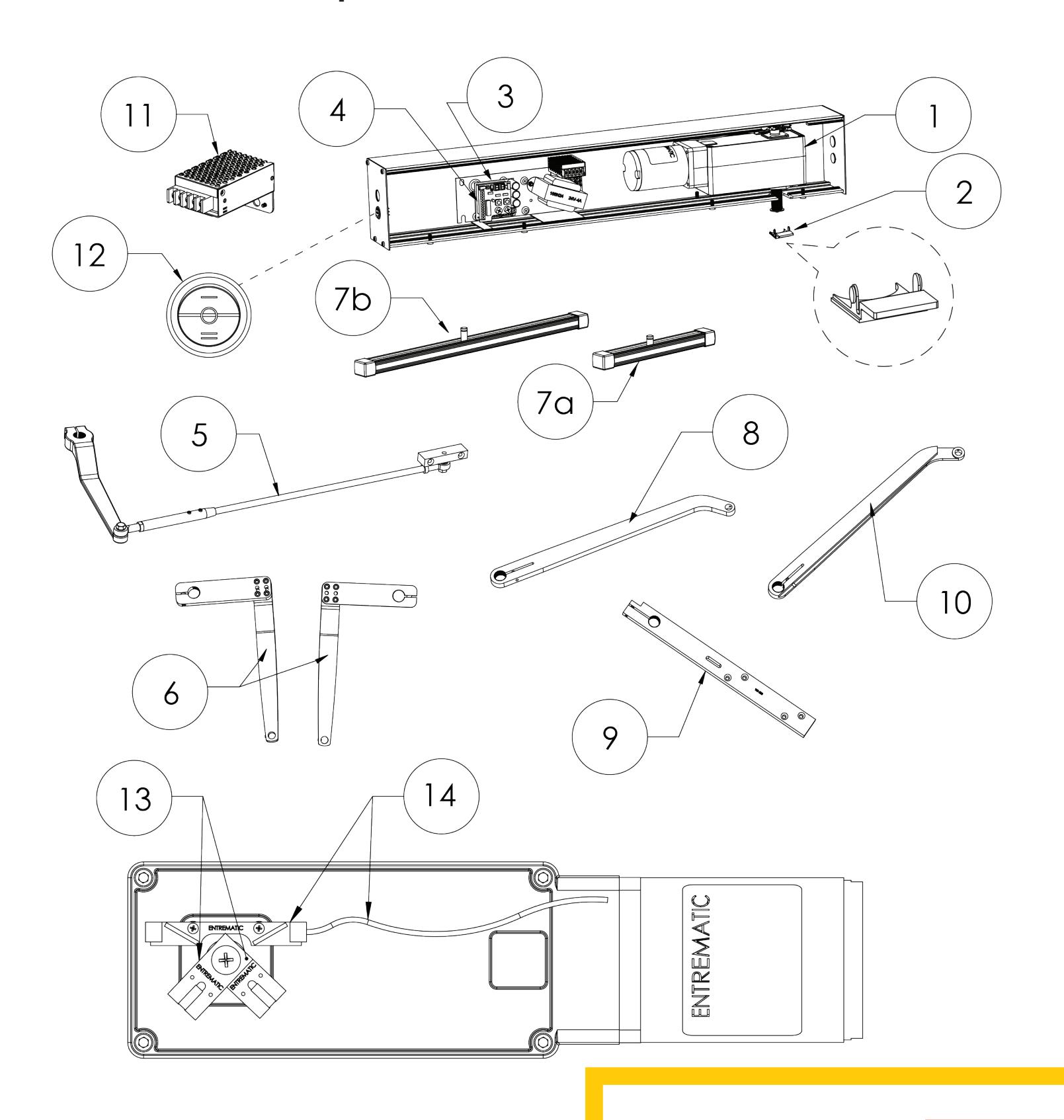

Replacement Parts - Ditec HA8-SP
Replacement Parts - Ditec HA8-SP
| Item | Category | Part # | Description |
|---|---|---|---|
| 1 | Operators | W7-105L | LH 1/8 hp operator |
| W7-105R | RH 1/8 hp operator | ||
| W7-107L | LH 1/4 hp, XP operator | ||
| W7-107R | RH 1/4 hp, XP operator | ||
| W7-106L |
LH 1/8 hp, push & go
operator |
||
| W7-106R |
RH 1/8 hp, push & go
operator |
||
| W7-108L |
LH XP, 1/4 hp, push & go
operator |
||
| W7-108R |
RH XP, 1/4 hp, push & go
operator |
||
| 2 | Header Cap | W5-557 | Header Plastic Cap |
| 3 | Controls | W7-130-1 | HA Digital Control Board |
| W7-135-1 | FA Digital Control Board | ||
| W7-180 |
Dual Digital Control Board
(FA8 only) |
||
| W7-130-1M |
HA Digital Control Board
w/ monitoring |
||
| W7-135-1M |
FA Digital Control Board w/
monitoring |
||
| W7-180-1M |
Dual Digital Control Board
w/ monitoring |
||
| 4 | Controls | W5-422 | 3amp fuse (HA8) |
| W5-430 | 4amp fush (FA8) | ||
| 5 | Arms | W7-200 | complete push arm-clear |
| W7-205 | complete push arm-bronze | ||
| W5-502C | cast portion only- clear | ||
| W5-502B | cast portion only-bronze | ||
| 6 | Arms | W5-506C | Z Arm-RH-Clear |
| W5-505C | Z Arm-LH-Clear | ||
| W5-506B | Z Arm-RH-Bronze | ||
| W5-505B | Z Arm-LH-Bronze | ||
| W5-508C | Ext Z Arm-RH-Clear | ||
| W5-508B | Ext Z Arm-RH-Black | ||
| W5-507C | Ext Z Arm-LH-Clear | ||
| W5-507B | Ext Z Arm-LH-Black |
| Item | Category | Part # | Description |
|---|---|---|---|
| 7a | Arms |
W5-550
W5-555 |
Pull track assembly - clear
Pull track assembly - bronze |
| 7b | Arms | W5-551 |
Pull track assembly long
clear (for Univ/Center Spindle) |
| W5-556 |
Pull track assembly long
bronze (for Univ/Center Spindle) |
||
| 8 | Arms | W5-512C | Universal Arm-clear |
| W5-512B | Universal Arm-bronze | ||
| 9 | Arms | W5-520 | Center Hung Arm 2 3/4" |
| W5-521 | Center Hung Arm 3 3/4" | ||
| 10 | Arms | W5-511C | Center Spindle-clear (LH) |
| W5-510C | Center Spindle-clear (RH) | ||
| W5-511B | Center Spindle-bronze (LH) | ||
| W5-510B | Center Spindle-bronze (RH) | ||
| 11 | Misc |
WL
PWRKIT |
RS-25-24
Power supply kit |
| 12 | Misc |
WL
ROCKER SWITCH |
On/off/hold open
3 position switch |
| 13 | Misc | W5-416 |
magnet set, detects back
check and latch check phases |
| 14 | Misc | W5-415 |
reed switch & harness;
communicates to control board the position of door |

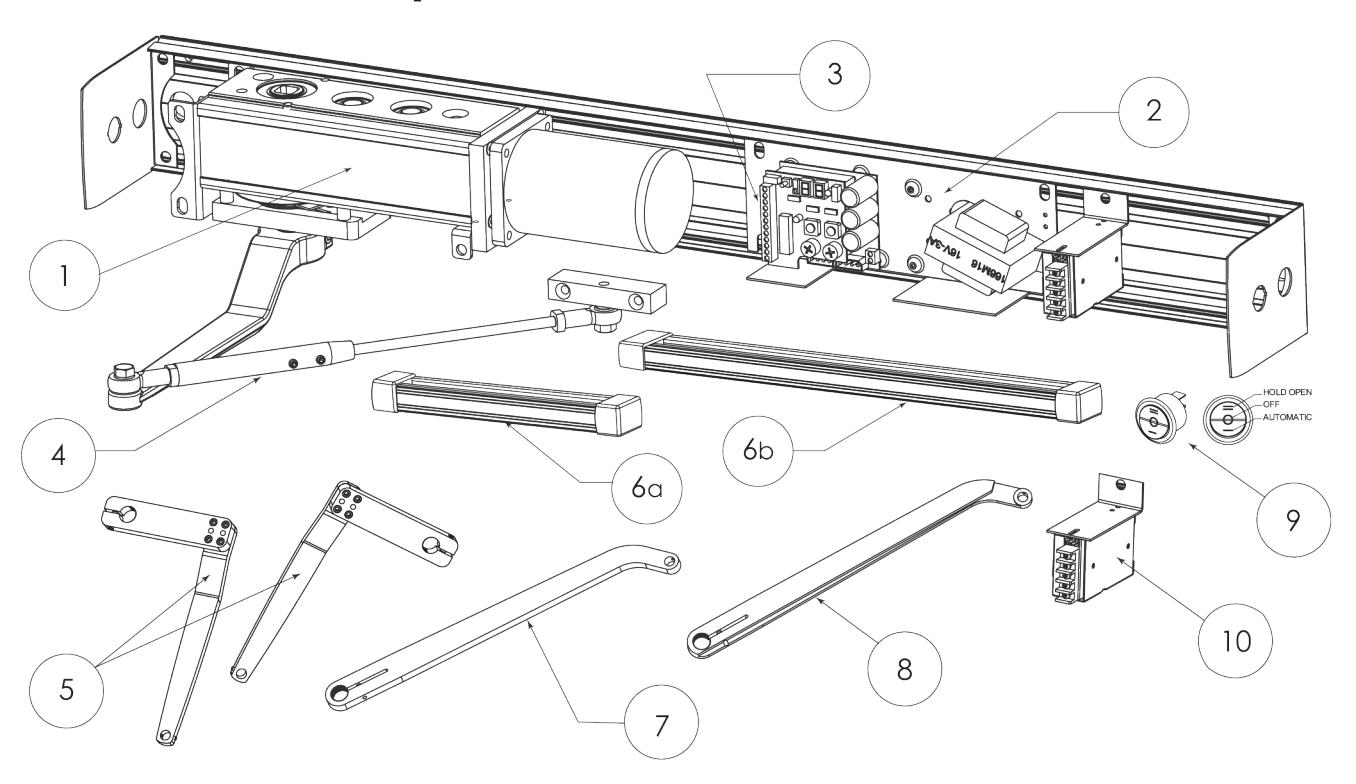

Replacement Parts - Ditec HA8-LP
| Item | Category | Part # | Description |
|---|---|---|---|
| 1 | Operators | WL-PA03 | LP Operator |
| 2 | Controls | W7-130-1 | Digital Control Board |
| 3 | Controls | W5-422 | Fuse 3amp digital |
| 4 | Arms |
W7-200
W7-205 |
complete push arm-clear
complete push arm bronze |
| 5 | Arms | W5-506C | Z Arm-RH-Clear |
| W5-505C | Z Arm-LH-Clear | ||
| W5-506B | Z Arm-RH-Bronze | ||
| W5-505B | Z Arm-LH-Bronze | ||
| W5-508C |
Extended Z Arm-RH
Clear |
||
| W5-507C |
Extended Z Arm-LH
Clear |
||
| W5-508B |
Extended Z Arm-RH
Black |
||
| W5-507B |
Extended Z Arm-LH
Black |
| Item | Category | Part # | Description |
|---|---|---|---|
| 6a | Arm | W5-550 | Pull track assembly-clear |
| W5-555 | Pull track assembly-bronze | ||
| 6b | Arms | W5-551 |
Pull track assembly long
clear (univ arm) |
| W5-556 |
Pull track assembly long
bronze (univ arm) |
||
| 7 | Arms | W5-512C | Universal Arm-clear |
| W5-512B | Universal Arm-bronze | ||
| 8 | Arms |
W5-510C
W5-511C W5-510B W5-511B |
Center Spindle-RH-Clear
Center Spindle-LH-Clear Center Spindle-RH-Bronze Center Spindle-LH-Bronze |
| 9 | Misc |
WL
Rocker switch |
On-Off-Hold Open
3-position switch |
| 10 | Misc |
WL
PWRKIT |
RS-25-24
Power Supply Kit |
Replacement – Spare Parts
Controls
| Part No. | Description | List Price |
|---|---|---|
| W7-130-1 | Digital Control Board for SP & LP with Universal Mounting Bracket | $411.00 |
| W7-130-1M | HA Digital Control Board with Monitoring | $548.00 |
| W5-422 | 3 Amp Fuses – std controls, long, digital (6 pack) | $21.00 |
Operators
| Part No. | Description | List Price |
|---|---|---|
| W7-100R | HA8-SP Operator with standard spring (right hand) (fits cast SP models prior to 11/30/17) | $1,322.00 |
| W7-100L | HA8-SP Operator with standard spring (left hand) (fits cast SP models prior to 11/30/17) | $1,322.00 |
| W7-110R | HA8-SP Operator with XP spring (right hand) (fits cast SP models prior to 11/30/17) | $1,509.00 |
| W7-110L | HA8-SP Operator with XP spring (left hand) (fits cast SP models prior to 11/30/17) | $1,509.00 |
| WL-PA03 | HA8-LP Operator – non-handed with standard spring | $1,171.00 |
| W7-105L | HA8-SP Operator with standard spring (left hand) (fits SP models after 12/1/17) | $1,268.00 |
| W7-105R | HA8-SP Operator with standard spring (right hand) (fits SP models after 12/1/17) | $1,268.00 |
| W7-106L | HA8-SP Operator with push & go (left hand) (fits SP models after 12/1/17) | $1,437.00 |
| W7-106R | HA8-SP Operator with push & go (right hand) (fits SP models after 12/1/17) | $1,437.00 |
| W7-107L | HA8-SP Operator with XP spring & 1/4 hp motor (left hand) (fits SP models after 12/1/17) | $2,173.00 |
| W7-107R | HA8-SP Operator with XP spring & 1/4 hp motor (right hand) (fits SP models after 12/1/17) | $2,173.00 |
| W7-108L | HA8-SP Operator w/ XP spring, 1/4 hp motor, push & go (left hand) (models after 12/1/17) | $2,345.00 |
| W7-108R |
HA8-SP Operator w/ XP spring, 1/4 hp motor, push & go (right hand) (models after
12/1/17) |
$2,345.00 |
Arms
| Part No. | Description | List Price |
|---|---|---|
| W7-200 | Push Arm Complete -Clear | $282.00 |
| W7-205 | Push Arm Complete - Bronze | $282.00 |
| W5-502B | Push Arm, Main Arm Only- Bronze | $138.00 |
| W5-502C | Push Arm, Main Arm Only - Clear | $138.00 |
| W5-505B | Z/Pull Arm Left - Bronze (for complete assembly order track below) | $249.00 |
| W5-506B | Z/Pull Arm Right - Bronze (for complete assembly order track below) | $249.00 |
| W5-555 | Pull Arm Track Assemby (11-3/8" w/ endcaps) for 90 Degree Arm - Bronze | $65.00 |
| W5-505C | Z/Pull Arm Left - Clear (for complete assembly order track below) | $249.00 |
| W5-506C | Z/Pull Arm Right-Clear (for complete assembly order track below) | $249.00 |
| W5-550 | Pull Arm Track Assembly (11-3/8" w/endcaps) for 90 Degree Arm - Clear | $65.00 |
| W5-512B | Universal Arm - Bronze (for complete assy order track below) | $224.00 |
| W5-512C | Universal Arm - Clear (for complete assembly order track below) | $224.00 |
| W5-556 | Pull Arm Track Assembly (22") for Universal Arm - Bronze | $101.00 |
| W5-551 | Pull Arm Track Assembly (22") for Universal Arm - Clear | $101.00 |
| W5-500C | Extended Push Arm Rod (up to 18" reveal) (additional) - Clear | $58.00 |
| W5-500B | Extended Push Arm Rod (up to 18" reveal) (additional) - Bronze | $58.00 |
| W5-507C | Extended Pull Arm for Left Hand (up to 8" reveal) - Clear | $189.00 |
| W5-507B | Extended Pull Arm for Left Hand (up to 8" reveal) - Black | $189.00 |
| W5-508C | Extended Pull Arm for Right Hand (up to 8" reveal) - Clear | $189.00 |
| W5-508B | Extended Pull Arm for Right Hand (up to 8" reveal) - Black | $189.00 |
Accessory/Sensor Product
| Part No. | Description | List Price |
|---|---|---|
| W6-103 | 1.5 x 4.75" stainless steel jamb plate with blue "push to open" text | $69.00 |
| W6-104 | 11.5 x 4.75" jamb surface mount box (can be used with W6-103) | $30.00 |
| W6-107 | 4.5" square blue push plate with "push to open" text | $102.00 |
| W6-108 | 4.5" square stainless steel push plate with blue "push to open" text | $102.00 |
| P-10BOX45SQSM | 4.5" square surface mount box (can be used with W6-107 or W6-108) | $41.00 |
| W6-121 |
4.75" x 4.75" Stainless Steel Dual Push Plate for use in Vestibules Includes adapter
ring, two separate push plates with arrow and blue "push to open" text on one back plate. Requires two P-10TD900PB transmitters. |
$184.00 |
| P-10RD900 |
Wireless Radio Receiver Digital 900 mhz. lncludes integral sequencing "learn" buttons (for
vestibule applications), pulse/toggle functionality and additional hold time. |
$124.00 |
| P-10TD900HH1 | Digital transmitter, 900 MHz, 1 button hand-held | $91.00 |
| P-10TD900PB | 900 MHz push button transmitter | $91.00 |
| W5-670 |
Wave to Open switch for touchless activation. Packaged with single and double gang
face plates. |
$143.00 |
| W6-151 | Hard Wired 36" Vertical Push Plate | $758.00 |
| W6-153 | 36" Vertical Actuation Bar/Low Profile Push Plate with 900 MHz transmitter | $781.00 |
| W6-133 |
Wireless Push Button Activation Package. Includes: (2) square 4.5" stainless steel
push plates with "push to open" text only, (2) surface mount boxes, (2) 900 MHz trans mitters and (1) 900 MHz receiver |
$463.00 |
| W6-134 |
Wireless Push Button Activation Package. Includes: (2) square 4.5" blue push plates
with "push to open" text only, (2) surface mount boxes, (2) 900 MHz transmitters and (1) 900 MHz receiver |
$463.00 |
| W6-135 |
Wireless Push Button Activation Package. Includes: (2) 1.5" x 4.75" jamb style push
plates, (2) surface mount jamb boxes, (2) 900 MHz transmitters and (1) 900 MHz receiv er |
$332.00 |
| W6-136 |
Wireless Push Button Activation Package. Includes: (1) 1.5" x 4.75" jamb style push plates,
(1) surface mount jamb boxes, (1) 900 MHz transmitters and (1) 900 MHz receiver |
$279.00 |
| W6-137 |
Hardwired Push Button Activation Package. Includes: (2) 4.75" square stainless steel push
plates, (2) 4.75" square surface mount boxes |
$178.00 |
| W6-143 |
Wireless Vestibule Push Plate Package Includes: (2) 4.75" square stainless steel plates,
(3) surface mount boxes, (4) 900 MHz wireless transmitters, (2) 900 MHz wireless receiv ers, and (1) 4" x 4" stainless steel dual push plate for use in vestibules |
$795.00 |
• Items in bold qualify for Quick Ship
Accessory/Sensor Product (Continued)
| Part No. | Description | List Price |
|---|---|---|
|
P-10BOLLARD
SLV |
Silver/Clear Finish Bollard Mounting Post Carbon Steel construction with powder coat
paint finish. Dimensions: 42" H x 6" W x 4" D. Accomodates the following push plates: W6- 131, W6-139 and W6-121 |
$448.00 |
|
P-CM-42-BSU
BRZ |
Bronze Finish Bollard Mounting Post Carbon steel construction with powder coat paint
finish. Dimensions: 42" H x 6" W x 4" D. Accomodates the following push plates: W6-131, W6-139 and W6-121 |
$448.00 |
|
P-10BOLLARD
BLK |
Black Finish Bollard Mounting Post Carbon steel construction with powder coat paint
finish. Dimensions: 42" H x 6" W x 4" D. Accommodates the following push plates: W6- 131, W6-139 and W6-121 |
$448.00 |
| P-10BR2-900 | 2-relay logic module with built-in 900 MHz wireless technology | $206.00 |
| P-9101 | Lock-Out Relay | $112.00 |
| L3-1104 |
BEA Bodyguard Overhead Presence Sensor utilizing Diffused Active Infrared Technology.
Provides safety with two separate patterns: 1. Door fully open 2. Door fully closed. Door open pattern allows for threshold protection. For use with lockout such as P-9101. Maxi mum mounting height: 9'. Remote control adjustable. |
$460.00 |
| W6-144 |
BEA LZR Microscan Universal Laser Microscan kit that includes (1) Hub, (4) Microscan
sensors, all mounting hardware, accessories, power supply and the 10DOORSWITCH for a simultaneous pair application. |
$2,294.00 |
| L3-1114 |
BEA LZR Microscan Universal Laser Microscan kit that includes (1) Hub, (2) Microscan sen
sors, all mounting hardware, accessories, power supply and switch assembly for a single door application. |
$1,227.00 |
| L3-1102 |
BEA Eagle Microwave Motion Detector. Meets FCC requirements and ANSI Standard. Uti
lizes K-band microwave technology. Supplied with two antennas: narrow and wide pattern. Mounting height: 7 - 10'. Remote control adjustable. |
$393.00 |
| L3-1127 |
Optex Pro-Swing Elite detects moving or stationary people in the swing path of the door.
For use in single swing, dual egress and simultaneous pair applications. |
$1,357.00 |
| L3-1108-2 |
BEA SuperScan II door mounted safety sensor. Incorporates (1) master and (1) slave
module per housing. Overall length is 34.5". Suggested use for 36" door leaf. |
$390.00 |
| L3-1108-5 |
BEA SuperScan door mounted safety sensor. Incorporates (1) master and (1) slave module
per housing. Overall length is 40" endcap to endcap. Suggested use for 42" door leaf. |
$390.00 |
| L3-1108-7 |
BEA SuperScan door mounted safety sensor. Incorporates (1) master and (1) slave module
per housing. Overall length is 42" endcap to endcap. Suggested use for 44" door leaf. |
$390.00 |
| L3-1108-8 |
BEA SuperScan door mounted safety sensor. Incorporates (1) master and (1) slave module
per housing. Overall length is 48" endcap to endcap. Suggested use for 50" door leaf. |
$502.00 |
| W6-147 |
Entrematic Restroom Kit: Advanced programmable 3-relay logic module, occupied indica
tor, dual function "push to lock"/ "locked when lit"LED button, and door position switch |
$389.00 |
| W6-148 | Entrematic Emergency Add-On Kit | $664.00 |
Miscellaneous
| Part No. | Description | List Price |
|---|---|---|
| WL-P0108 | HA8-LP Extended Spindle Shaft (1-1/2" Extension) | $91.00 |
| W5-415 | Reed Switch for SP | $65.00 |
| WL-P0068 | Reed Switch for LP | $65.00 |
| W5-4151 | Reed Switch Harness (SP& LP) | $18.00 |
| W5-415-2 | Reed Switch Harness Extension (SP & LP) | $23.00 |
| W5-416 | Reed Switch Magnets for SP (Back Check) | $18.00 |
| WL-Rocker | 3-Way Rocker Switch (LP & SP models after 12/1/17) | $13.00 |
| WL-PWRKIT | 24 VDC-1.1 amp Aux Power Supply Kit with mounting bracket | $353.00 |
| W5-528C |
Aluminum reinforcement bracket for aluminum storefronts where no backing exists
(clear) |
$85.00 |
| W5-528B |
Aluminum reinforcement bracket for aluminum storefronts where no backing exists
(black) |
$85.00 |
Decals
| Part No. | Description | List Price |
|---|---|---|
| W5-620 | Wheel Chair Decal – Blue (HA) | $11.00 |
| W5-621 | Caution Decal – Yellow (Round) (HA) | $11.00 |
| W5-626 | Entrematic "Dome" Label | $11.00 |
| W5-625 | Low Energy AAADM Decal | $10.00 |
Important Notes
- Replacement Parts Warranty. Limited 1 Year from Ship Date. See Warranty Statement.
- $50 Minimum order required
- 45% Restocking fee
- $15 drop ship fee
- Products listed in bold qualify for the Quick Ship Program. See program details on page 3.
