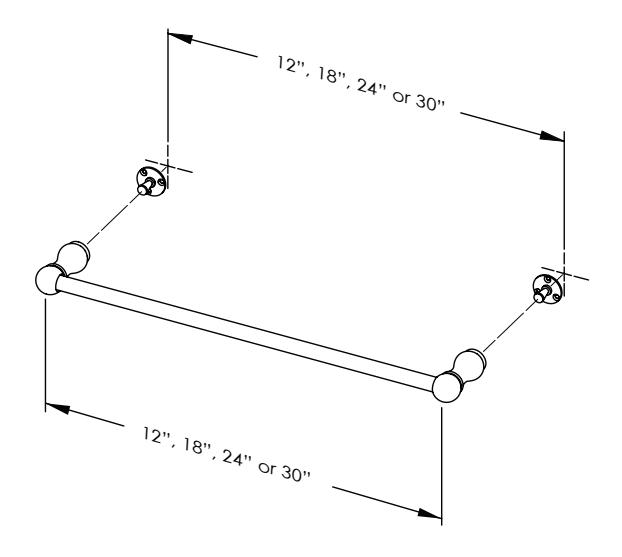

Locate Center of Mounting Plates

Make two marks on wall to locate center of mouting plates. Center to center spacing for mounting plates is the same as the length of the towerl bar.

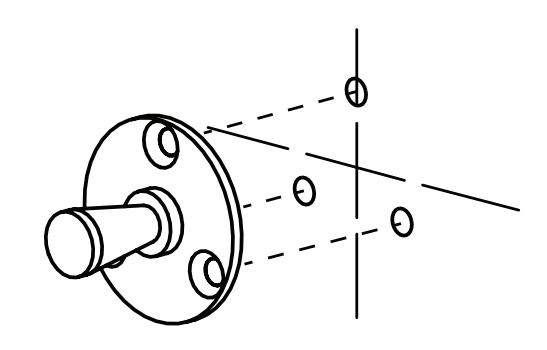

Install Mounting Plates

Mark three hole locations for each mouting plate.

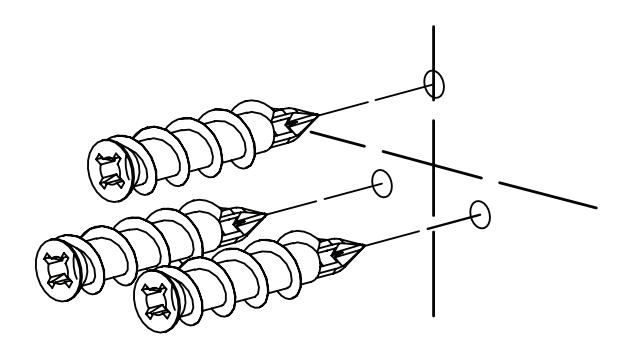

Install Screw Anchors

Use a screw driver to install three screw anchors into the wall for each mounting plate.

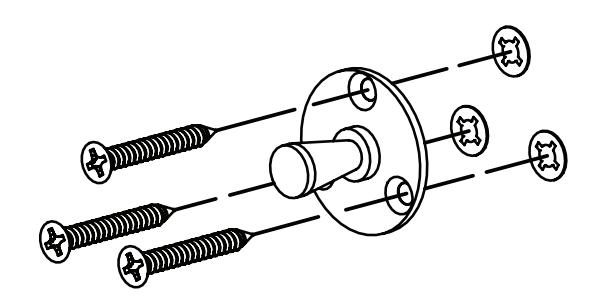

Install Mounting Plates

Secure mounting plates using screws provided.

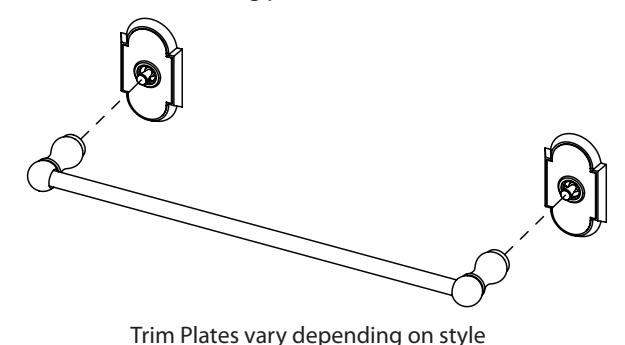

Install Trim Plates and Towel Bar

Slip Trim Plates and Tower Bar posts over the mounting plate studs.

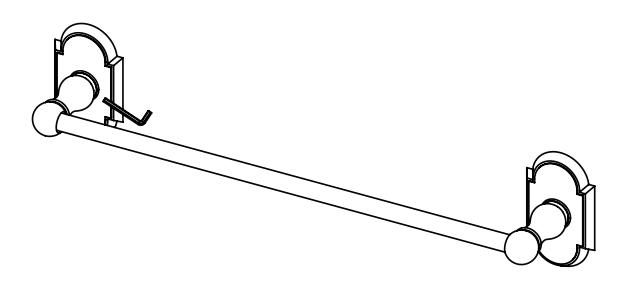

Tighten Set Screw

Tighten set screw at base of post with Allen Wrench Provided.
