Emtek Thumbturn Privacy Sideplate Locks Specifications
Open the original PDF document
View PDFCONTEMPORARY BRASS SIDEPLATE LOCKSETS
Thumbturn Privacy, Non-Keyed Style
| Description | Product Code |
|---|---|
|

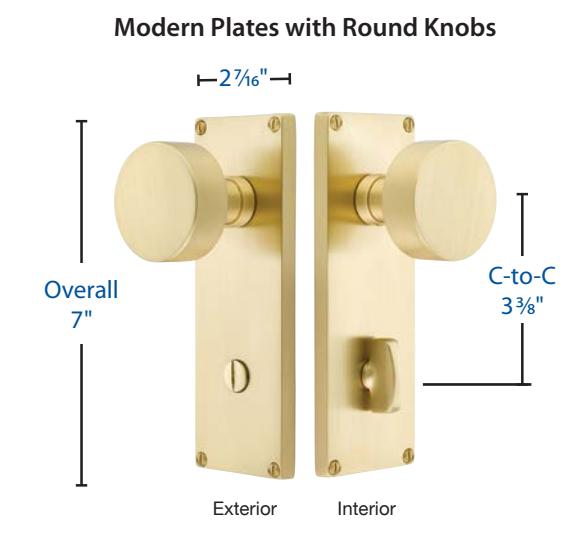

Modern Plate
3 3/8" Center to Center Plates are 3/8" Thick |
8229 |
AMERICAN HERITAGE BRASS SIDEPLATE LOCKSETS
Thumbturn Privacy, Non-Keyed Style
| Description | Product Code |
|---|---|
|
Delaware Plate
3 3/8" Center to Center Plates are 3/8" Thick |
8228 |

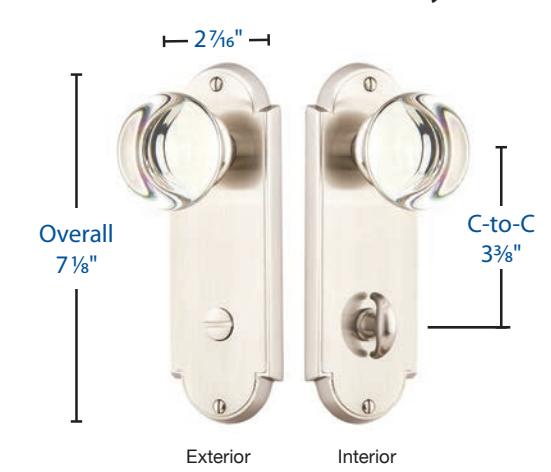

Delaware Plates with Providence Crystal Knobs
AMERICAN HERITAGE BRASS SIDEPLATE LOCKSETS
Thumbturn Privacy, Non-Keyed Style
| Description | Product Code |
|---|---|
|
Colonial Plate
3 3/8" Center to Center Plates are 3/8" Thick |
8022 |

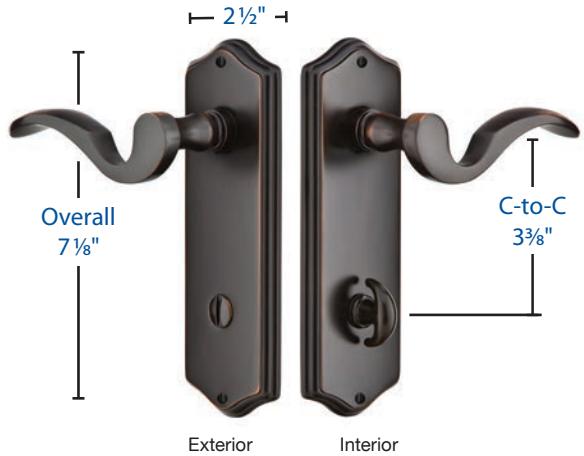

Colonial Plates with Cortina Levers 21/2"
| Description | Product Code |
|---|---|
|
Quincy Plate
3 3/8" Center to Center Plates are 3/8" Thick |
8226 |

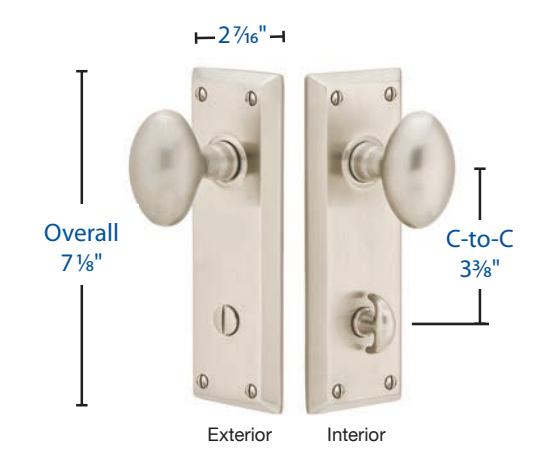

Quincy Plates with Egg Knobs
| Description | Product Code |
|---|---|
|
Belmont Plate
3 3/8" Center to Center Plates are 3/8" Thick |
8224 |
Belmont Plates with Belmont Knobs
AMERICAN HERITAGE BRASS SIDEPLATE LOCKSETS
Thumbturn Privacy, Non-Keyed Style
| Description | Product Code |
|---|---|
|
Victoria Plate
3 3/8" Center to Center Plates are 1/4" Thick |
8225 |
Exterior Interior 21/2" C-to-C 33/8" Overall 7 1/8"
Victoria Plates with Elan Levers
| Description | Product Code |
|---|---|
|
Rope Plate
3 3/8" Center to Center Plates are 1/4" Thick |
8223 |

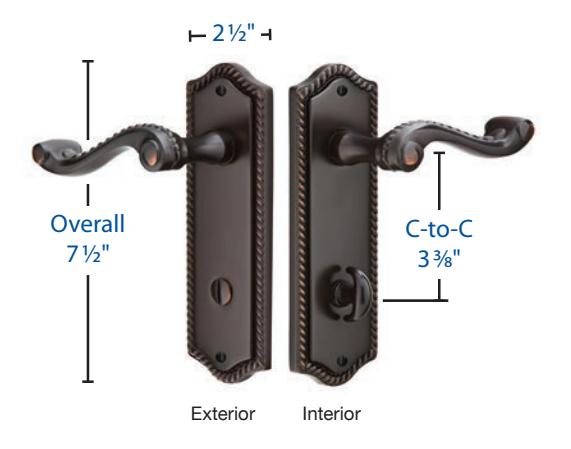

Rope Plates with Rope Levers
Oval Beaded Plates with Georgetown Knobs
| 21/2" | |||
|---|---|---|---|
|
Overall
7" |
C-to-C
33/8" |
||
| Exterior | Interior |

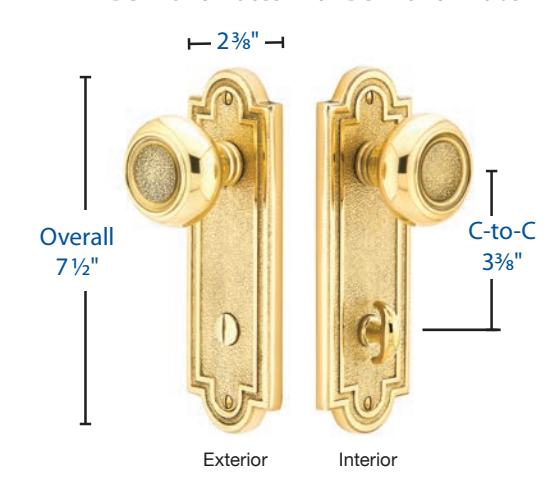

Description Product Code Oval Beaded Plate 3 3/8" Center to Center Plates are 3/8" Thick 8227
Door Thickness Specifications - Brass Sideplate Locksets
Thumbturn Privacy, Non-Keyed Style
Modern Style (8229), Delaware Style (8228), Colonial Style (8022), Quincy Style (8226), Belmont Style (8224), Victoria Style (8225), Rope Style (7211), Oval Beaded Style (8227).
• Standard Door Thickness: 13⁄8"- 2"
Standard Components:
- Inside Passage Half Spindle
- 1" Wood Screws
- Threaded Tubes & Machine Screws Supplied upon request for Hollow-Core Doors
- Full-Lip Strike Plate
• Extended Door Thickness: 2"- 3"
Extended Components:
- Long Inside Passage Half Spindle
- 1" Wood Screws
- Threaded Tubes & Machine Screws Supplied upon request for Hollow-Core Doors
- Extended Full-Lip Strike Plate
TS-SPTP REV18 05/30/2018
