Thru-Bolt Mount with Decorative Caps

How To Order:

86442 US19 Product Code Finish

Appliance/Door pulls are drilled and tapped for 3/8"-16 thread to accommodate thread adapters. Fits standard door thickness of 13/4". Specify if thicker.

Supplied with:

• Two- Thread adapters for ¼ -20 thread
• Two- 1/4-20 Flat head machine screws x 1" long
• Two- Thread adapters for 10-32 thread
• Two- 10-32 Flat head machine screws x 1" long
• Two- 10-32 Flat head machine screws x 2" long
• Two- Threaded Washers
• Two- Decorative Caps

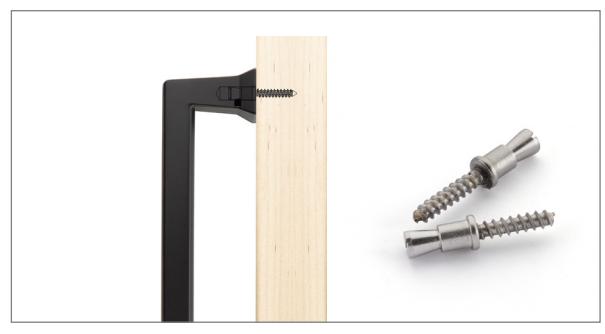

Concealed Surface Mount (CS)

How To Order:

Most standard appliance pulls and door pulls are available with Concealed Surface mounting. Fits minimum door thickness of 11/4".

Supplied with:

• One grip with 3/8" diameter hole in the stem
• Two- #10, 1" bevel head wood screws
• Two- 1-32 set screws

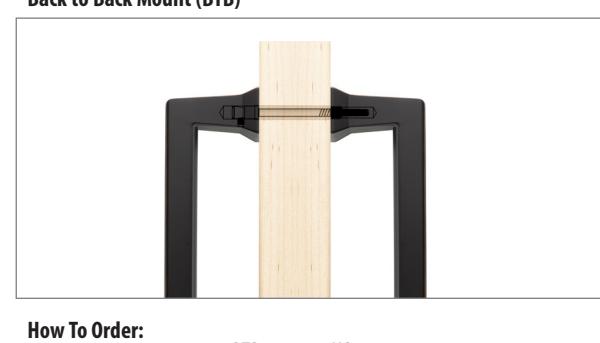

Back to Back Mount (BTB)

BTB 86442 US19 Back to Back Mount Product Code Finish

Most standard appliance pulls and door pulls are available with Back to Back mounting. Fits standard door thickness of 13/4". Specify if thicker.

Supplied with:

• One grip with 10-32 threads in the stem
• One mating grip with 3/8" diameter hole in the stem
• Two- 3/8" diameter bevel head screws with 10-32 shaft by 21/2" long
• Two- 10-32 set screws

TS-DA REV18B 04/12/2018
