Emtek Stainless Steel Specifications
Open the original PDF document
View PDFCabinet Knobs & Pulls Technical Specifications
Stainless Steel Dome Knob
| Product Code | Dimension(D) | Projection(P) | Base Diameter(B) | |
|---|---|---|---|---|
| S61113SS | 1 1/4" | 1 1/4" | 5/8" | |
Stainless Steel Mushroom Knob
| Product Code | Dimension(D) | Projection(P) | Base Diameter(B) |
|---|---|---|---|
| S61213SS | 1 1/4" | 1 1/4" | 5/8" |
Stainless Steel Delta Pull
| Product Code | Overall Length |
Dimension
C-to-C |
Projection(P) | Bar Width(W) |
|---|---|---|---|---|
| S60030SS | 3 1/2" | 3" | 1" | 7/8" |
| S60035SS | 4" | 3 1/2" | 1" | 7/8" |
| S60040SS | 4 1/2" | 4" | 1" | 7/8" |

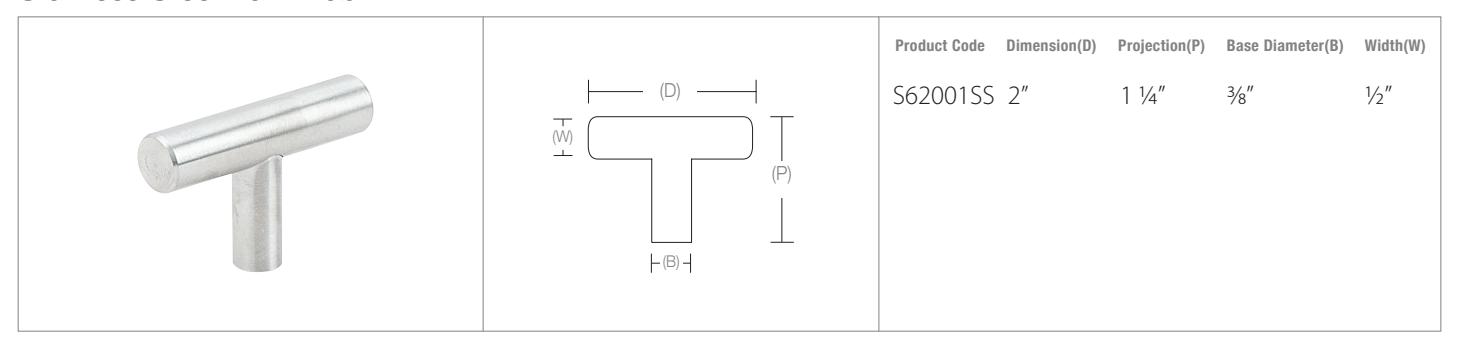

Stainless Steel Bar Knob

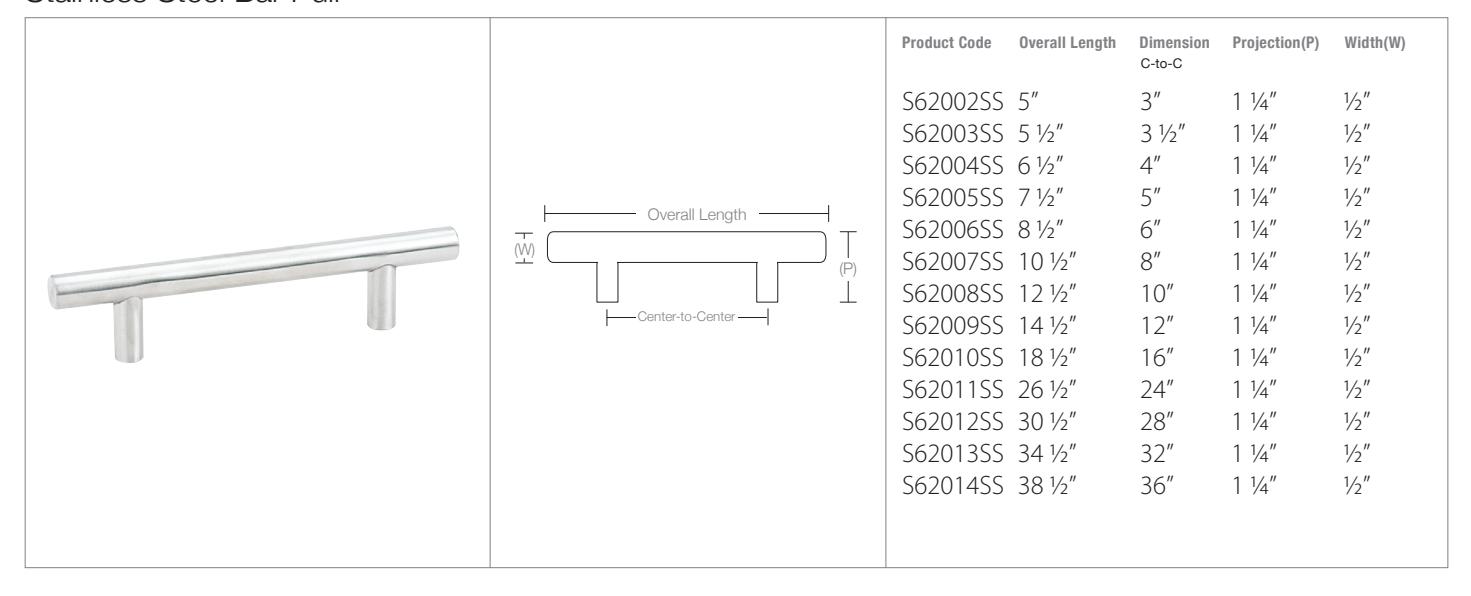

Stainless Steel Bar Pull
