Emtek Stainless Steel Key in Lever Locksets Specifications

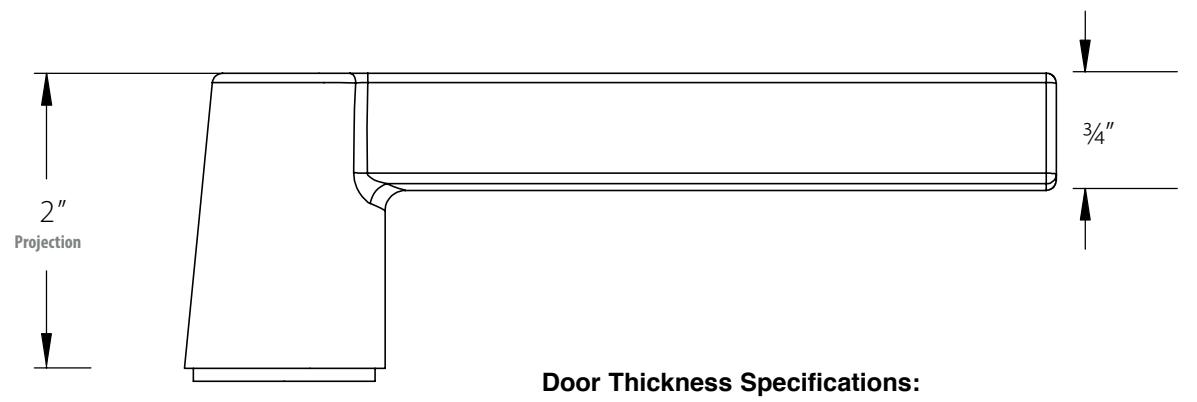

Hanover Lever (HN)

• Standard Door Thickness: 11⁄4"- 21/16" Extended Door Thickness Range: 21⁄16"- 23⁄4"
• * Specify Door Thickness when ordering
• * For thicker doors, must order with Extension Kit

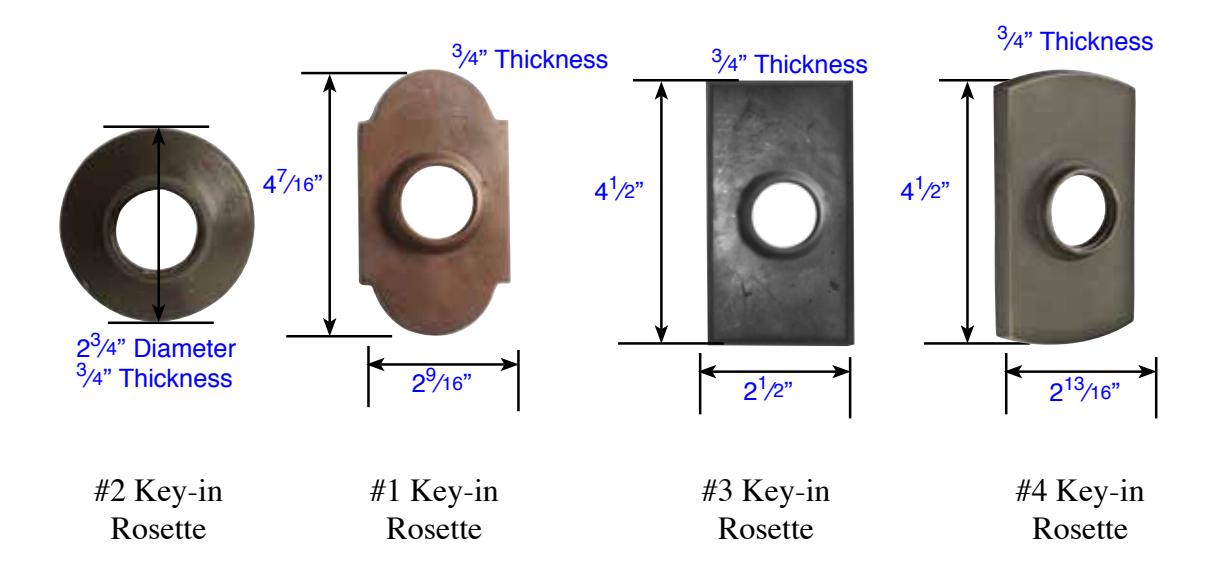

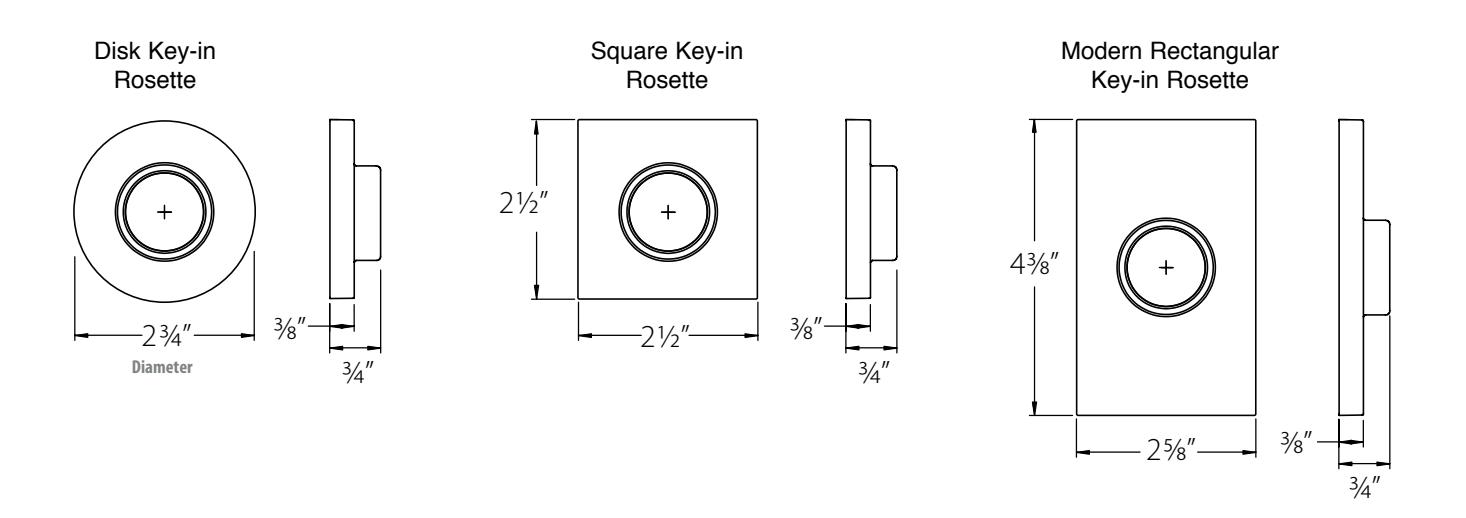

Disc Key-in Rosette

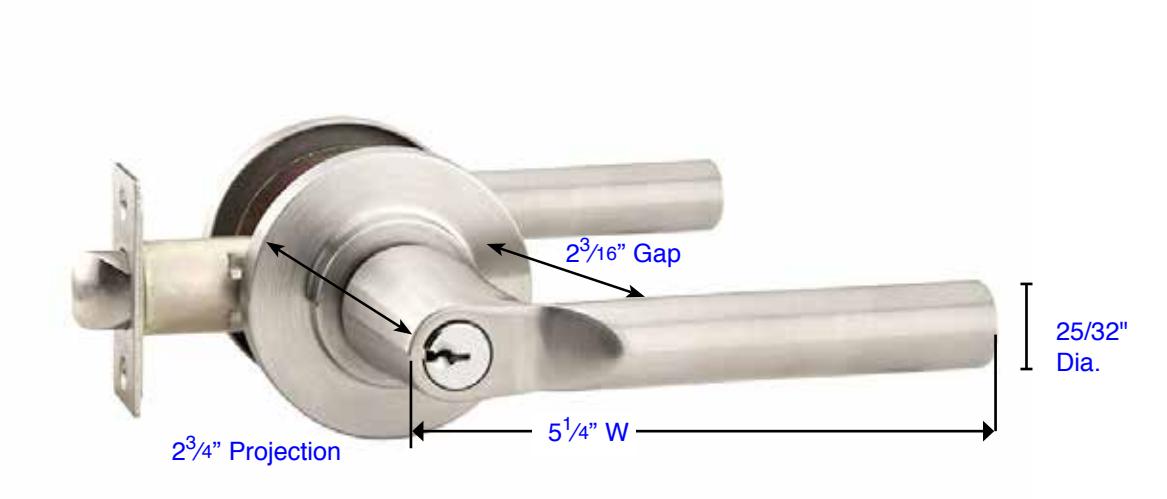

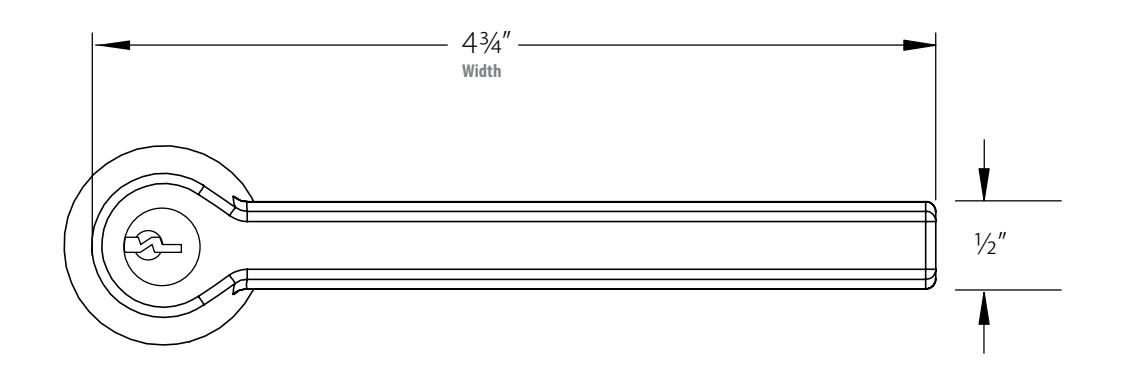

Helios Lever (HLO)

• Standard Door Thickness: 11⁄4"- 21/16" Extended Door Thickness Range: 21⁄16"- 23⁄4"
• * Specify Door Handing and Thickness when ordering
• * For thicker doors, must order with Extension Kit

· Space between rosette and knob is approx. 1"

· Space between rosette and knob is approx. 1"

· Space between rosette and knob is approx. 1"

Round Knob (ROU)

Door Thickness Specifications:

• Standard Door Thickness: 1¼"- 21/16" Extended Door Thickness Range: 21/16"- 23/4"
• * Specify Door Thickness when ordering
• * Extension Kit not available separately

3/4" Thickness

• Standard Door Thickness: 1¼"- 2¼6" Extended Door Thickness Range: 2¼6"- 2¾"
• * Specify Door Thickness when ordering
• * Extension Kit not available separately

• Standard Door Thickness: 11⁄4"- 21/16" Extended Door Thickness Range: 21⁄16"- 23⁄4"
• * Specify Door Thickness when ordering
• * Extension Kit not available separately

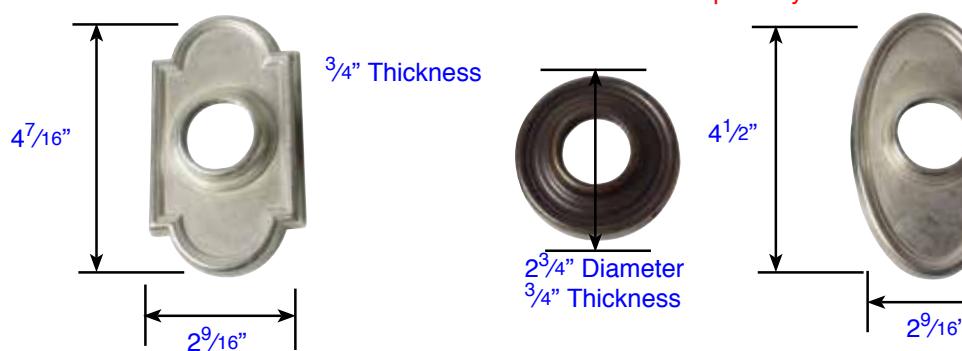

³/₄" Thickness

• Standard Door Thickness: 11/4" 21/16" Extended Door Thickness Range: 21/16" 23/4"
• * Specify Door Thickness when ordering * Extension Kit not available separately
