Emtek Small Brass Knobs Installation Instructions

Passage Door Prep. Active 2-3/8" or 2-3/4" 1" Dia. Edge Bore 3/4" Dai. Bore

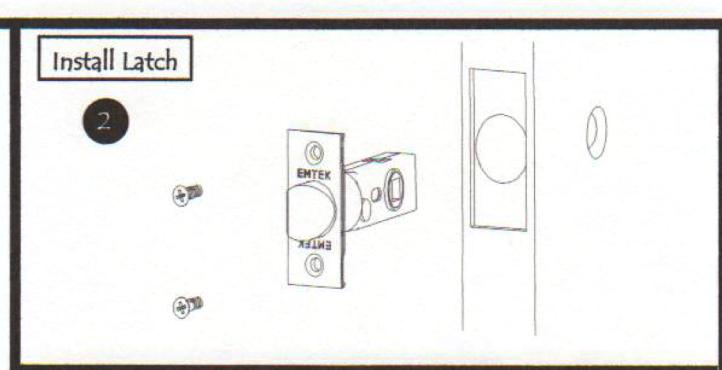

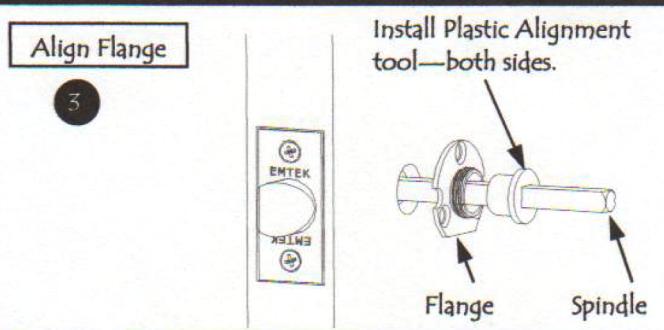

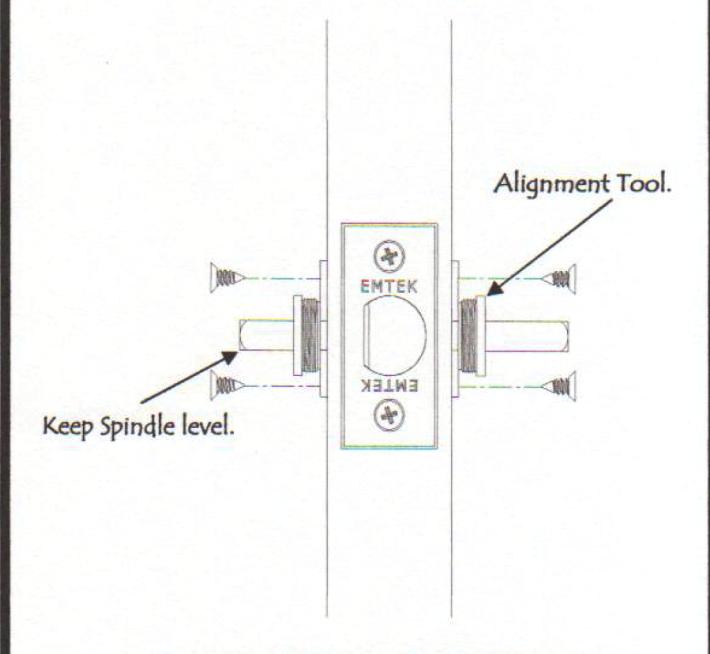

IMPROTANT: Make sure that the spindle is level before screwing Flange to door.

Remember to Remove Plastic Alignment Tool after Flanges are installed.

Thread Rosette onto Flange.

Install knobs to Spindle

AFTER INSTALLATION: Tighten Set Screws on Knob with Allen Wrench Provided.

Remember to install Plastic Washer, provided between Rosette and Knob as shown.
