Emtek Ribbon & Reed Specifications
Open the original PDF document
View PDFCabinet Knobs & Pulls Technical Specifications

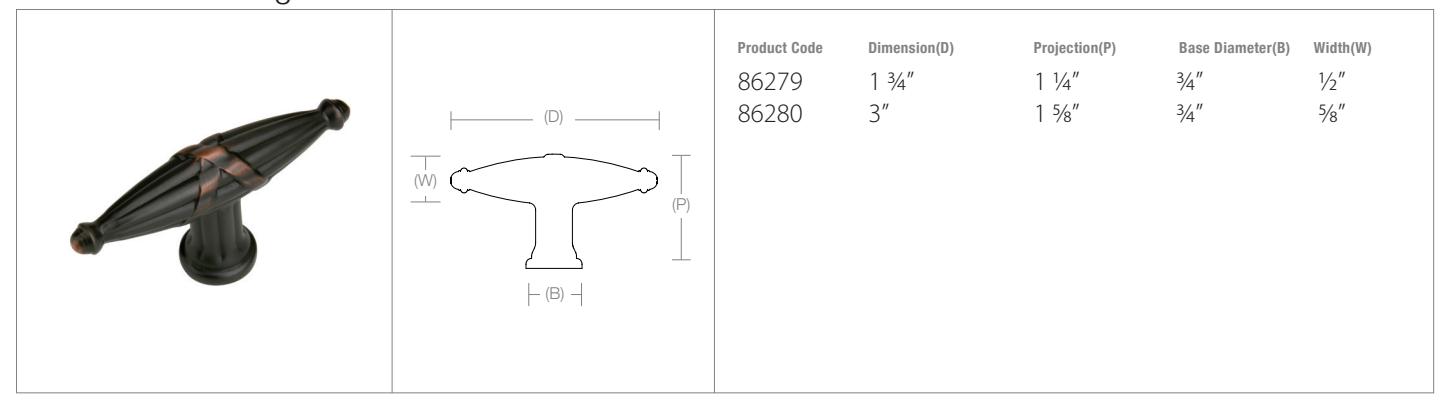

Ribbon & Reed Finger Knob

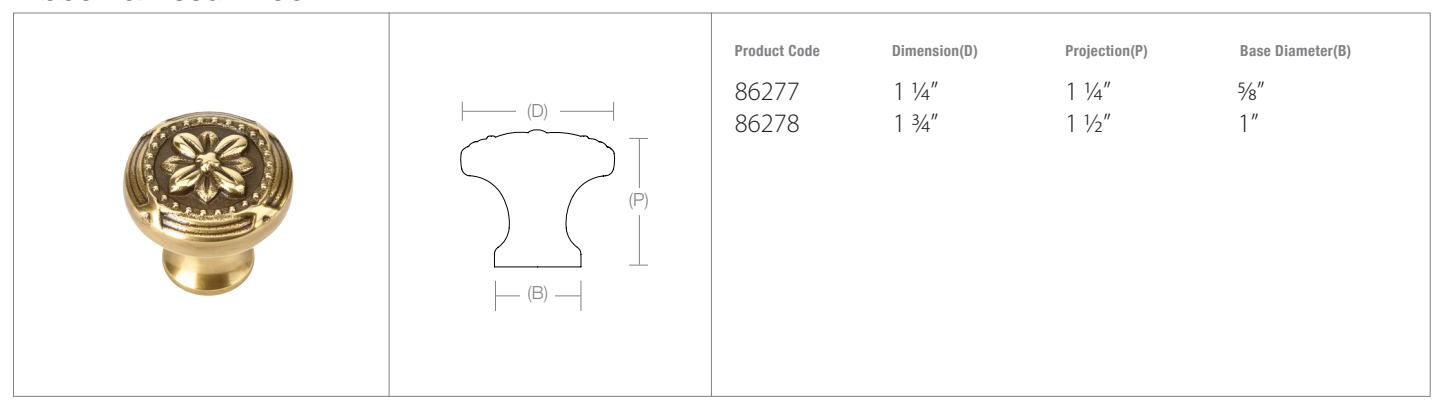

Ribbon & Reed Knob

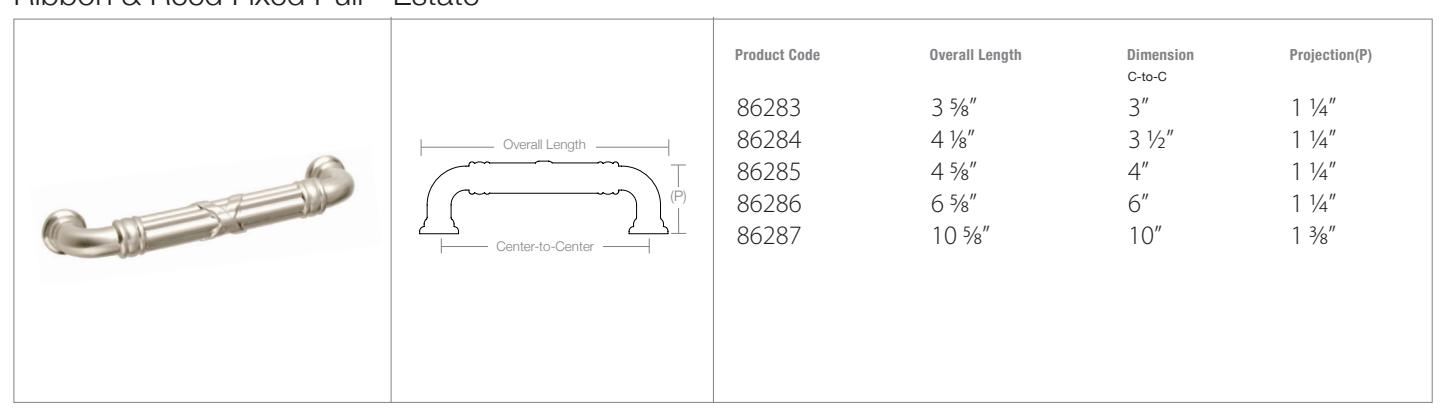

Ribbon & Reed Fixed Pull - Estate

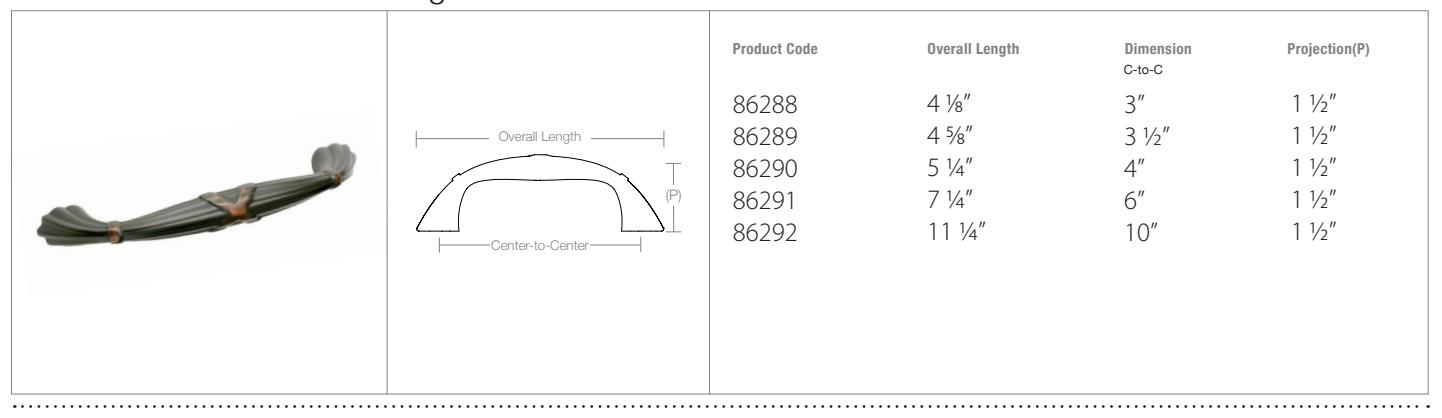

Ribbon & Reed Fixed Pull - Regal
RIBBON & REED AMERICAN HERITAGE
Cabinet Knobs & Pulls Technical Specifications
Ribbon & Reed Bin Pull
| Overall Length | Dimension | Height | Projection(P) |
|---|---|---|---|
| C-to-C | |||
| 3 7/8" | 3" | 1 5/8" | 1 1/4" |
| 5 1/4" | 4" | 1 5/8" | 1 1/4" |
Ribbon & Reed Back Plate for Knob
| Product Code | Dimension(D) | Height (H) | Plate Diameter(B) |
|---|---|---|---|
| 86293 | 2 1/2" | 1 1/4" | 1 1/4" |
Ribbon & Reed Back Plate for Pull
| Product Code | Overall Length |
Dimension
C-to-C |
Height (H) | |
|---|---|---|---|---|
| 86294 | 6 3/4" | 4" | 1 1/2" | |
TS-CH REV19 10/17/19
