Emtek Passage Privacy Locksets Dimensions Door Thickness Specifications
Open the original PDF document
View PDF
- Standard Door Thickness: 13⁄8"- 2" Standard Components:
- Privacy Pin (for privacy sets)
- Inside Passage Half Spindle
- 11⁄2" Socket Head Machine Screws
- Full-Lip Strike Plate
- Extended Door Thickness: 2"- 21⁄2" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate
- Extended Door Thickness: 2 1⁄2"- 23⁄4" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 21⁄2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate

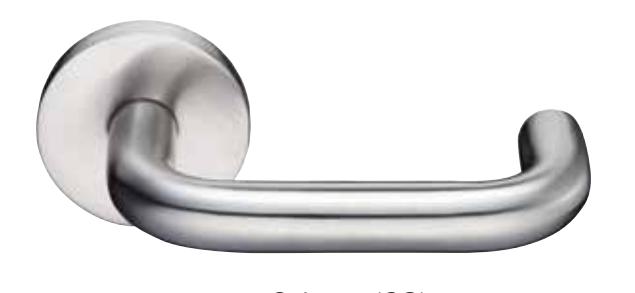

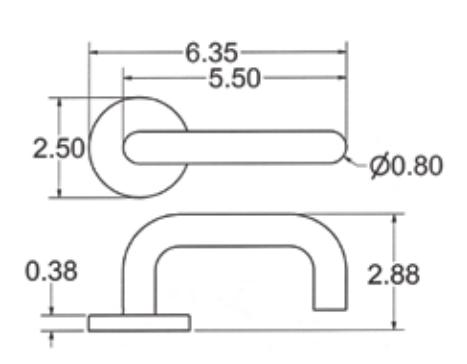

Cologne (CO)
Stuttgart (ST)
Kiel (KL)
- Standard Door Thickness: 13⁄8"- 2" Standard Components:
- Privacy Pin (for privacy sets)
- Inside Passage Half Spindle
- 11⁄2" Socket Head Machine Screws
- Full-Lip Strike Plate
- Extended Door Thickness: 2"- 21⁄2" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate
- Extended Door Thickness: 2 1⁄2"- 23⁄4" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 21⁄2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate
Poseidon (PO)
Hermes (HE)

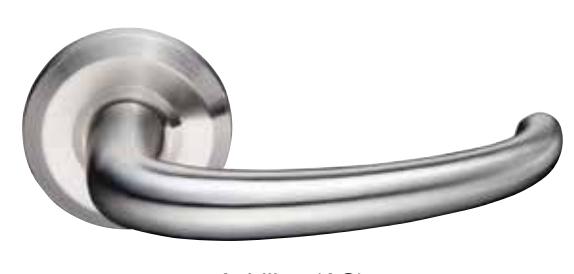

Achilles (AC)
- Standard Door Thickness: 13⁄8"- 2" Standard Components:
- Privacy Pin (for privacy sets)
- Inside Passage Half Spindle
- 11⁄2" Socket Head Machine Screws
- Full-Lip Strike Plate
- Extended Door Thickness: 2"- 21⁄2" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate
- Extended Door Thickness: 2 1⁄2"- 23⁄4" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 21⁄2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate
- Standard Door Thickness: 13⁄8"- 2" Standard Components:
- Privacy Pin (for privacy sets)
- Inside Passage Half Spindle
- 11⁄2" Socket Head Machine Screws
- Full-Lip Strike Plate
- Extended Door Thickness: 2"- 21⁄2" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate
- Extended Door Thickness: 2 1⁄2"- 23⁄4" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 21⁄2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate
Meteor (MT)

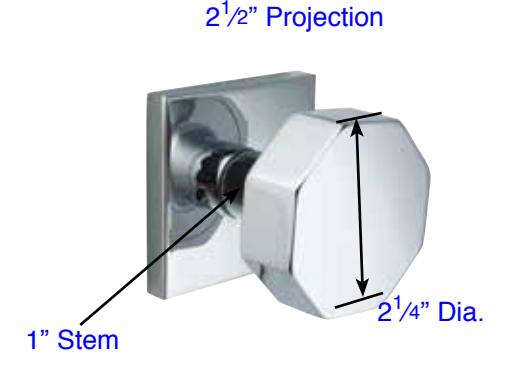

Octagon Knob (OK) Round Knob (RK)
1" Stem 21 ⁄4" Dia.
211⁄16" Projection
- Standard Door Thickness: 13⁄8"- 2" Standard Components:
- Privacy Pin (for privacy sets)
- Inside Passage Half Spindle
- 11⁄2" Socket Head Machine Screws
- Full-Lip Strike Plate
- Extended Door Thickness: 2"- 21⁄2" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate
- Extended Door Thickness: 2 1⁄2"- 23⁄4" Extended Components:
- Privacy Pin w/ Extension (for privacy sets)
- Long Inside Passage Half Spindle
- 21⁄2" Socket Head Machine Screws
- Extended Full-Lip Strike Plate
Functions:
Passage: Lever operates from either side of door.
Privacy: Push button on the interior engages privacy. Turning the inside lever releases
privacy and retracts latchbolt.
Dummy Pair: Surface mounted on threaded spindle. Requires no door prep.
Door Prep Specifications:
- Fits standard door prep--21⁄8" face bore & 1" edge bore.
- Fits a range of door thickness from 13⁄8" to 2". Thicker doors--please specify.
Latches:
- 28º retraction
- 7MM hub
- Split spindles
- 23⁄8" backset standard
- 23⁄4" backset available--please specify
- Stainless steel nosebolt
Strike & Face Plates:
- Strike Plate--11⁄2"W x 21⁄4"H
- Face Plate--1"W x 21⁄4"H
- Full Lip strike is standard
- "T" strike optional--please specify
- Strike & faceplates are square cornered

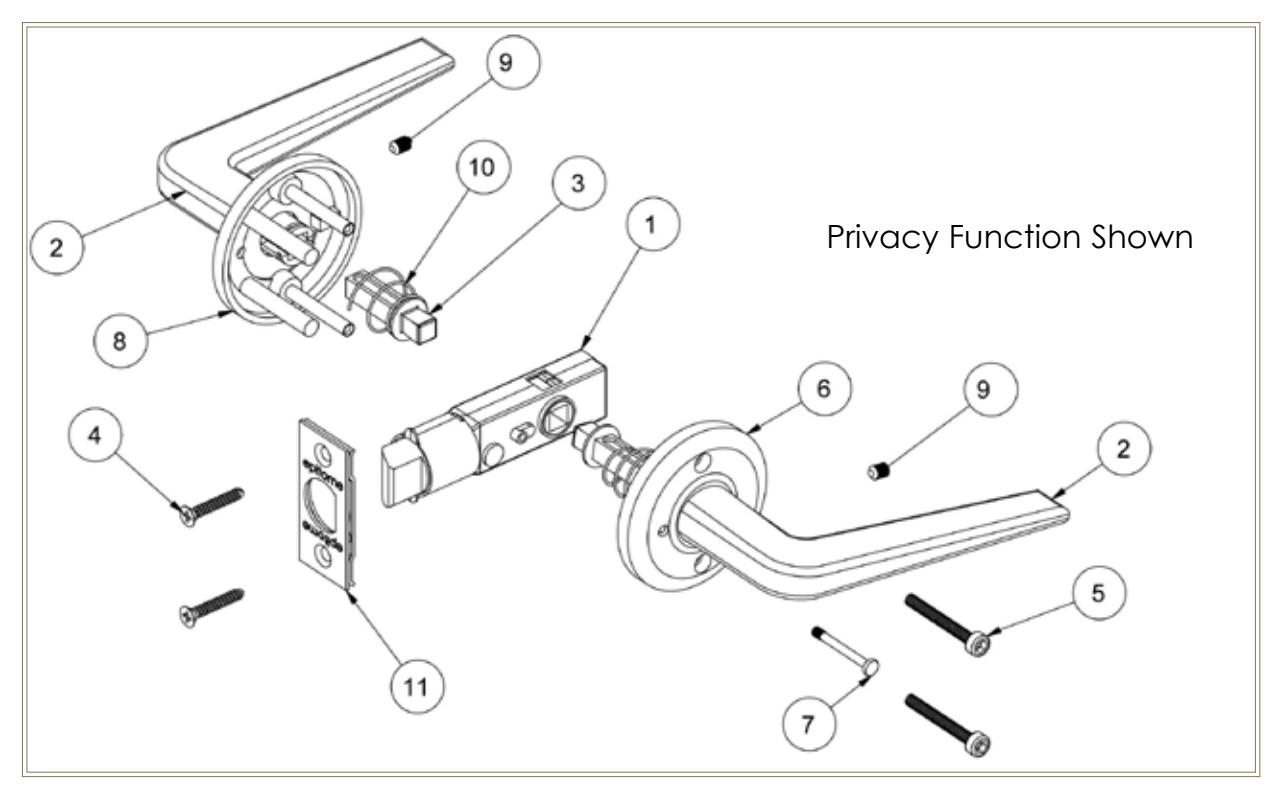

- Legend 1) Latch (Passage/Privacy)
- 2) Lever Handles
- 3) Spindles
- 4) Face Plate Wood Screws
- 5) Socket Hex Head Machine Screws
- 6) Inside Rosette
- 7) Privacy Pin (for Privacy Sets)
- 8) Outside Rosette
- 9) Set Screws
- 10) Spindle Spring
- 11) Latch Face Plate
