EMTEK MULTI POINT LOCK TRIM

Door manufacturers listed under each configuration are for reference only and are subject to change. Some retro fitting may be necessary. Please carefully measure and identify your hardware using the diagrams and steps listed on page 2 and 3.

G-U® is a registered trademark of G-U Hardware, Inc. Paddock™ is a registered trademark of Yale® UK. Pella® is a registered trademark of Pella Corporation. Sierra Pacific Windows® is a registered trademark of Sierra Pacific Industries. Superior® is a registered trademark of Superior Engineered Products Corporation. Willmar® is a registered trademark of JELD-WEN of Canada Ltd. Andersen® is a registered trademark of Andersen Corporation. Trillenium® is a registered trademark of Endura Products, Inc. Eagle® is a registered trademark of Eagle Window and Door, Inc, BiltBest® is a registered trademark of BiltBest Windows and Patio Doors. Ashland® is a registered trademark of Ashland Products, Inc. Caradco®, JELD-WEN, Norco® and Pozzi® are registered trademarks of JELD-WEN Inc., Oregon, USA. Integrity® and Marvin® are registered trademarks of Marvin Windows and Doors. Milgard® is a registered trademark of Milgard Windows, Inc. Therma-Tru® is a registered trademark of Therma-Tru Doors®. HOPPE® is a registered trademark of HOPPE North America, Inc. Hurd® is a registered trademark of Hurd Millwork Company. Kolbe & Kolbe® is a registered trademark of Kolbe & Kolbe Millwork Company, Inc. Lincoln® is a registered trademark of Lincoln Wood Products, Inc. Loewen® is a registered trademark of Loewen Windows. PGT® is a registered trademark of PGT Industries. Peachtree® and Vetter® are registered trademark of The Peachtree Companies, Inc. Semco® is a registered trademark of Semling-Menke Co. Inc. Weathershield® is a registered trademark of Weathershield Mfg. Inc. KML by Andersen® is a registered trademark of KML by Andersen. Atrium® is a registered trademark of Atrium. KFV® is a registered trademark of KFV. Simpson® is a registered trademark of Simpson. Signature® is a registered trademark of Signature. Crestline® is a registered trademark of Crestline. Windsor® is a registered trademark of Windsor. Neuma Doors® is a registered trademark of Nan Ya Plastics Corporation. With the exception of Paddock™, none of the aforementioned companies are affiliated with Emtek Products, Inc.

EMTEK MULTI POINT LOCK TRIM FOR SWING PATIO DOORS

CHOOSE TRIMSETS FROM 7 DOOR & LOCK CONFIGURATIONS, AVAILABLE BOTH KEYED AND NON-KEYED FUNCTIONS

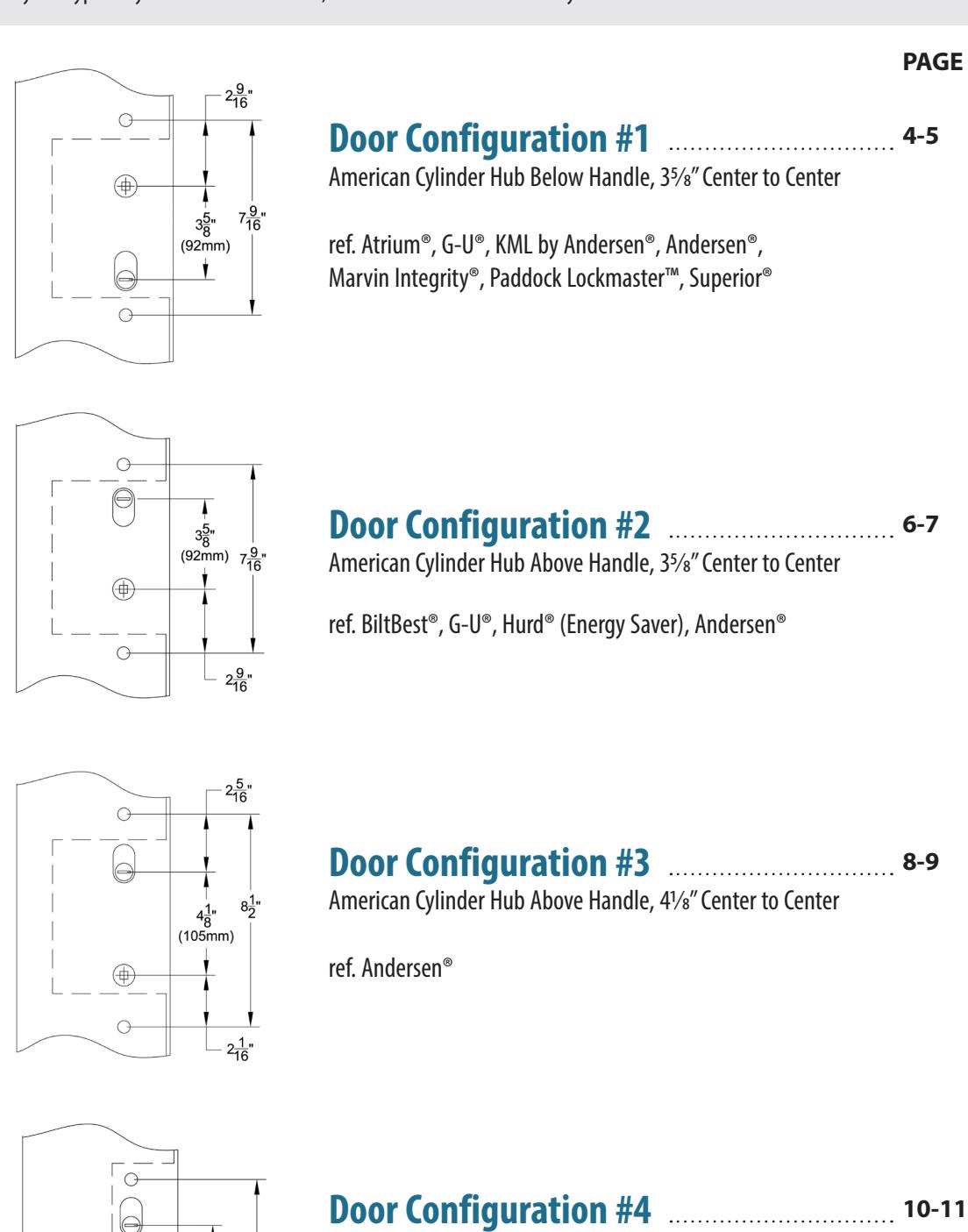

To determine your Multi-Point Lock configuration:

1) Identify the manufacturer of your patio door and multi-point lock
2) Measure center-to-center hole spacing between lever and the cylinder
3) Check the lever position, is it above or below the cylinder?
4) Identify the type of cylinder used in the door, is it American or Euro Profile Cylinder?

American Cylinder Hub Above Handle, 35⁄8" Center to Center

ref. Ashland®, Caradco®, JELD-WEN®, Jeldwen® Custom Collection (formerly Pozzi®), Marvin®, PGT®, Premium

Collection (formerly Norco®), Weathershield®

Door Configuration #5 12-13

Euro Profile Cylinder Below Handle, 35⁄8" Center to Center

ref. Crestline®, Hoppe®, Hurd®, KFV®, Kolbe & Kolbe®, Lincoln®, Loewen®, Paddock Lockmaster™, Peachtree®, Semco®, Sierra Pacific®, Signature®, Simpson®, Therma-Tru®, Vetter®, Willmar®, Windsor®, Weathershield®

Door Configuration #6 14-15

American Cylinder Hub Below Handle, 35⁄8" Center to Center

ref. Milgard®, Pella®

Door Configuration #7 16-17

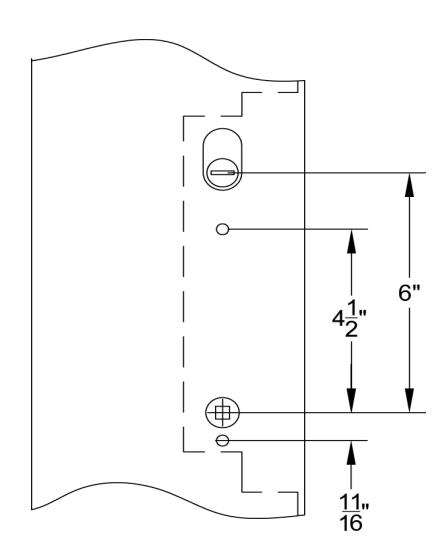

American Cylinder Hub Above Handle, 6" Center to Center

ref. Trillenium® (formerly W&F Manufacturing)

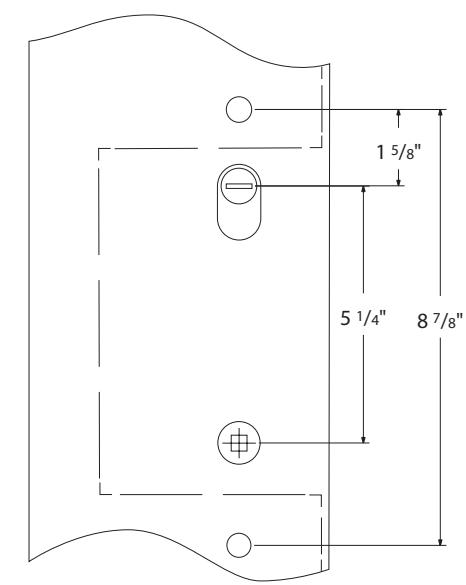

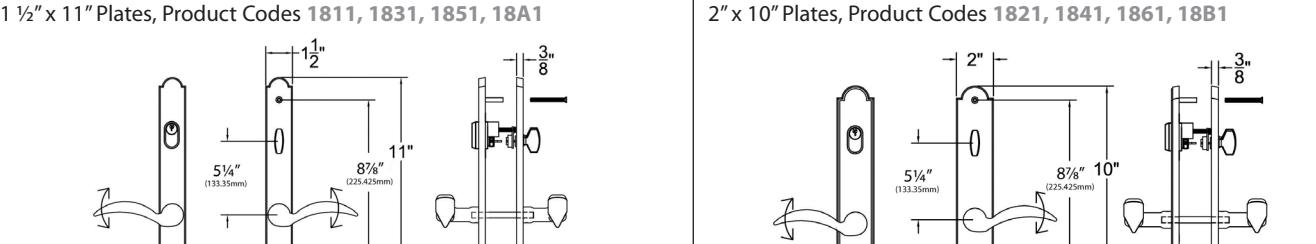

Door Configuration #8 18-19

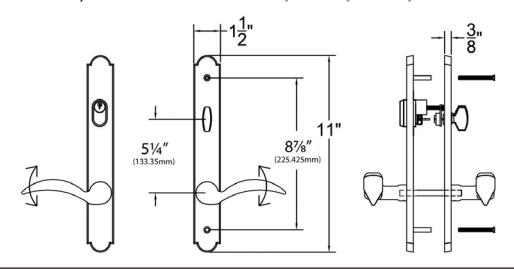

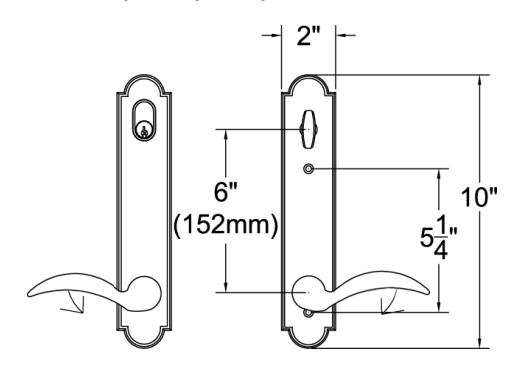

American Cylinder Hub Below Handle, 51/4" Center to Center

ref. Neuma Doors®

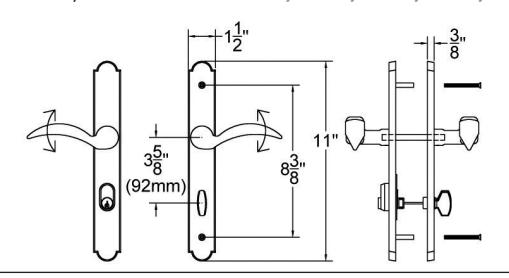

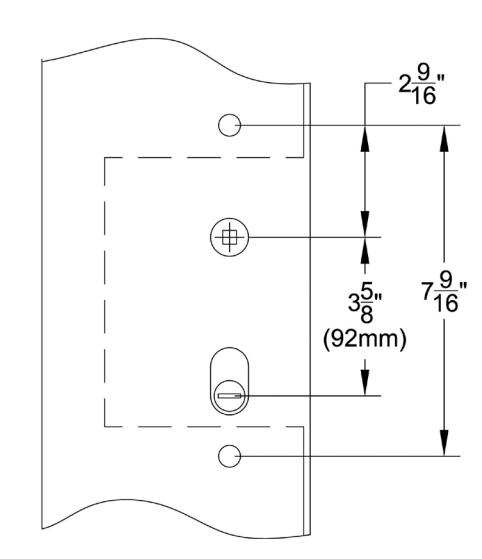

Door Configuration # 1 American Cylinder Below Handle 3 5/8" Center to Center

Keyed Plates with American Cylinder Includes non-keyed thumbturn inside

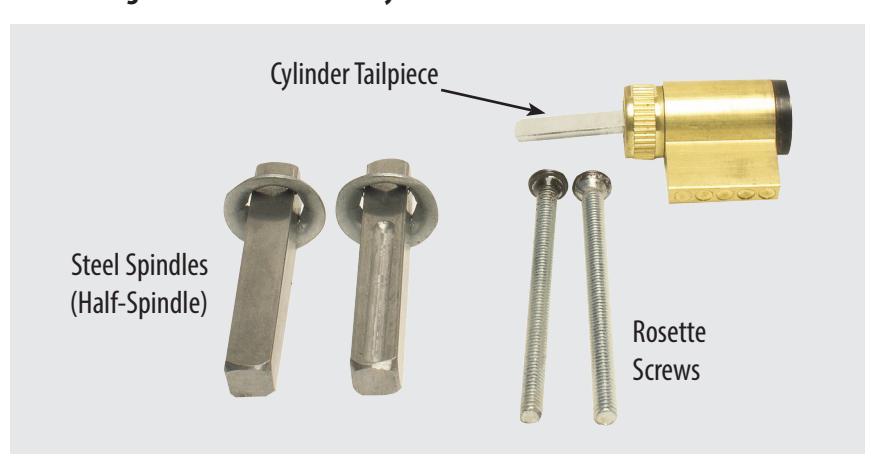

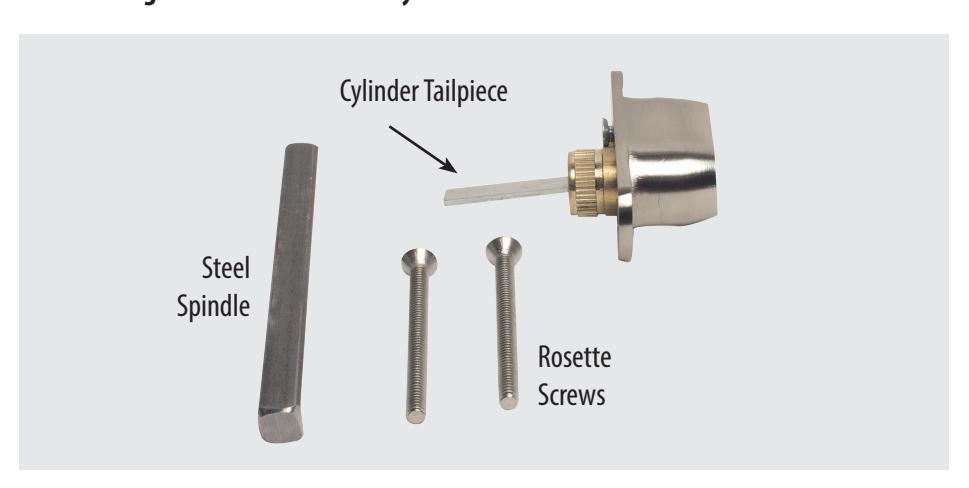

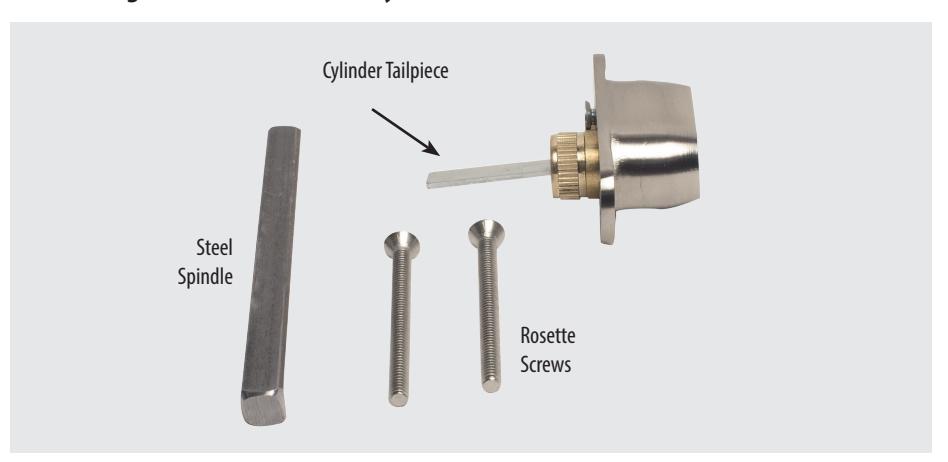

Standard Components: • Single Cylinder Tailpiece • 3 3/4" Steel Spindle • 2" Rosette Screws • 1 1/2" Rosette Screws for 1 5/8" thick door Extended Components: • Long Single Cylinder Tailpiece • 4 1/2" Steel Spindle • 2 1/2" Rosette Screws • 2" Rosette Screws for 2" - 2 1/8" thick door Standard Door Thickness: from 15/8" to 2" Extended Door Thickness: Over 2" to 23/4"

Non-Keyed Plates Includes non-keyed passage, fixed handle out/operating handle in, and dummy (uses screws only)

Standard Door Thickness: from 15/8" to 2"	Extended Door Thickness: Over 2" to 23/4"
Standard Components: • Thumbturn Tailpiece • 3 3/4" Steel Spindle (half-spindle for fixed handle out/operating handle in) • 2" Rosette Screws	Extended Components: • Long Thumbturn Tailpiece • 4 1/2" Steel Spindle (half-spindle for fixed handle out/operating handle in) • 2 1/2" Rosette Screws
• 1 1/2" Rosette Screws for 1 5/8" thick door	• 2" Rosette Screws for 2" - 2 1/8" thick door

CONSTRUCTION KEYING

Lost ball system.
Last four pin locations drilled for lost ball application.
Master key pins used for code variability.
Construction keys and owner keys sent separately.
Order by indicating " Construction Keyed, House # _" next to applicable locks.

- Construction devices used on one or more of last four positions.

- Dimples drilled in plug in this position.

Charge for Construction Keying - $3.00 (NET)

• Locks that are both construction keyed and keyed alike in a house group will be charged a total of $5.00 (NET) per cylinder.

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
If ordering multiple groups (houses) indicate " Keyed Alike House # _" next to applicable locks.

Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included. Atrium®, G-U®, KML by Andersen®, Andersen®, Marvin Integrity®, Paddock Lockmaster™, Superior®

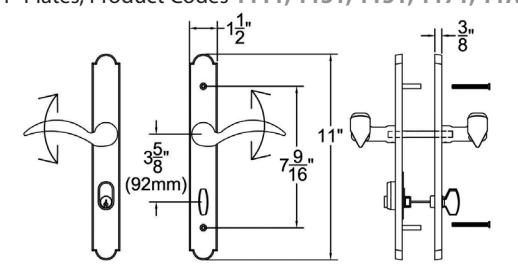

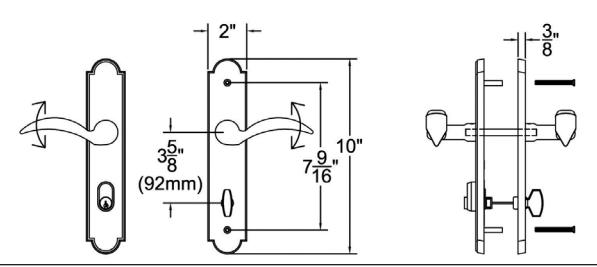

Keyed with American Cylinder (for Active Door, Schlage® Keyway Standard, Weiser® Keyway Optional, Rekeyable)

1 1/2" x 11" Plates, Product Codes 1111, 1131, 1151, 1171, 11A1 2" x 10" Plates, Product Codes 1121, 1141, 1161, 1181, 11B1

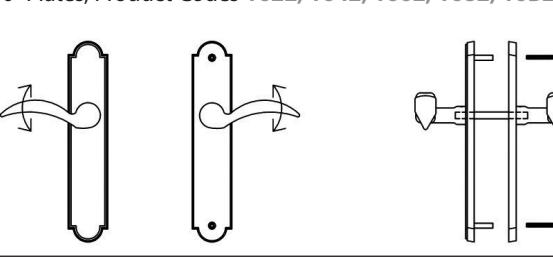

Non-Keyed, Passage (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1112, 1132, 1152, 1172, 11A2 2" x 10" Plates, Product Codes 1122, 1142, 1162, 1182, 11B2

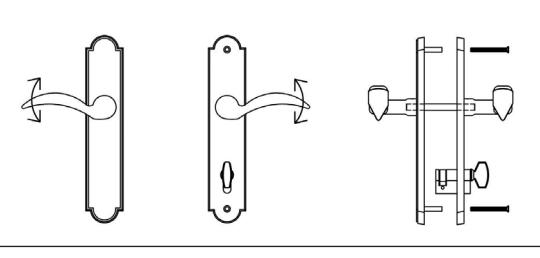

Non-Keyed, American Style Thumbturn Inside (for Active Door)

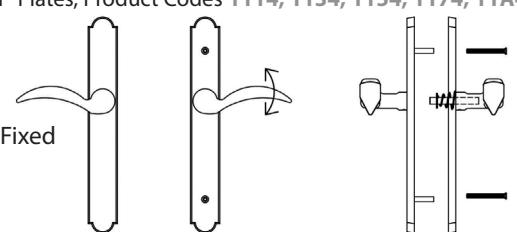

Non-Keyed, Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

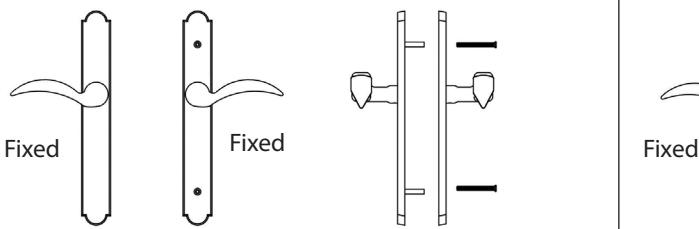

Dummy Pair (for Non-Active Door)

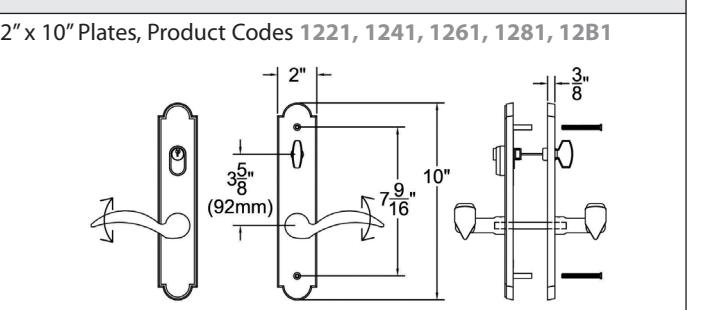

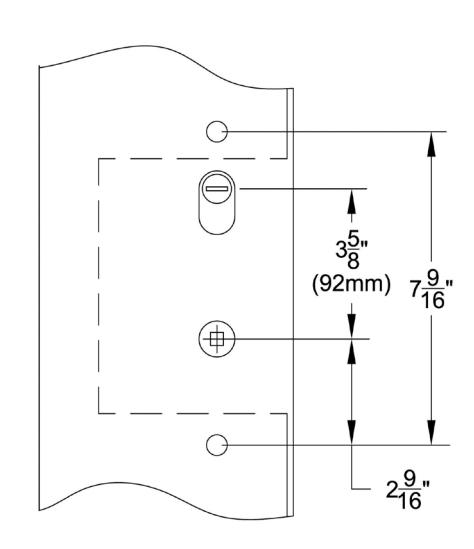

Door Configuration #2 American Cylinder Above Handle 3 5/8" Center to Center

Keyed Plates with American Cylinder Includes non-keyed thumbturn inside

Standard Door Thickness: from 15/8" to 2"	Extended Door Thickness: Over 2" to 23/4"

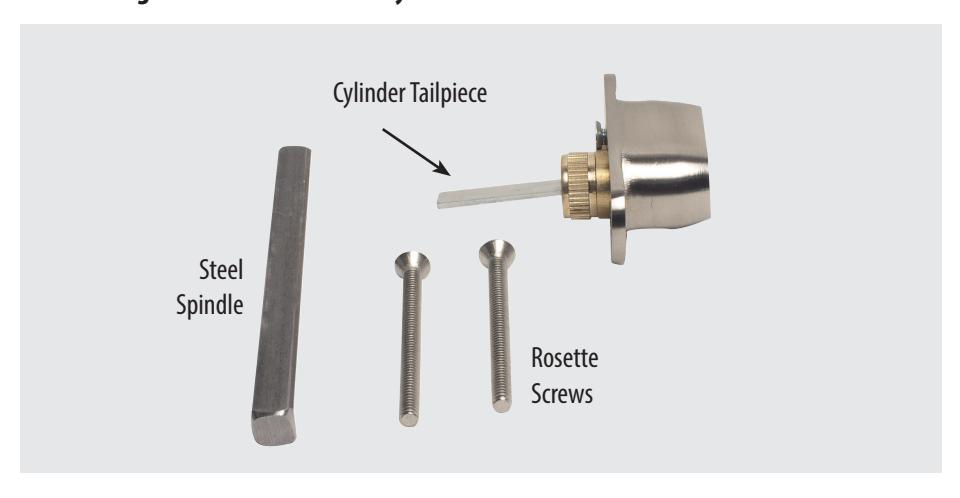

Standard Components:	Extended Components:
• Single Cylinder Tailpiece	• Long Single Cylinder Tailpiece
• 3 3/4" Steel Spindle	• 4 1/2" Steel Spindle
• 2" Rosette Screws	• 2 1/2" Rosette Screws
• 1 1/2" Rosette Screws for 1 5/8" thick door	• 2" Rosette Screws for 2" - 2 1/8" thick door

Non-Keyed Plates Includes non-keyed passage, fixed handle out/operating handle in, and dummy (uses screws only)


Standard Door Thickness: from 15/8" to 2"	Extended Door Thickness: Over 2" to 23/4"
Standard Components:	Extended Components:
• Thumbturn Tailpiece	• Long Thumbturn Tailpiece
• 3 3/4" Steel Spindle (half-spindle for fixed handle out/operating handle in)	• 4 1/2" Steel Spindle (half-spindle for fixed handle out/operating handle in)
• 2" Rosette Screws	• 2 1/2" Rosette Screws
• 1 1/2" Rosette Screws for 1 5/8" thick door	• 2" Rosette Screws for 2" - 2 1/8" thick door

CONSTRUCTION KEYING

Lost ball system.
Last four pin locations drilled for lost ball application.
Master key pins used for code variability.
Construction keys and owner keys sent separately.
Order by indicating " Construction Keyed, House # _" next to applicable locks.

- Construction devices used on one or more of last four positions.

- Dimples drilled in plug in this position.

Charge for Construction Keying - $3.00 (NET)

• Locks that are both construction keyed and keyed alike in a house group will be charged a total of $5.00 (NET) per cylinder.

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
If ordering multiple groups (houses) indicate " Keyed Alike House # _" next to applicable locks.

Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included.

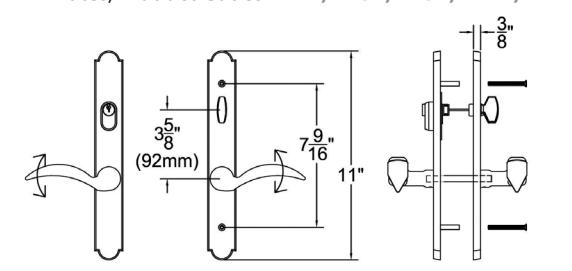

Keyed with American Cylinder (for Active Door, Schlage® Keyway Standard, Weiser® Keyway Optional, Rekeyable)

1 1/2" x 11" Plates, Product Codes 1211, 1231, 1251, 1271, 12A1

BiltBest®, G-U®, Hurd® (Energy Saver), Andersen®

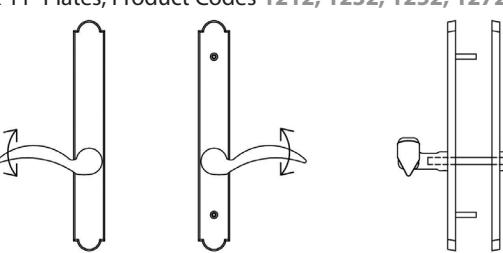

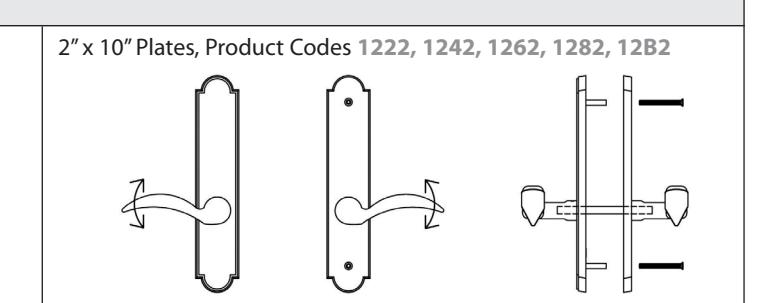

Non-Keyed, Passage (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1212, 1232, 1252, 1272, 12A2

Non-Keyed, American Style Thumbturn Inside (for Active Door)

1 1/2" x 11" Plates, Product Codes 1213, 1233, 1253, 1273, 12A3 2" x 10" Plates, Product Codes 1223, 1243, 1263, 1283, 12B3

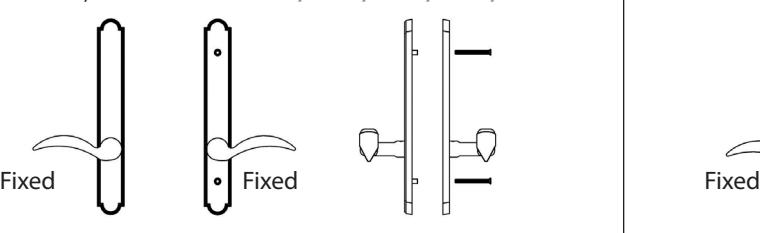

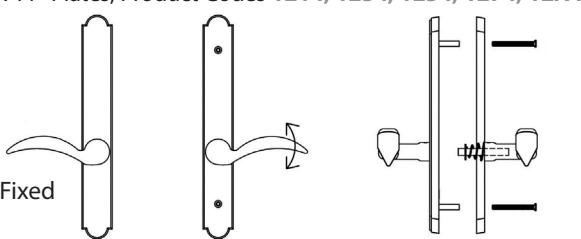

Non-Keyed, Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

2" x 10" Plates, Product Codes 1224, 1244, 1264, 1284, 12B4 1 1/2" x 11" Plates, Product Codes 1214, 1234, 1254, 1274, 12A4

Dummy Pair (for Non-Active Door)

1 1/2" x 11" Plates, Product Codes 1215, 1235, 1255, 1275, 12A5

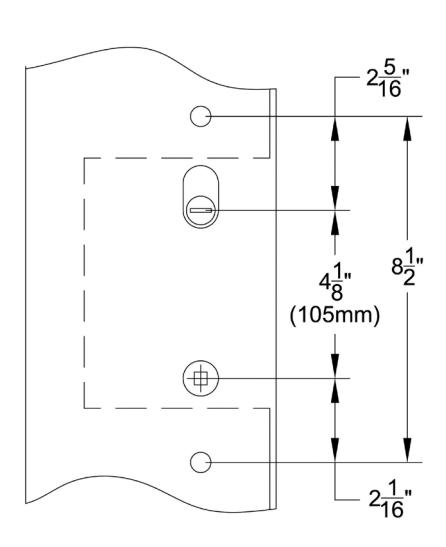

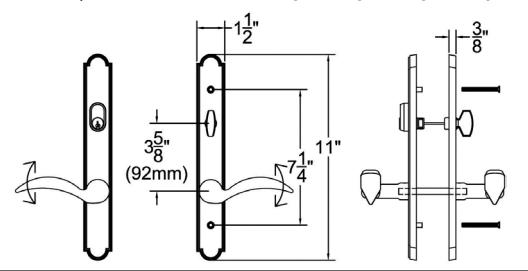

Door Configuration #3 American Cylinder Above Handle 4 1/8" Center to Center

Keyed Plates with American Cylinder Includes non-keyed thumbturn inside

Standard Door Thickness: from 15/8" to 2"

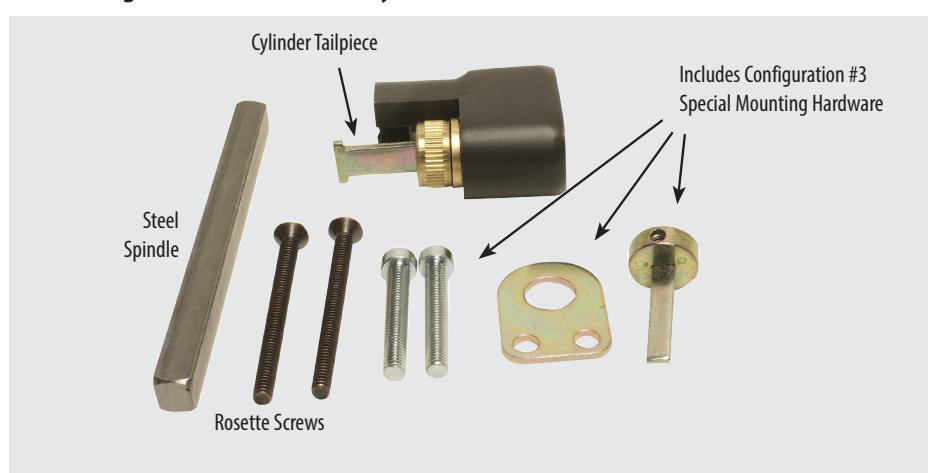

Standard Components:

Single Cylinder Tailpiece
3 3/4" Steel Spindle
2" Rosette Screws
1 1/2" Rosette Screws for 1 5/8" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

Single Cylinder Tailpiece
4 1/2" Steel Spindle
2 1/2" Rosette Screws
2" Rosette Screws for 2" 2 1/8" thick door

Non-Keyed Plates Includes non-keyed passage, fixed handle out/operating handle in, and dummy (uses screws only)

Standard Door Thickness: from 15/8" to 2"

Standard Components:

Configuration #3 Thumbturn Tailpiece
3 3/4" Steel Spindle (half-spindle for fixed handle out/operating handle in)
2" Rosette Screws
1 1/2" Rosette Screws for 1 5/8" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

Configuration #3 Thumbturn Tailpiece
4 1/2" Steel Spindle (half-spindle for fixed handle out/operating handle in)
2 1/2" Rosette Screws
2" Rosette Screws for 2" 2 1/8" thick door

CONSTRUCTION KEYING

Lost ball system.
Last four pin locations drilled for lost ball application.
Master key pins used for code variability.
Construction keys and owner keys sent separately.
Order by indicating " Construction Keyed, House # _" next to applicable locks.

- Construction devices used on one or more of last four positions.

- Dimples drilled in plug in this position.

Charge for Construction Keying - $3.00 (NET)

• Locks that are both construction keyed and keyed alike in a house group will be charged a total of $5.00 (NET) per cylinder.

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
If ordering multiple groups (houses) indicate " Keyed Alike House # _" next to applicable locks.

Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included. Andersen®

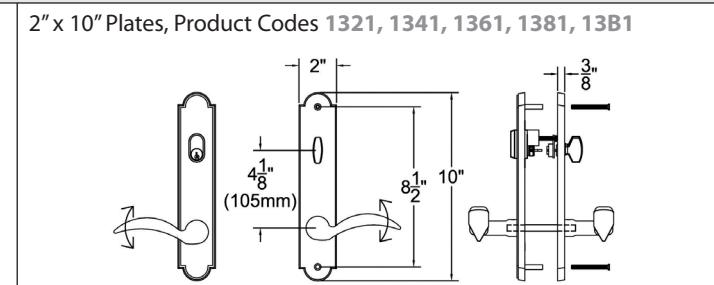

Keyed with American Cylinder (for Active Door, Schlage® Keyway Standard, Weiser® Keyway Optional, Rekeyable)

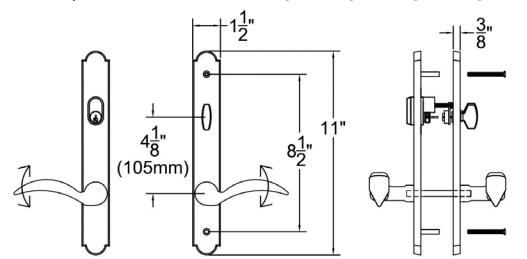

1 1/2" x 11" Plates, Product Codes 1311, 1331, 1351, 1371, 13A1

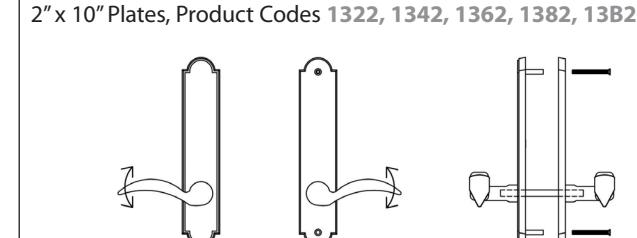

Non-Keyed, Passage (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1312, 1332, 1352, 1372, 13A2

Non-Keyed, American Style Thumbturn Inside (for Active Door)

1 1/2" x 11" Plates, Product Codes 1313, 1333, 1353, 1373, 13A3

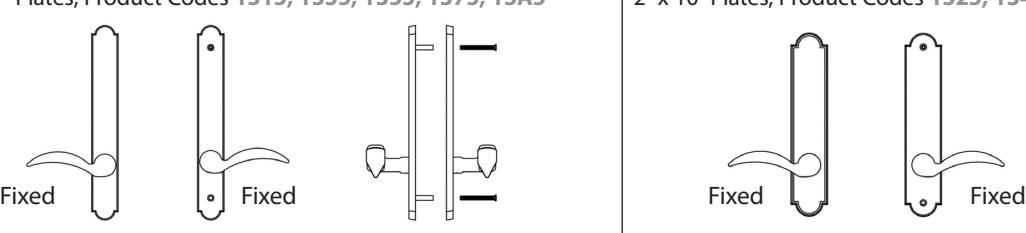

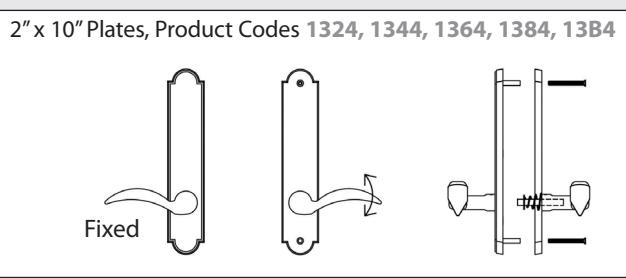

Non-Keyed, Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1314, 1334, 1354, 1374, 13A4

Dummy Pair (for Non-Active Door)

1 1/2" x 11" Plates, Product Codes 1315, 1335, 1355, 1375, 13A5

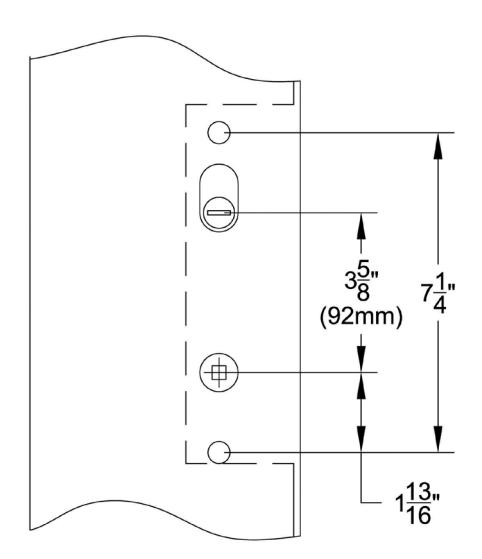

Door Configuration #4 American Cylinder Above Handle 3 5/8" Center to Center

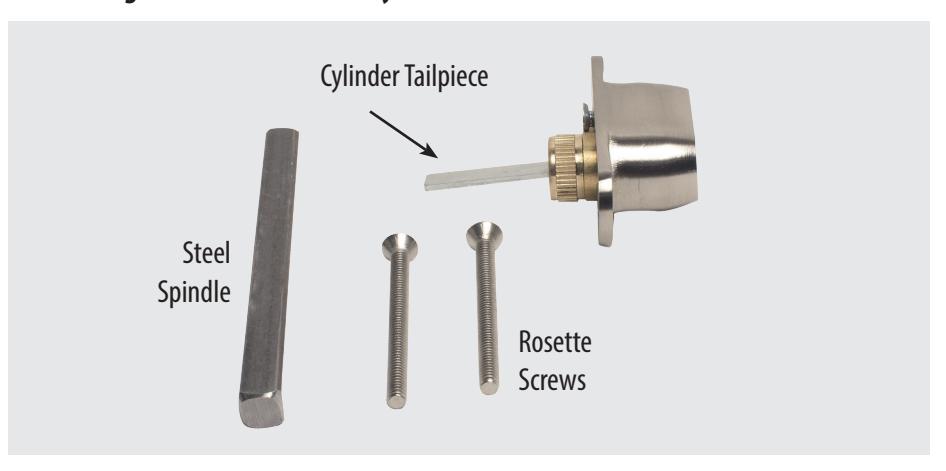

Keyed Plates with American Cylinder Includes non-keyed thumbturn inside

Standard Door Thickness: from 15/8" to 2"

Standard Components:

Single Cylinder Tailpiece
3 3/4" Steel Spindle
2" Rosette Screws for 1 5/8" 1 3/4" thick door
2 1/2" Rosette Screws for 1 3/4" 2" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

Long Single Cylinder Tailpiece
4 1/2" Steel Spindle
2 1/2" Rosette Screws 2" 2 1/4" think door
3" Rosette Screws for 2 1/4" 2 3/4" thick door

Non-Keyed Plates Includes non-keyed passage, fixed handle out/operating handle in, and dummy (uses screws only)

Standard Door Thickness: from 15/8" to 2"

Standard Components:

Thumbturn Tailpiece
3 3/4" Steel Spindle (half-spindle for fixed handle out/operating handle in)
2" Rosette Screws for 1 5/8" 1 3/4" thick door
2 1/2" Rosette Screws for 1 3/4" 2" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

Long Thumbturn Tailpiece
4 1/2" Steel Spindle (half-spindle for fixed handle out/operating handle in)
2 1/2" Rosette Screws 2" 2 1/4" think door
3" Rosette Screws for 2 1/4" 2 3/4" thick door

CONSTRUCTION KEYING

Lost ball system.
Last four pin locations drilled for lost ball application.
Master key pins used for code variability.
Construction keys and owner keys sent separately.
Order by indicating " Construction Keyed, House # _" next to applicable locks.

- Construction devices used on one or more of last four positions.

- Dimples drilled in plug in this position.

Charge for Construction Keying - $3.00 (NET)

• Locks that are both construction keyed and keyed alike in a house group will be charged a total of $5.00 (NET) per cylinder.

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
If ordering multiple groups (houses) indicate " Keyed Alike House # _" next to applicable locks.

Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included. Ashland®, G-U®, Caradco®, JELD-WEN®, Jeldwen® Custom Collection (formerly Pozzi®), Marvin®, PGT®, Premium Collection (formerly Norco®), Weathershield®

Keyed with American Cylinder (for Active Door, Schlage® Keyway Standard, Weiser® Keyway Optional, Rekeyable)

1 1/2" x 11" Plates, Product Codes 1411, 1431, 1451, 1471, 14A1 2" x 10" Plates, Product Codes 1421, 1441, 1461, 1481, 14B1

Non-Keyed, Passage (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1412, 1432, 1452, 1472, 14A2

Non-Keyed, American Style Thumbturn Inside (for Active Door)

1 1/2" x 11" Plates, Product Codes 1413, 1433, 1453, 1473, 14A3

2" x 10" Plates, Product Codes 1423, 1443, 1463, 1483, 14B3

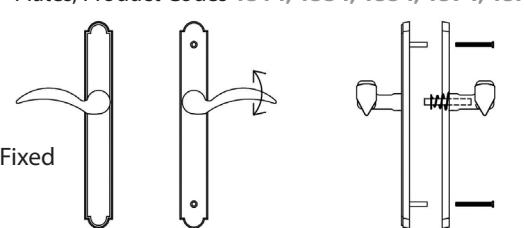

Non-Keyed, Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1414, 1434, 1454, 1474, 14A4

2" x 10" Plates, Product Codes 1424, 1444, 1464, 1484, 14B4

Dummy Pair (for Non-Active Door)

1 1/2" x 11" Plates, Product Codes 1415, 1435, 1455, 1475, 14A5

2" x 10" Plates, Product Codes 1425, 1445, 1465, 1485, 14B5

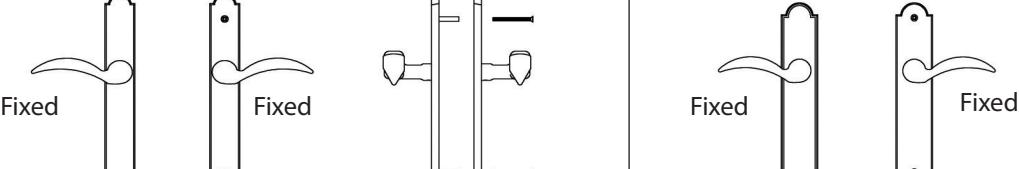

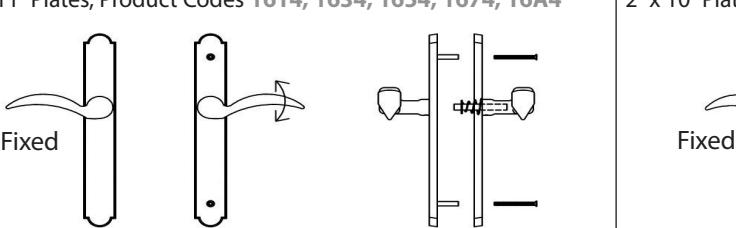

Fixed

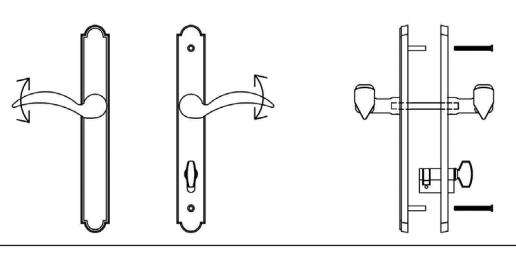

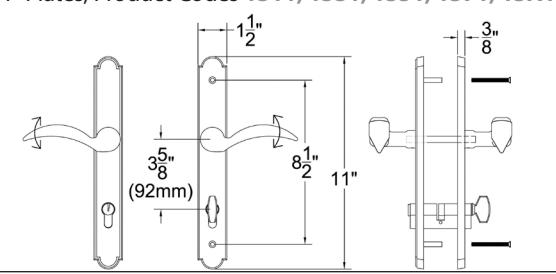

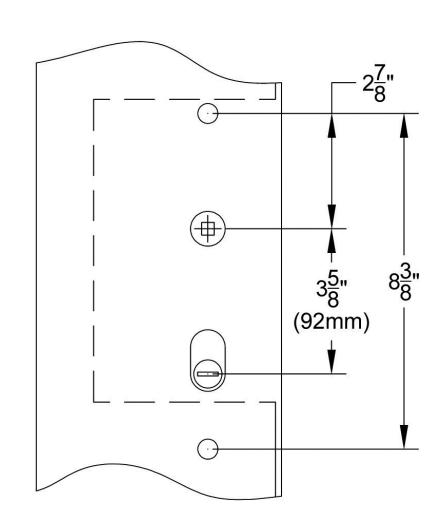

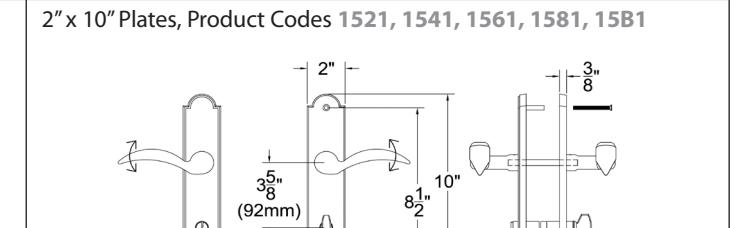

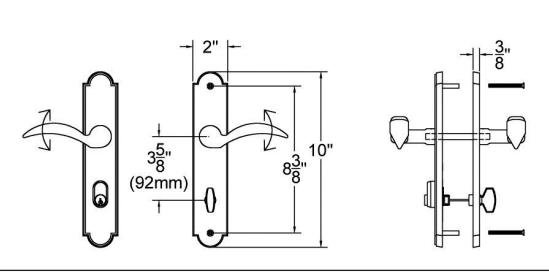

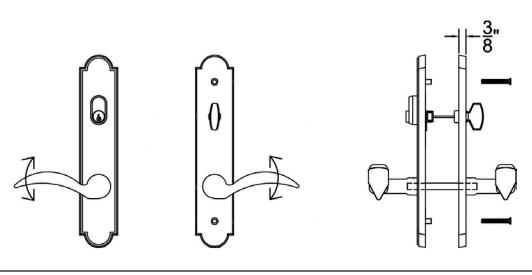

Door Configuration #5 Euro Profile Cylinder Below Handle 3 5/8" Center to Center

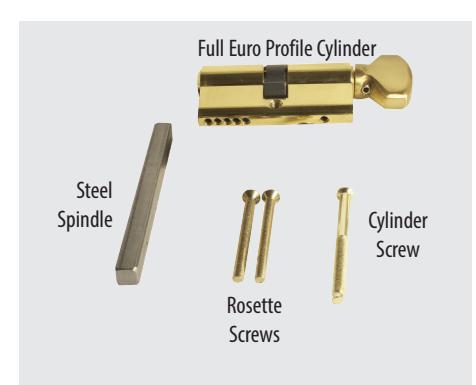

Full Euro Profile Cylinder Half Euro Profile Cylinder CY4-ERSGL35 CY4-ERSGL32 CY4-ERSGL25 CY4-ERHLF16TT CY4-ERHLF19TT CY4-ERHLF21TT

Keyed Plates with Euro Profile Cylinder

Standard Components:

2 9/16" Euro Profile Cylinder
3 3/4" Steel Spindle
1 1/2" Rosette Screws

Standard Door Thickness: from 15/8" to 2" Extended Door Thickness: Over 2" to 21/2" Extended Door Thickness: Over 21/2"to 23/4"

Extended Components:

3 5/32" Euro Profile Cylinder
4 1/2" Steel Spindle
2" Rosette Screws

Extended Components:

3 17/32" Euro Profile Cylinder
5" Steel Spindle
3" Rosette Screws

Non-Keyed Plates with Euro Profile Half Cylinder

Standard Components:

1 21/32" Euro Profile Half-Cylinder
3 3/4" Steel Spindle
1 1/2" Rosette Screws

Extended Components:

1 31/32" Euro Profile Half-Cylinder
4 1/2" Steel Spindle
2" Rosette Screws

Standard Door Thickness: from 15/8" to 2" Extended Door Thickness: Over 2" to 21/2" Extended Door Thickness: Over 21/2"to 23/4"

Extended Components:

2 5/32" Euro Profile Half-Cylinder
5" Steel Spindle
3" Rosette Screws

Non-Keyed Plates Includes non-keyed passage, fixed handle out/operating handle in, and dummy (uses screws only)

Standard Components:

3 3/4" Steel Spindle (half-spindle for fixed handle out/operating handle in)
2" Rosette Screws
1 1/2" Rosette Screws for 1 5/8" thick door

Standard Door Thickness: from 15/8" to 2" Extended Door Thickness: Over 2" to 23/4"

Extended Components:

4 1/2" Steel Spindle (half-spindle for fixed handle out/operating handle in)
2 1/2" Rosette Screws
2" Rosette Screws for 2" 2 1/8" thick door

CUSTOM KEYING

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
If ordering multiple groups (houses) indicate " Keyed Alike House # _" next to applicable locks.

Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included. Crestline®, Hoppe®, Hurd®, KFV®, Kolbe & Kolbe®, Lincoln®, Loewen®, Paddock Lockmaster™, Peachtree®, Semco®, Sierra Pacific®, Signature®, Simpson®, Therma-Tru®, Vetter®, Willmar®, Windsor®, Weathershield®

Keyed with Euro Profile Cylinder (for Active Door, Schlage® Keyway Standard, Rekeyable)

1 1/2" x 11" Plates, Product Codes 1511, 1531, 1551, 1571, 15A1

Non-Keyed, Passage (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1512, 1532, 1552, 1572, 15A2

Non-Keyed, Euro Profile Style Thumbturn Inside (for Active Door)

1 1/2" x 11" Plates, Product Codes 1513, 1533, 1553, 1573, 15A3 2" x 10" Plates, Product Codes 1523, 1543, 1563, 1583, 15B3

Non-Keyed, Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1514, 1534, 1554, 1574, 15A4

Dummy Pair (for Non-Active Door)

1 1/2" x 11" Plates, Product Codes 1515, 1535, 1555, 1575, 15A5 2" x 10" Plates, Product Codes 1525, 1545, 1565, 1585, 15B5

Door Configuration #6 American Cylinder Below Handle 3 5/8" Center to Center

Keyed Plates with American Cylinder Includes non-keyed thumbturn inside

Standard Door Thickness: from 15/8" to 2"

Standard Components:

Single Cylinder Tailpiece
3 3/4" Steel Spindle
2" Rosette Screws
1 1/2" Rosette Screws for 1 5/8" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

Long Single Cylinder Tailpiece
4 1/2" Steel Spindle
2 1/2" Rosette Screws
2" Rosette Screws for 2" 2 1/8" thick door

Non-Keyed Plates Includes non-keyed passage, fixed handle out/operating handle in, and dummy (uses screws only)

Standard Door Thickness: from 15/8" to 2"

Standard Components:

Thumbturn Tailpiece
3 3/4" Steel Spindle (half-spindle for fixed handle out/operating handle in)
2" Rosette Screws
1 1/2" Rosette Screws for 1 5/8" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

Long Thumbturn Tailpiece
4 1/2" Steel Spindle (half-spindle for fixed handle out/operating handle in)
2 1/2" Rosette Screws
2" Rosette Screws for 2" 2 1/8" thick door

CONSTRUCTION KEYING

Lost ball system.
Last four pin locations drilled for lost ball application.
Master key pins used for code variability.
Construction keys and owner keys sent separately.
Order by indicating " Construction Keyed, House # _" next to applicable locks.

- Construction devices used on one or more of last four positions.

- Dimples drilled in plug in this position.

Charge for Construction Keying - $3.00 (NET)

• Locks that are both construction keyed and keyed alike in a house group will be charged a total of $5.00 (NET) per cylinder.

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
If ordering multiple groups (houses) indicate " Keyed Alike House #_ " next to applicable locks.

Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included. Milgard®, Pella®

Keyed with American Cylinder (for Active Door, Schlage® Keyway Standard, Weiser® Keyway Optional, Rekeyable)

1 1/2" x 11" Plates, Product Codes 1611, 1631, 1651, 1671, 16A1

2" x 10" Plates, Product Codes 1621, 1641, 1661, 1681, 16B1

Non-Keyed, Passage (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1612, 1632, 1652, 1672, 16A2

Non-Keyed, American Style Thumbturn Inside (for Active Door)

1 1/2" x 11" Plates, Product Codes 1613, 1633, 1653, 1673, 16A3 2" x 10" Plates, Product Codes 1623, 1643, 1663, 1683, 16B3

Non-Keyed, Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1614, 1634, 1654, 1674, 16A4

2" x 10" Plates, Product Codes 1624, 1644, 1664, 1684, 16B4

Dummy Pair (for Non-Active Door)

1 1/2" x 11" Plates, Product Codes 1615, 1635, 1655, 1675, 16A5 2" x 10" Plates, Product Codes 1625, 1645, 1665, 1685, 16B5

Door Configuration #7 American Cylinder Above Handle 6" Center to Center

Keyed Plates with American Cylinder Includes non-keyed thumbturn inside

Standard Door Thickness: from 15/8" to 2"

Standard Components:

Single Cylinder Tailpiece
2" Steel Spindles (Half-spindle)
2" Rosette Screws for 1 5/8" 1 3/4" thick door
2 1/2" Rosette Screws for 1 3/4" 2" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

Long Single Cylinder Tailpiece
2" Steel Spindles (Half-spindle)
2 1/2" Rosette Screws 2" 2 1/4" think door
3" Rosette Screws for 2 1/4" 2 3/4" thick door

Non-Keyed Plates Includes non-keyed passage, fixed handle out/operating handle in, & dummy (uses screws only)

Standard Door Thickness: from 15/8" to 2"

Standard Components:

Thumbturn Tailpiece
2" Steel Spindles (Half-spindle. No spindle for fixed handles)
2" Rosette Screws for 1 5/8" 1 3/4" thick door
2 1/2" Rosette Screws for 1 3/4" 2" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

Long Thumbturn Tailpiece
2" Steel Spindles (Half-spindle. No spindle for fixed handles)
2 1/2" Rosette Screws 2" 2 1/4" think door
3" Rosette Screws for 2 1/4" 2 3/4" thick door

CONSTRUCTION KEYING

Lost ball system.
Last four pin locations drilled for lost ball application.
Master key pins used for code variability.
Construction keys and owner keys sent separately.
Order by indicating " Construction Keyed, House # _" next to applicable locks.

- Construction devices used on one or more of last four positions.

- Dimples drilled in plug in this position.

Charge for Construction Keying - $3.00 (NET)

• Locks that are both construction keyed and keyed alike in a house group will be charged a total of $5.00 (NET) per cylinder.

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
If ordering multiple groups (houses) indicate " Keyed Alike House #_ " next to applicable locks.

Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included. Trillenium® (formerly W&F Manufacturing)

Keyed with American Cylinder (for Active Door, Schlage® Keyway Standard, Weiser® Keyway Optional, Rekeyable)

2" x 10" Plates, Product Codes 1721, 1741,1761, 17B1

Non-Keyed, American Style T-Turn Inside (Active Door)

2" x 10" Plates, Product Codes 1723, 1743, 1763, 17B3

Dummy Pair (for Non-Active Door)

2" x 10" Plates, Product Codes 1725, 1745, 1765, 17B5

Non-Keyed, Fixed Handles, American Style T-Turn Inside (for Semi-Active Door)

2" x 10" Plates, Product Codes 1726, 1746, 1766, 17B6

Door Configuration #8 American Cylinder Above Handle 5 1/4" Center to Center

Keyed Plates with American Cylinder Includes non-keyed thumbturn inside

Standard Door Thickness: 13/4"

Standard Components:

Single Cylinder Tailpiece
3 3/4" Steel Spindle
1 1/2" Rosette Screws

Non-Keyed Plates Includes non-keyed passage, fixed handle out/operating handle in

Standard Door Thickness: 13/4"

Standard Components:

Thumbturn Tailpiece
3 3/4" Steel Spindle (half-spindle for fixed handle out/operating handle in)
1 1/2" Rosette Screws

CONSTRUCTION KEYING

Lost ball system.
Last four pin locations drilled for lost ball application.
Master key pins used for code variability.
Construction keys and owner keys sent separately.
Order by indicating " Construction Keyed, House # _" next to applicable locks.

- Construction devices used on one or more of last four positions.

- Dimples drilled in plug in this position.

Charge for Construction Keying - $3.00 (NET)

• Locks that are both construction keyed and keyed alike in a house group will be charged a total of $5.00 (NET) per cylinder.

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
If ordering multiple groups (houses) indicate " Keyed Alike House # _" next to applicable locks.

Set includes plates, handles and cylinders (where applicable). Multi Point lock mechanism is not included.

Neuma Doors®

Keyed with American Cylinder (for Active Door, Schlage® Keyway Standard, Weiser® Keyway Optional, Rekeyable)

Non-Keyed, Passage (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1812, 1832, 1852, 18A2 2" x 10" Plates, Product Codes 1822, 1842, 1862, 18B2

Non-Keyed, American Style Thumbturn Inside (for Active Door)

1 1/2" x 11" Plates, Product Codes 1813, 1833, 1853, 18A3 2" x 10" Plates, Product Codes 1823, 1843, 1863, 18B3

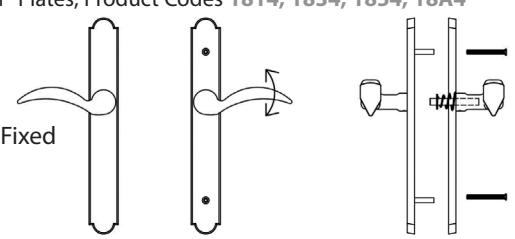

Non-Keyed, Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

1 1/2" x 11" Plates, Product Codes 1814, 1834, 1854, 18A4 2" x 10" Plates, Product Codes 1824, 1844, 1864, 18B4

emtek.com 19 800.356.2741
