Emtek Modern Rectangular & Classic Top Face Mount Dimensions Specificions

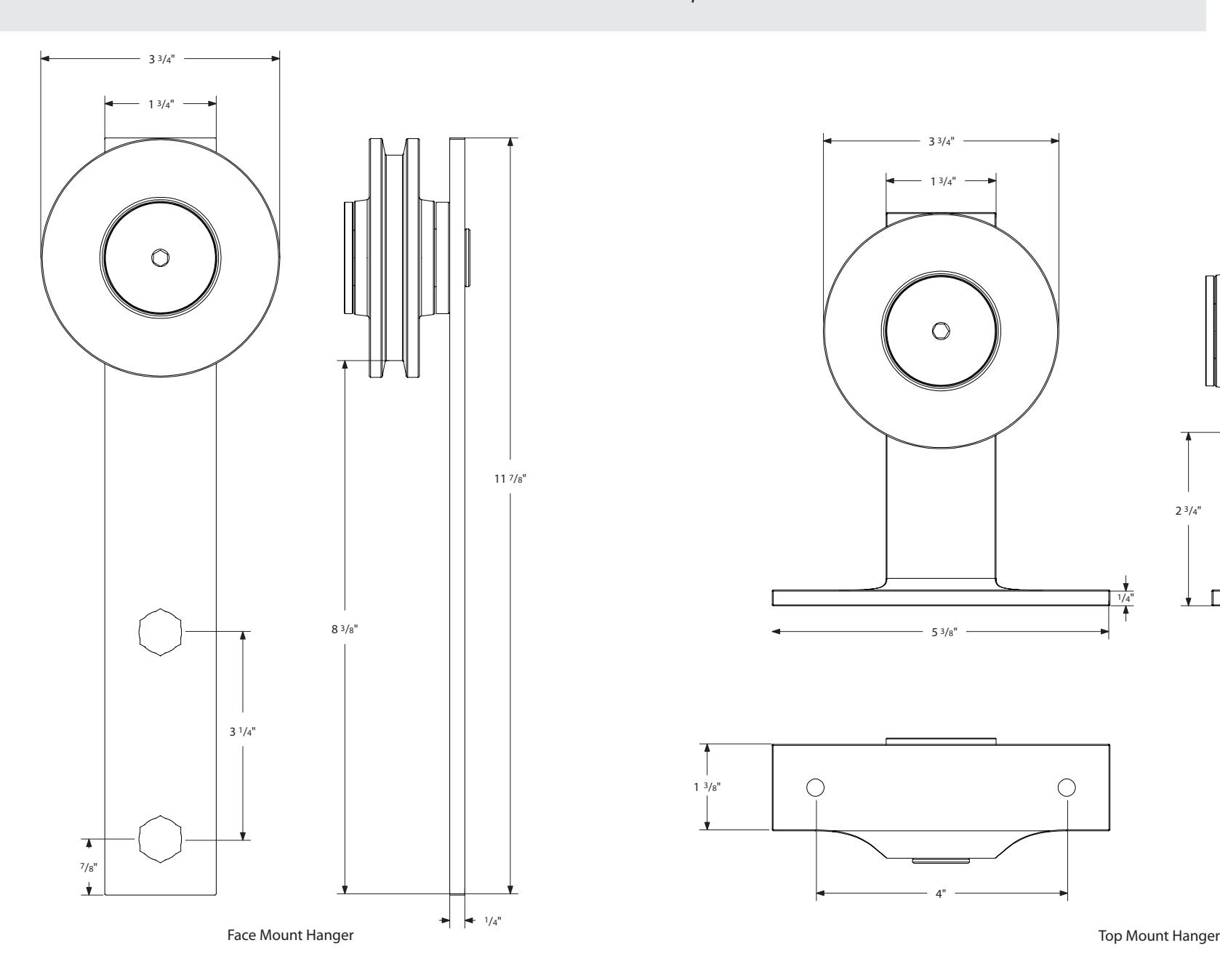

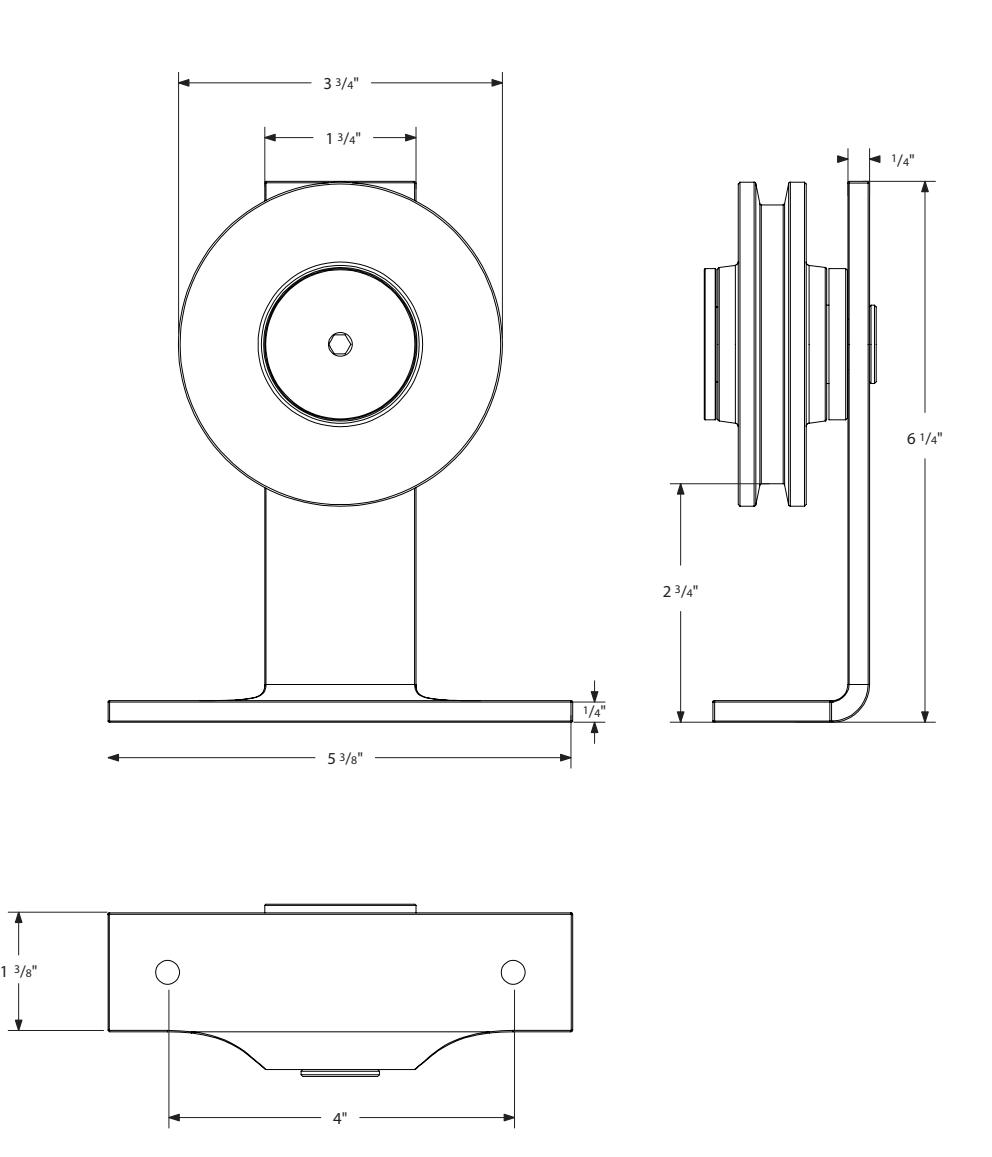

BARN DOOR HARDWARE - MODERN RECTANGULAR TOP/FACE MOUNT HANGER

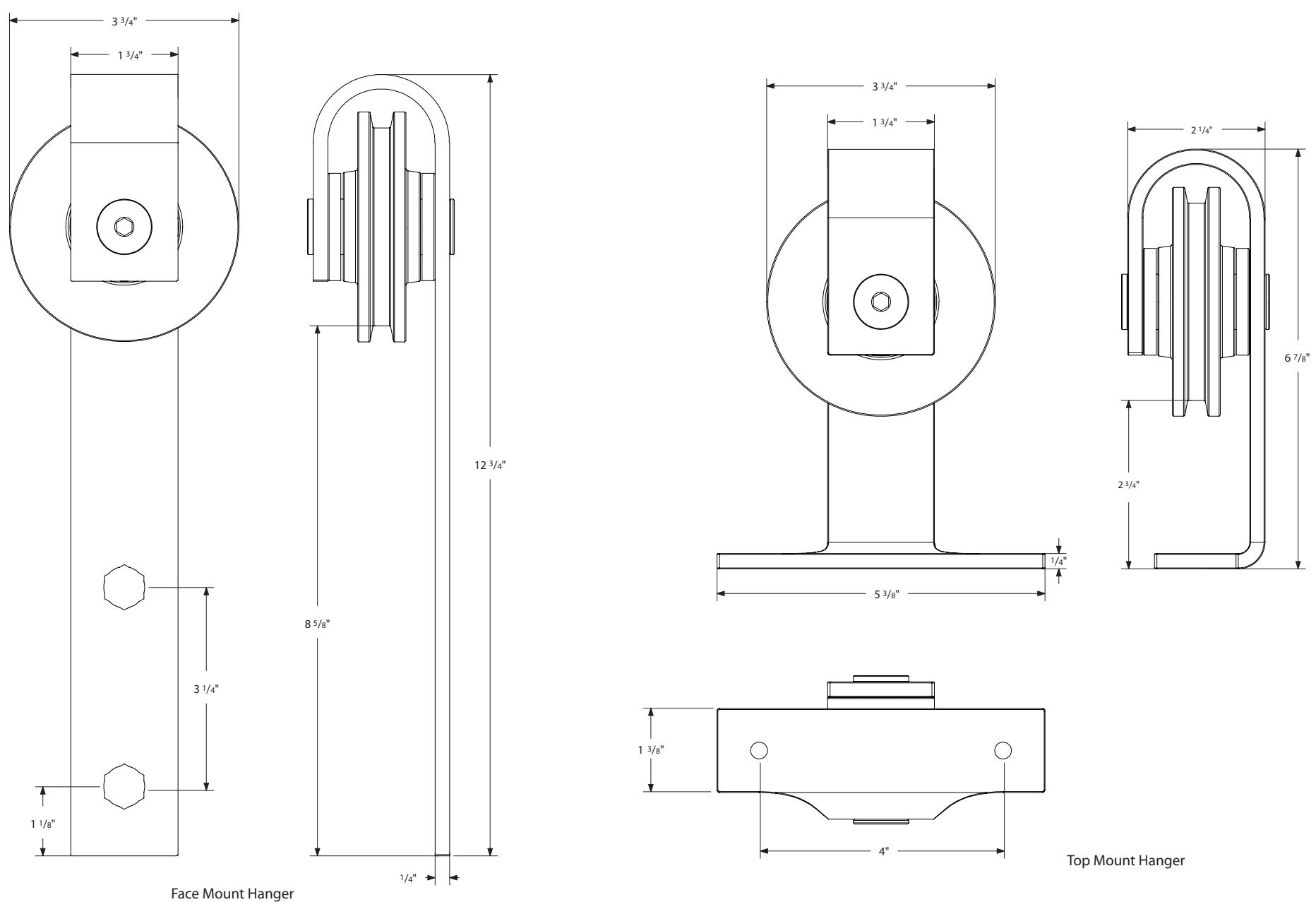

BARN DOOR HARDWARE - CLASSIC TOP/FACE MOUNT HANGER

Without a counterbore, the door thickness is 1-3/8" to 2-1/4"

The wall or structure that your system will be mounted on must be designed to support a maximum door weight of 400 lbs.

Note: For general info only. Do NOT use as a drilling template.

DOOR THICKNESS 1-3/8" to 2-1/4"*

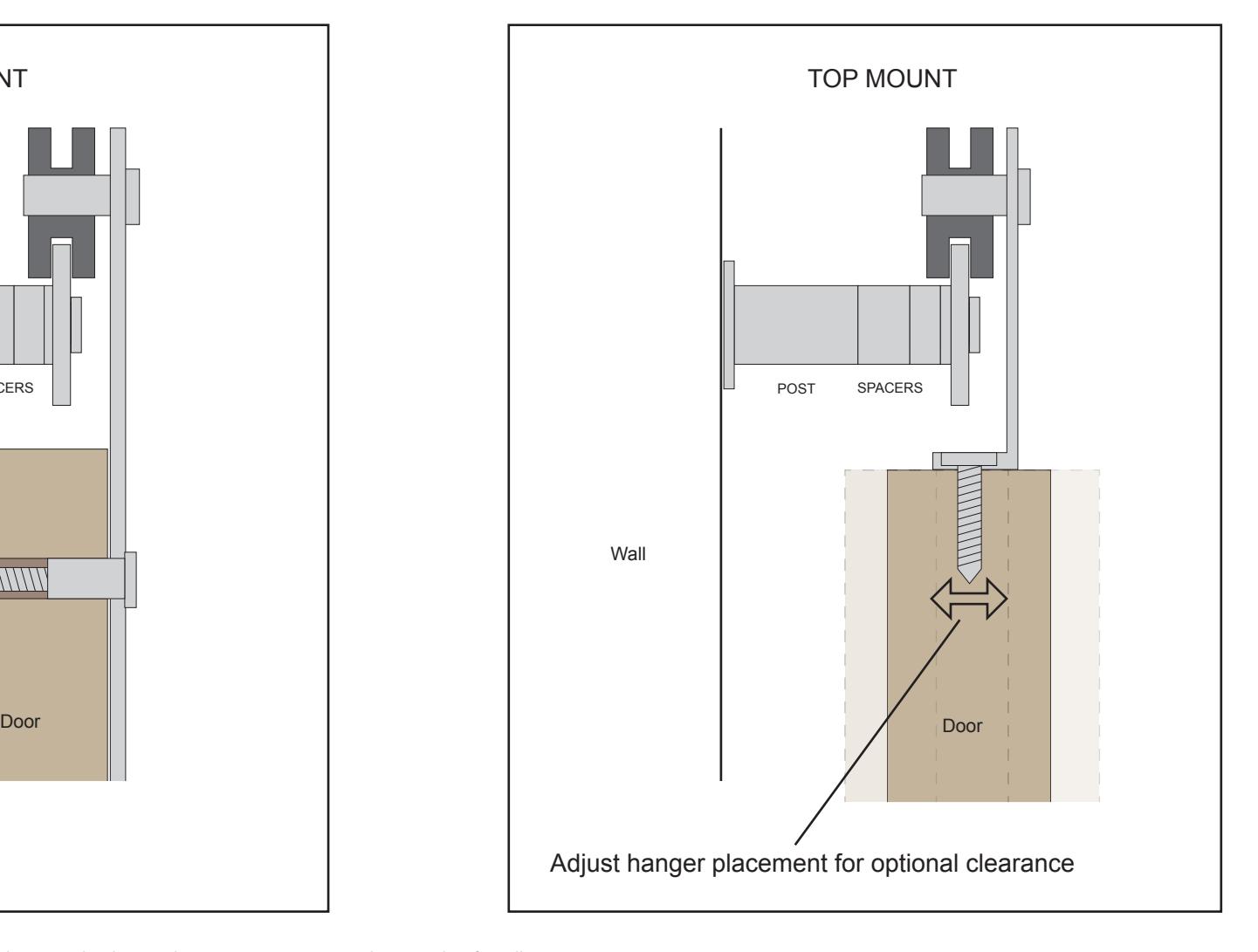

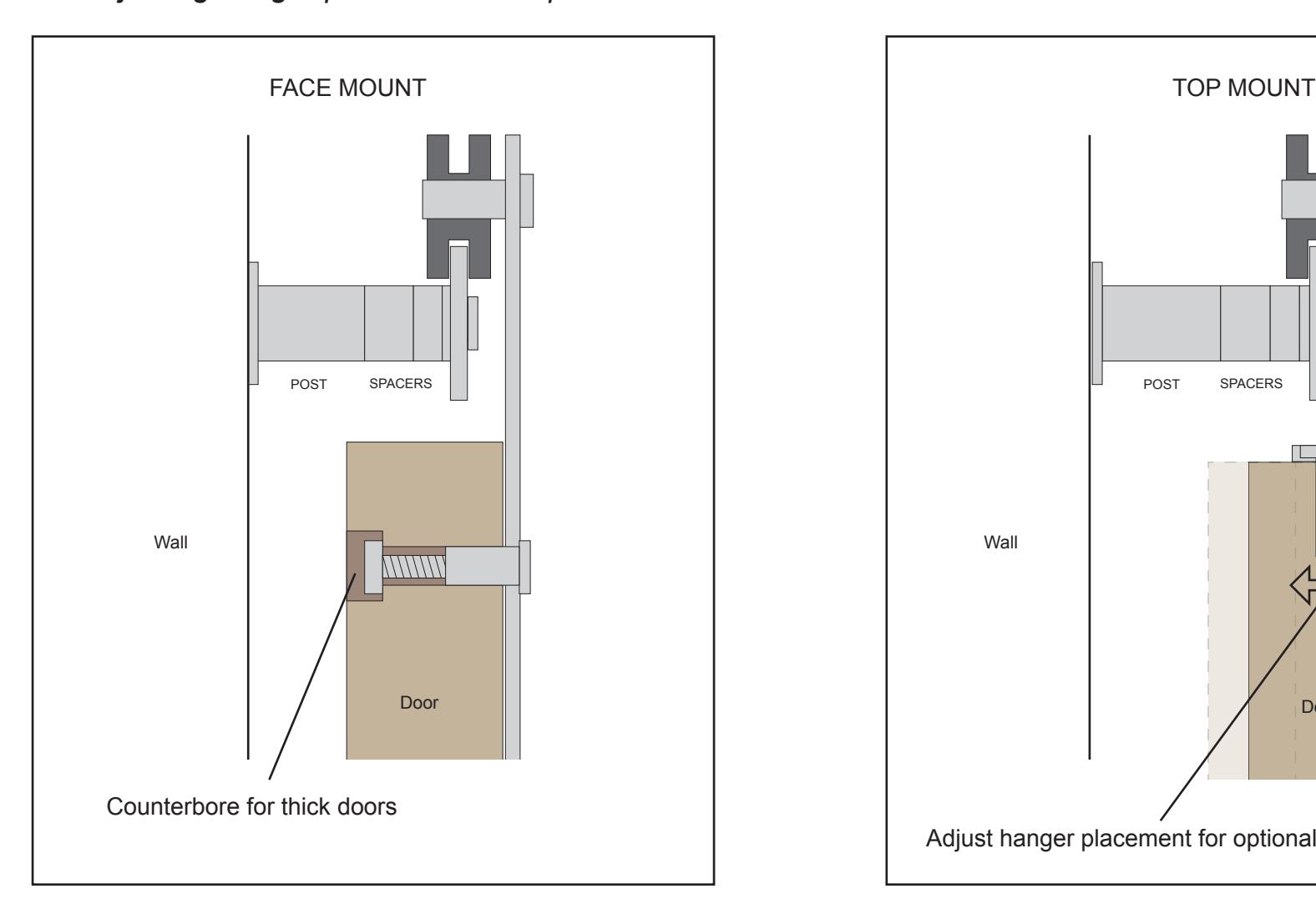

*Up to 2-3/4" thickness can be achieved with use of a counter-bore for face mount hangers and adjusting hanger placement for top mount

The wall or structure that your system will be mounted on must be designed to support a maximum door weight of 400 lbs.
