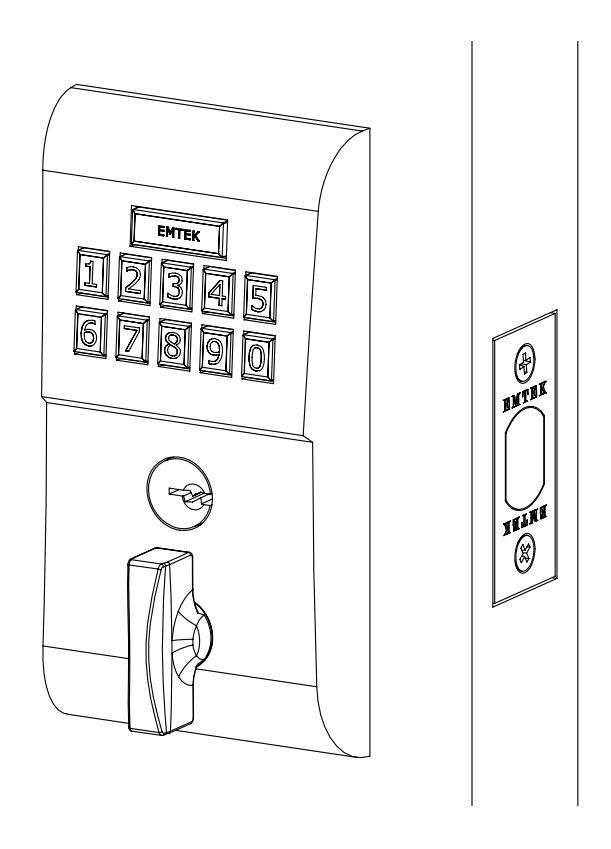

Installation & Programming Guide Modern Keypad Deadbolt Locksets

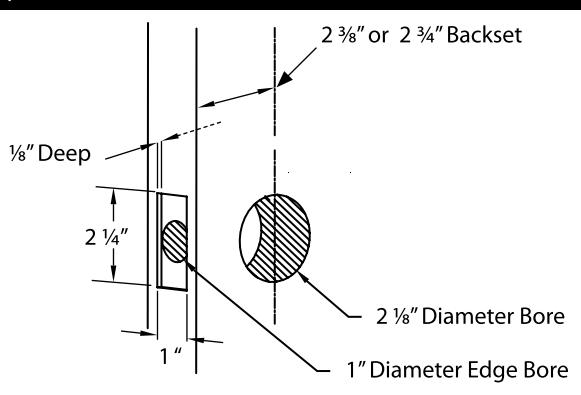

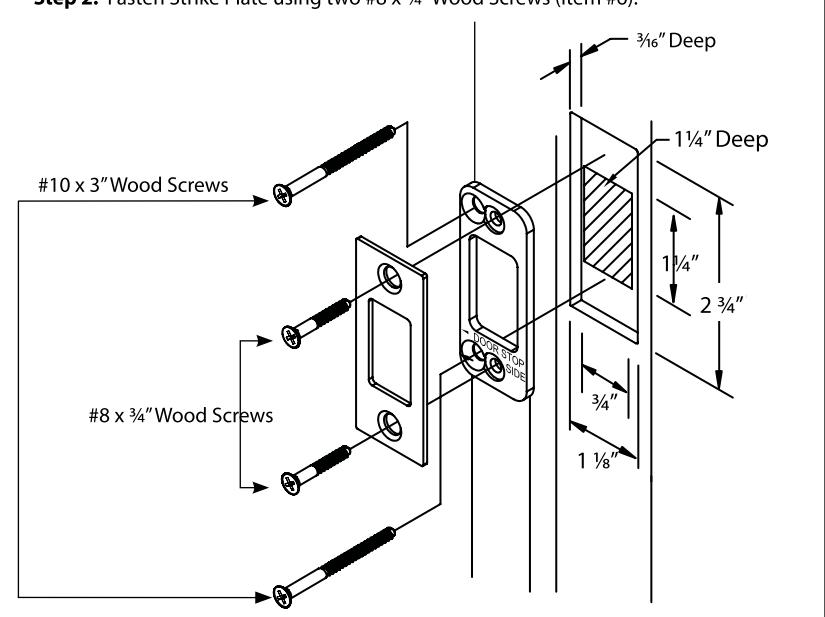

2. Door Jamb Prep

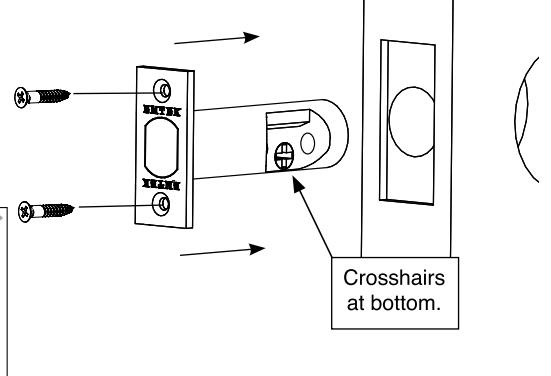

1. Install Latch

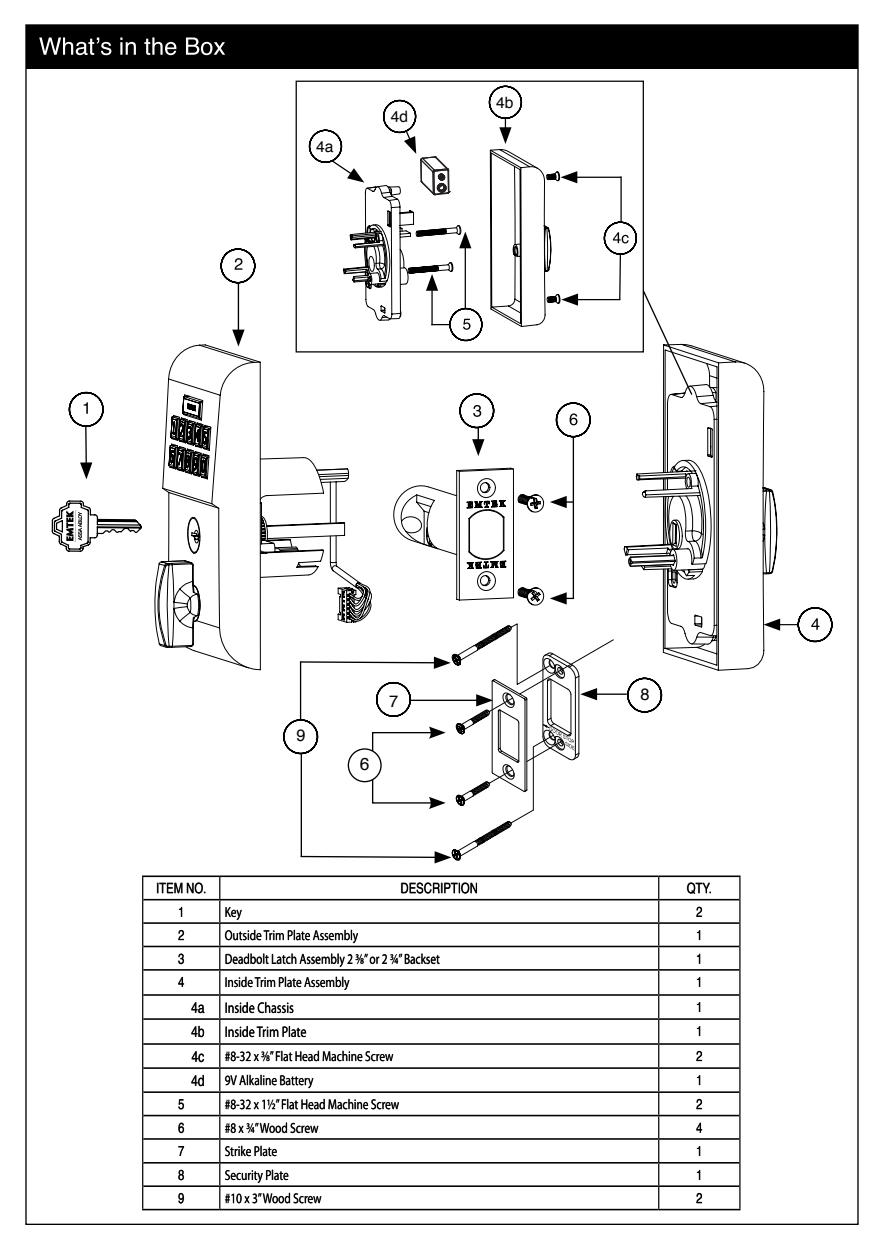

Fasten Latch using two #8 x 3/4" Wood Screws (item #6).

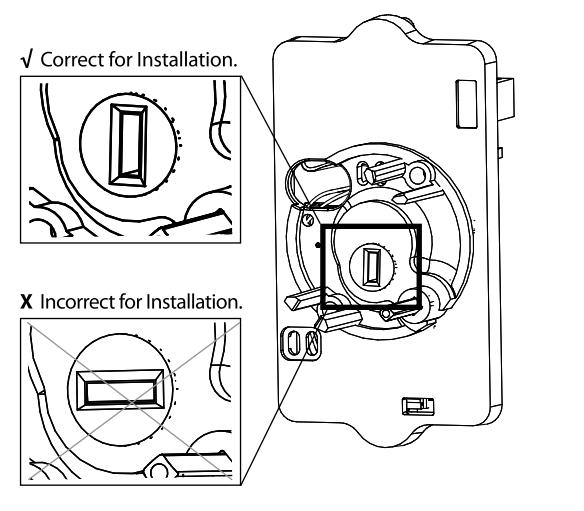

THE LATCH ASSEMBLY MUST BE ORIENTED AS SHOWN AND THE BOLT MUST BE IN THE RETRACTED POSITION FOR INSTALLATION.

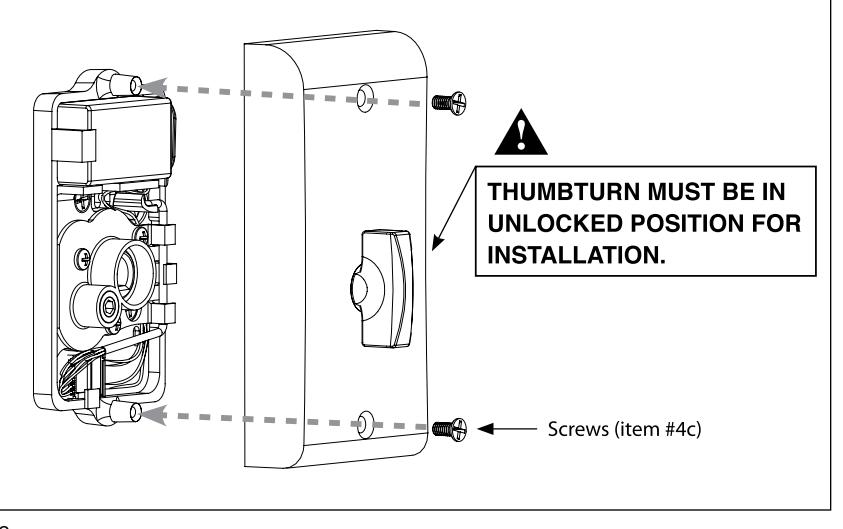

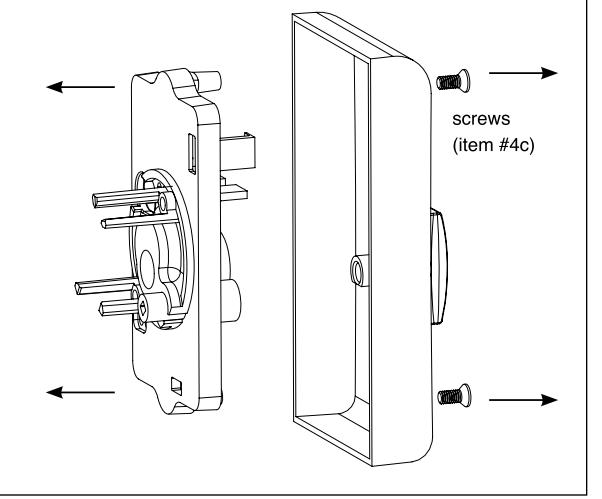

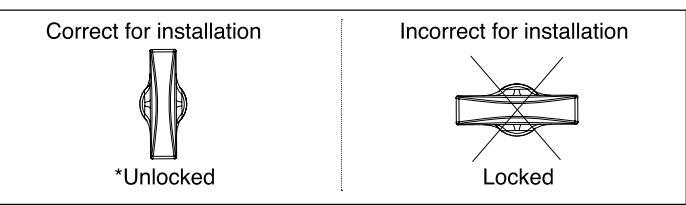

2. Remove Screws from Inside Trim Plate

Use a Phillips head screwdriver to remove screws (item #4c) shown below and detach Inside Trim Plate from the Inside Chassis.

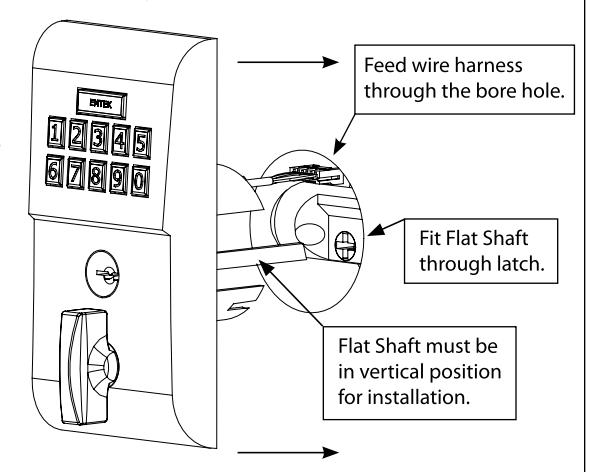

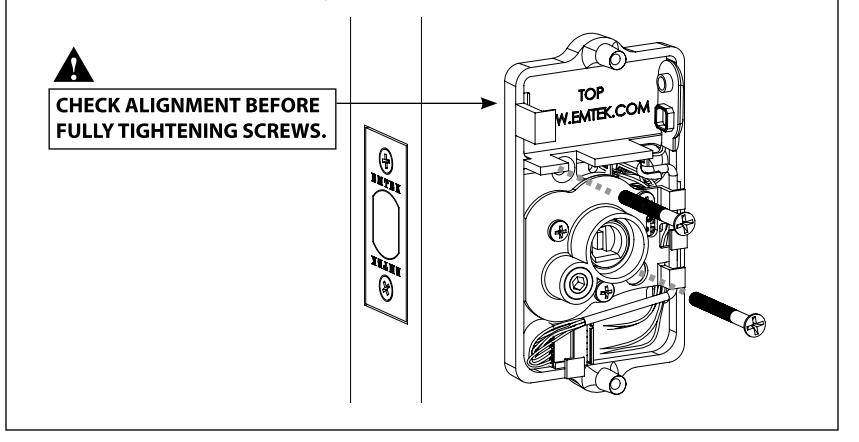

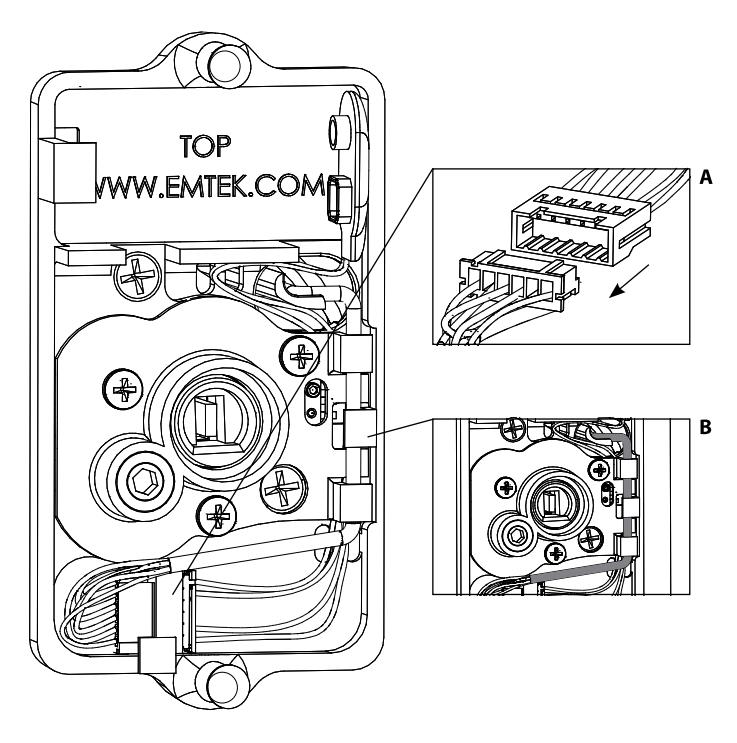

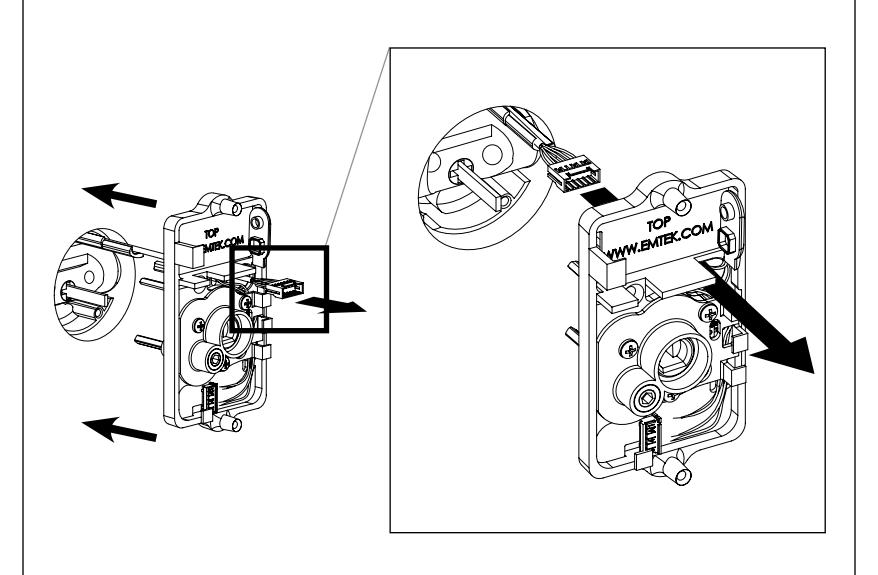

4. Install Inside Chassis

5. Install Inside Trim Plate

Your Lock is Ready to Use

Your Emtek lock is shipped with two 4-digit user codes and a 6-digit programming code. These codes are randomly generated at the factory. (Turn to next page for Programming Instructions.)

To Unlock:

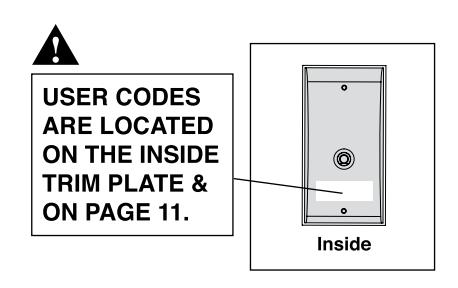

  • 1. Enter 4-digit user codes. (See sticker located on the inside trim plate or on page 11).
  • 2. Rotate Thumbturn.

To Lock:

  • 1. Press EMTEK key.
  • 2. Rotate Thumbturn.

Programming Your Lock

In order to perform each of the following six functions, the lock must first be placed in Programming Mode:

  • 1. Press and hold EMTEK button for 3 seconds
  • 2. Yellow LED flashes, then remains solid*, number keys also illuminate
  • 3. Enter Programming Code
  • 4. Green LED flashes, then 1 beep
  • 5. Yellow LED remains solid (awaiting button press; see following Table)

IF YOU WISH TO PRESS
BUTTON 		Actions Indicators
Change
Programming
Code
(6 digits) 		1 Enter New
Programming
Code
(6 digits) 		Re-Enter
New
Programming
Code
(6 digits) 		• 1 Green LED flash • 1 beep • 1 Green LED flash • 1 beep • 2 Green LED flashes • 2 beeps
Add User Code
(4 digits)
(Store up to 20
User Codes) 		2 Enter New
User Code
(4 digits) 		Re-Enter
New User
Code
(4 digits) 		• 1 Green LED flash • 1 beep • 1 Green LED flash • 1 beep • 2 Green LED flashes • 2 beeps
Delete User Code 3 Enter User
Code to be
Deleted 		Re-Enter
User Code to
be Deleted 		• 1 Green LED flash • 1 beep • 1 Green LED flash • 1 beep • 2 Green LED flashes • 2 beeps
**Enable/Disable
All User Codes 		4 Entering '4' disables all Users (enables all if disabled) • 2 Green LED flashes
• 2 beeps
Delete All User
Codes 		5 Re-Enter Programming Code
  • 1 Green LED flash
  • 1 beep
  • 2 Green LED flashes
  • 2 beeps
Turn Beeper On/
Off 		6 Entering '6' turns OFF (or ON) • 1 Green LED flash
• 1 beep
• 2 Green LED flashes
• 2 beeps

* If no input within 10 seconds, Yellow LED goes out, Red LED flashes and lock exits Programming Mode.

** Also referred to as "vacation mode". This command temporarily disables all user codes (metal key override will still work).

Keypad Operation - Beeper & LED Indicators

Function Indicators
Valid Code
  • 1 short beep, EMTEK button flashes
    Green.
Invalid Code/Access Denied* •1 Red LED flash
• 2 short beeps
Lock-Out Mode Error
  • 2 short beeps
  • 1 short beep per second for duration
Access Accepted •1 short beep
•1 Green LED flash
Low Battery • 4 Red LED flashes
• 4 short beeps
Blackout Battery** •1 long Red LED flash
•4 long beeps
Button Press Accepted •1 Yellow LED flash
•1 Short Beep
Outside Thumb Turn Enabled •2 Green LED flashes

* If 3 consecutive incorrect codes are entered, the lock emits 4 short beeps and a flashing Red EMTEK button. The lock will not accept additional input for 20 seconds (20 beeps). When the next valid code is entered the lock will beep quickly 10 times to alert of the incorrect codes.

Restoring the Lock to Factory Default Setting

This procedure clears the lock of all users and restores the Programming Code and 2 User Codes shipped with the lock.

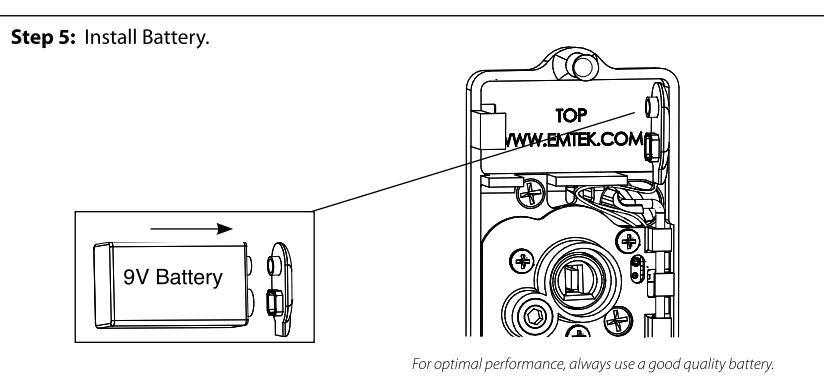

  • Remove power (disconnect 9V battery) from Lock
  • · Press and Hold EMTEK button
  • While continuing to hold EMTEK button, restore power (reconnect 9V battery)
  • Continue to hold EMTEK button for 3 seconds
  • 1 Green LED Flash and 2 short beeps followed by 1 Green LED Flash and 2 short beeps indicates the lock has been successfully restored

IN8-MODKEYPADDB

09/17/2010

** Battery voltage has dropped too low; keypad will be disabled but metal key override will still work.
