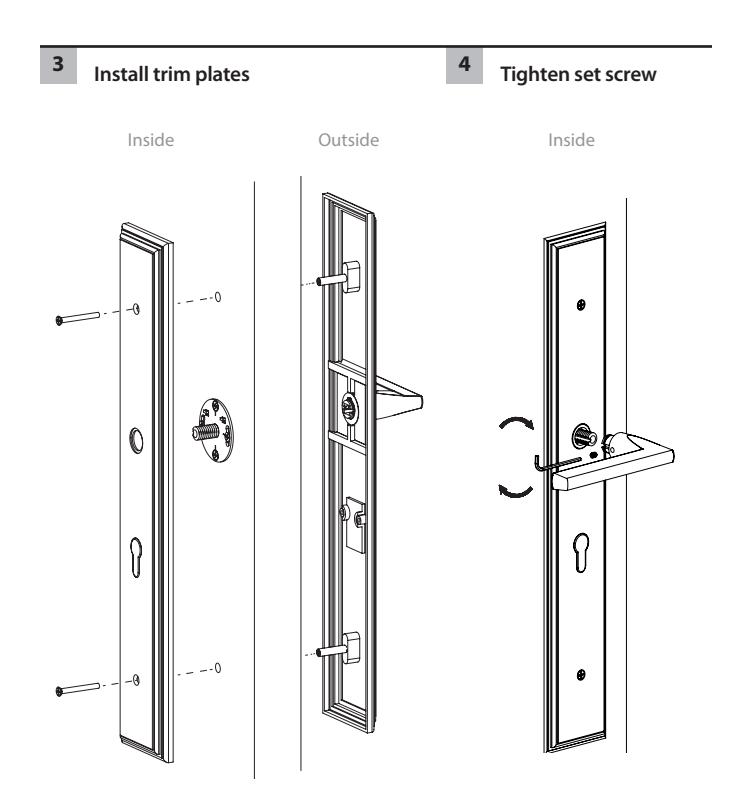

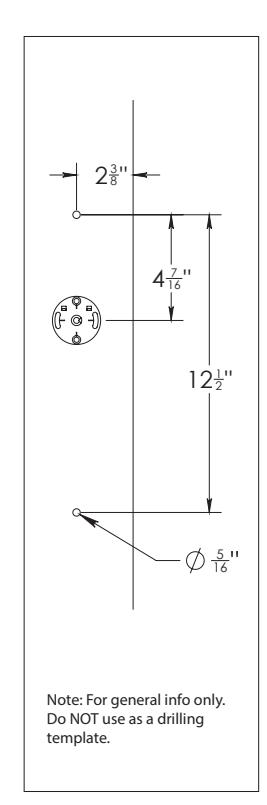

Installation Guide for Large Multi Point - Dummy Function

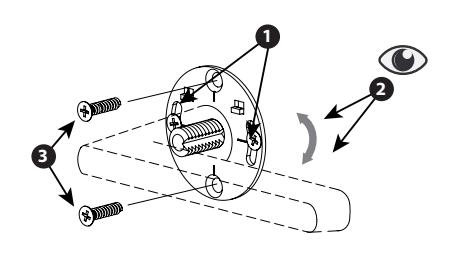

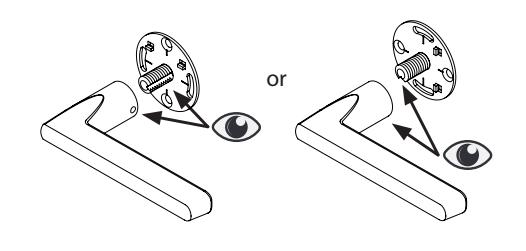

1 Align mounting plate

2 Install mounting plate & adjust for level

LARGE MULTI POINT ENTRY SETS

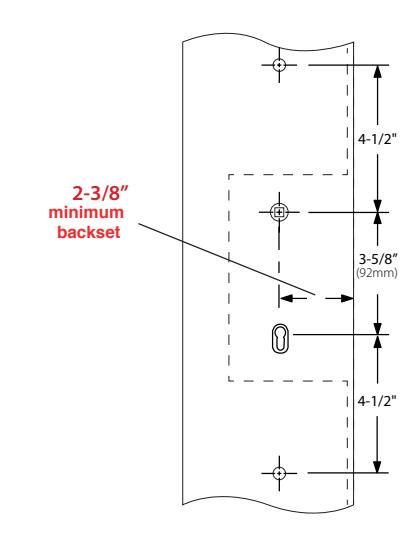

Keyed Plates with Euro Profile Cylinder

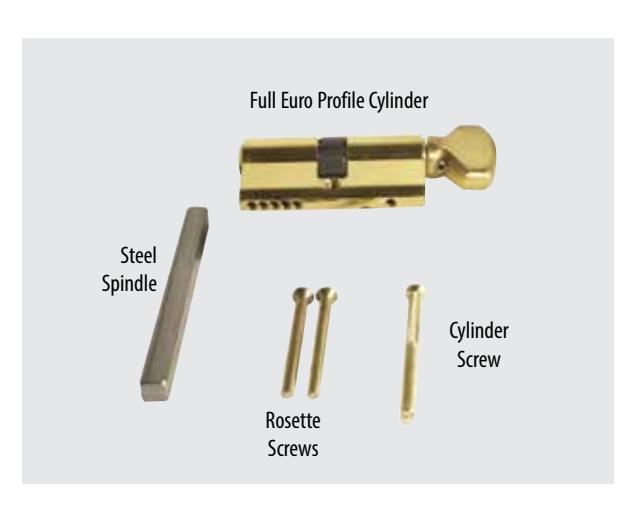

Standard Components:

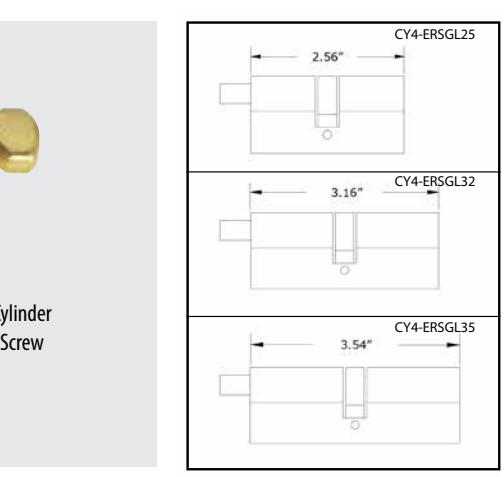

• 2 9/16" Euro Profile Cylinder
• 3 3/4" Steel Spindle
• 1 1/2" Rosette Screws

Extended Components:

• 3 5/32" Euro Profile Cylinder
• 4 1/2" Steel Spindle
• 2" Rosette Screws

Standard Door Thickness: from 15/8" to 2" Extended Door Thickness: Over 2" to 21/2" Extended Door Thickness: Over 21/2"to 23/4"

Extended Components:

• 3 17/32" Euro Profile Cylinder
• 5" Steel Spindle
• 3" Rosette Screws

Dummy Plates

Standard Components:

• 2" Rosette Screws
• 1 1/2" Rosette Screws for 1 5/8" thick door

Standard Door Thickness: from 15/8" to 2" Extended Door Thickness: Over 2" to 23/4"

Extended Components:

• 2 1/2" Rosette Screws
• 2" Rosette Screws for 2" 2 1/8" thick door

CUSTOM KEYING

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Keying Alike

• Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
• If ordering multiple groups (houses) indicate " Keyed Alike House # _" next to applicable locks.

emtek.com 800.356.2741 21

LARGE MULTI POINT ENTRY SETS

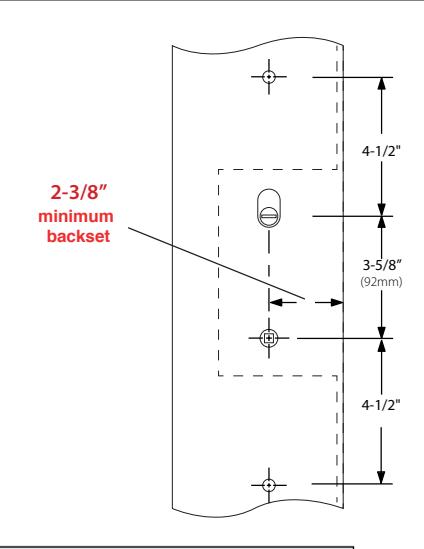

Keyed Plates with American Cylinder

Standard Door Thickness: from 15/8" to 2"

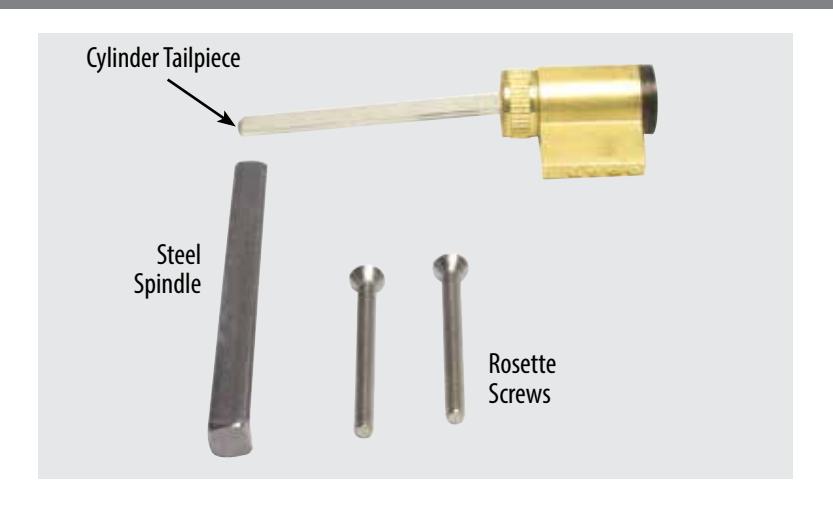

Standard Components:

• Single Cylinder Tailpiece
• 3 3/4" Steel Spindle
• 2" Rosette Screws
• 1 1/2" Rosette Screws for 1 5/8" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

• Long Single Cylinder Tailpiece
• 4 1/2" Steel Spindle
• 2 1/2" Rosette Screws
• 2" Rosette Screws for 2" 2 1/8" thick door

Dummy Plates

Standard Door Thickness: from 15/8" to 2"

Standard Components:

• 2" Rosette Screws
• 1 1/2" Rosette Screws for 1 5/8" thick door

Extended Door Thickness: Over 2" to 23/4"

Extended Components:

• 2 1/2" Rosette Screws
• 2" Rosette Screws for 2" 2 1/8" thick door

CONSTRUCTION KEYING

• Lost ball system.
• Last four pin locations drilled for lost ball application.
• Master key pins used for code variability.
• Construction keys and owner keys sent separately.
• Order by indicating " Construction Keyed, House # _" next to applicable locks.

- Construction devices used on one or more of last four positions.

- Dimples drilled in plug in this position.

Charge for Construction Keying - $3.00 (NET)

• Locks that are both construction keyed and keyed alike in a house group will be charged a total of $5.00 (NET) per cylinder.

Charge for Re-Keying - $2.00 (NET) per Cylinder

• Locks that are keyed to code or keyed alike in a house group will be charged $2.00 (NET) per cylinder.

Keying to Code

• Order by indicating "Key Code XXXXX " next to applicable locks.

Keying Alike

• Order by indicating "Keyed Alike" next to applicable locks if only one keyed alike group is wanted.
• If ordering multiple groups (houses) indicate " Keyed Alike House # _" next to applicable locks.
