Re-pinning Cylinder (Optional)

Step 1. Small hole should face down.

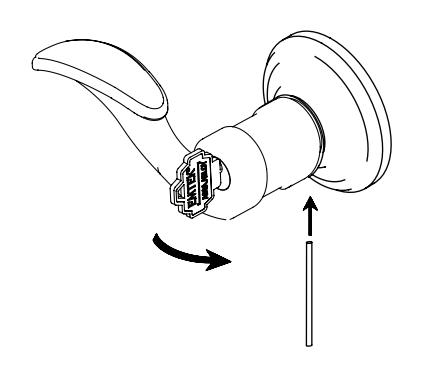

Step 2. Rotate key counterclockwise 90º while pressing wire into hole.

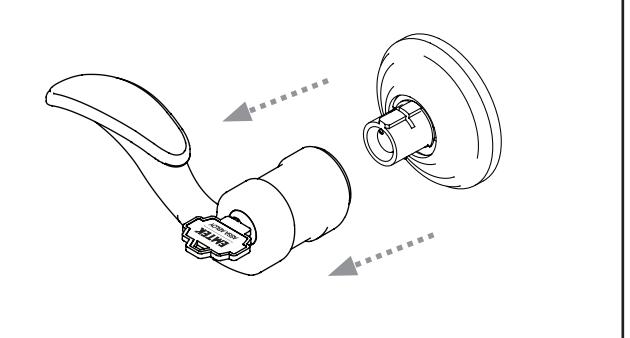

Step 3. Slide lever off stem.

For more information on rekeying cylinder, please scan the QR code for how-to video.

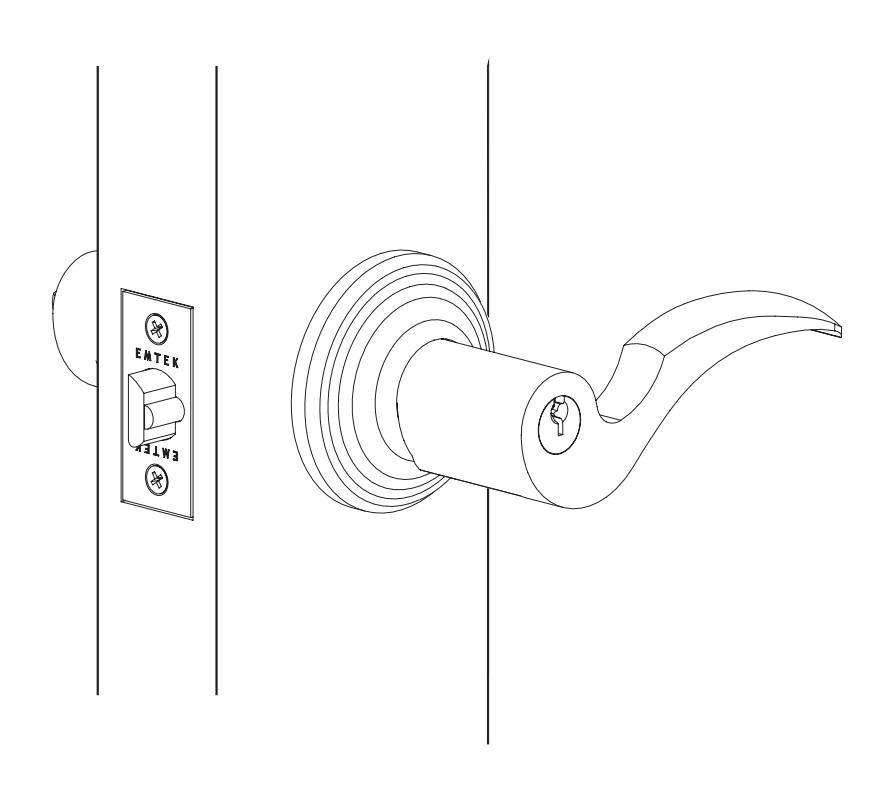

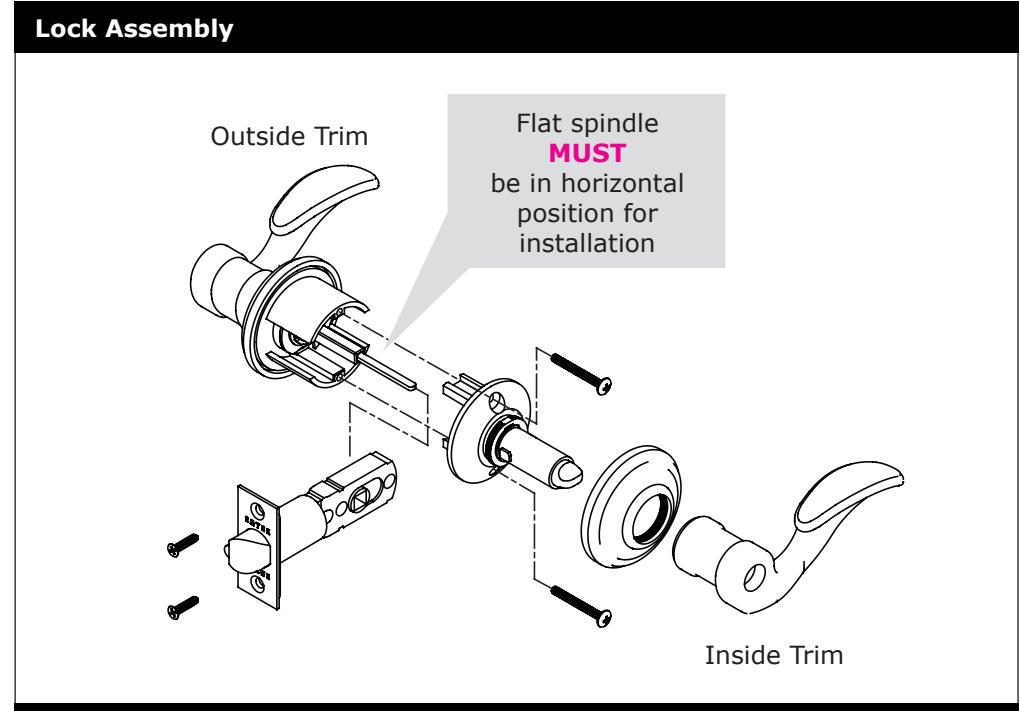

Key in Lever Lock Installation Guide

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

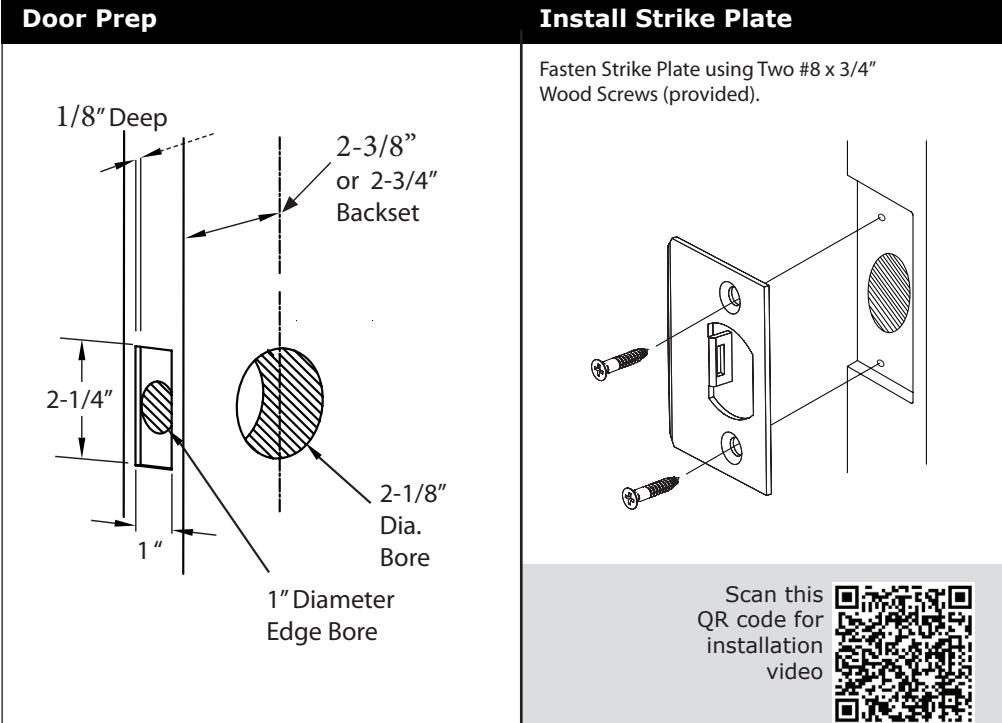

Installation Guide - For Key in Lever Lock

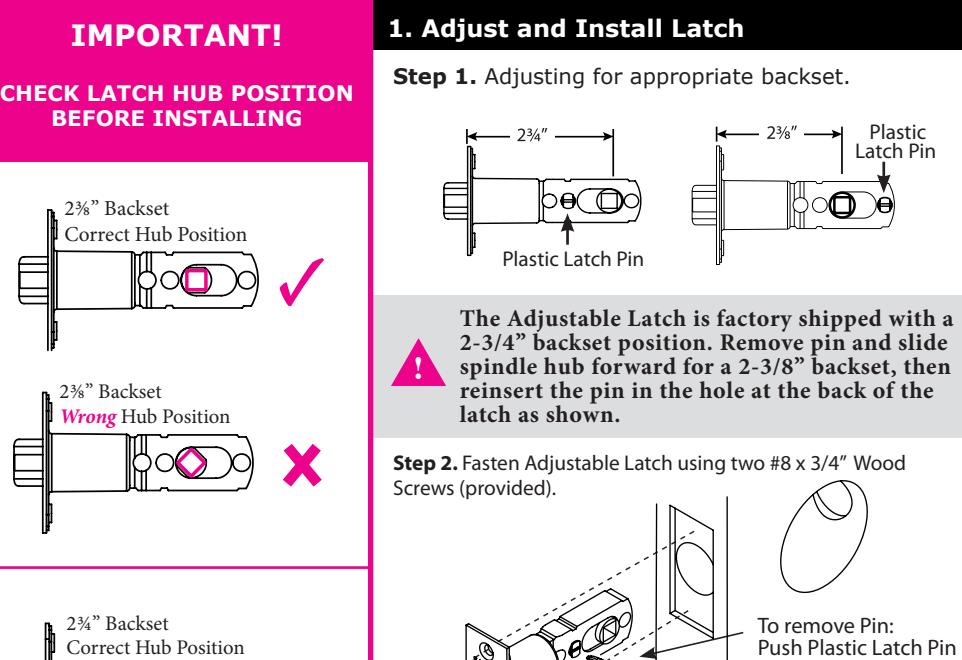

through latch with screwdriver.

2. Remove Inside Rosette

Step 1. Remove inside lever by loosing set screw w/ hex wrench (provided).

Step 2. Unthread rosette counterclockwise to remove from housing before installing on door.

3. Installing Inside Trim

Step 1. Secure inside rosette to door by threading it clockwise on

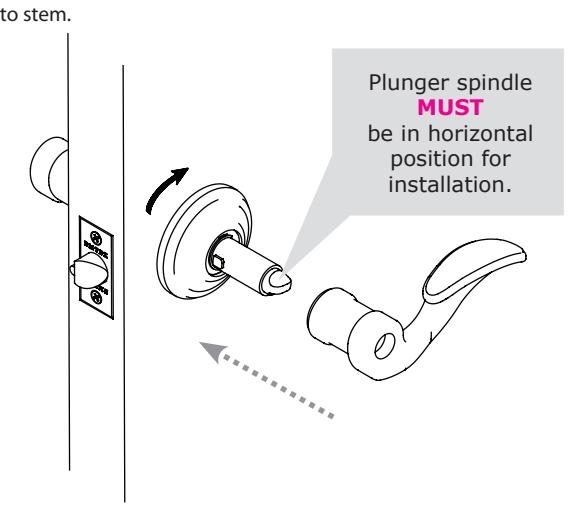

Step 2. Tighten lever set screw after placing lever on stem.

IN4-KEYNLEVER Rev. 02/26/2013
