Installation Guide - For Key in Lever Lock with #8 Style Rosette

Re-pinning Cylinder (Optional)

Step 1. Small hole should face down.

Step 3. Slide lever off stem. For more information on rekeying cylinder, please scan the QR code for how-to video.

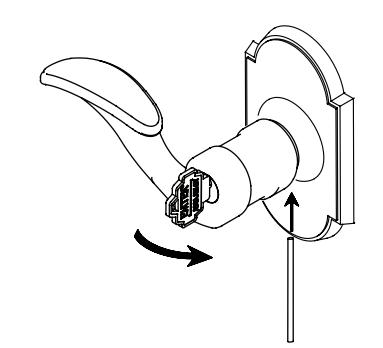

Step 2. Rotate key counterclockwise 90º while pressing wire into hole.

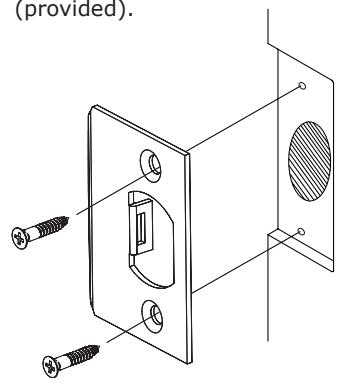

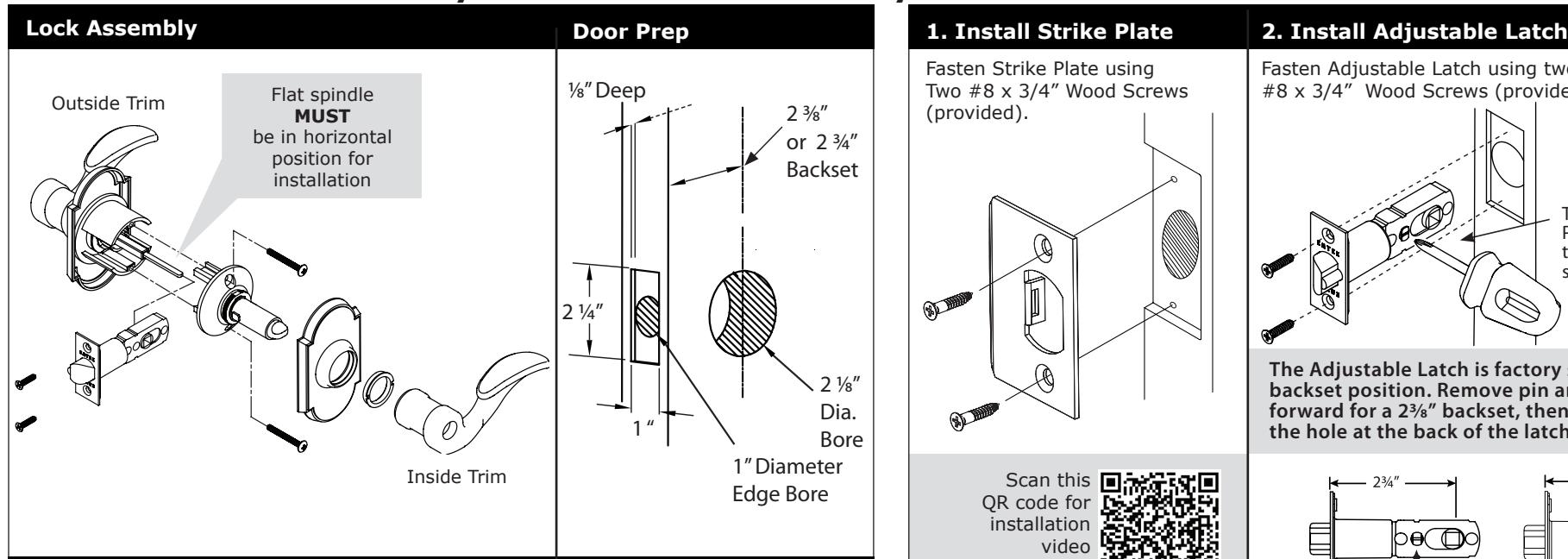

Fasten Strike Plate using Two #8 x 3/4" Wood Screws (provided).

Scan this QR code for installation video

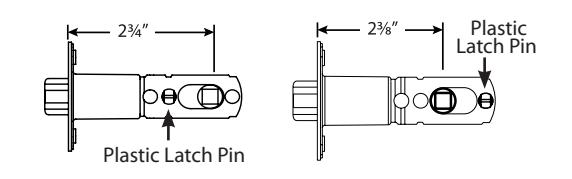

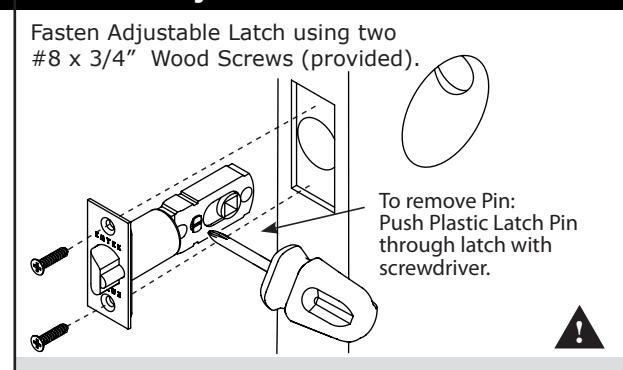

The Adjustable Latch is factory shipped with a 23/4" backset position. Remove pin and slide spindle hub forward for a 23/8" backset, then reinsert the pin in the hole at the back of the latch as shown.

3. Remove Inside Rosette

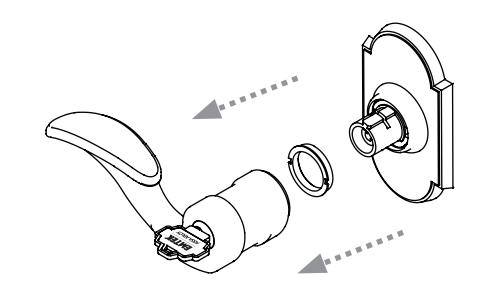

Step 1. Remove inside lever by loosing set screw w/ hex wrench (provided).

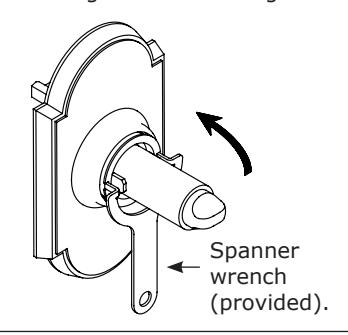

Step 2. Unthread rosette counterclockwise to remove from housing before installing on door.

4. Installing Inside Trim

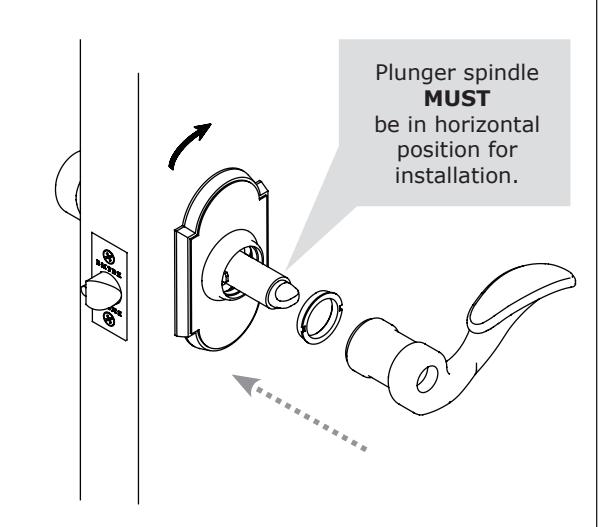

Step 1. Secure inside rosette to door by threading it clockwise on to stem.

Step 2. Tighten lever set screw after placing lever on stem.
