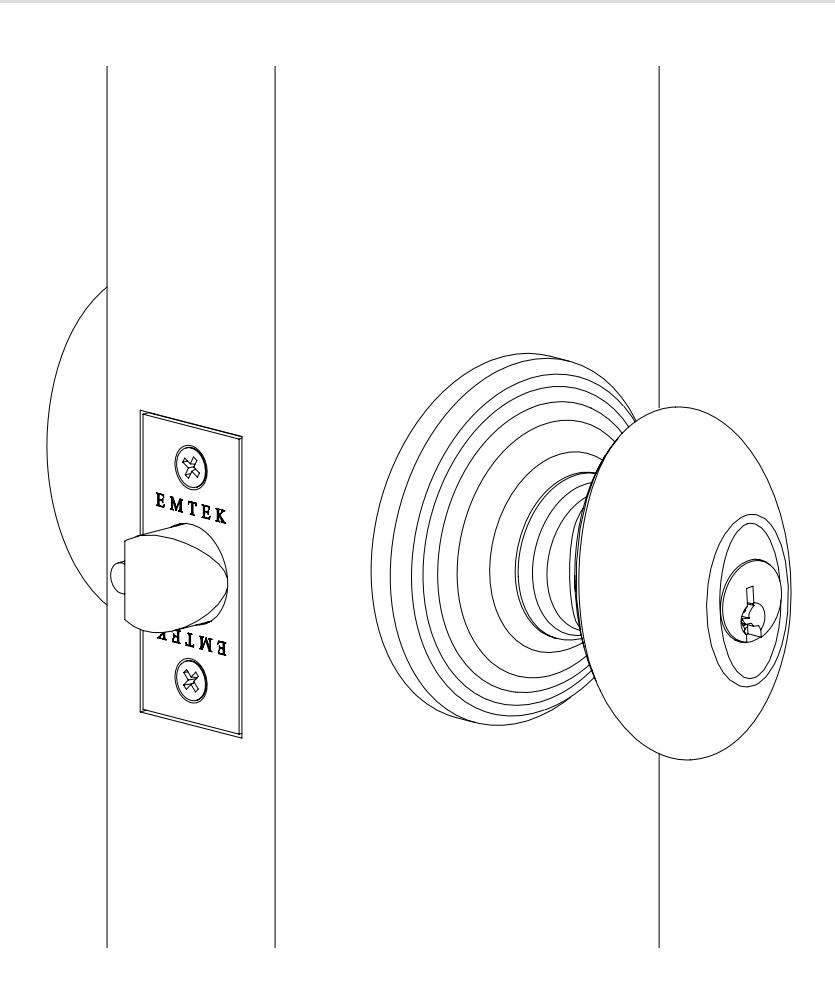

Emtek Key In Knob with Round Rosette Installation Instructions with Adjustable Latch

Open the original PDF document

Re-pinning Cylinder (Optional) Step 1. Small hole should face down.

Step 2. Rotate key counterclockwise 90º while pressing wire into hole.

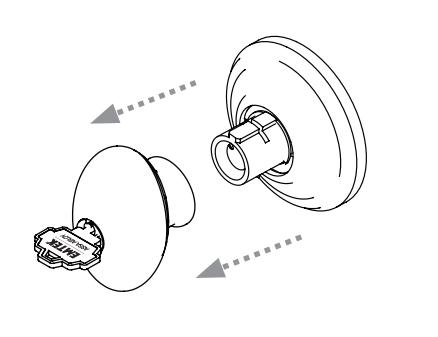

Step 3. Slide knob off stem.

For more information on rekeying cylinder, please scan the QR code for how-to video.

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.

IN4-KEYNKNOB Rev. 02/26/2013

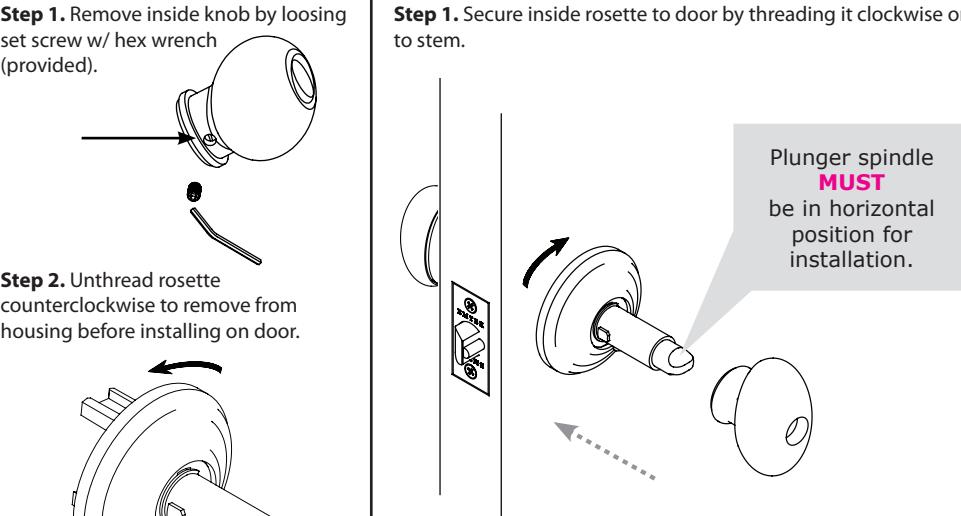

Step 2. Tighten set screw after placing knob on stem.
