Installation Guide - For Key in Knob with #8 Style Rosette

Re-pinning Cylinder (Optional)

Step 1. Small hole should face down.

Step 3. Slide knob off stem. For more information on rekeying cylinder, please scan the QR code for how-to video.

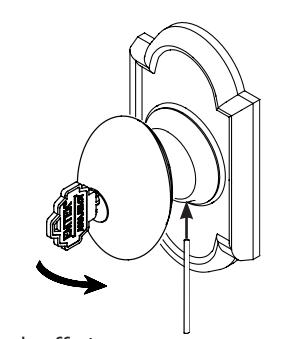

Step 2. Rotate key counterclockwise 90º while pressing wire into hole.

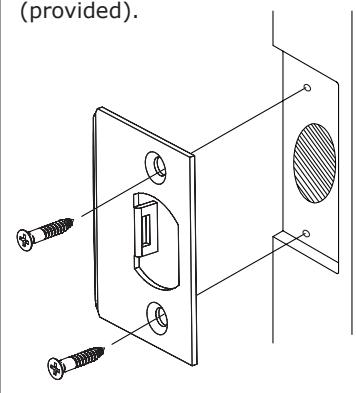

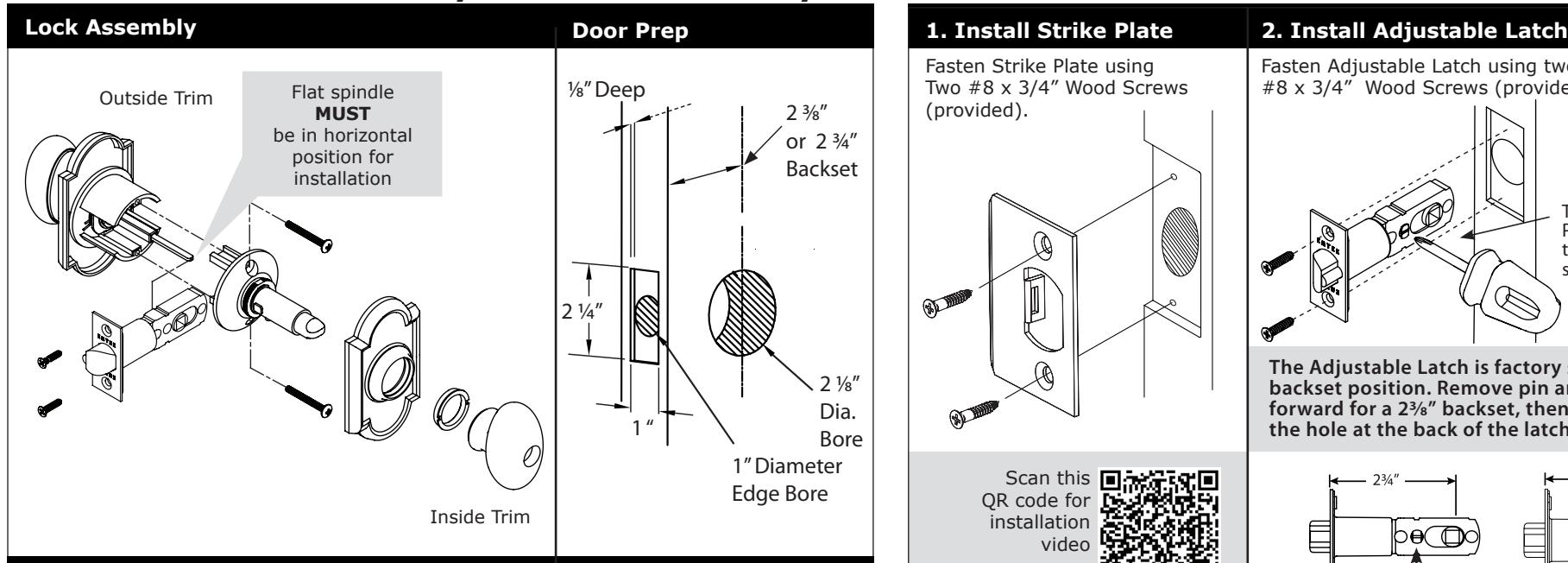

Fasten Strike Plate using Two #8 x 3/4" Wood Screws

Scan this QR code for installation video

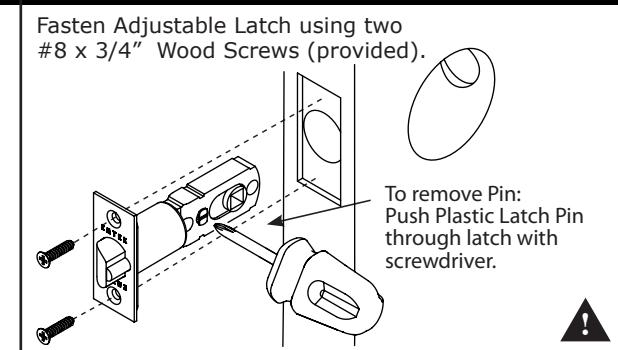

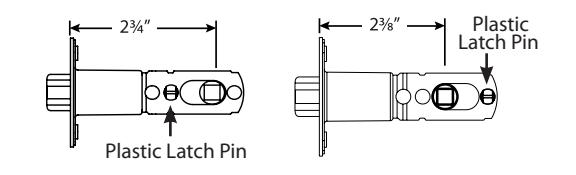

The Adjustable Latch is factory shipped with a 23/4" backset position. Remove pin and slide spindle hub forward for a 23/8" backset, then reinsert the pin in the hole at the back of the latch as shown.

3. Remove Inside Rosette

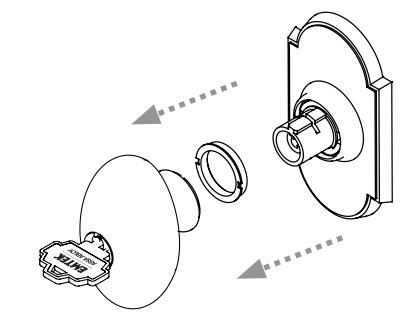

Step 1. Remove inside knob by loosing set screw w/ hex wrench (provided).

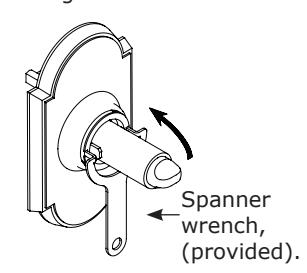

Step 2. Unthread locking ring counterclockwise to remove rosette from housing before installing on door.

4. Installing Inside Trim

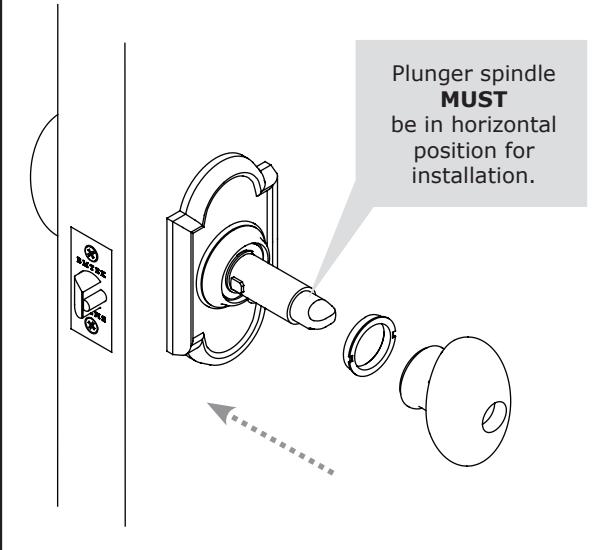

Step 1. Secure inside rosette to door by threading locking ring clockwise on to stem.

Step 2. Tighten knob set screw after placing knob on stem.
