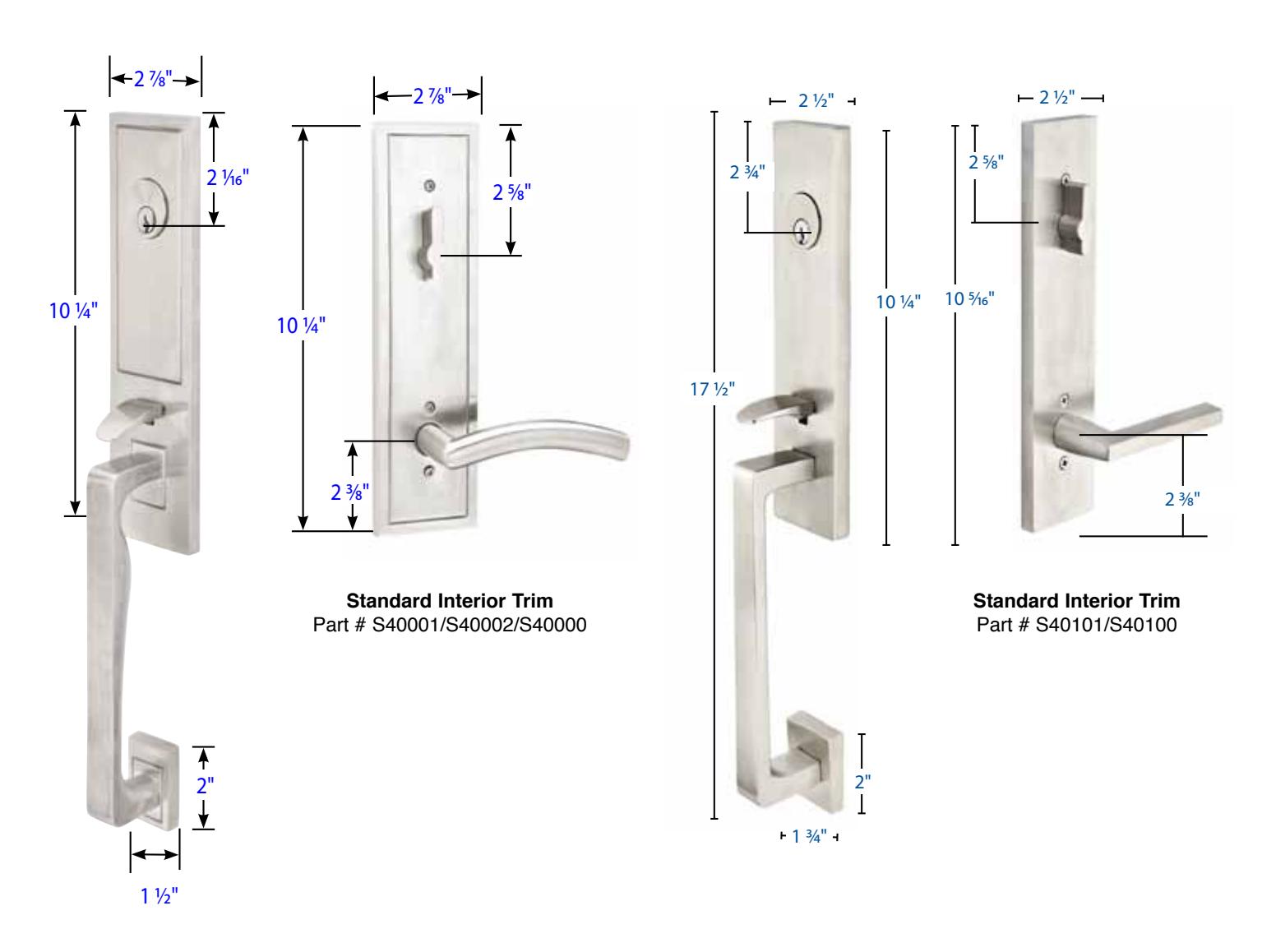

Zeus Style Part # S40001/S40002/S40000

Davos Style Part # S40101/S40100

Additional Dimensions: (Part # S40001/S40002)

• Exterior Projection is 2 1⁄2"
• Interior Projection Depends on Handle Style
• Overall Grip thickness: 1 1⁄16"
• Clearance between door & grip is 1"- 1 3⁄8"
• Plates thickness: 7⁄16"

Additional Dimensions: (Part # S40101/S40100)

• Exterior Projection is 2 3⁄4"
• Interior Projection Depends on Handle Style
• Overall Grip thickness: 1"
• Clearance between door & grip is 1"- 1 3⁄4"
• Plates thickness: 1/2"

Same Dimensions for Dummy Function Same Dimensions for Dummy Function

Door Prep Specifications:

• Fits standard door prep--21⁄8" face bore & 1" edge bore.
• Fits a range of door thickness from 13⁄8" to 2". (21⁄4"- 23⁄4", Please specify)
• 51⁄2" Center to Center spacing.

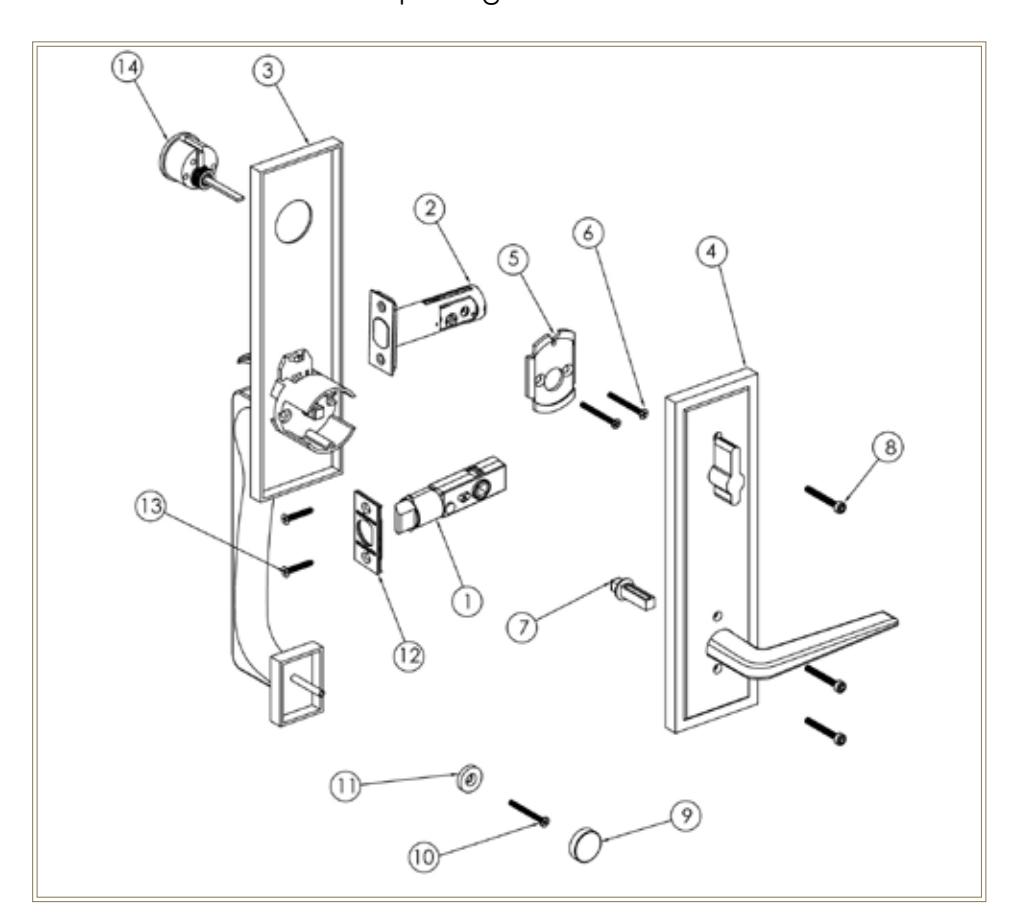

Legend

• 1) Passage Latch
• 2) Deadbolt Latch
• 3) Outside Handle Plate
• 4) Inside Plate
• 5) Deadbolt Mounting Plate
• 6) Deadbolt Machine Screws
• 7) Inside Spindle
• 8) Inside Plate Machine Screws
• 9) Decorative Cap
• 10) Handle Grip Machine Screw
• 11) Designer Washer
• 12) Latch Face Plate
• 13) Latch Wood Screws
• 14) Deadbolt Cylinder

Latches:

Passage:

• 28º retraction
• 7MM hub
• Split spindles
• 23⁄8" backset standard
• 23⁄4" backset available--please specify
• Stainless steel nosebolt

Deadbolt:

• Hardened Steel Bolt
• 23⁄8" backset standard
• 23⁄4" backset available--please specify

Strike & Face Plates:

• Full Lip strike is standard (passage function)
• "T" strike optional--please specify (passage function)
• Strike & faceplates are square cornered
• Passage: Strike Plate--11⁄2"W x 21⁄4"H, Deadbolt:11⁄8"W x 2 ³ ⁄4"H (understrike supplied)
• Passage: Face Plate--1"W x 21⁄4"H, Deadbolt:1"W x 21⁄4"H (attached to latch)
