Emtek Door Screen Door Mortise-RH Door Prep Installation Guide

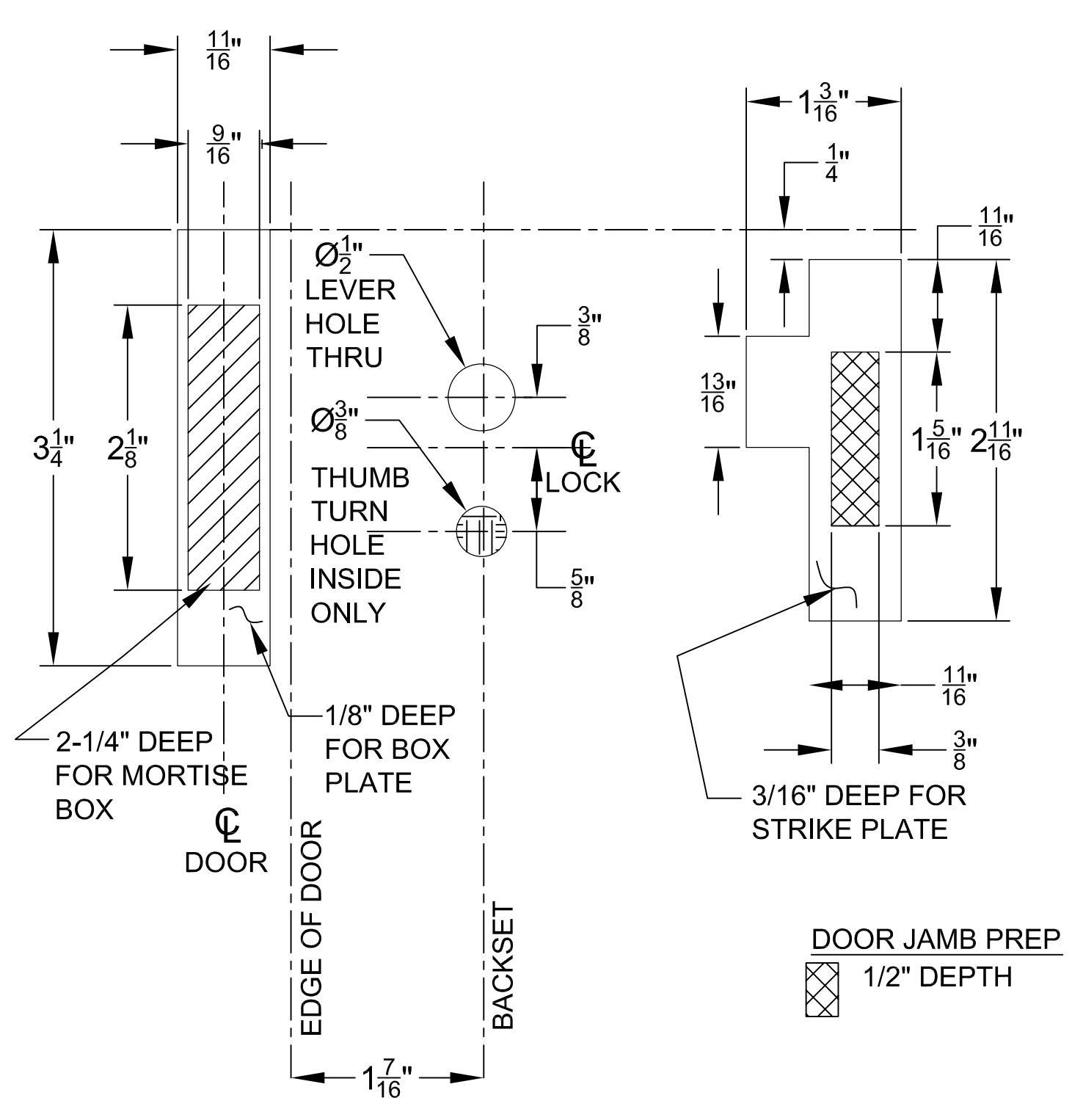

ACTIVE SCREEN DOOR MORTISE LOCK HOLE PREPARATION (RIGHT HAND)*

NOTE:

THIS TEMPLATE IS DESIGNED FOR USE ON 1" THICK DOOR.

IN4-SCREENDOOR-R 05-09-08
