Emtek Door Pulls Dimensions Specifications

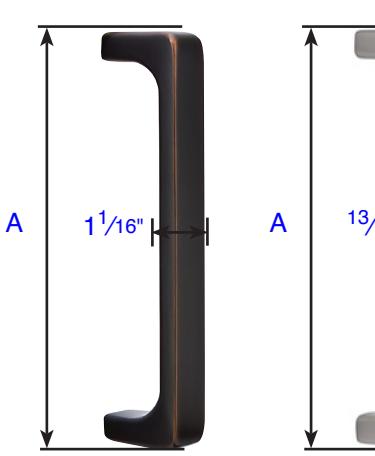

Baden Pull (86184) Stainless Steel Baden Pull (S86002)

Projection: 2 1/8" A= 8 %" Base: 1" x 1/16"

Brisbane Pull (86170)

Projection: 1 13/16" A= 8 %6" Base: 13/16" x 9/16"

Zeus Pull (86183) Stainless Steel Zeus Pull (S86001)

Projection: 2 1/8" A= 8 %" Base: 1" x 1/16"

Wilshire Pull (86078)

Projection: 2¹/8" $A\; =\; 8^\{7\}/8$ "

Base: 1¹/₈" Diameter

Knoxville Pull (86077)

Projection: $2^\{1/2\}$ " A= $8^\{13/16\}$ "

Base: ³/₄" Diameter

Ribbon & Reed Pull (86080)

Projection: 23/8" $A\; =\; 8^\{15\}/16$ "

Base: 1" Diameter

Arts & Crafts Pull (86079)

Projection: 2¹/8" $A\; =\; 8^\{7\}/8$ "

Base: 1¹/₈" Diameter

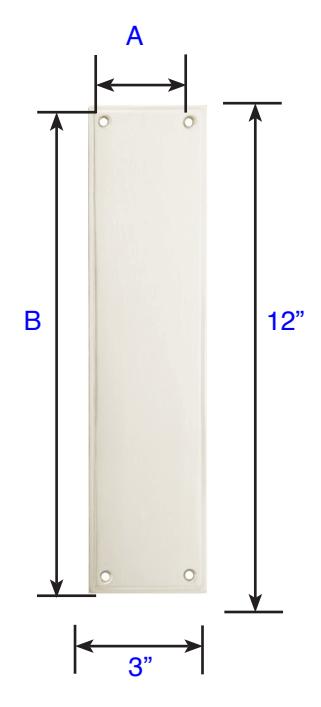

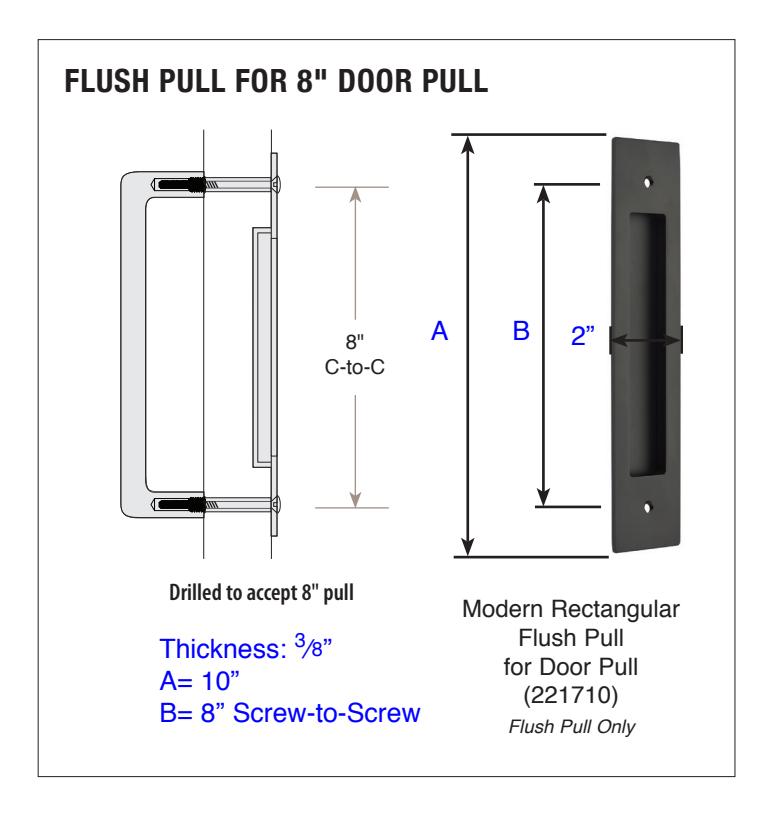

Modern Push Plate (86436)

A= 2¹/8" Screw-to-Screw B= 11¹/8" Screw-to-Screw

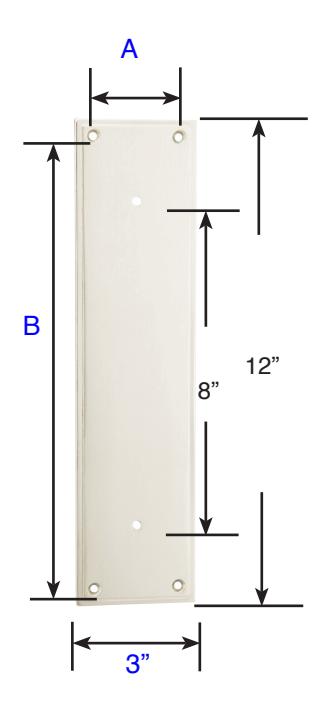

Modern Pull Plate (86437) Plate only Drilled to accept 8" pull

A= 2¹/8" Screw-to-Screw B= 11¹/8" Screw-to-Screw

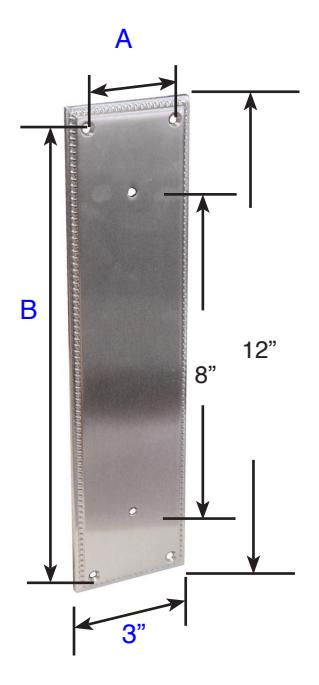

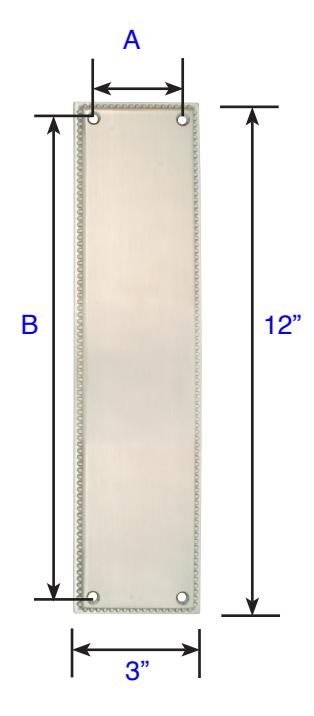

Knoxville Push (86081) Plate

A= 2¹/₈" Screw-to-Screw B= 11¹/₈" Screw-to-Screw

Knoxville Pull Plate (86082) Plate only Drilled to accept 8" pull

A= 2¹/8" Screw-to-Screw B= 11¹/8" Screw-to-Screw

Standard Components:

• 1", 10-32 Screws
• 1", 1/4"-20 Screws
• Inserts for 1/4"-20 screws
• Inserts for 10-32 screws

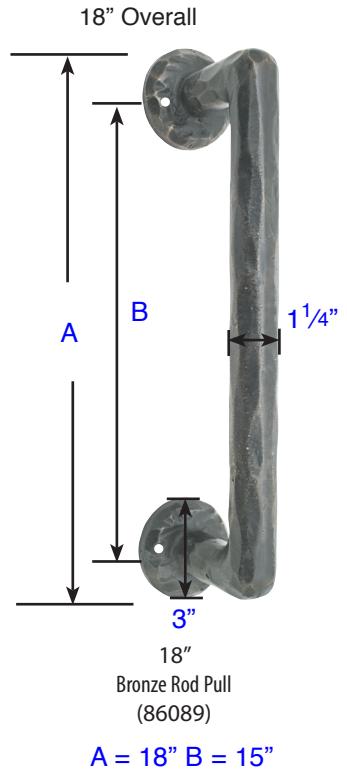

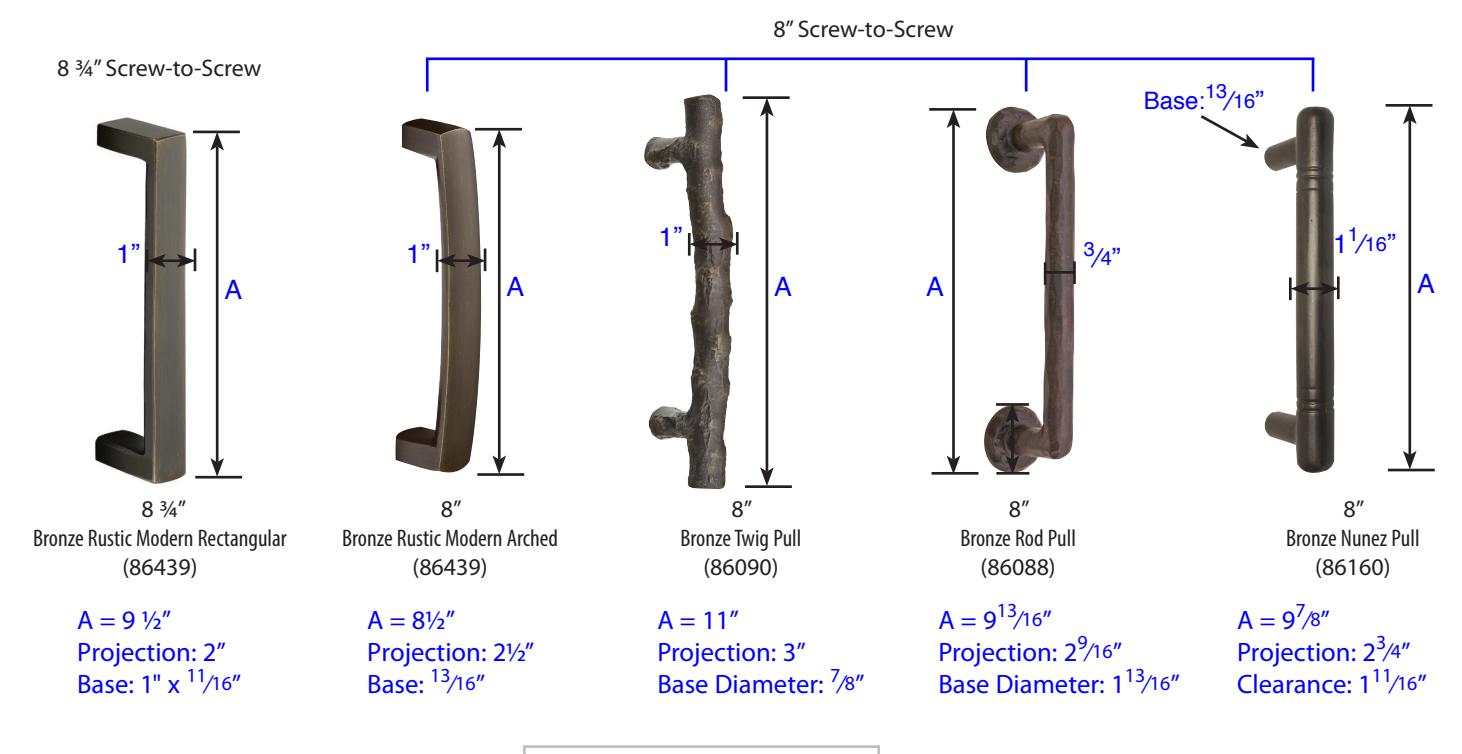

Screw Specifications Bronze 18" Pulls

Standard Components: • #10, 1" Wood Screws

A = 18" B = 15" Projection: $3^\{3\}/16$ " Base Diameter: 3"

Tuscany 8" Twist Pull (86069)

Projection: $2^\{3/4\}$ " Base = $1^\{1/4\}$ " Squared

Tuscany 8" Palermo Pull (86167)

Projection: 2¹³/₁₆" Clearance: 1³/₄" Base: 1¹/₄" Dia.

Tuscany 8" Recoleta Pull (86168)

Projection: $2^\{7\}/8$ " Clearance: $1^\{5\}/8$ " Base: $1^\{3\}/16$ "

Tuscany 8" Column Pull (86156)

Projection: 3" Base = $1^\{1\}/4$ " Squared

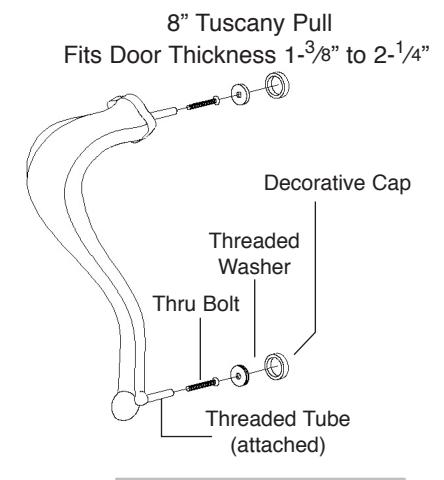

Screw Specifications Tuscany Bronze 8" Pulls

Standard

Components:

• 1", 10-32 Screws
• 1", 1/4"-20 Screws

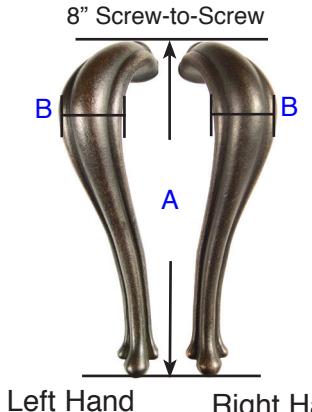

Screw Specifications Art Nouveau 8" Pull • 11/2", 8-32 Screws

(86144LH)

Right Hand (86144RH)

A = $9^\{3/16\}$ " B = $1^\{7/16\}$ " Projection: $2^\{1/2\}$ "

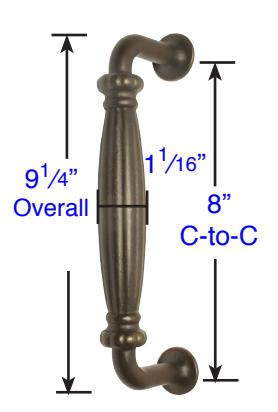

(86169)

Projection: 2³/₄" Clearance: 1¹³/₁₆"

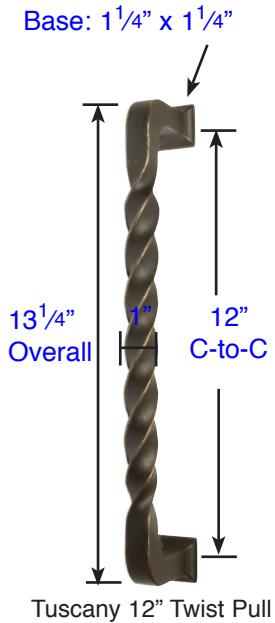

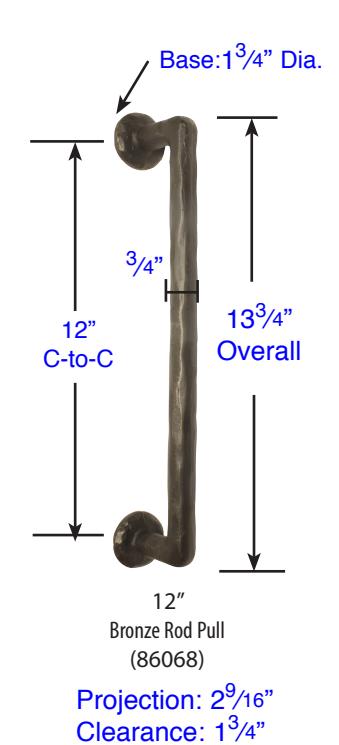

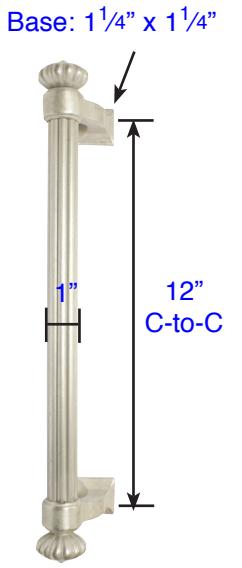

Tuscany 12" Twist Pull (86159)

Projection: 3" Clearance: 2"

• Inserts for 1/4"-20 screws
• Inserts for 10-32 screws

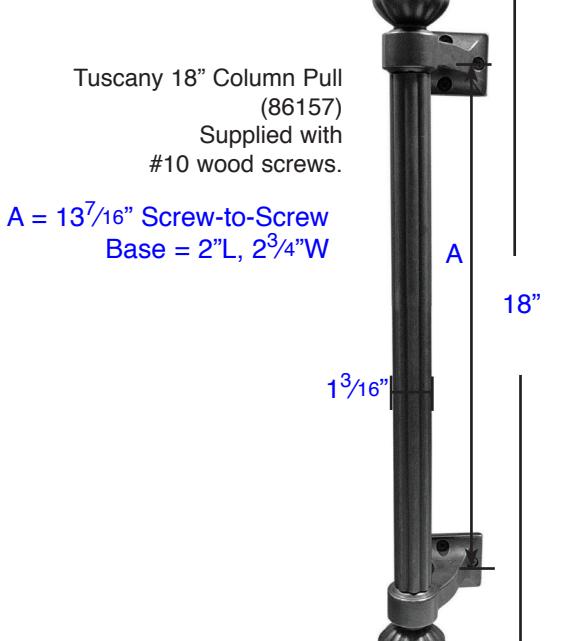

#10 wood screws.

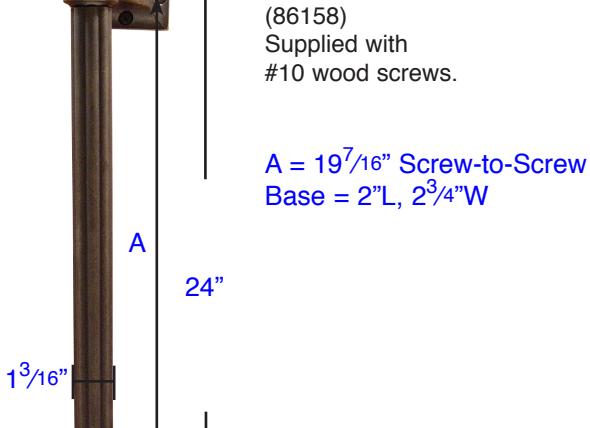

Tuscany 24" Column Pull

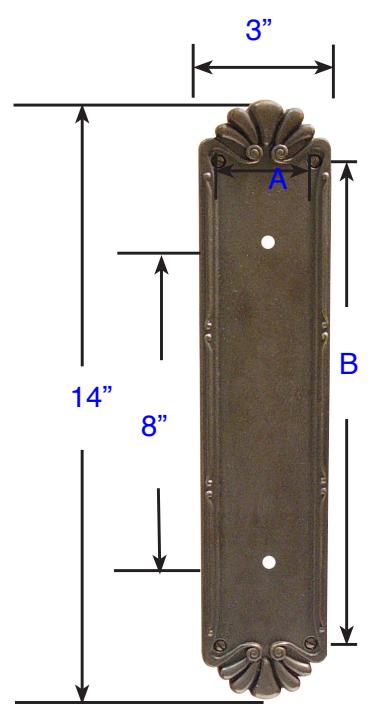

Tuscany Petal Pull Plate (86182) Plate only drilled to accept 8" pull

$A\; =\; 2^\{5/32\}$ " Screw-to-Screw $A\; =\; 2^\{5/32\}$ " Screw-to-Screw $B\; =\; 11^\{1/4\}$ " Screw-to-Screw $B\; =\; 11^\{1/4\}$ " Screw-to-Screw

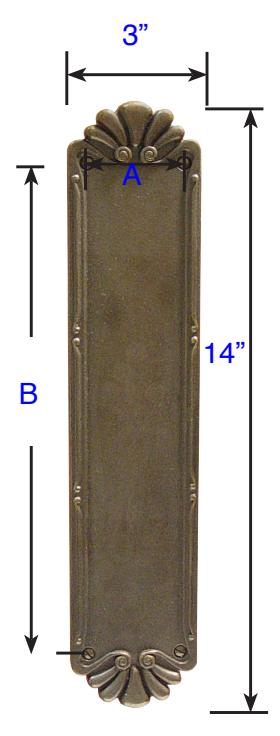

Tuscany Petal Push Plate (86181)

A = 14³/₄" Screw-to-Screw Projection: 3"

San Carlos, 18" (76029)

A = 21¹⁵/16" Screw-to-Screw Projection: 3"

San Carlos, 24" (76041)

TS-DP REV18 12/04/2018
