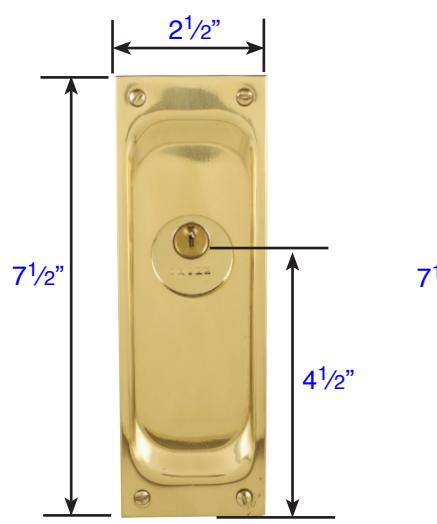

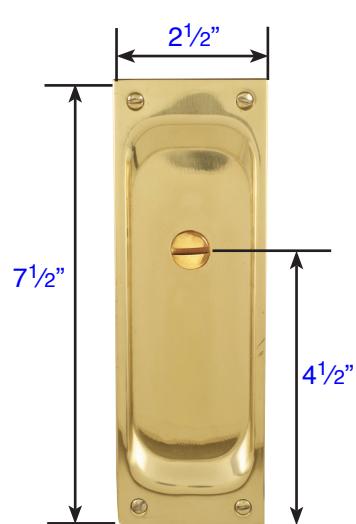

Pocket Door Mortise Locks - Classic
Keyed - (2103) Passage - (2104) Privacy - (2105) Dummy - (2106)
- Fits standard door thickness 13⁄8" to 13⁄4" ( Must Specify Door Thickness)
- Plates are 1⁄16" Thick
2" Screw-to-Screw 1 ⁄16" Thick

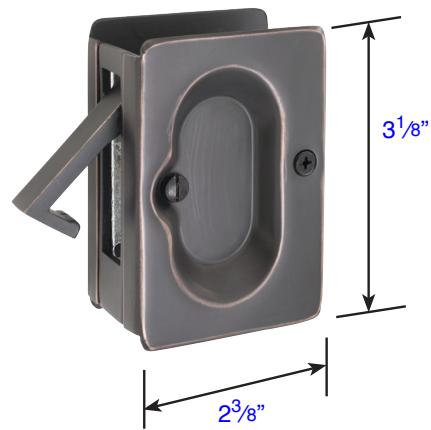

Passage Function (2101)
- Fits door thickness 13/8" to 13/4"
- Standard rectangular door prep 2 5/8" x 13/4"

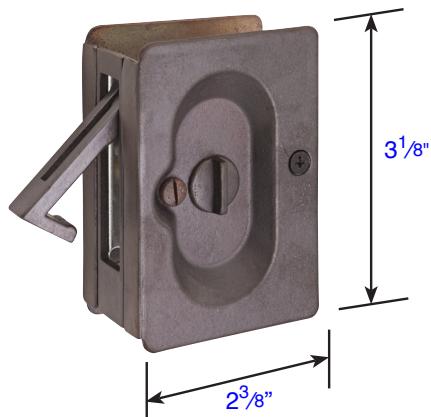

Privacy Function (2102)
- Fits door thickness 13/8" to 13/4"
- Standard rectangular door prep 2 5/8" x 13/4"

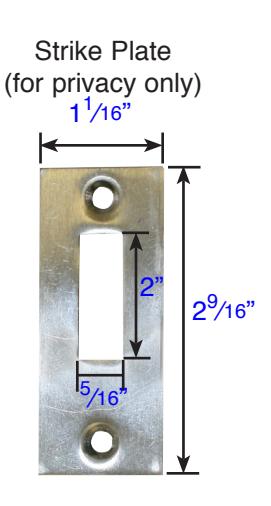

- Complete with strikeplate
Round Flush Pull (2211) Fits standard 21/8" door prep (1/8" Plate Thickness)
Square Flush Pull (2213) Fits standard 21/8" door prep (1/8" Plate Thickness)
Edge Pull with Screws (2221)
Rectangular Flush Pull (2201)
Classic Rectangular Flush Pull (2216)

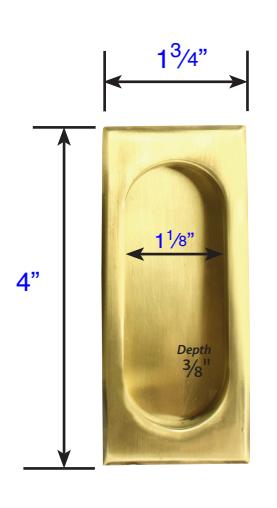

Narrow Oval Flush Pull (2212)

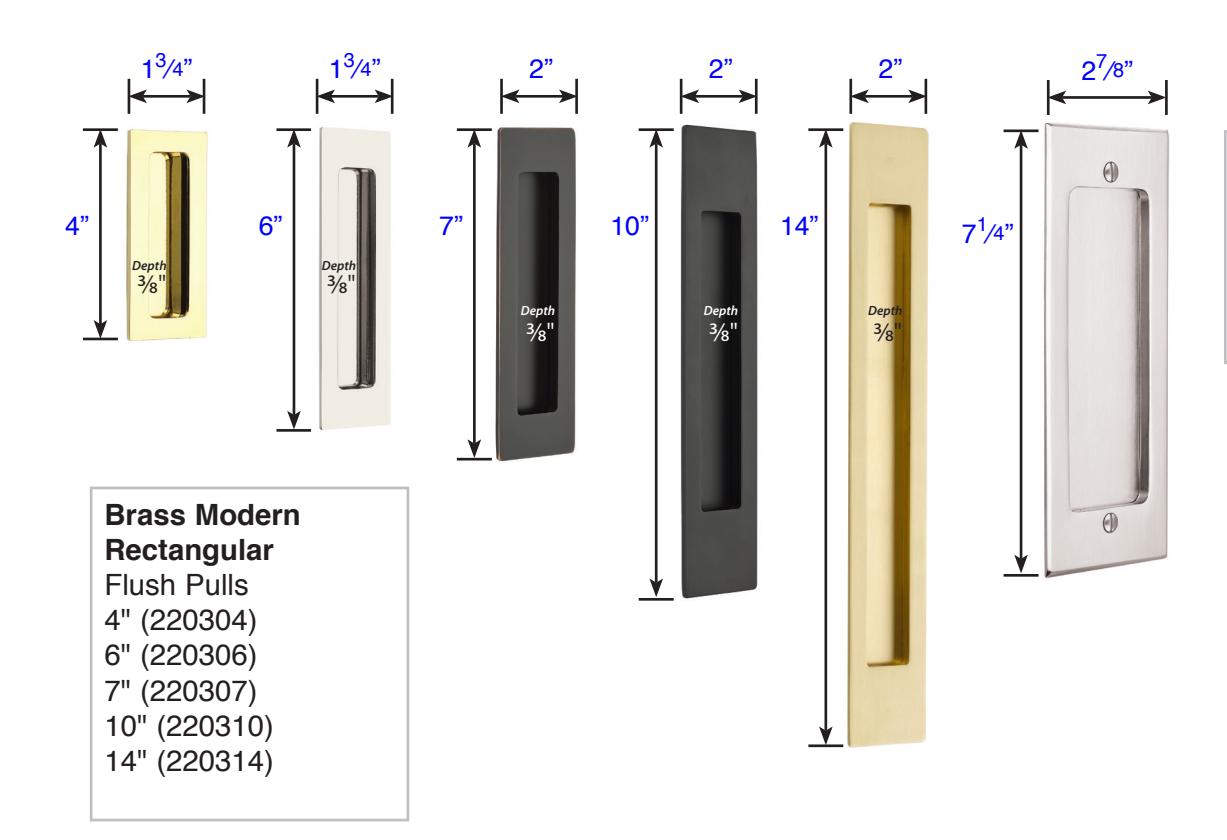

Brass Modern Rectangular Flush Pulls 27/8" x 71/4" (2215)

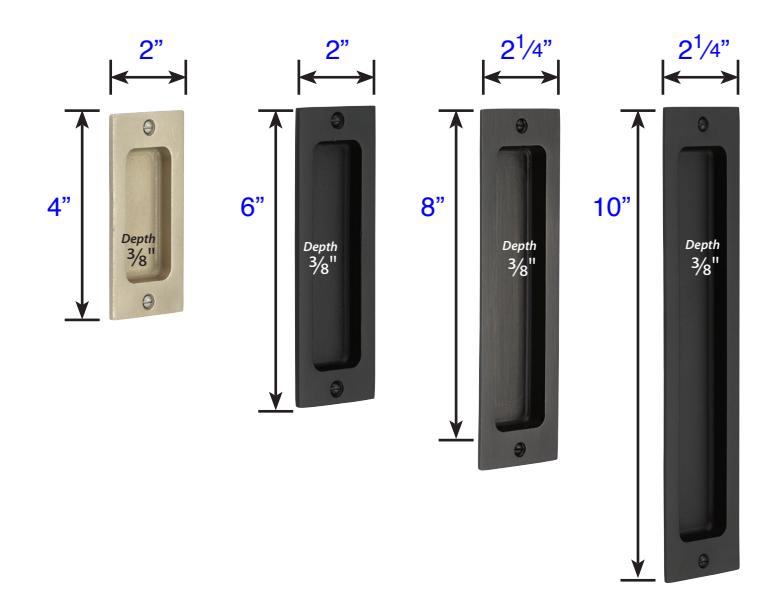

Sandcast Bronze Rustic Modern Rectangular Flush Pulls 4" (220404) 6" (220406) 8" (220408) 10" (220410)
Large (8713)
Cabinet Latch
Cabinet Latch (2270)

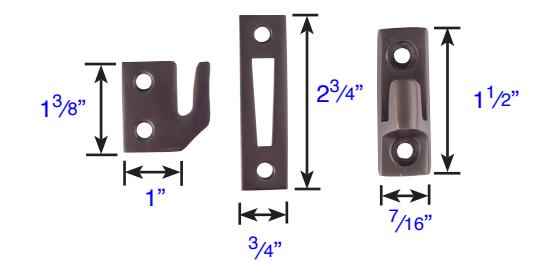

Solid Brass Casement Latches
Projection: 1<sup>7</sup>/<sub>8</sub>" Projection: 1<sup>7</sup>/<sub>8</sub>" Projection: 1<sup>7</sup>/<sub>8</sub>"

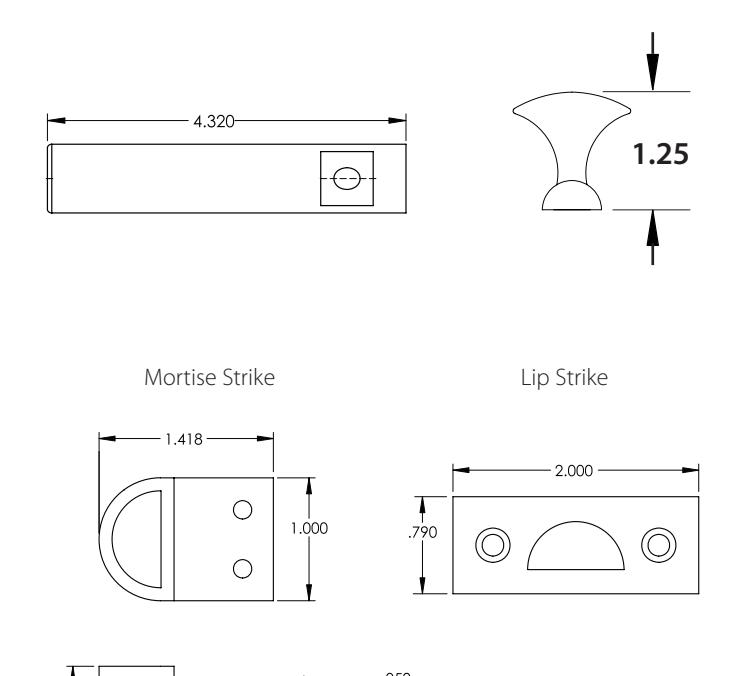

Door Catch

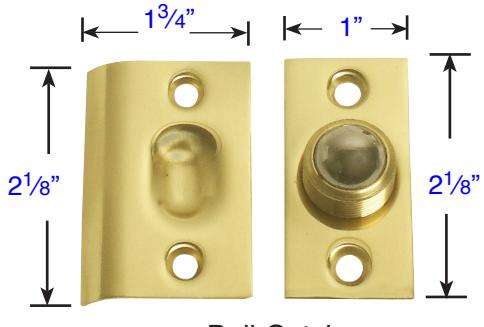

Ball Catch with Strike & Screws (8802)

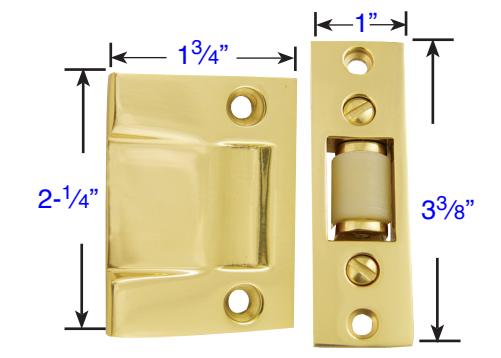

Roller Catch with Strike & Screws (8801)

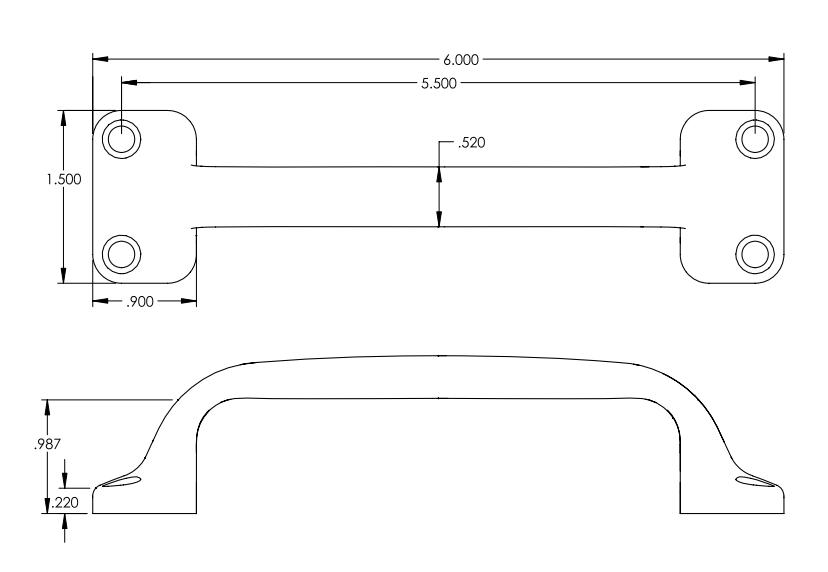

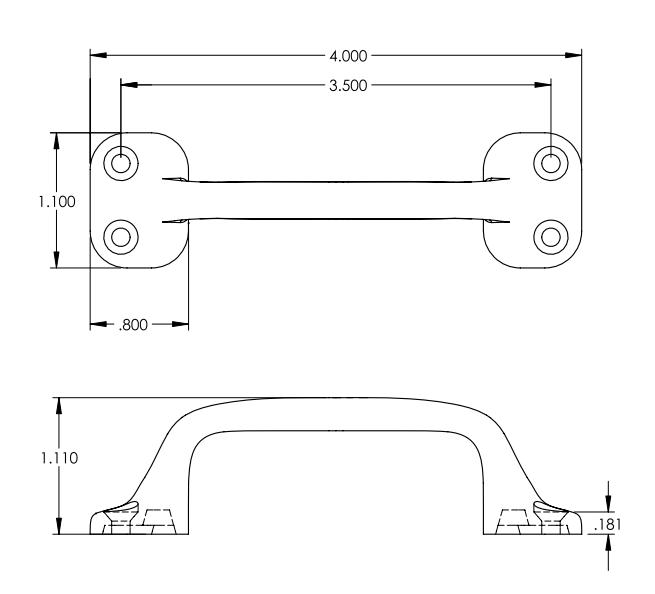

Window Utility Pulls
| Description | Product Code |
|---|---|
| 4" Window, Utility Pulls | 2244 |
| 6" Window, Utility Pulls | 2246 |
4" Dutch Door Bolts
| Description | Product Code |
|---|---|
| 4" Dutch Door Bolt | 8516 |
>> Supplied with 2 Types of Strike Plates and Screws. Strikes & Screws are NOT sold separately.
Patio Door Bolts, Keyed
| Description | Product Code |
|---|---|
| Silver | 206011 |
| Bronze | 206012 |
| White | 206016 |
| Black | 206017 |
Patio Door Bolts, Non-Keyed
| Description | Product Code |
|---|---|
| Silver | 206511 |
| Bronze | 206512 |
| White | 206516 |

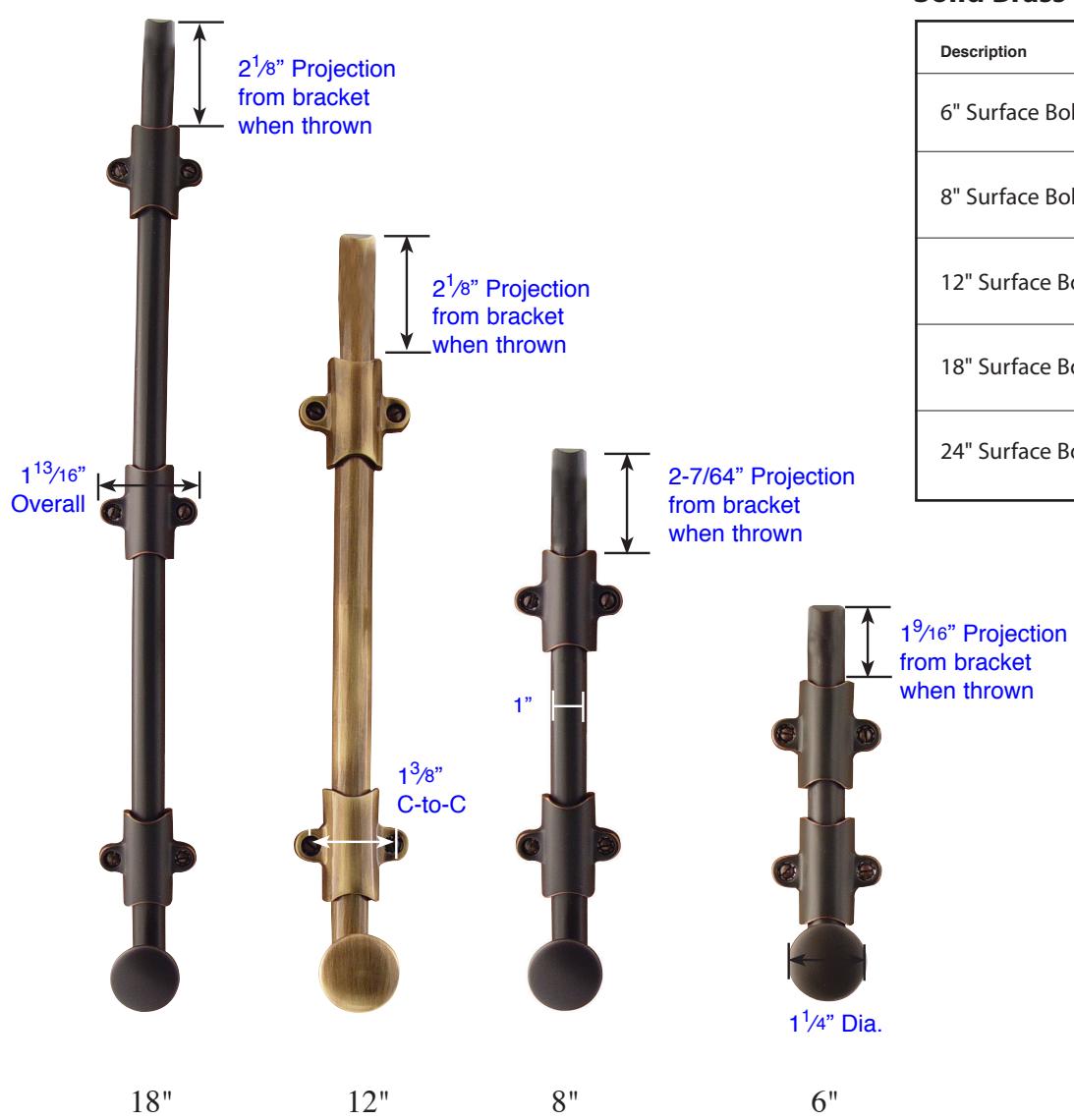

Solid Brass Surface Bolts
| Description | Product Code |
|---|---|
| 6" Surface Bolt | 8511 |
| 8" Surface Bolt | 8515 |
| 12" Surface Bolt | 8512 |
| 18" Surface Bolt | 8513 |
| 24" Surface Bolt | 8514 |

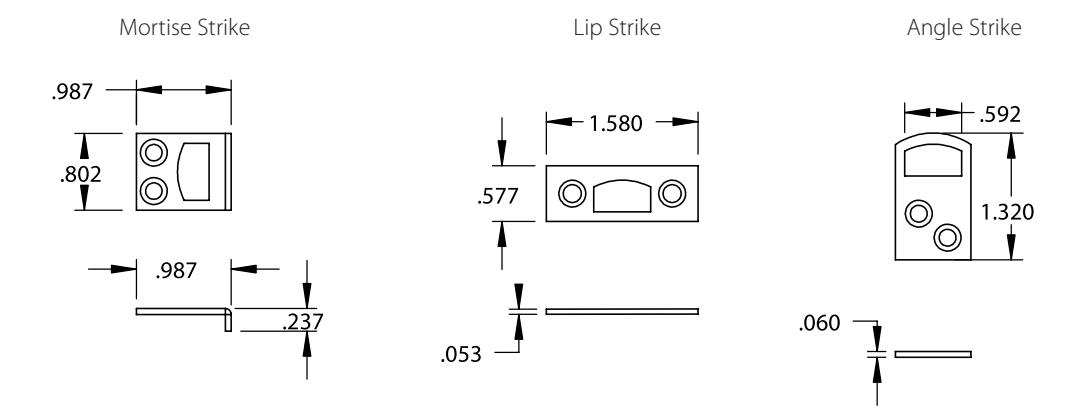

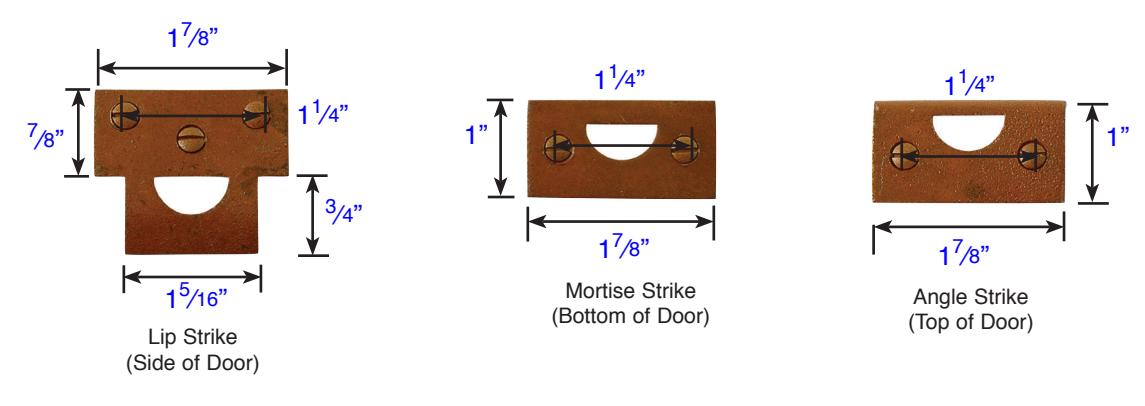

Surface Bolts Strike Plates

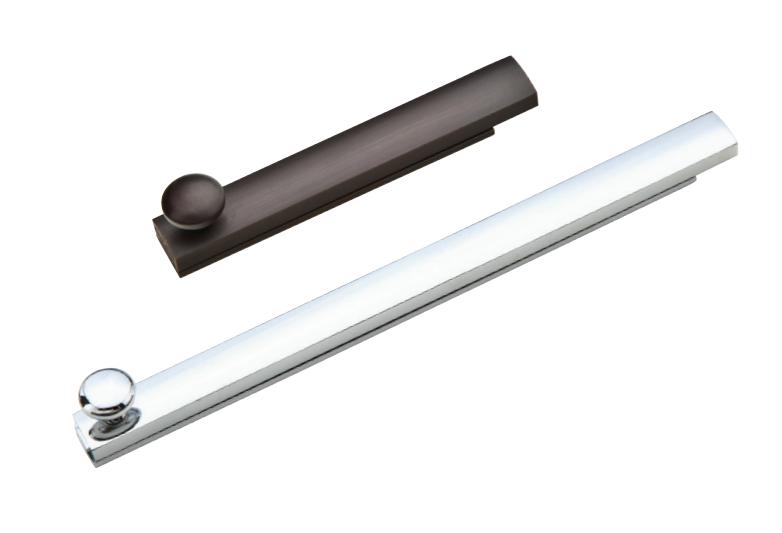

Concealed Screw Surface Bolts
| Description | Product Code |
|---|---|
|
4" Concealed Screw
Surface Bolt |
8527 |
|
6" Concealed Screw
Surface Bolt |
8528 |
|
8" Concealed Screw
Surface Bolt |
8529 |
|
12" Concealed Screw
Surface Bolt |
8530 |
>> Supplied with 3 Types of Strike Plates and Screws. Strikes & Screws are NOT sold separately.

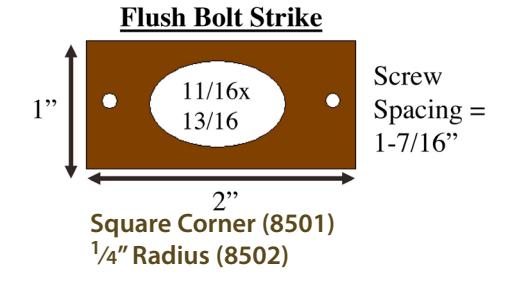

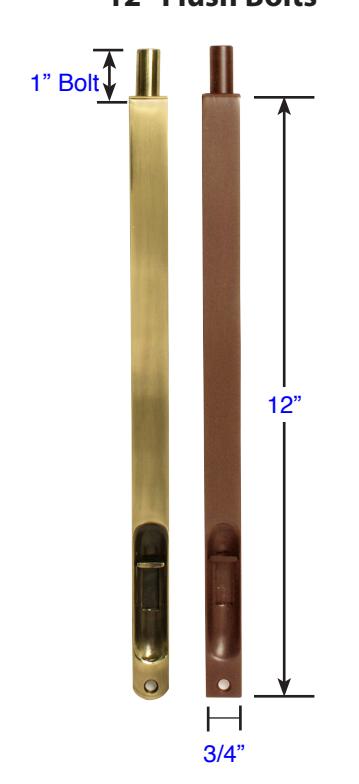

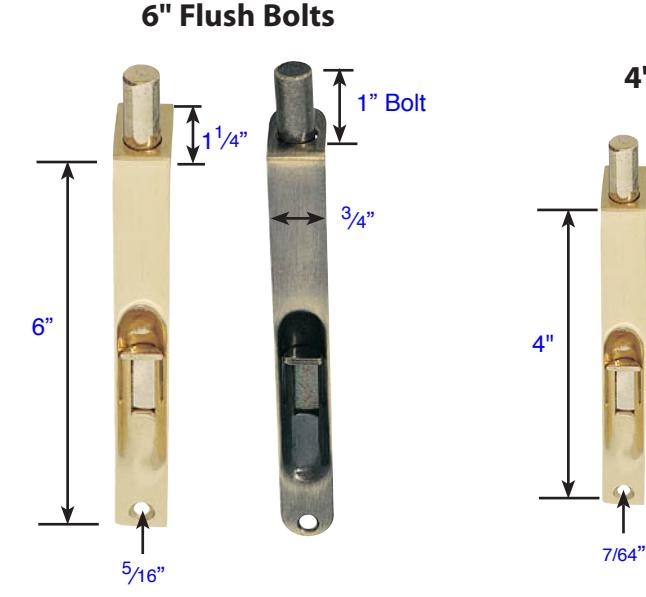

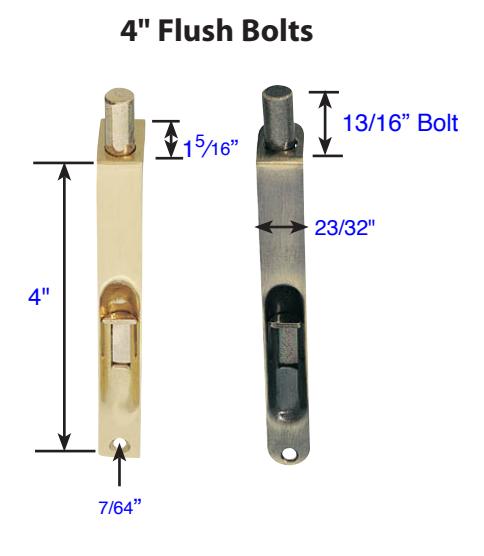

12" Flush Bolts

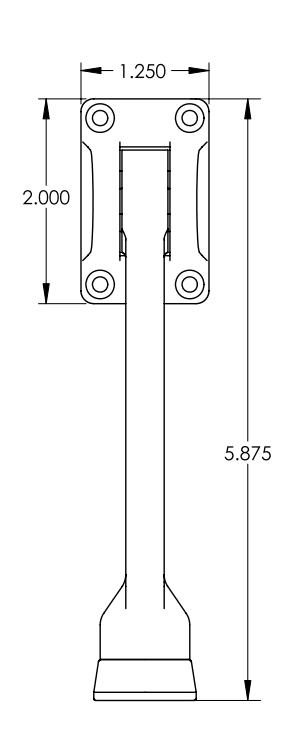

Kickdown Door Holders with Screws
| Description | Product Code |
|---|---|
|
5" Kickdown
Door Holder |
2265 |

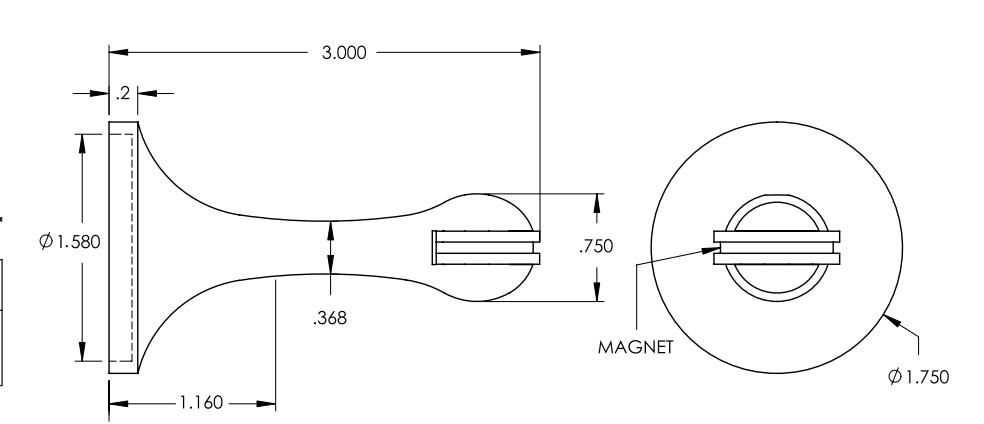

3" Magnetic Door Stop & Holder
| Product Code | ||
|---|---|---|
| 2256 |
Door Stops with Screws
| Description | Product Code |
|---|---|
| Half Dome | 2251 |
| Goose Style | 2253 |

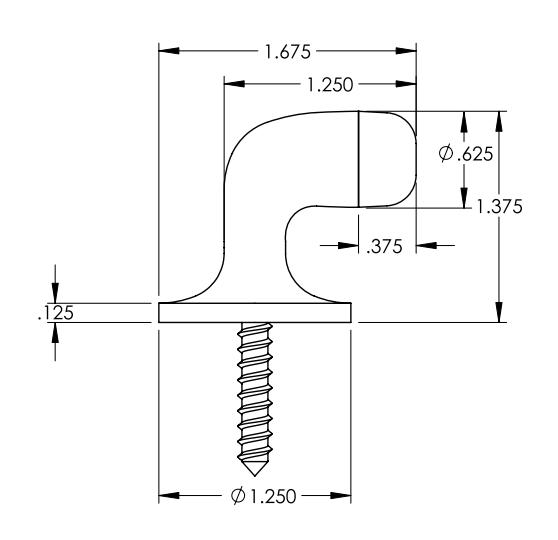

Half Dome Door Stop (2251)
Goose Style Door Stop (2253)
1" 11⁄2" 13⁄8" 21⁄2"
1" Projection (tall)
Door Stops
| Description | Product Code |
|---|---|
| 3" | 2232 |
| 4" | 2231 |
1 13⁄16" Base Diameter 2 7⁄8" Tall

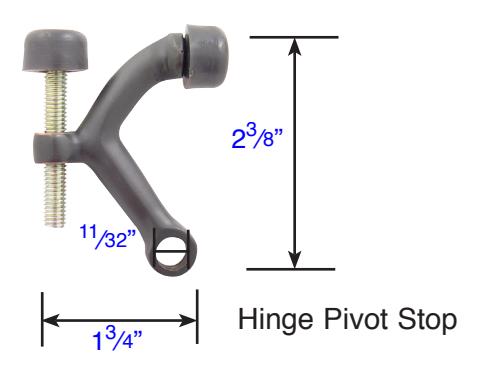

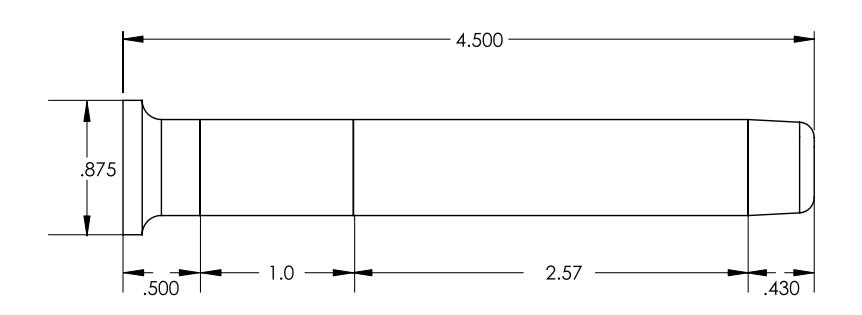

Hinge Pivot Stop
| Description | Product Code |
|---|---|
| Hinge Pivot Stop | 2241 |
|
Extended Button Tip
(Used on Solid Brass Hinges) |
2242 |
Cylinder Floor Bumpers with Screws
| Description | Product Code |
|---|---|
| 11/2" Cylinder | 2257 |
| 2" Cylinder | 2258 |
Cylinder Floor Bumpers with Dome Cap with Screws
| Description | Product Code |
|---|---|
| 11/2" Cylinder | 2259 |
| 2" Cylinder | 2260 |
Extendable Baseboard Door Bumper
| Product Code | |
|---|---|
| 2233 | |
>> Includes 3", 1", and 1/2" base with 2" screw
Floor Door Bumper
| Product Code |
|---|
| 2254 |

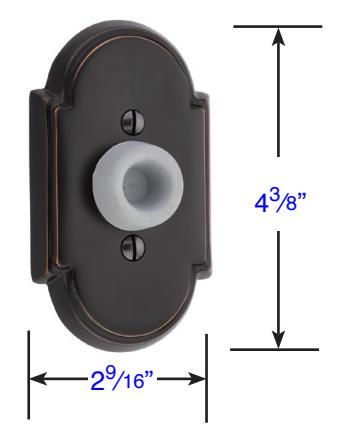

Brass Wall Bumper with #8 Rosette (2255)
Brass Wall Bumper with Square Rosette (2255)
Brass Wall Bumper with Regular Rosette (2255)
Sandcast Bronze Wall Bumper with #2 Rosette (2255)
• Same dimensions for rosettes & doorbell buttons
MAIL SLOT, KNOCKERS & DOOR VIEWER DOOR ACCESSORIES Technical Specifications

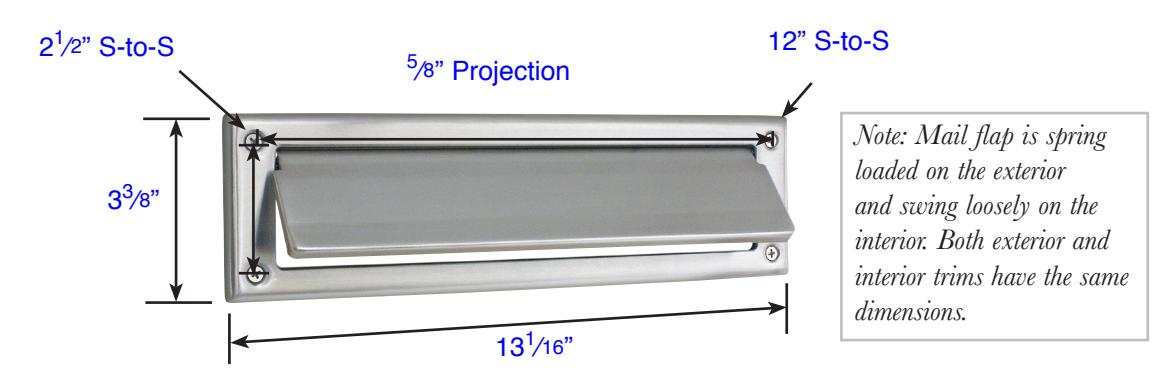

Solid Brass Mail Slot
Solid Brass Mail Slot (2280)
Door Knockers

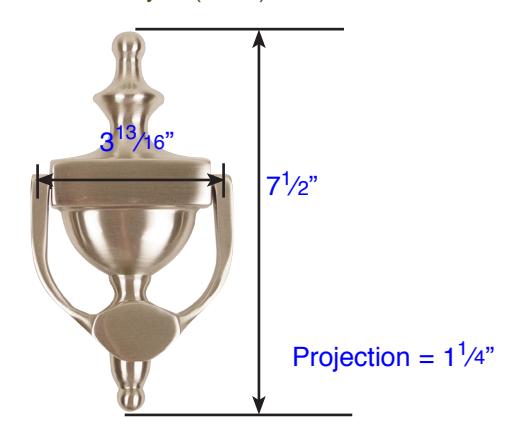

Solid Brass Door Knocker Urn Style (2620)
Note: We recommend that US3 finish be selected for those who intend to have the door knocker engraved. Emtek does not offer engraving services at this time

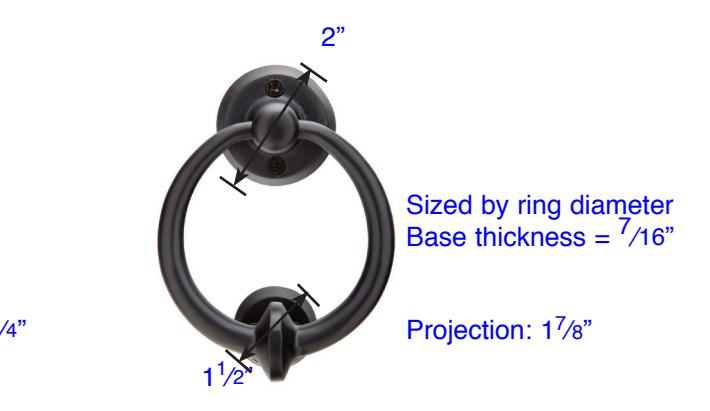

Bronze Door Knocker with 4" Ring Pull (86060)
Solid Brass Door Viewer
Solid Brass Door Viewer (2610)
• Fits standard door thickness 13⁄8" to 2" ( not available for thicker door)

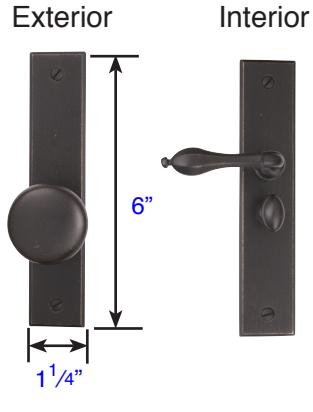

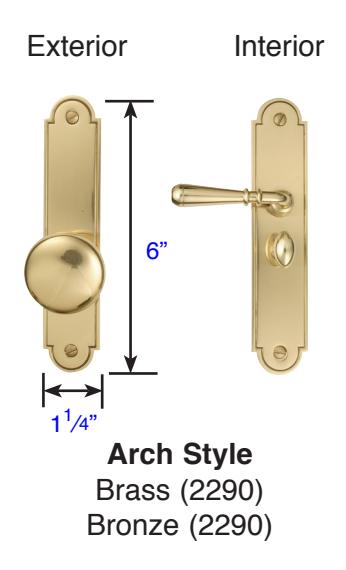

Rectangular Style Brass (2291) Bronze (2291)
Exterior & Interior Clearance: <sup>3</sup>/<sub>4</sub>" Projection: 1<sup>5</sup>/8" Lever Length: 2<sup>5</sup>/8" Knob Diameter: 1<sup>11</sup>/<sub>16</sub>"
Door Thickness Specifications: 1"-13/4"
Supplied With Matching Screws & Lighted Button

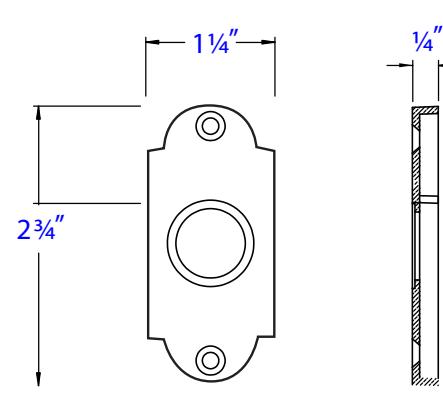

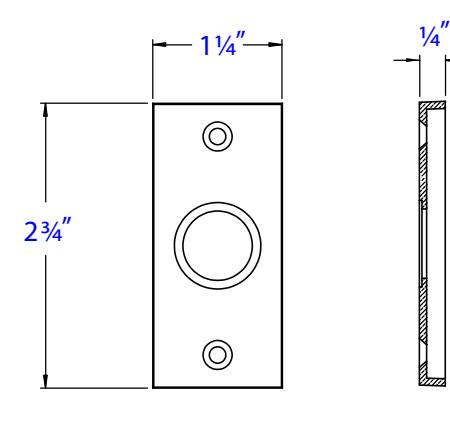

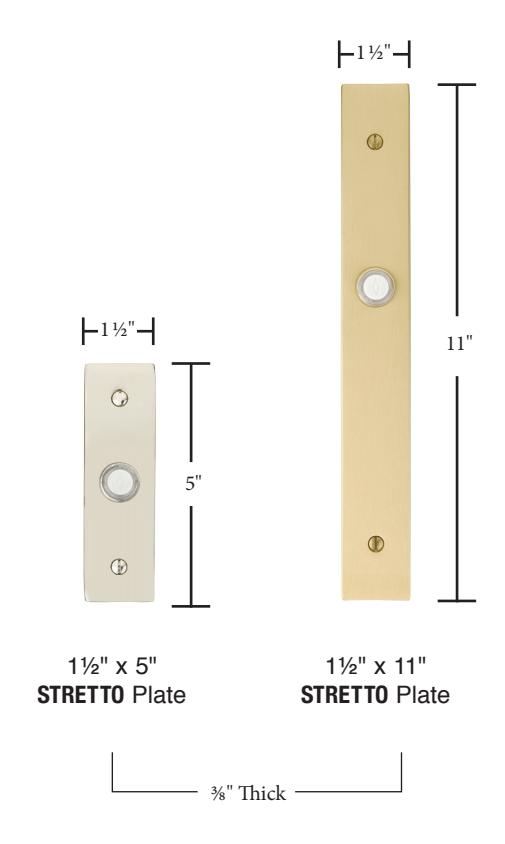

Small Rectangular Style (2464) Screw to Screw: 21 ⁄ 10"
Small #1 Style (2461) Screw to Screw: 21 ⁄ 4"
*Note:
These are the dimensions for these two styles only. All other doorbell button rosettes are the same dimensions as the passage/privacy rosettes.
Supplied With Matching Screws & Lighted Button
*Note:
These are the dimensions for these two styles only. All other doorbell button rosettes are the same dimensions as the passage/privacy rosettes.
Thru-Bolt Mount with Decorative Caps
Product Code Finish
Appliance/Door pulls are drilled and tapped for 3/8"-16 thread to accommodate thread adapters. Fits standard door thickness of 13/4". Specify if thicker.
Supplied with:
- Two- Thread adapters for ¼ -20 thread
- Two- 1/4-20 Flat head machine screws x 1" long
- Two- Thread adapters for 10-32 thread
- Two- 10-32 Flat head machine screws x 1" long
- Two- 10-32 Flat head machine screws x 2" long
- Two- Threaded Washers
- Two- Decorative Caps

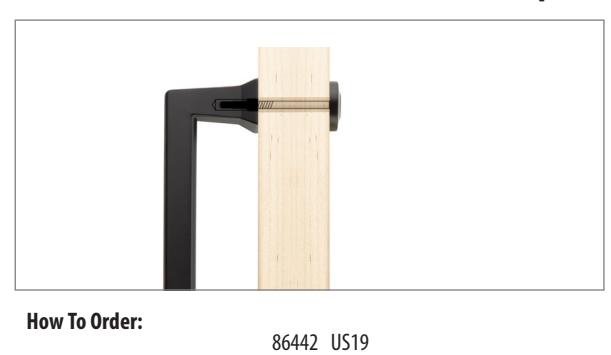

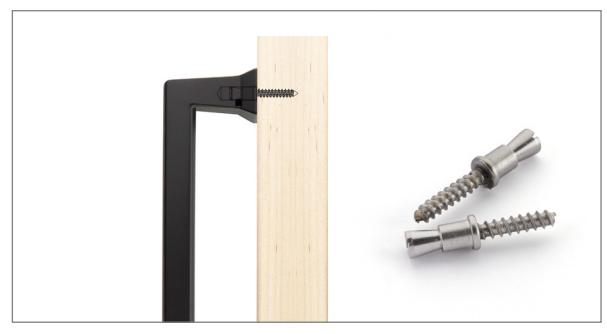

Concealed Surface Mount (CS)
CS 86442 US19 Concealed Surface Mount Product Code Finish How To Order:
Most standard appliance pulls and door pulls are available with Concealed Surface mounting. Fits minimum door thickness of 11/4".
Supplied with:
- One grip with 3/8" diameter hole in the stem
- Two- #10, 1" bevel head wood screws
- Two- 1-32 set screws

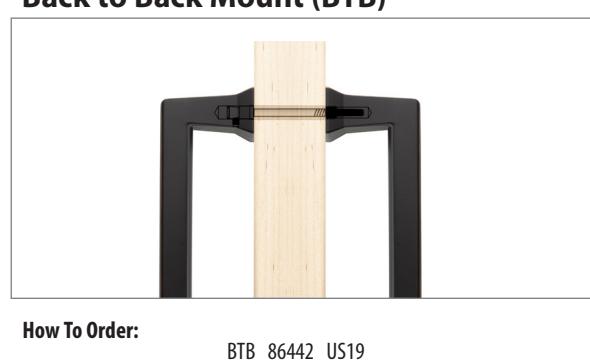

Back to Back Mount (BTB)
Back to Back Mount Product Code Finish
Most standard appliance pulls and door pulls are available with Back to Back mounting. Fits standard door thickness of 13/4". Specify if thicker.
Supplied with:
- One grip with 10-32 threads in the stem
- One mating grip with 3/8" diameter hole in the stem
- Two- 3/8" diameter bevel head screws with 10-32 shaft by 21/2" long
- Two- 10-32 set screws
TS-DA REV19 11/15/2019
