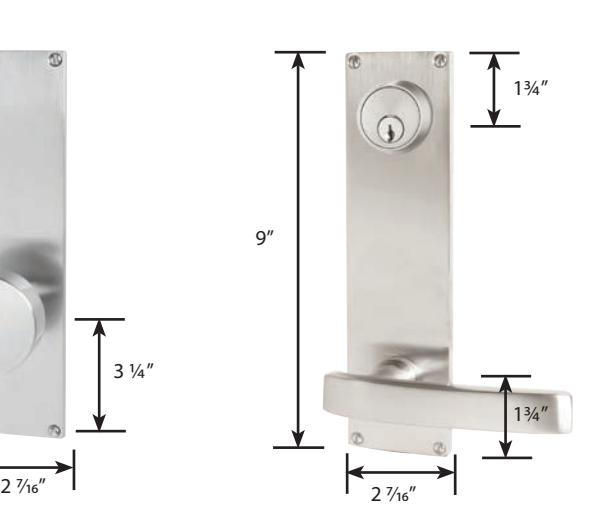

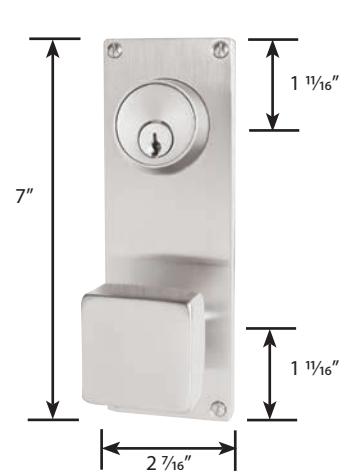

Modern Plates are 3/8" Thick

Non-Keyed

Passage (8111) Privacy (8211) Dummy (8011)

Keyed 3 5/8" C-to-C

Single Cylinder (8112) Double Cylinder (8212) Dummy (8012)

Non-Keyed

Passage (8113) Privacy (8213) Dummy (8013)

Keyed 5 1/2" C-to-C

Single Cylinder (8114) Double Cylinder (8214) Dummy (8014)

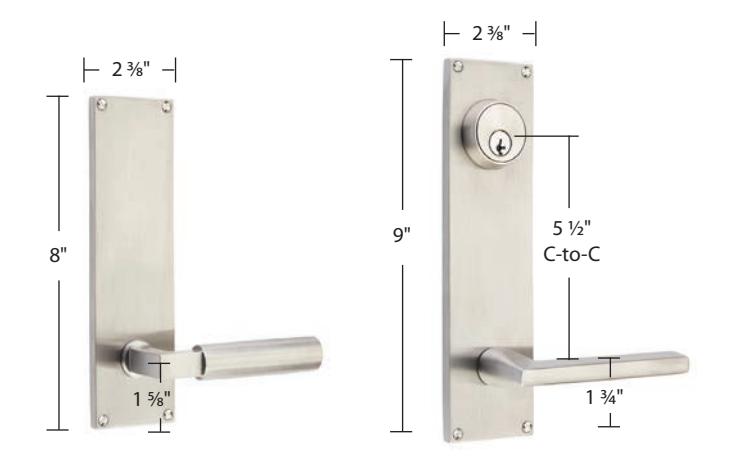

Stainless Steel Plates are 3/8" Thick

Non-Keyed Passage (S801) Privacy (S802)

Dummy (S800)

Keyed 5 1/2" C-to-C Single Cylinder (S811) Double Cylinder (S812) Dummy (S810)

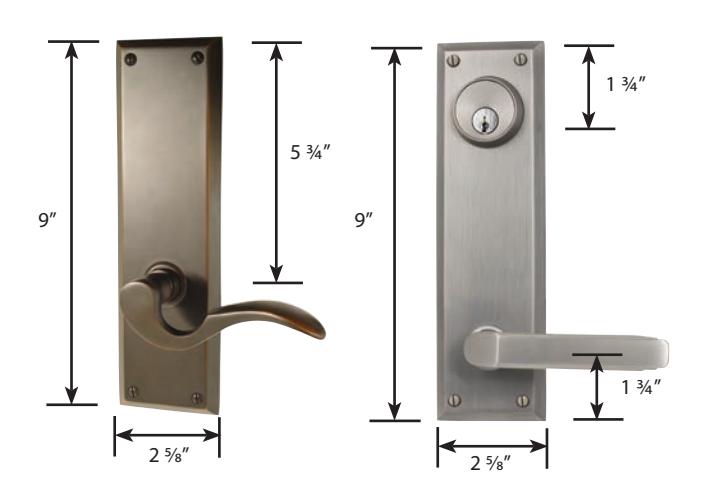

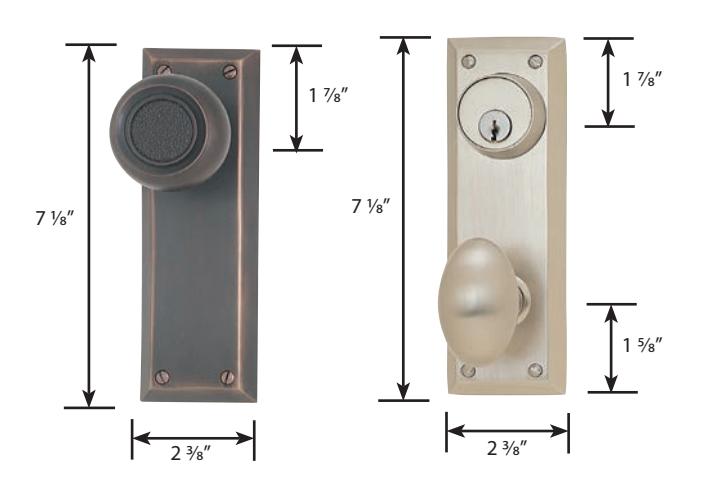

Quincy Plates are 3/8" Thick

Non-Keyed Passage (8104) Privacy (8204) Dummy (8054)

Keyed 3 5/8" C-to-C Single Cylinder (8080) Double Cylinder (8081) Dummy (8085)

Non-Keyed Passage (8704) Privacy (8804) Dummy (8854)

Keyed 5 1/2" C-to-C Single Cylinder (8980) Double Cylinder (8981) Dummy (8985)

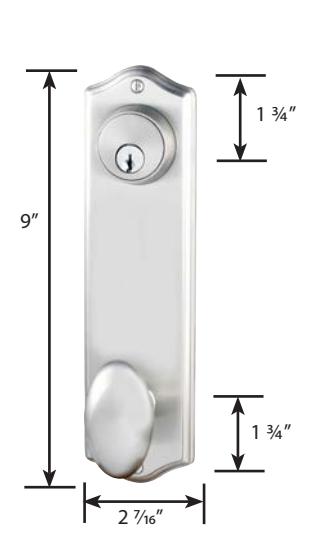

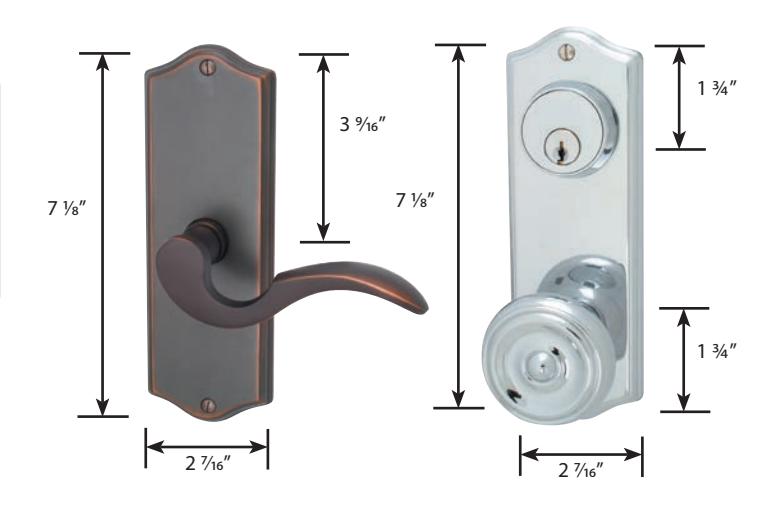

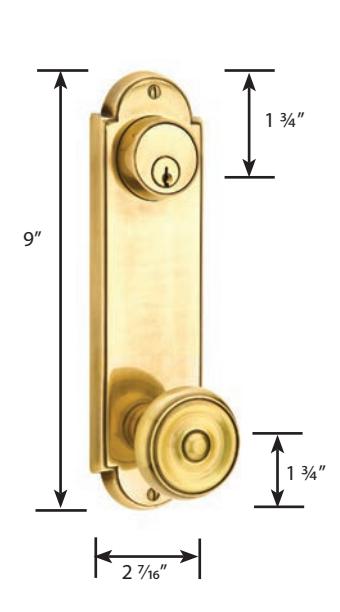

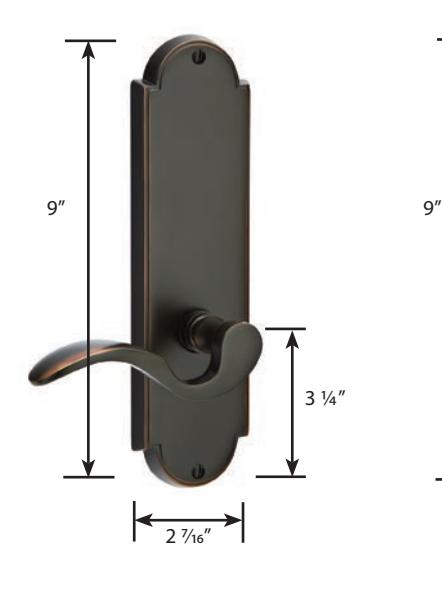

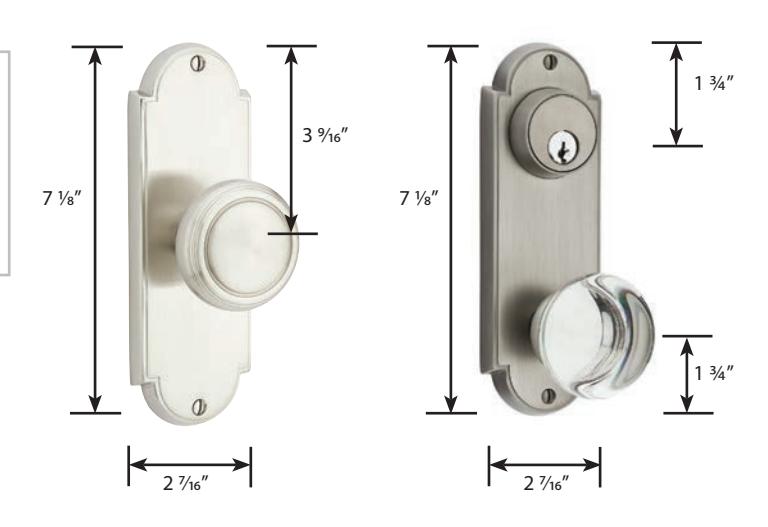

Delaware Plates are 3/8" Thick

Non-Keyed Passage (8016) Privacy (8026) Dummy (8006)

Keyed 3 5/8" C-to-C Single Cylinder (8066) Double Cylinder (8166) Dummy (8061)

Non-Keyed

Passage (8716) Privacy (8816) Dummy (8898)

Keyed 5 1/2" C-to-C Single Cylinder (8996) Double Cylinder (8997)

Dummy (8856)

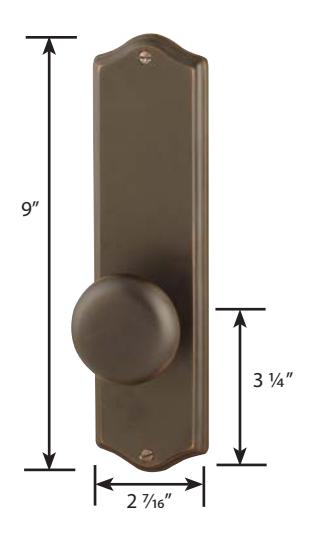

Colonial Plates are 3/8" Thick

Non-Keyed Passage (8010) Privacy (8020)

Dummy (8001)

Keyed 3 5/8" C-to-C Single Cylinder (8060) Double Cylinder (8160) Dummy (8065)

Non-Keyed

Passage (8711) Privacy (8811) Dummy (8851)

Keyed 5 1/2" C-to-C Single Cylinder (8990)

Double Cylinder (8991) Dummy (8995)

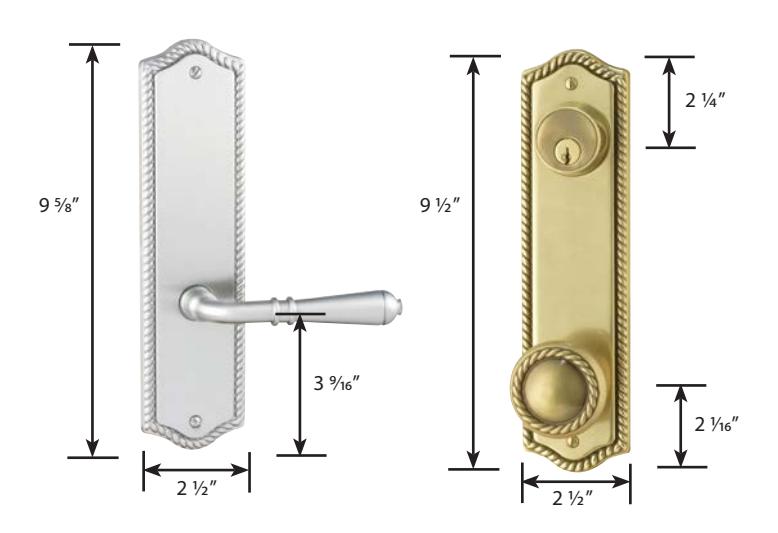

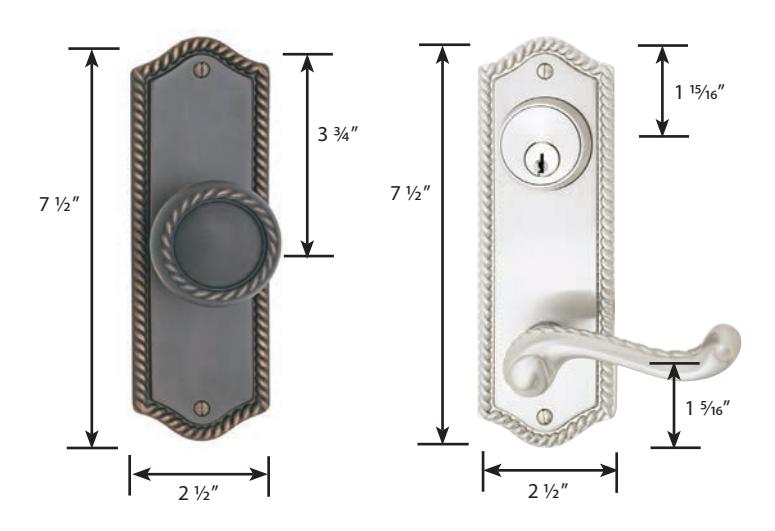

Rope Plates are 3/8" Thick

Non-Keyed Passage (7109) Privacy (7209) Dummy (7059)

Keyed 3 5/8" C-to-C Single Cylinder (7090) Double Cylinder (7091) Dummy (7095)

Non-Keyed Passage (7710) Privacy (7810) Dummy (7850)

Keyed 5 1/2" C-to-C Single Cylinder (7990) Double Cylinder (7991) Dummy (7995)

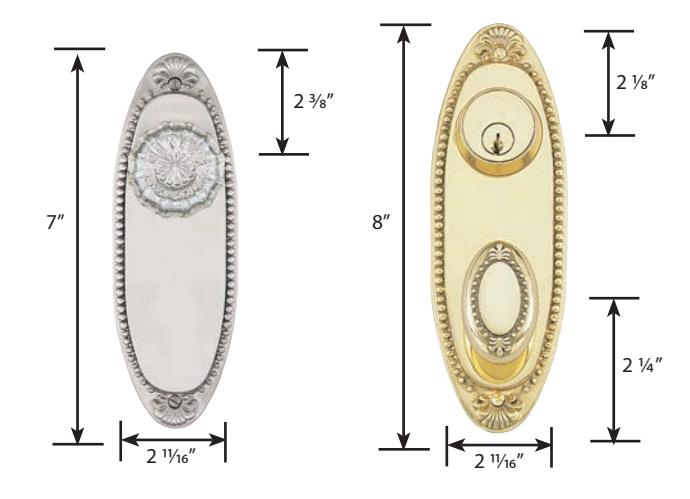

Oval Beaded Plates are 3/8" Thick

Non-Keyed Passage (8105) Privacy (8205) Dummy (8055)

Keyed 3 5/8" C-to-C Single Cylinder (6010) Double Cylinder (6011) Dummy (6015)

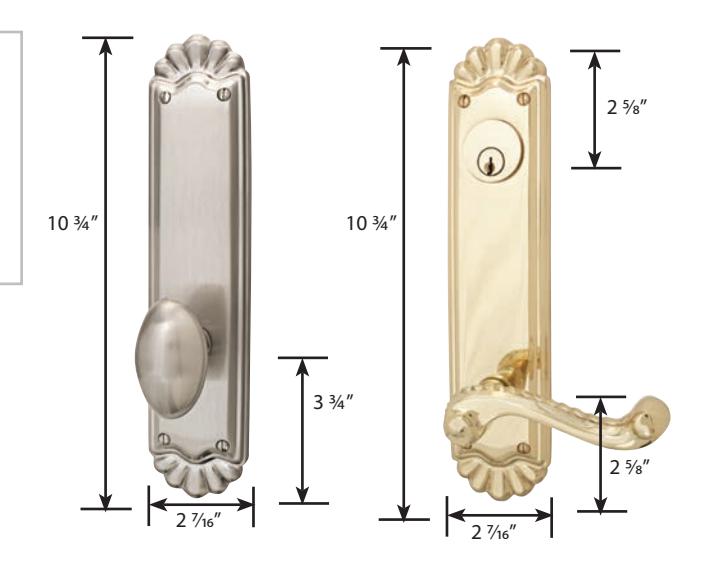

Trenton Plates are 1/2" Thick

Non-Keyed Passage (8109) Privacy (8209) Dummy (8059)

Keyed 5 1/2" C-to-C Single Cylinder (6030) Double Cylinder (6031) Dummy (6035)

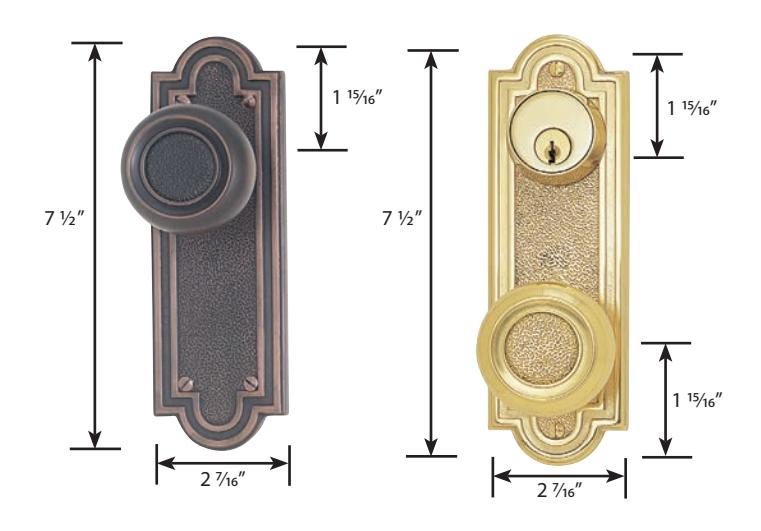

Belmont Plates are 3/8" Thick

Non-Keyed

Passage (8102) Privacy (8202) Dummy (8052)

Keyed 3 5/8" C-to-C Single Cylinder (8070) Double Cylinder (8071) Dummy (8075)

Victoria Plates are 3/8" Thick

Non-Keyed

Passage (8103) Privacy (8203) Dummy (8053)

Keyed 3 5/8" C-to-C

Single Cylinder (8090) Double Cylinder (8091) Dummy (8095)

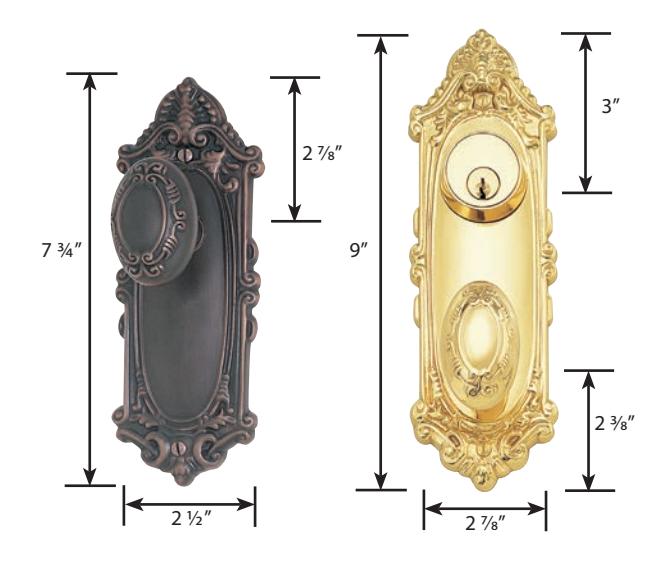

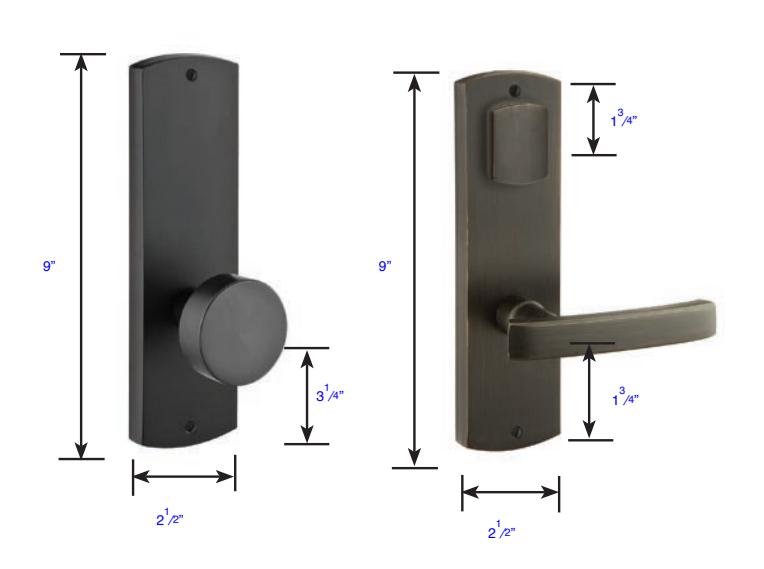

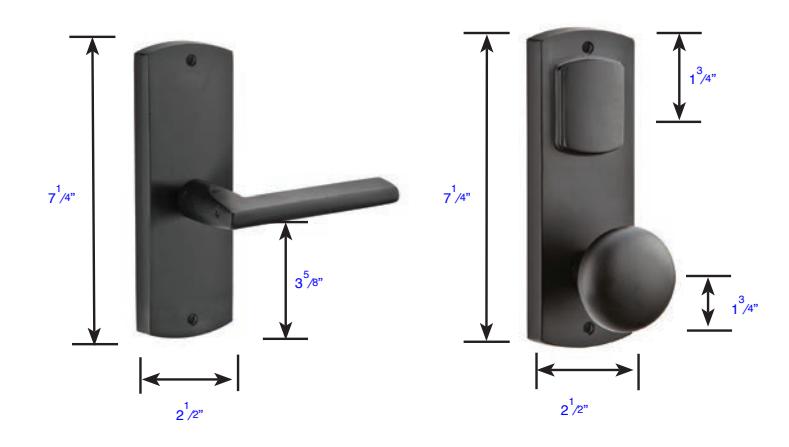

Missoula Plates are 1/2" Thick

Non-Keyed Passage (71023) Privacy (72023) Dummy (70063)

Keyed 3 5/8" C-to-C Single Cylinder (7370) Double Cylinder (7371) Dummy (7375)

Non-Keyed

Passage (7522) Privacy (7622) Dummy (7562)

Keyed 5 1/2" C-to-C Single Cylinder (7570) Double Cylinder (7571) Dummy (7575)

Rectangular Plates are 1/2" Thick

Non-Keyed Passage (71013) Privacy (72013) Dummy (70053)

Keyed 3 5/8" C-to-C Single Cylinder (7360) Double Cylinder (7361) Dummy (7365)

Non-Keyed

Passage (7512) Privacy (7612) Dummy (7552)

Keyed 5 1/2" C-to-C Single Cylinder (7560) Double Cylinder (7561) Dummy (7565)

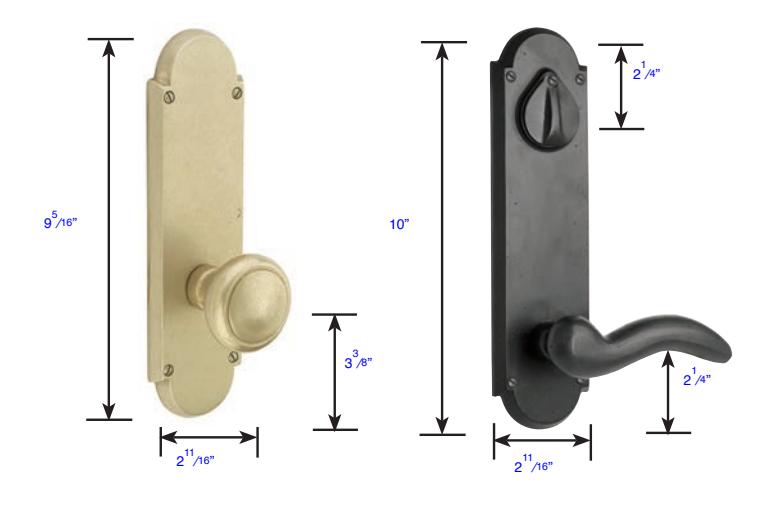

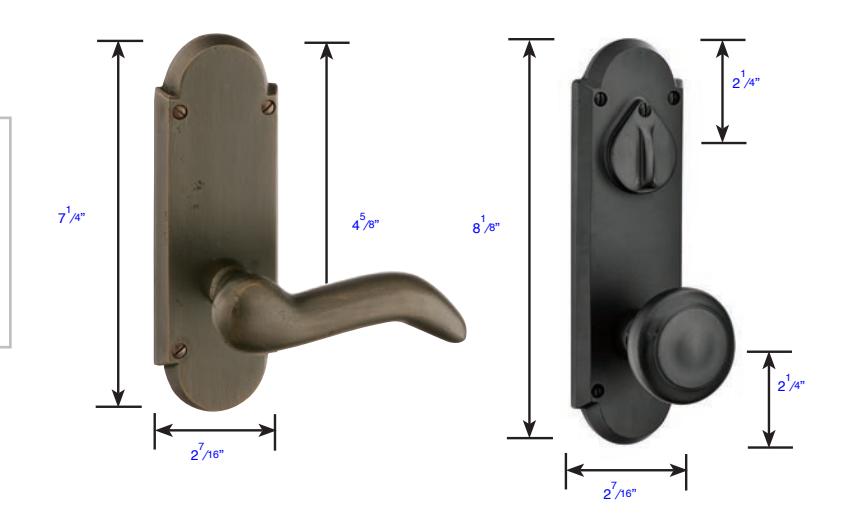

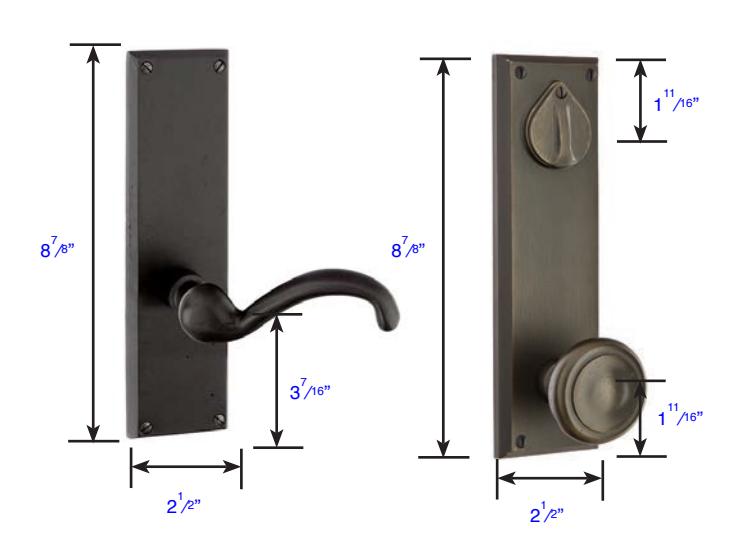

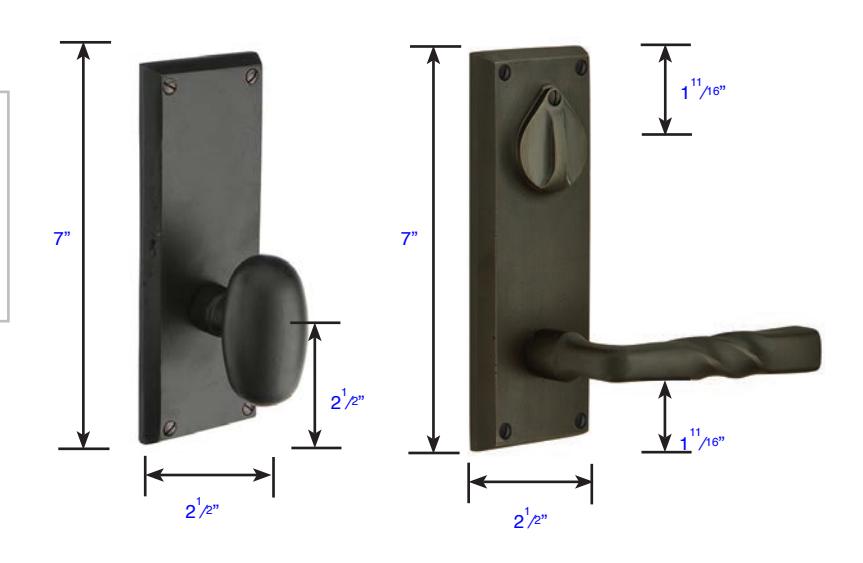

Sandcast Bronze #5 Plates are 1/2" Thick

Non-Keyed Passage (7107) Privacy (7207) Dummy (7057)

Keyed 3 5/8" C-to-C Single Cylinder (7070) Double Cylinder (7071) Dummy (7075)

Non-Keyed Passage (7707) Privacy (7807)

Dummy (7757)

Keyed 5 1/2" C-to-C Single Cylinder (7670) Double Cylinder (7671) Dummy (7675)

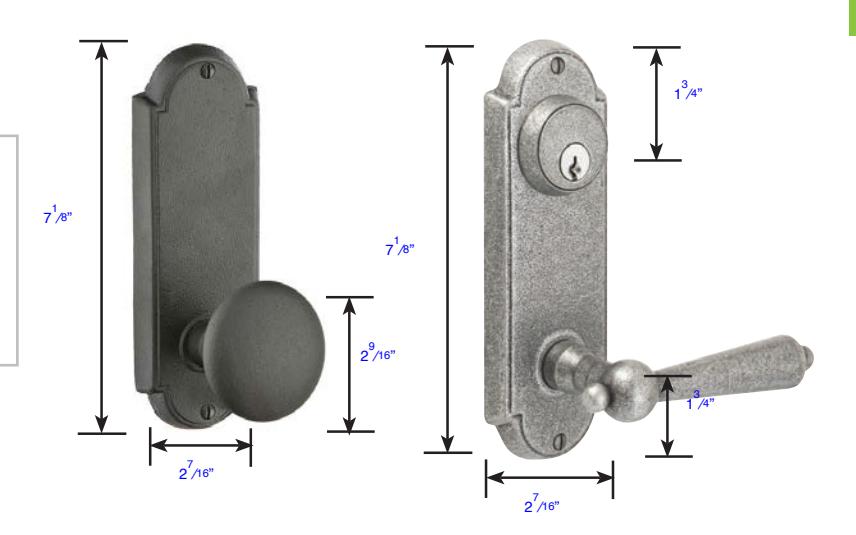

Wrought Steel #5 Plates are 1/2" Thick

Non-Keyed Passage (7105) Privacy (7205) Dummy (7055)

Keyed 3 5/8" C-to-C Single Cylinder (7010) Double Cylinder (7011) Dummy (7015)

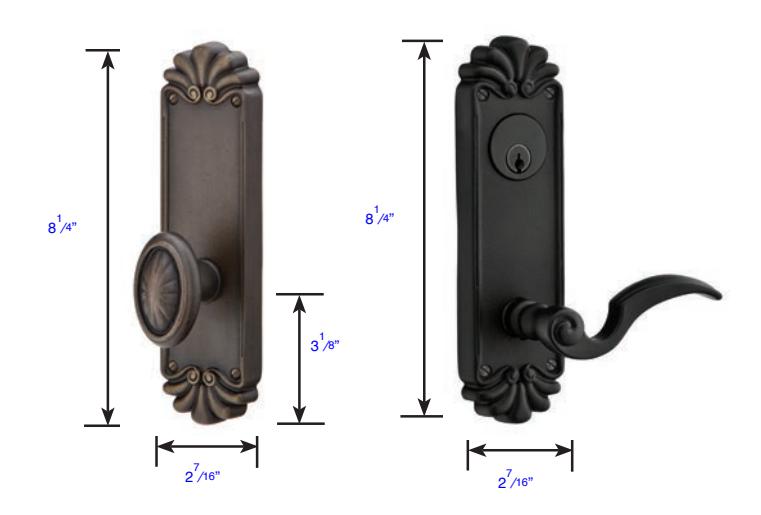

Tuscany #16 Plates are 3/8" Thick

Non-Keyed Passage (6102) Privacy (6202) Dummy (6052)

Keyed 3 5/8" C-to-C Single Cylinder (6020) Double Cylinder (6021) Dummy (6025)

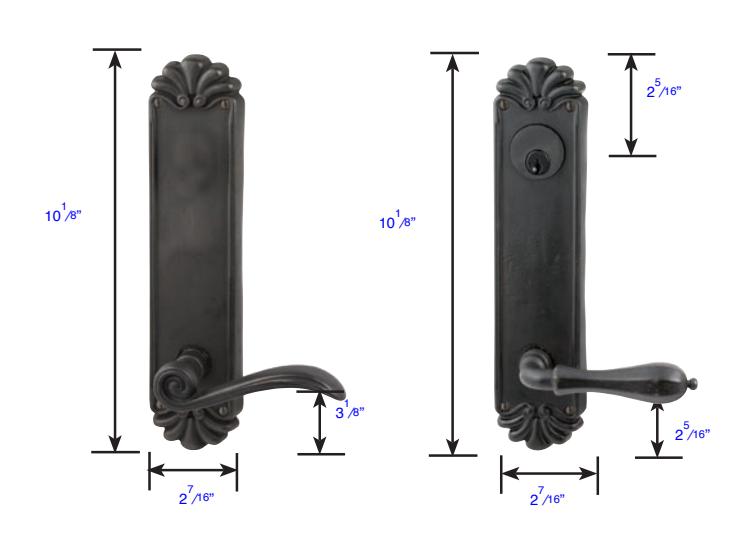

Non-Keyed Passage (6702) Privacy (6802) Dummy (6752)

Keyed 5 1/2" C-to-C Single Cylinder (6620) Double Cylinder (6621) Dummy (6625)

Door Thickness Specifications - Sideplate Locksets

Brass Non-Keyed Plates (Passage/Privacy)

Delaware (8016/8026 & 8716/8816), Colonial (8010/8020 & 8711/8811), Belmont (8102/8202), Quincy (8104/8204 & 8704/8804), Victoria (8103/8203), Oval Beaded (8105/8205), Rope (7109/7209 & 7710/7810), Modern (8111/8112 & 8113/8213)

• Standard Door Thickness: 11/4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 3" Extended Components:
• Privacy Pin w/ Extensions (for privacy sets)
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• Extended Full-Lip Strike Plate

Brass Keyed Plates, Single Cylinder

Delaware (8066/8996), Colonial (8060/8990), Belmont (8070), Quincy (8080/8980), Victoria (8090), Oval Beaded (6010), Rope (7090/7990), Modern (8112/8114)

• Standard Door Thickness: 11/4"- 13/4" Standard Components:
• Single Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21/4" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 13/4"- 21/4" Extended Components:
• Long Single Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 21/4"- 23/4" Extended Components:
• Extra Long Single Cylinder Tailpiece
• Extra Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 3" & 31/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

Brass Keyed Plates, Double Cylinder

Delaware (8166/8997),Colonial (8160/8991), Belmont (8071), Quincy (8081/8981), Victoria (8091), Oval Beaded (6011), Rope (7091/7991), Modern (8212/8214)

• Standard Door Thickness: 15/8"- 13/4" Standard Components:
• Double Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 3" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 13/4"- 21/2" Extended Components:
• Long Double Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 31/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

Door Thickness Specifications - Sideplate Locksets

Trenton Keyed Plates, Single Cylinder (6030)

• Standard Door Thickness: 15/8"- 21/8" Standard Components:
• Single Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21/4" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 13/4"- 23/4" Extended Components:
• Long Single Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21/2" & 3" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

Trenton (Brass), Keyed Plates, Double Cylinder (6031)

• Standard Door Thickness: 15/8"- 2" Standard Components:
• Double Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21/2" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 2"- 25/8" Extended Components:
• Long Double Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws

supplied upon request for Hollow-Core Doors

• 3" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

Cast Bronze Non-Keyed Plates (Passage/Privacy)

Sandcast Bronze #5 (7107/7207 & 7707/7807), Rectangular (71013/72013 & 7512/7612), Tuscany #16 (6102/6202 & 6702/6802) Missoula (71023/72023, 7522/7622)

• Standard Door Thickness: 11/4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 3" Extended Components:
• Privacy Pin w/ Extensions (for privacy sets)
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• Extended Full-Lip Strike Plate

Cast Bronze Keyed Plates, Single Cylinder

Sandcast Bronze #5 (7070/7670), Rectangular (7360/7560), Tuscany #16 (6020/6620), Missoula (7370/7570)

• Standard Door Thickness: 15/8"- 2" Standard Components:
• Single Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21/4" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 2"- 23/8" Extended Components:
• Long Single Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 23/8"- 3" Extended Components:
• Extra Long Single Cylinder Tailpiece
• Extra Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 3" & 31/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

^* Part # DB4-COLLAR32 Available for 13/8" Thick Doors

Door Thickness Specifications - Sideplate Locksets

Cast Bronze Keyed Plates, Double Cylinder

Sandcast Bronze #5 (7071/7671), Rectangular (7361/7561), Tuscany #16 (6021/6621), Missoula (7371/7571)

• Standard Door Thickness: 11/2"- 2" Standard Components:
• Single Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21/2" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 2"- 21/2" Extended Components:
• Long Double Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 3" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 21/2"- 23/4" Extended Components:
• Long Double Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 31/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

Wrought Steel #5 Keyed Plates, Double Cylinder (7011)

• Standard Door Thickness: 15/8"- 13/4" Standard Components:
• Double Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 3" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 13/4"- 23/8" Extended Components:
• Long Double Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws supplied upon request for Hollow-Core Doors
• 31/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

Wrought Steel Non-Keyed Plate (Passage/Privacy) (7105/7205)

• Standard Door Thickness: 11/4"- 13/4" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• Full-Lip Strike Plate

• Extended Door Thickness: 13/4"- 23/8" Extended Components:
• Privacy Pin w/Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 1" Wood Screws supplied upon request for Hollow-Core Doors
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 13/4"- 23/8" Extended Components:
• Privacy Pin w/Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• Extended Full-Lip Strike Plate

Wrought Steel #5 Keyed Plates, Single Cylinder (7010)

• Standard Door Thickness: 11⁄2"- 13⁄4" Standard Components:
• Single Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21⁄4" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 13⁄4"- 21⁄4" Extended Components:
• Long Single Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 21⁄2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

• Extended Door Thickness: 21⁄4"- 23⁄4" Extended Components:
• Extra Long Single Cylinder Tailpiece
• Extra Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws supplied upon request for Hollow-Core Doors
• 3" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

TS-SP REV18A 04/04/2018
